Overview

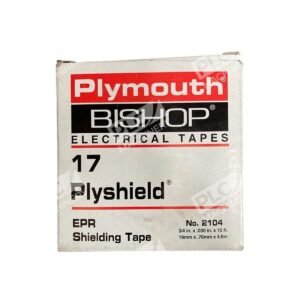

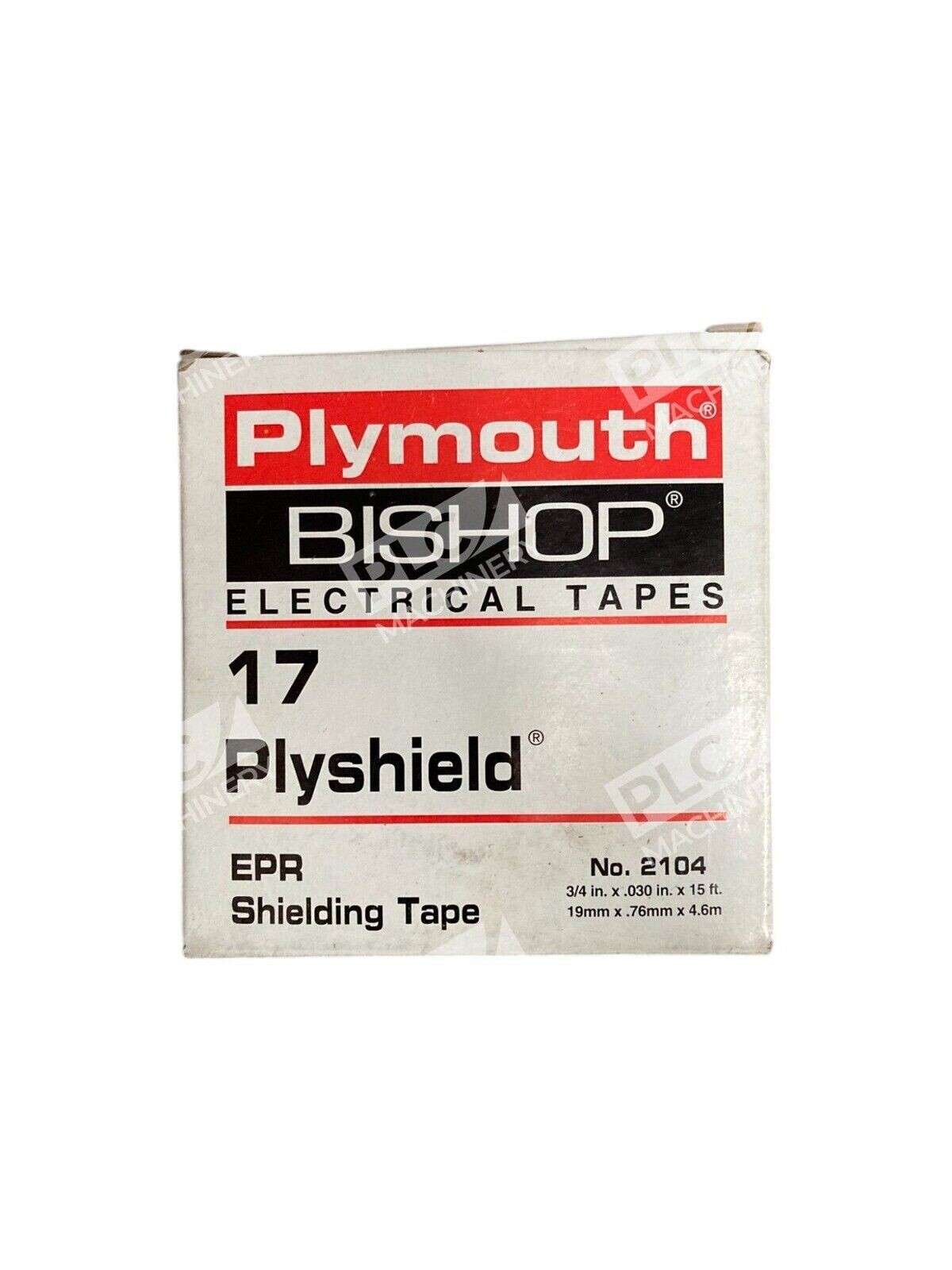

The Plymouth 2104 is a 17 Plyshield EPR shielding tape engineered for high-voltage cable splice and termination shielding. This ethylene propylene rubber based, self-amalgamating and conducting tape has an unsupported construction ideal for use on power cable where accommodation of expansion and contraction due to load cycling is important. The tape measures 3/4″ wide × 15′ long with a 30 mil thickness.
Key Features
- Ethylene propylene rubber (EPR) based, self-amalgamating and conducting material
- Excellent stretch allows conformability to complex shapes
- Accommodates expansion and contraction due to load cycling
- Compatible with all extruded dielectric cable insulations
- Suitable for rebuilding strand shields and insulation shields on high-voltage splices and shielding all types of connections
- Meets ASTM D-4388 Type IV standard
Technical Specifications
- Manufacturer: Plymouth Rubber
- Part Number: 2104
- Series: 17 Plyshield
- Material: EPR (Ethylene Propylene Rubber)
- Thickness: 30 mil (0.76 mm)
- Width: 3/4″ (19 mm)
- Length: 15 feet (4.6 meters)
- Type: Self-Amalgamating, Conducting
- Color: Black
- Packaging: 50 rolls per case
- Weight per Case: 13 lbs (6 kg)
- Standard: ASTM D-4388 Type IV
Typical Applications
The 17 Plyshield is designed for shielding high-voltage splices and terminations, and for rebuilding strand shields and insulation shields on high-voltage splices. Common uses include:
- Electrostatic shielding on high-voltage splices and terminations
- Filling indents in compression connectors and rebuilding strand shielding on high-voltage splices
- Shielding bus and overhead connections
- Power cable repair and maintenance on systems handling load cycling
Compatibility & Replacements
Compatible With
- All extruded dielectric cable insulations
- High-voltage power cable systems
- Cable splice and termination assemblies
- Compression connectors and bus bar applications
Replaces / Drop-In Replacement For
The Plymouth 2104 is the standard catalog reference for this size and specification of 17 Plyshield EPR tape. Verify compatibility with your cable standards and application specifications before ordering.
Works With
- Power cables rated for high-voltage applications
- All ASTM D-4388 compliant cable systems
- Cable termination kits and splice assemblies
- High-voltage maintenance and repair protocols
