Overview

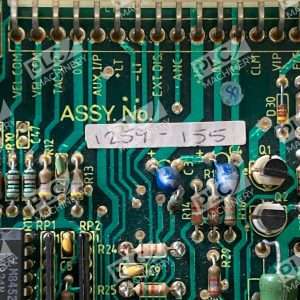

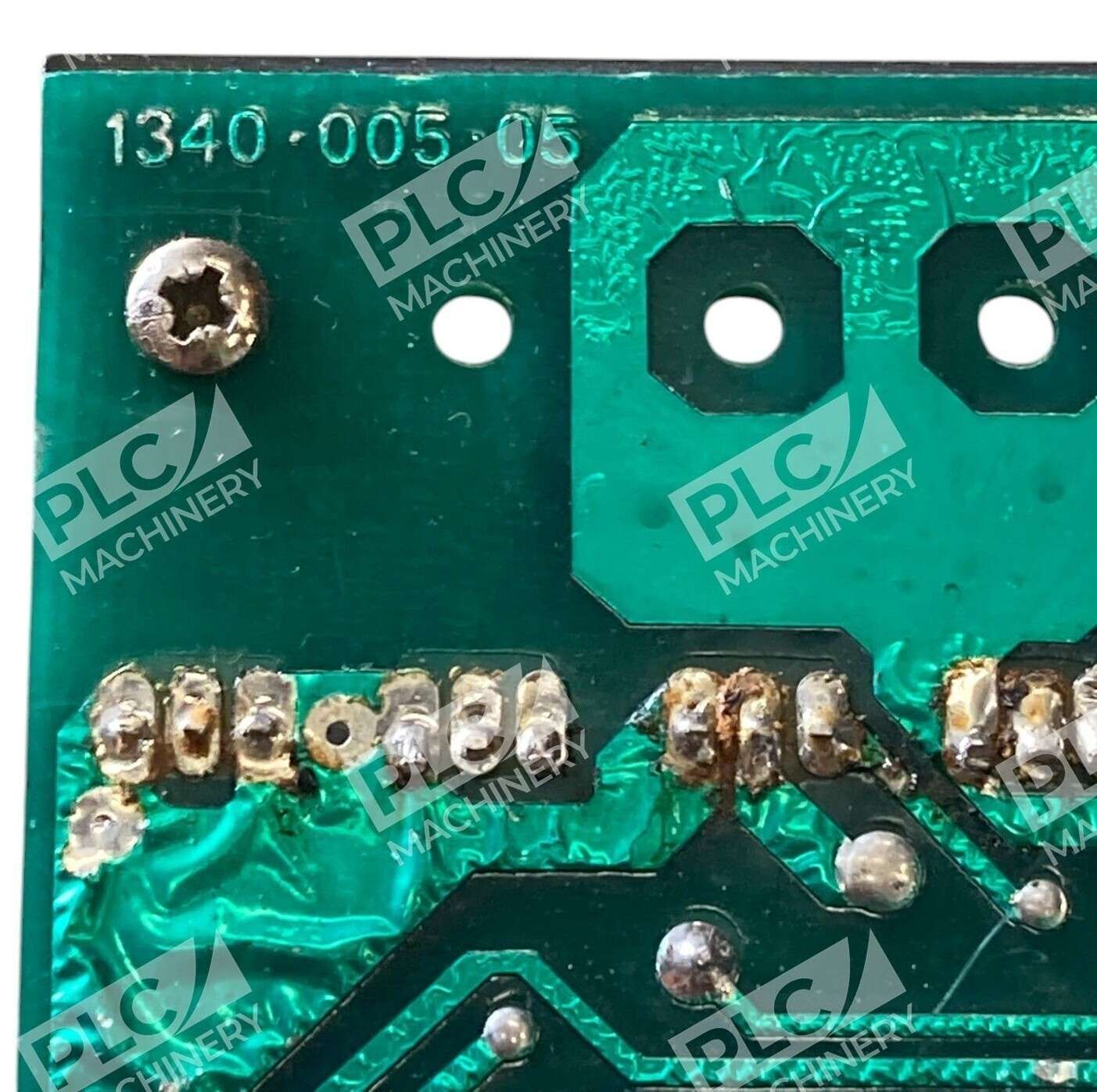

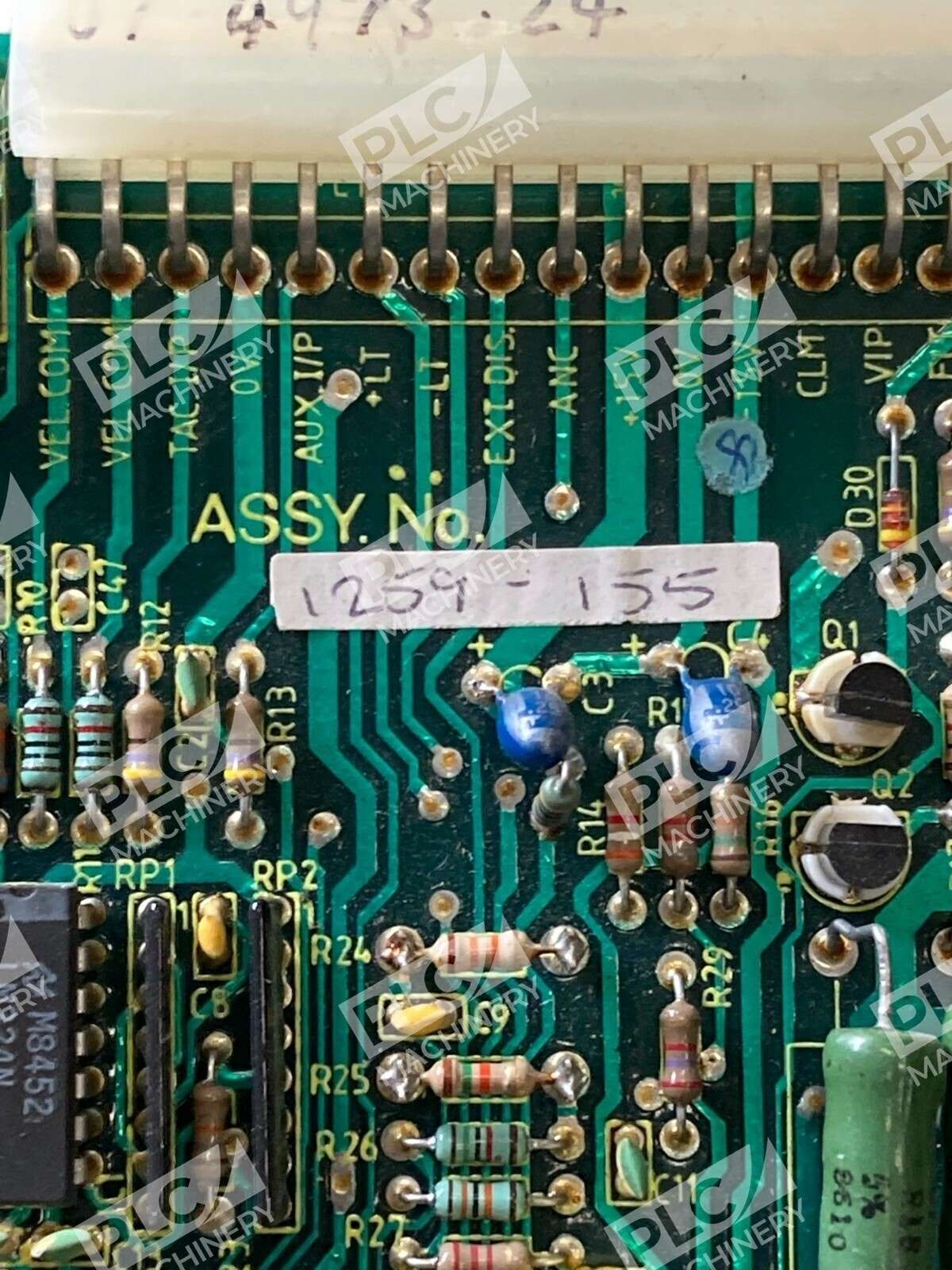

The DIGIPLAN 1259-155 HFC/AX Circuit Board is a printed circuit board assembly designed for HFC series DC servo drive and motion control systems. This board serves as a critical component in legacy industrial automation equipment, providing signal conditioning and control logic for DC motor servo systems. The 1340-005-05 module integrates analog and digital circuitry required for proportional valve drive, motion control, and system diagnostics in industrial hydraulic and electric servo applications.
Key Features
- Designed for HFC series DC servo drive systems
- Integrated analog and digital control circuitry
- Standard PCB form factor compatible with AX-series slot configurations
- Supports legacy industrial motion control applications
- Used/tested condition ready for reinstallation
Technical Specifications
- Part Number: DIGIPLAN 1259-155 / 1340-005-05
- Series: HFC AX
- Application: DC Servo Drive Control Board
- Board Type: Analog/Digital Control PCB
- Form Factor: Standard Industrial PCB Module
- Condition: Used / Refurbished
Typical Applications
- HFC series DC servo drive systems
- Legacy proportional valve control systems
- Industrial motion control equipment
- DC motor servo control and amplification
- Equipment repair and replacement for discontinued HFC systems
Compatibility & Replacements
Compatible With
- HFC series DC servo drive systems
- DIGIPLAN motion control hardware
- Legacy industrial automation platforms requiring AX-series modules
- Proportional valve control circuits
Replaces / Drop-In Replacement For
- DIGIPLAN 1259-155 (equivalent part number designation)
- HFC AX 1340-005-05 module assemblies
- Verify compatibility with your system integrator or service technician before ordering to ensure proper form factor and connector compatibility
Works With
- HFC series control modules and chassis
- Standard industrial PCB slot configurations
- Legacy analog servo control architectures
