Overview

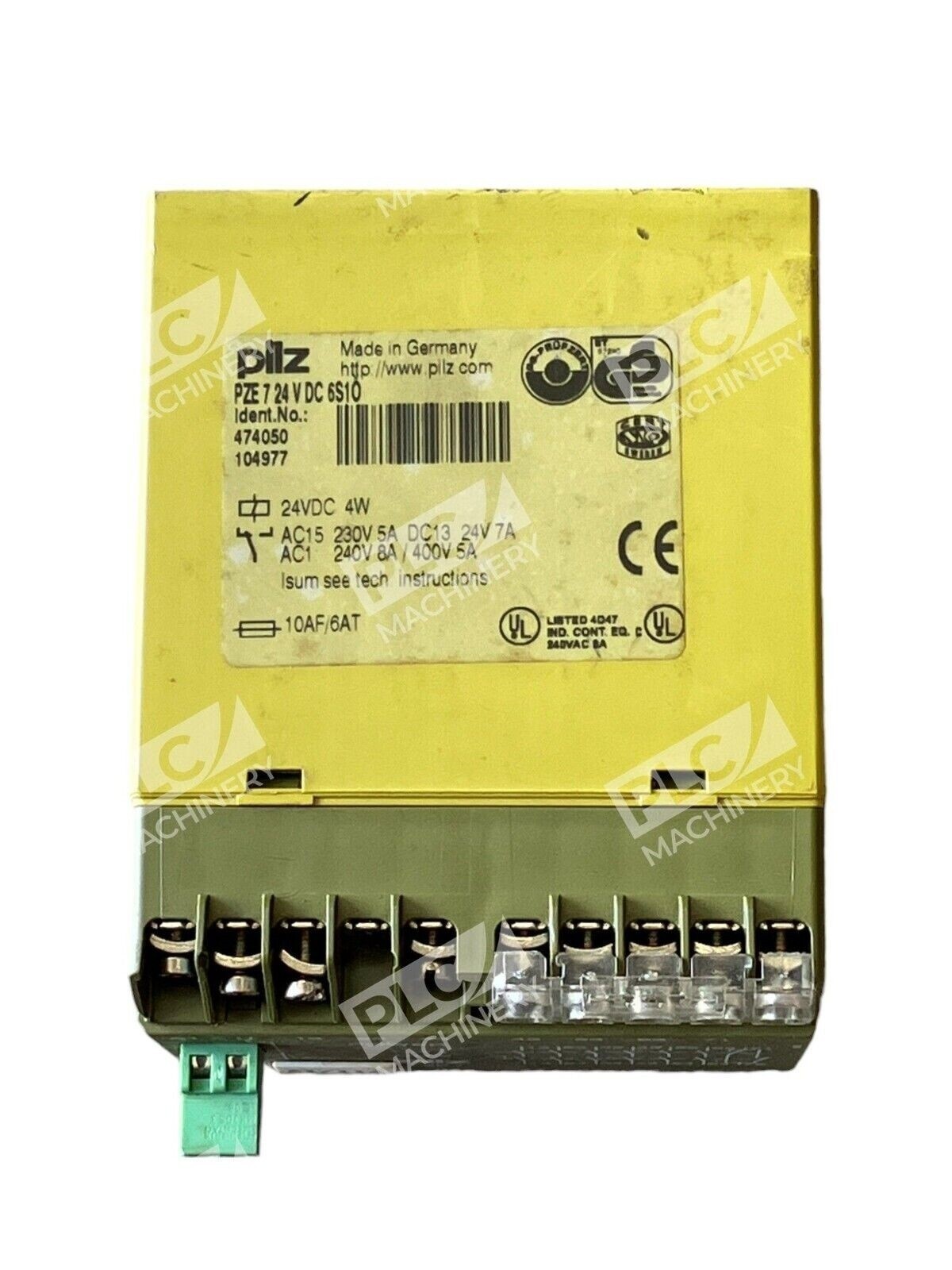

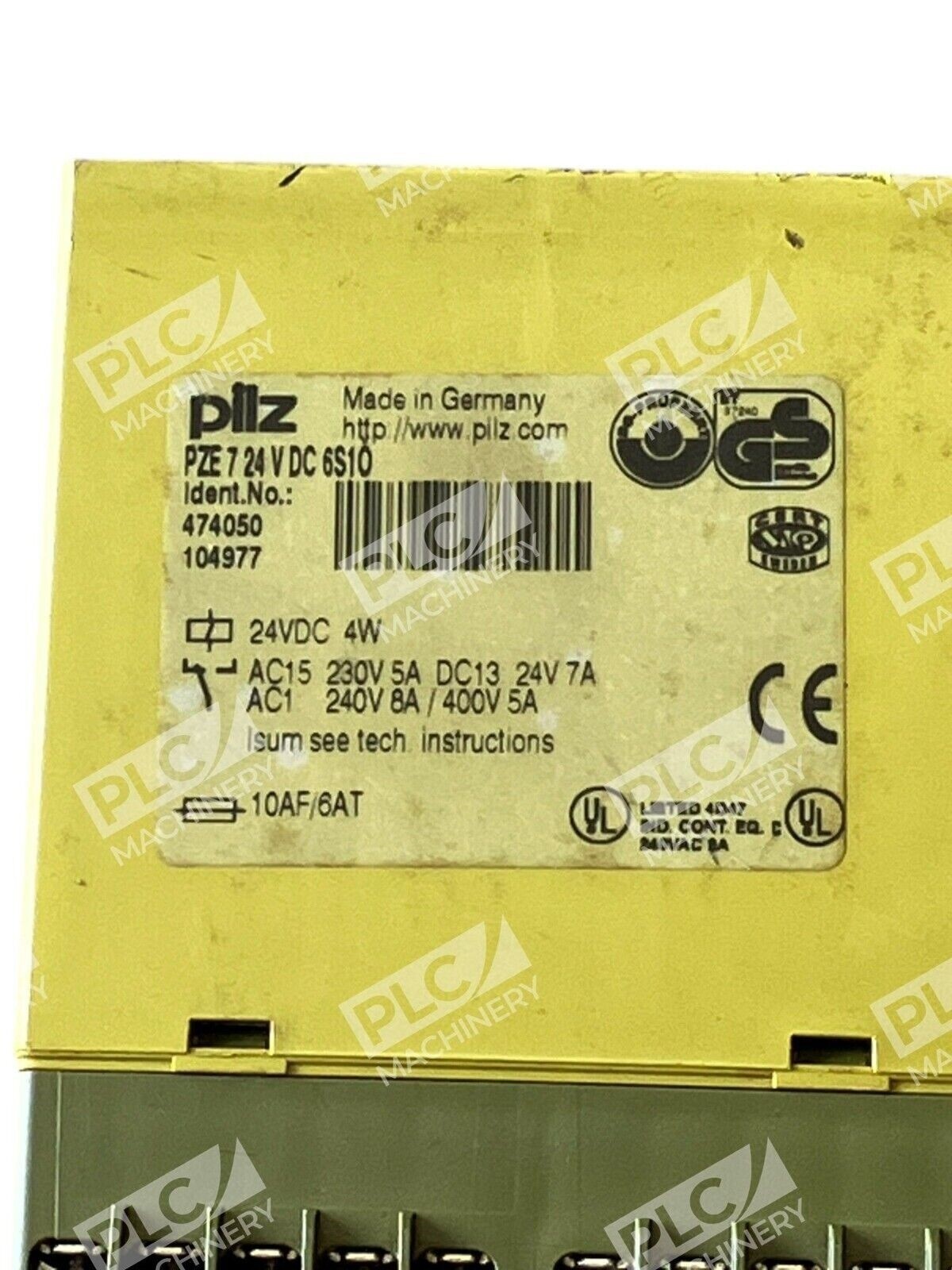

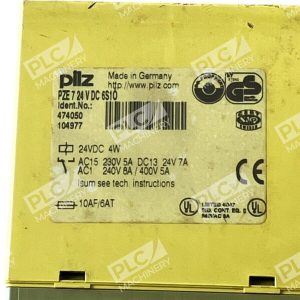

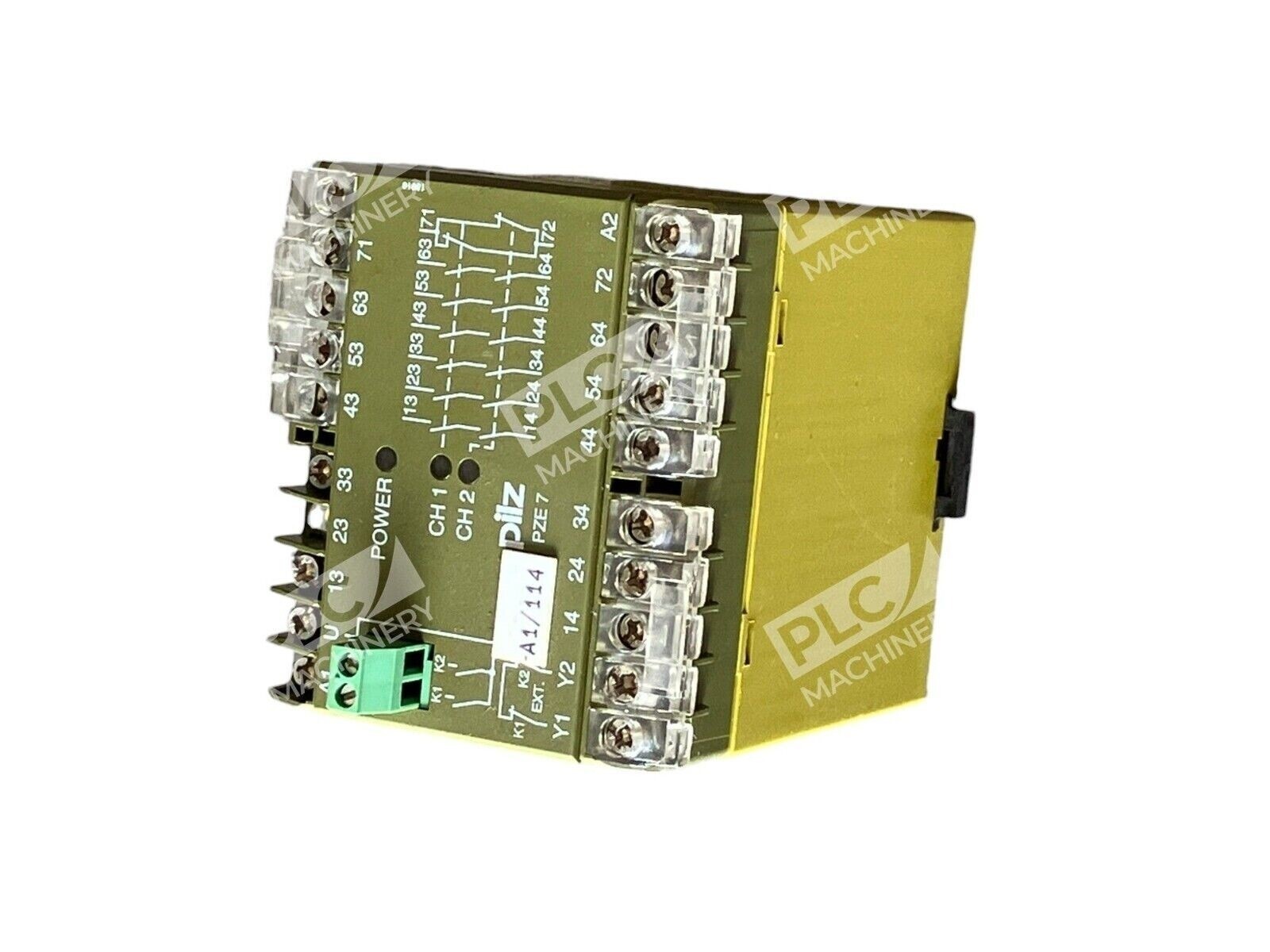

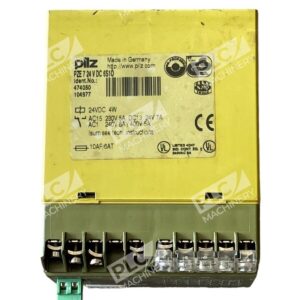

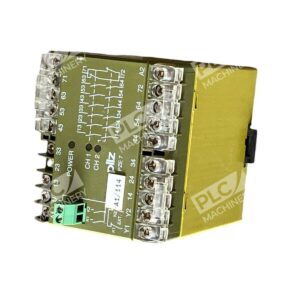

The Pilz PZE 7 24 VDC 6S10 (model 474050) is a compact safety relay designed for industrial machinery and automation systems requiring reliable contact switching and safety monitoring. This 24 VDC unit is widely deployed in equipment safety circuits, emergency stop (E-STOP) control, and gate interlock applications. The relay delivers proven switching performance across demanding industrial environments.
Key Features
- 24 VDC supply voltage — standard industrial control voltage for global compatibility
- 4W (4-wire) configuration — standard relay output format for industrial systems
- 5–8A contact rating — suitable for medium-duty switching loads
- Screw terminal connections — reliable, field-serviceable terminal design
- DIN-style mounting — integrates into standard control panel layouts
- Tested and fully functional — inspected before shipment
Technical Specifications
- Supply Voltage: 24 V DC
- Output Configuration: 4W (4-wire contact arrangement)
- Contact Rating: 5–8 A
- Terminal Type: Screw Terminal
- Dimensions: 75 × 90 × 80 mm
- Operating Temperature Range: −10 °C to +55 °C
- Weight: 0.5 kg
- Part Number: 474050
- Model Designation: PZE7 24VDC 6S10
Typical Applications
- E-STOP safety circuits and emergency shutdown systems
- Safety gate and interlock monitoring
- Light barrier and safety sensor control
- General industrial machinery control and sequencing
- Process automation and continuous-operation systems
Compatibility & Replacements
Compatible With
- Standard 24 VDC industrial control systems
- DIN rail mounted control cabinets and enclosures
- Safety circuits requiring 4-wire relay outputs
- Medium-duty switching applications (5–8 A loads)
Replaces / Drop-In Replacement For
- Pilz PZE 7 24VDC 6S10N (variant designation)
- Other Pilz PZE 7 series models with 24 VDC, 6S configuration
- Verify compatibility with your system integrator or controls engineer before ordering, as relay circuit requirements vary by application.
Works With
- Pilz automation and safety platforms
- Industrial 24 VDC control systems (Allen-Bradley, Siemens, Schneider, ABB, Omron)
- Standard safety gate and light barrier modules
- DIN rail enclosures and electrical cabinets
