Overview

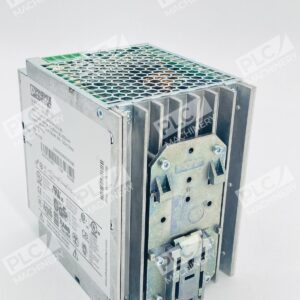

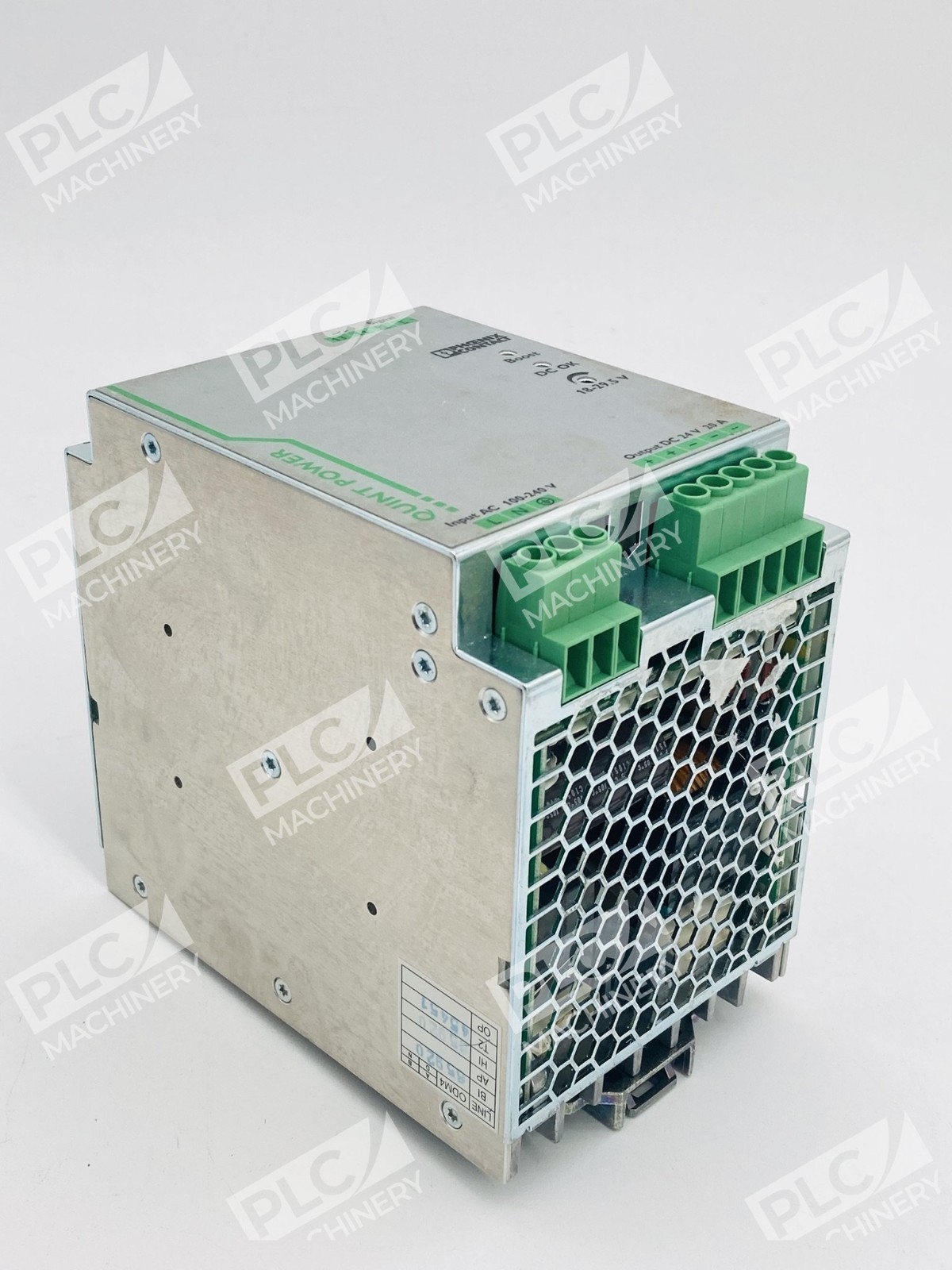

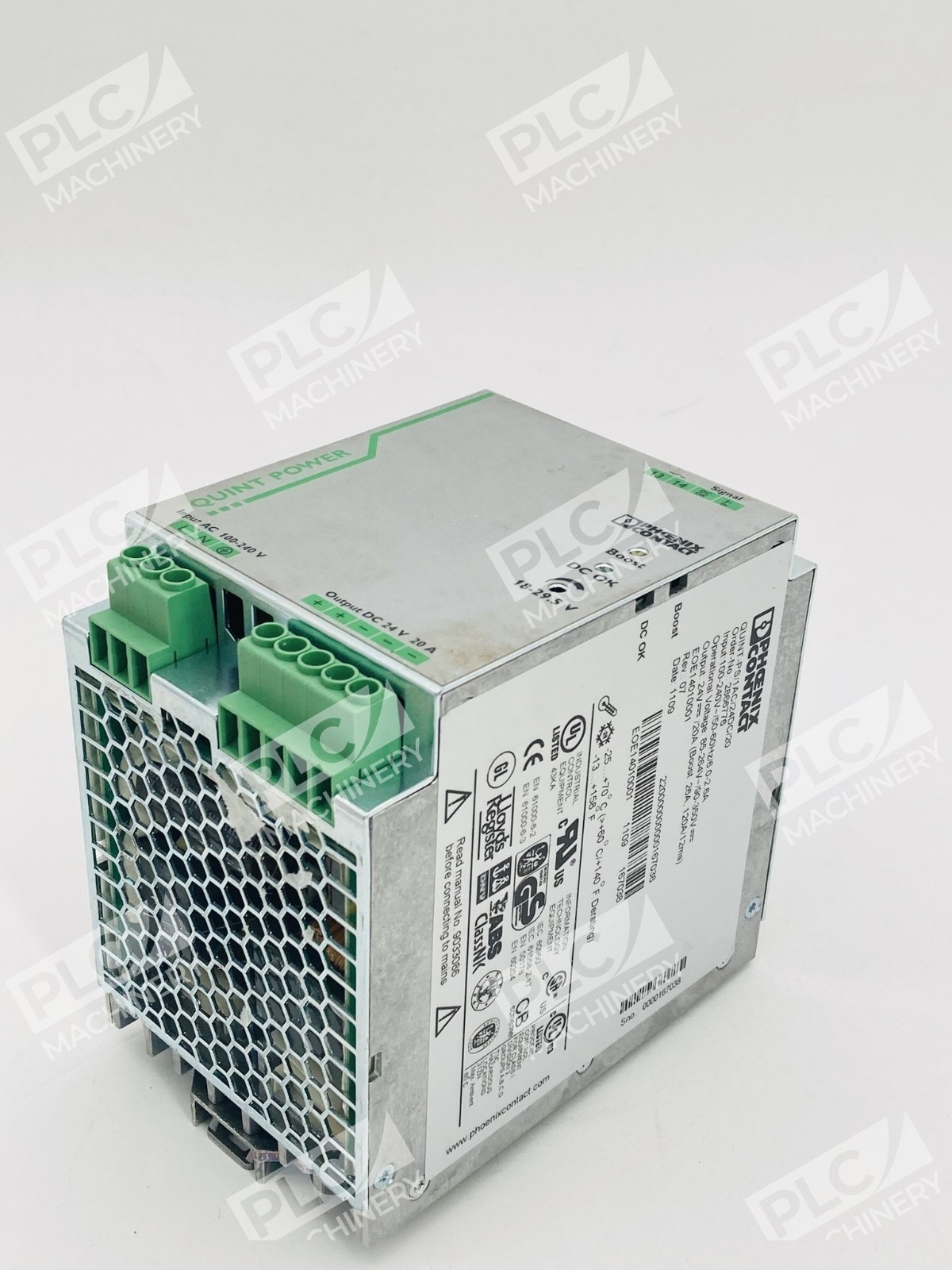

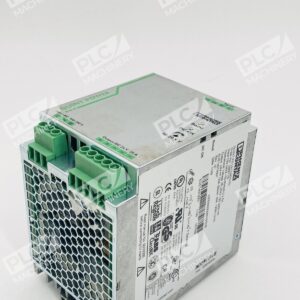

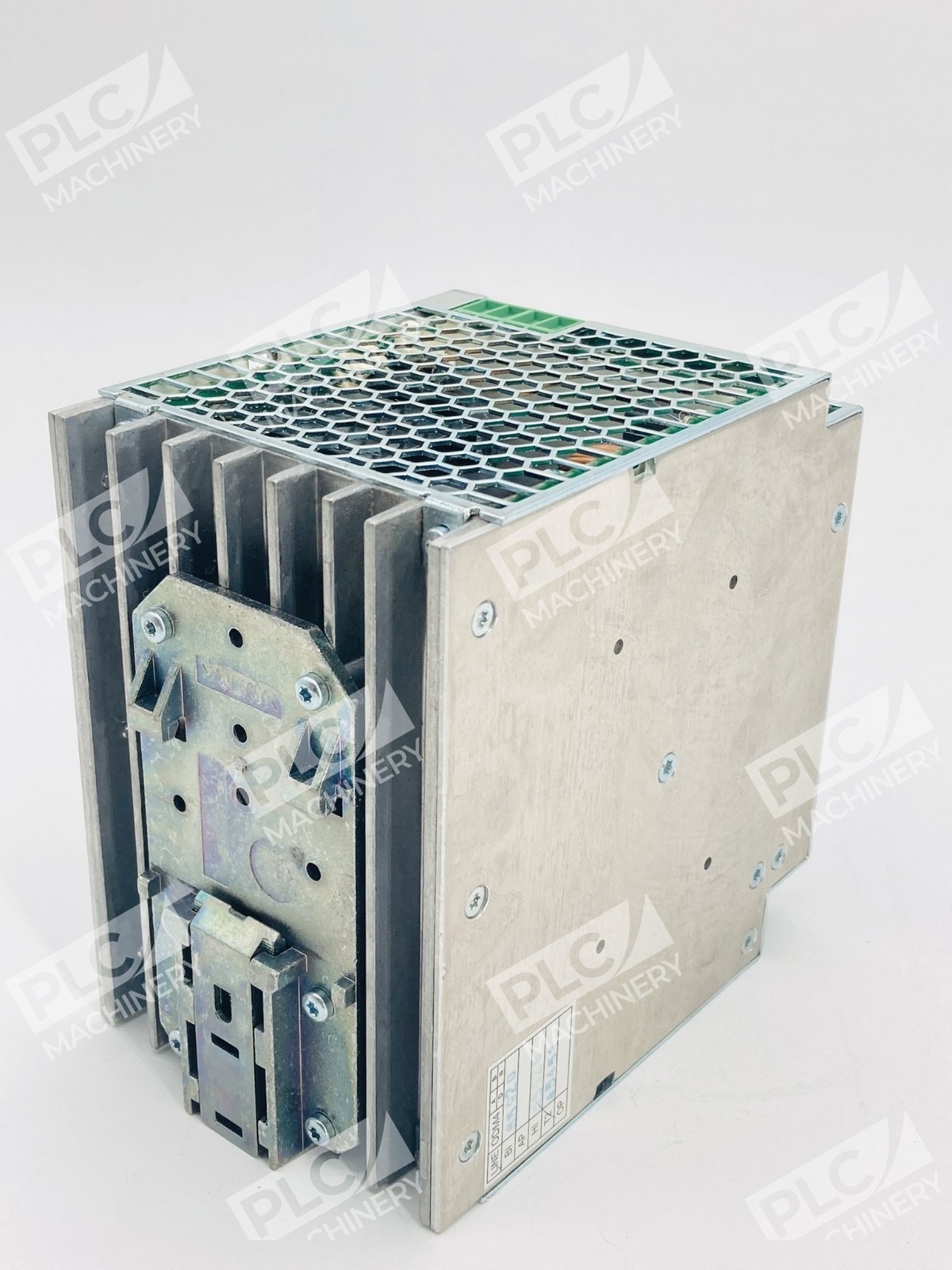

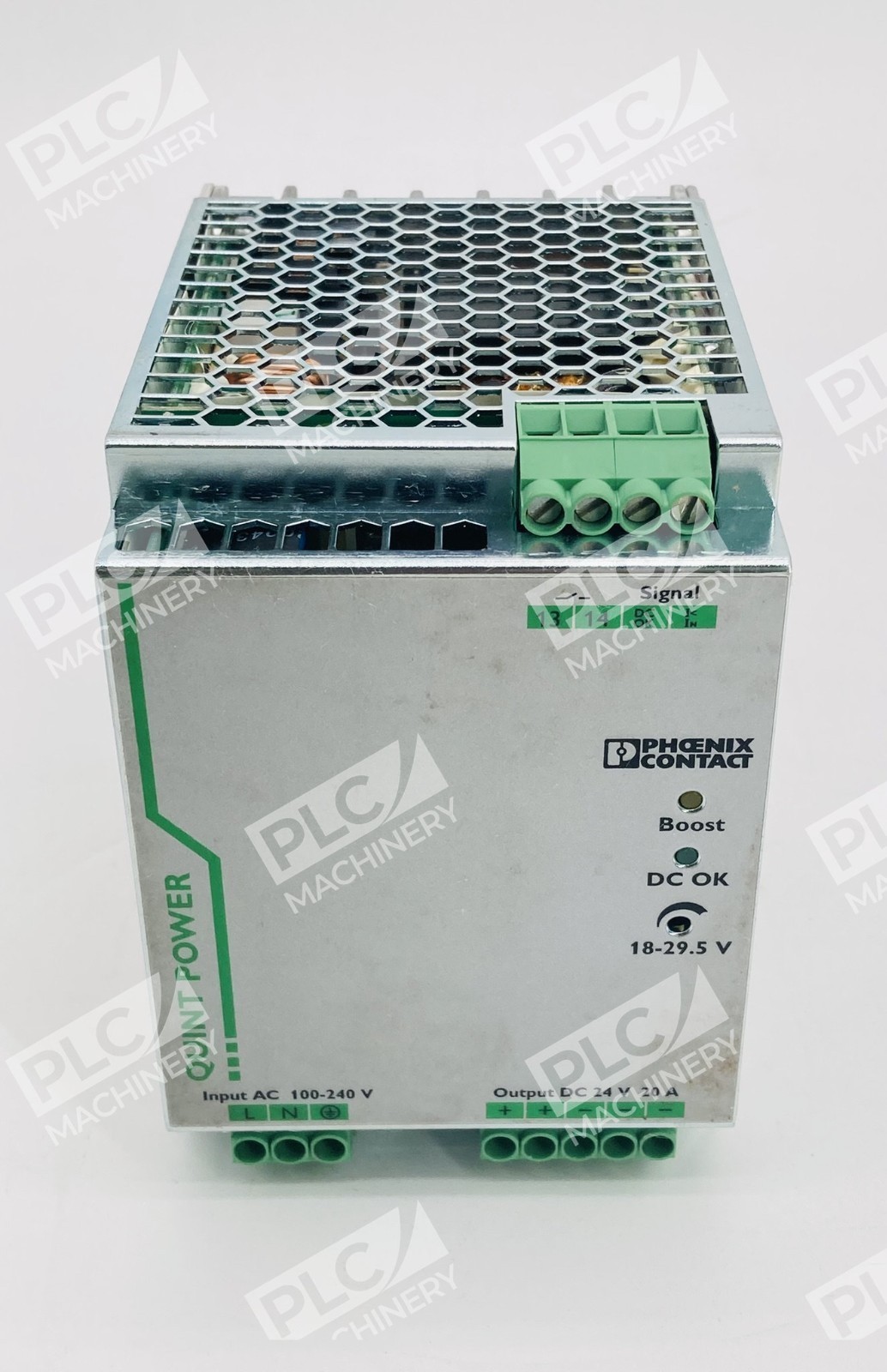

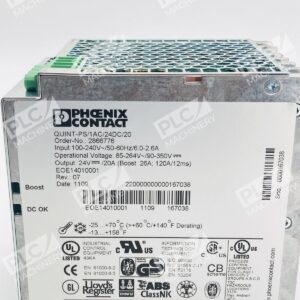

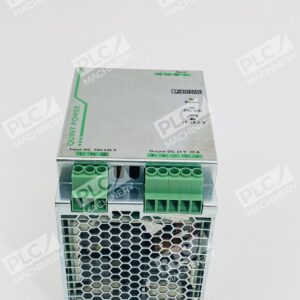

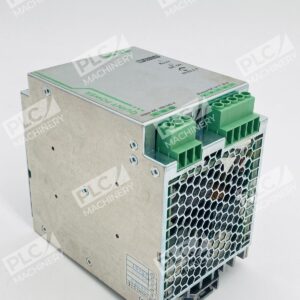

The Phoenix Contact QUINT-PS/1AC/24DC/20 is a compact, primary-switched QUINT POWER supply unit designed for DIN rail mounting in industrial automation systems. With output of 24 V DC / 20 A, adjustable from 18 V DC to 29.5 V DC, this unit delivers stable power across a wide input voltage range (100–240 V AC nominal). QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection.
Key Features
- SFB Technology (Selective Fuse Breaking): With the SFB technology, six times the nominal current for 12 ms, even the standard power circuit-breakers can now also be triggered reliably and quickly. Faulty current paths are switched off selectively, the fault is located and important system parts continue to operate.
- Power Boost Reserve: Reliable starting of heavy loads takes place via the static power reserve POWER BOOST.
- Preventive Function Monitoring: The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
- Adjustable Output Voltage: Thanks to the adjustable voltage, all ranges between 5 V DC … 56 V DC are covered.
- Harsh Environment Rating: All our QUINT power supplies are tested in accordance with the ISA G3 Harsh Group A standard and meet the requirements of the standard.
- Multi-Stage Converter: No, since the QUINT power supply is designed with a multi-stage converter concept, interference is not transmitted.
Technical Specifications
- Input Voltage (AC): Nominal input voltage range 100 V AC … 240 V AC
- Input Voltage Range (AC): 85 V AC … 264 V AC
- DC Input Voltage Range: 90 V DC … 350 V DC
- AC Frequency Range: 45 Hz … 65 Hz
- Output Voltage (Adjustable): 18 V DC … 29.5 V DC
- Output Current: 20 A nominal
- Inrush Current: < 20 A typical
- Current Consumption: Approx. 5.1 A (120 V AC), Approx. 2.3 A (230 V AC)

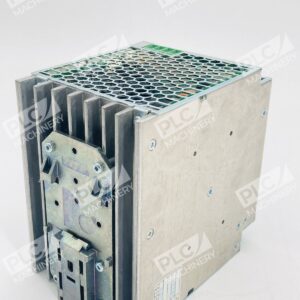

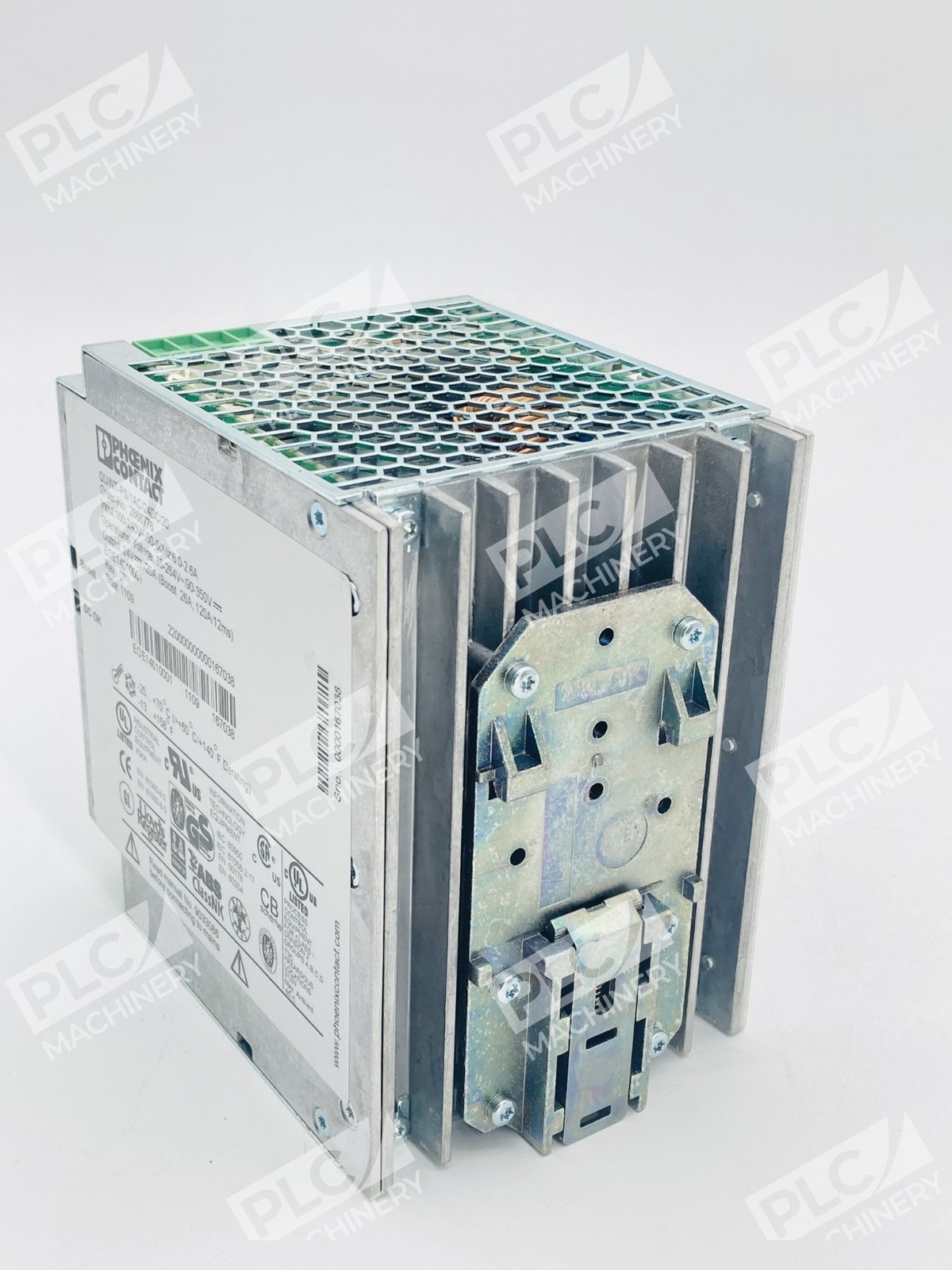

- Mounting: DIN rail (35 mm)

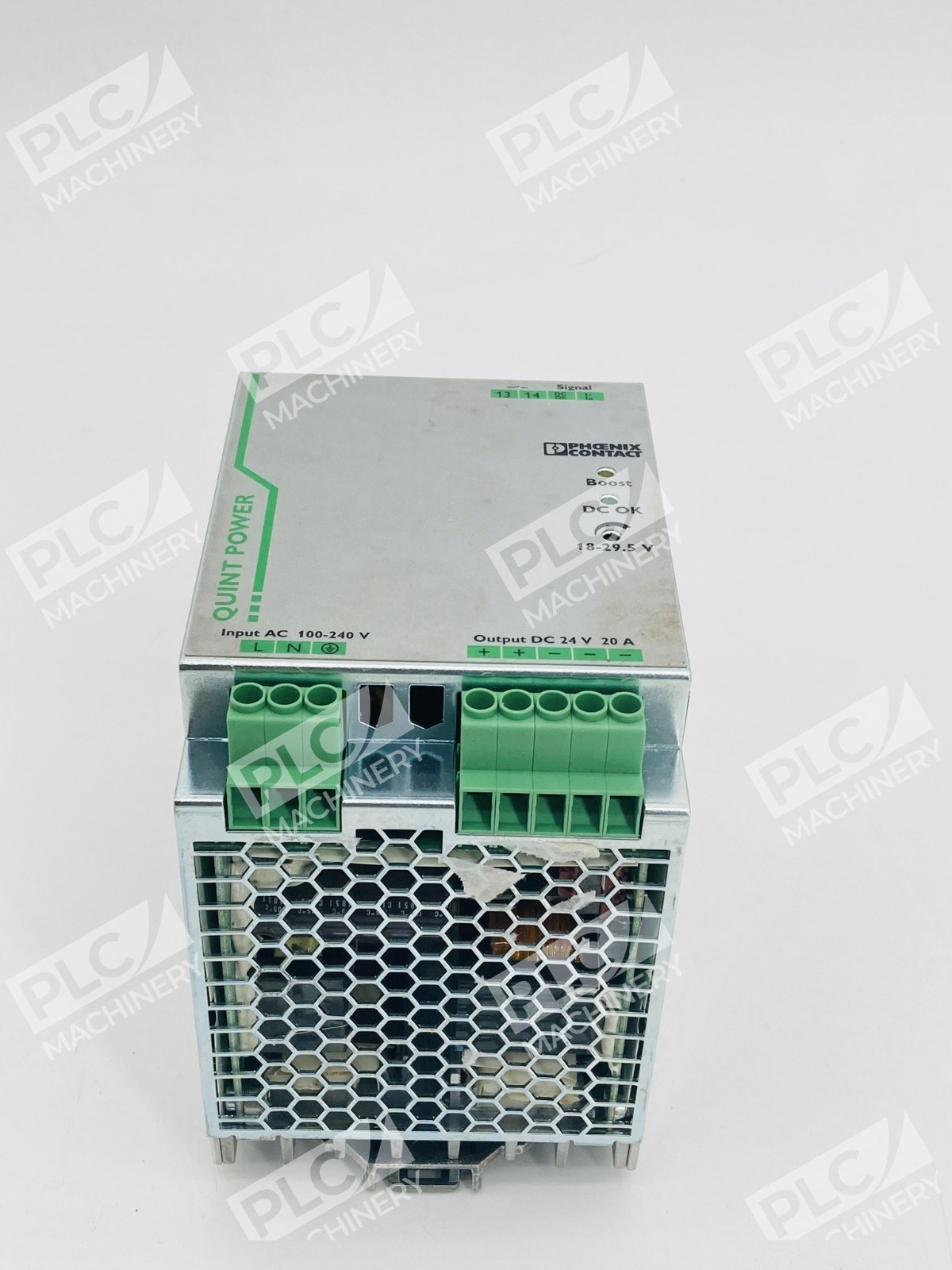

- Connection: Screw terminals
- Dimensions: 130 x 125 x 90 mm
- Efficiency: 93% (Min)
- Certifications: RoHS compliant (since 2007)

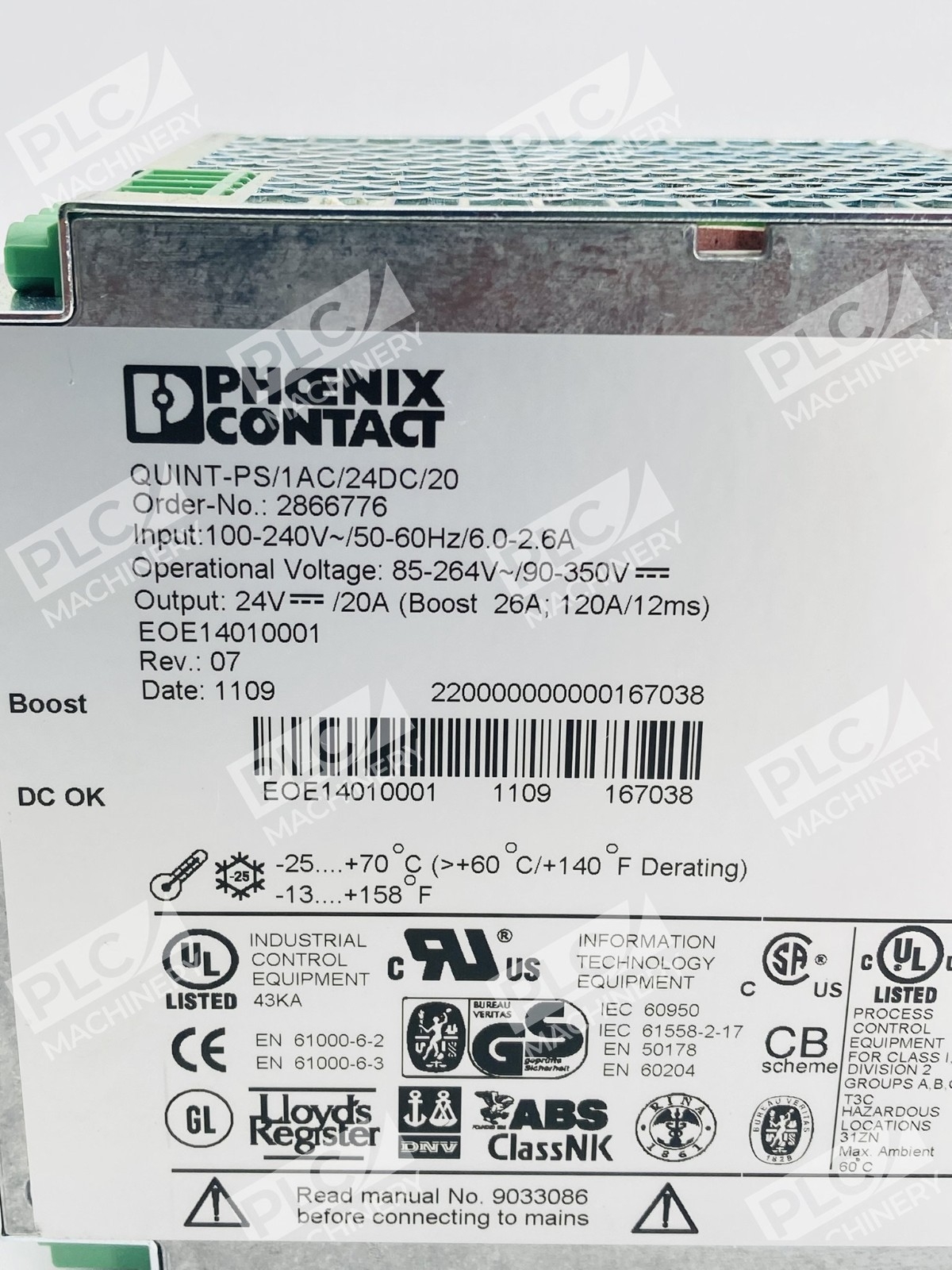

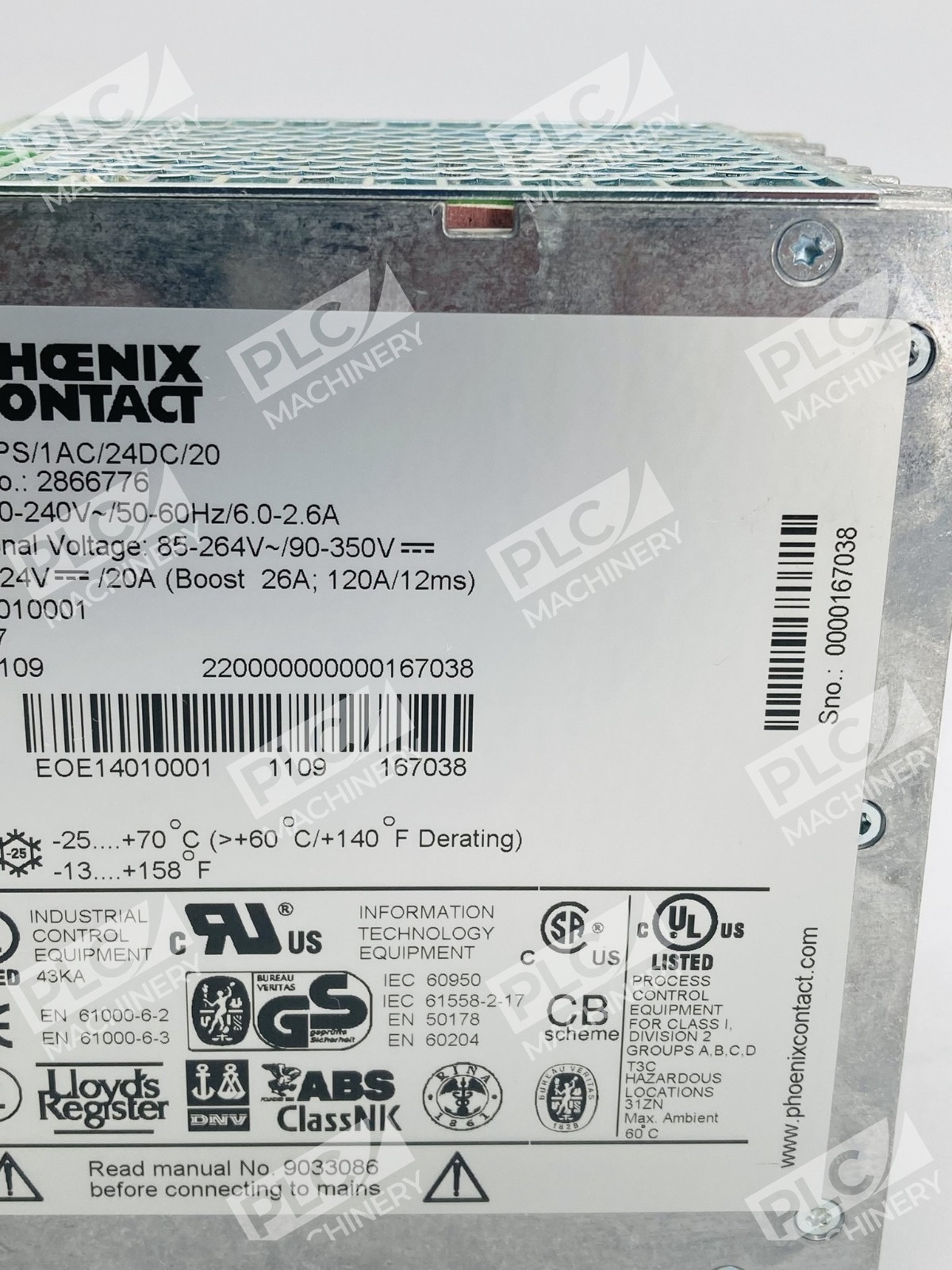

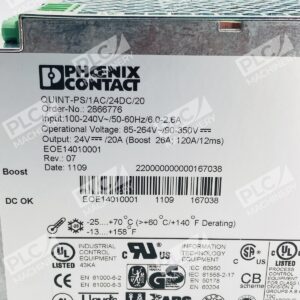

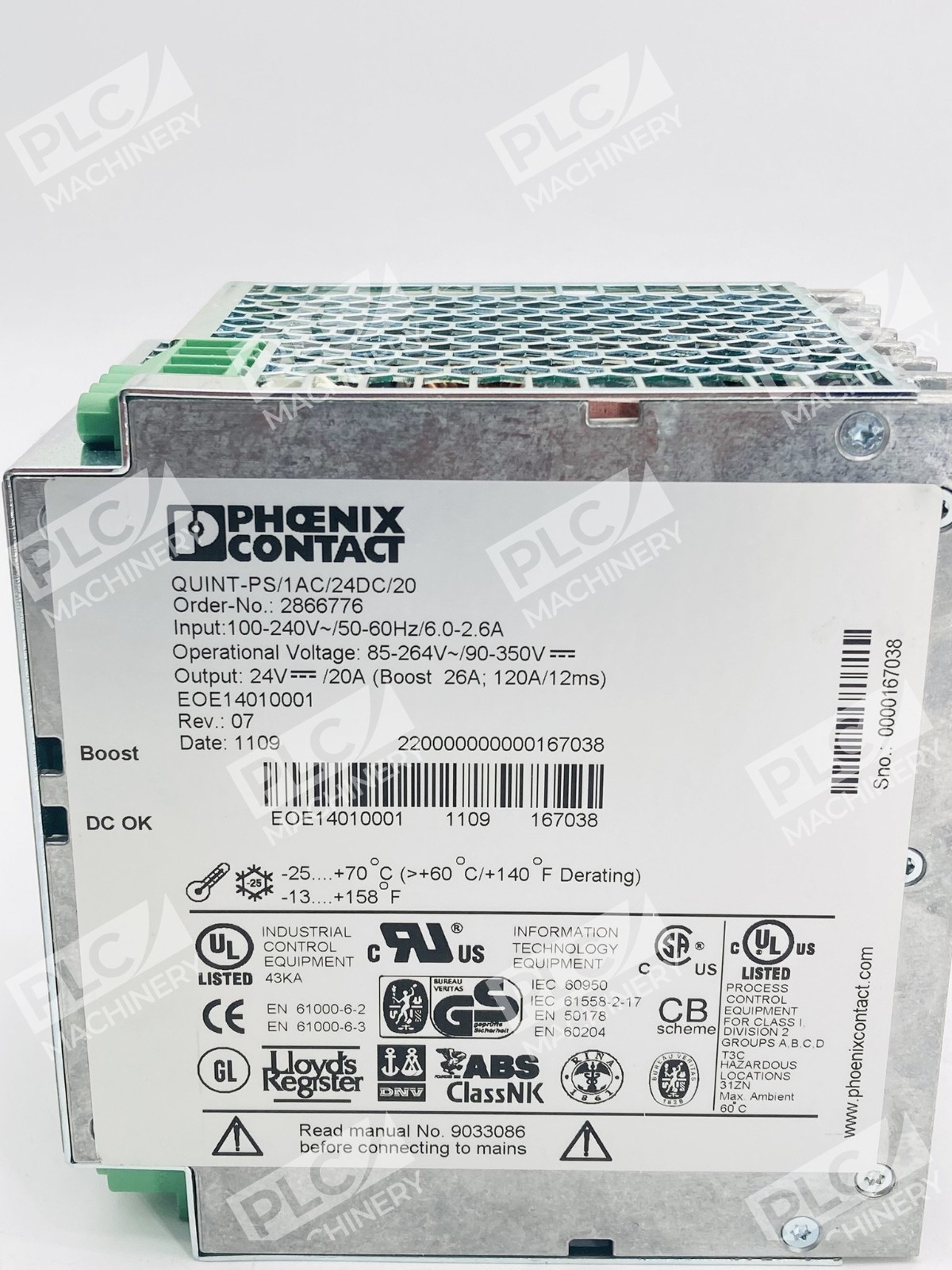

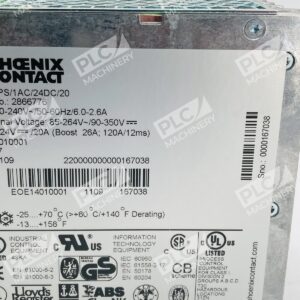

- Order Number / Part Number: 2866776
- Country of Origin: Thailand
Typical Applications
The QUINT-PS/1AC/24DC/20 is well-suited for:
- Automation control cabinets and PLC systems requiring stable 24 V DC power
- Industrial machinery with heavy inductive load starts
- Rail and transportation infrastructure (signaling, track circuits, control relays)
- Corrosive or harsh environment deployments (ISA G3 rated)
- Building management and HVAC control systems
- Semiconductor and process control equipment
Compatibility & Replacements
Compatible With
- Standard DIN rail (35 mm)
- Screw terminal strip connections
- Multi-stage converter isolation (no network interference transmission)
- AC supply networks 100–240 V, 45–65 Hz
- DC supply networks 90–350 V
- Standard miniature circuit breakers with SFB configuration
Replaces / Drop-In Replacement For
- For new projects, Phoenix Contact recommends the newer QUINT4-PS/1AC/24DC/20 (Order No. 2904602). The QUINT-PS/1AC/24DC/20 Rev 07 is a legacy model still in use and stocked but superseded for new designs.
- Other Phoenix Contact QUINT-PS units with 1AC input and 20 A output (verify revision compatibility with integrator).
Works With
- Phoenix Contact QUINT POWER software for configuration and monitoring
- DIN rail automation control systems (Rockwell, Siemens, Mitsubishi, Omron, etc.)
- Preventive monitoring via signal outputs (DC OK relay, configurable alarms)
- Optional accessories: UWA 182/52 wall adapter, ME-MAX-NEF/QUINT20A EMC filter, QUINT-PS/FAN/4 cooling fan
