Overview

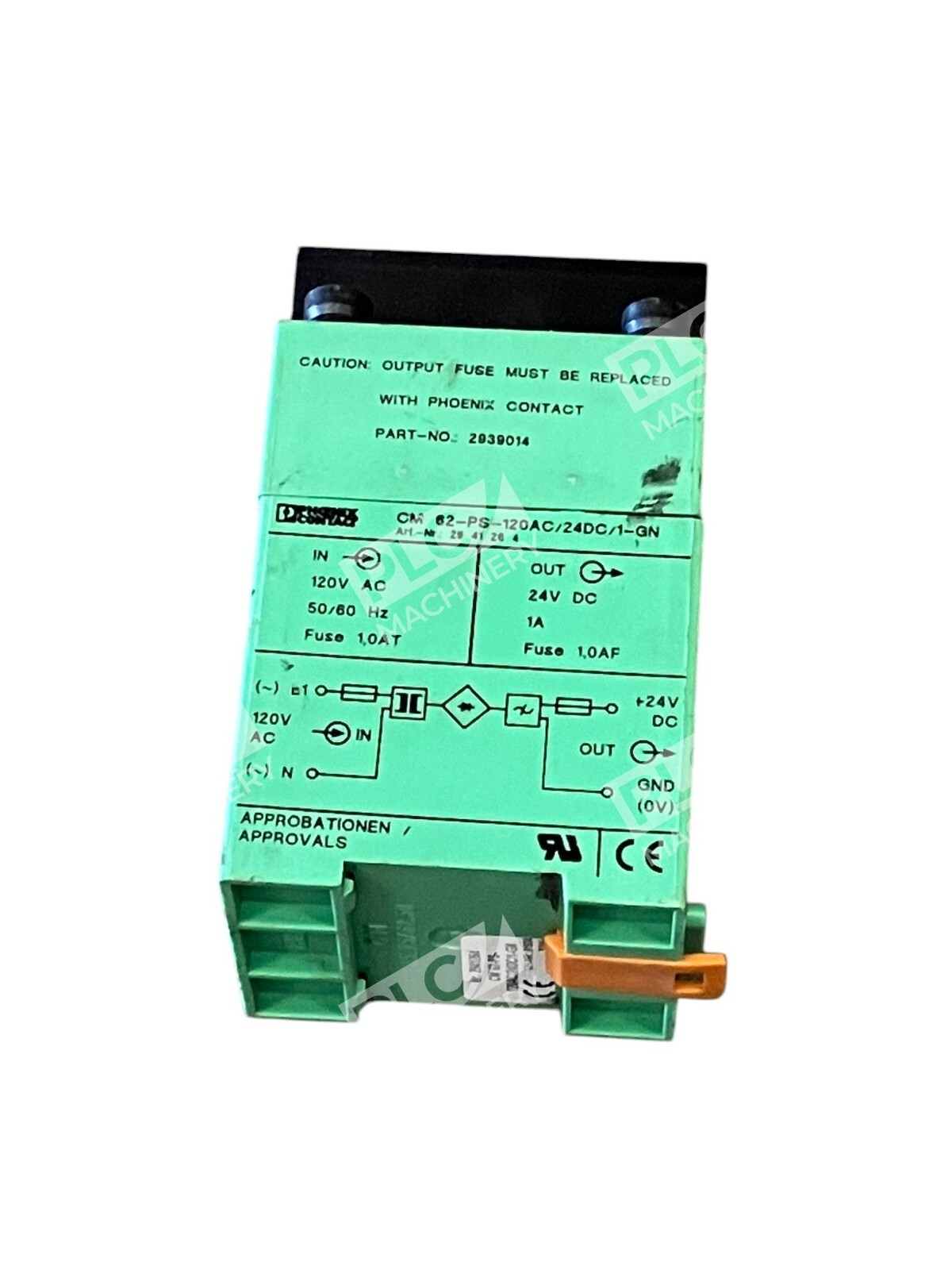

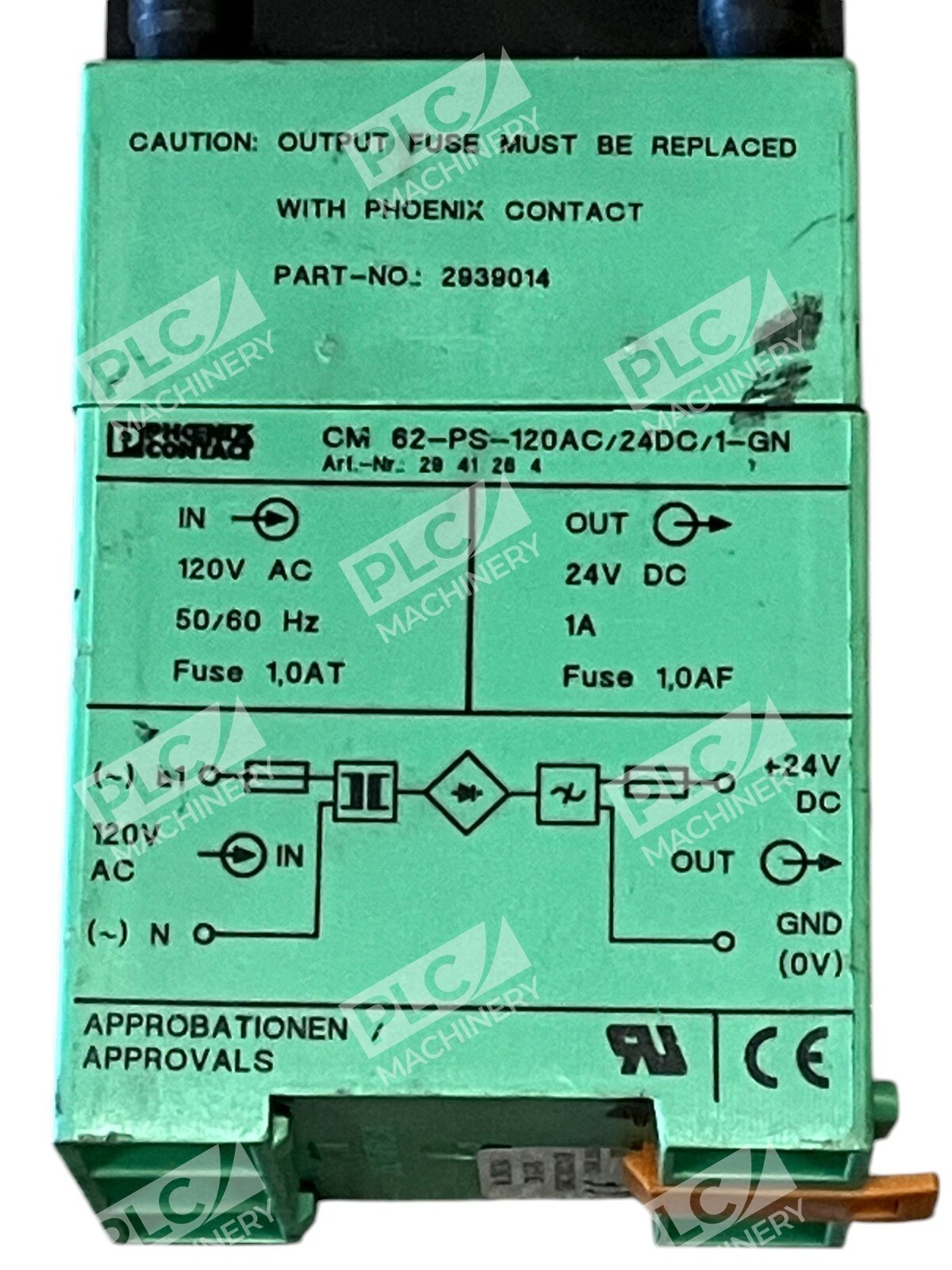

The Phoenix Contact CM 62-PS-120AC/24DC/1-GN is an industrial-grade switching-mode power supply that converts single-phase 120VAC input into regulated 24VDC output at 1A nominal current. This DIN rail-mounted unit is designed for reliable DC power distribution in control panels, PLCs, servo drives, and field instrumentation. Although discontinued by the manufacturer, this model remains a dependable choice for machine controls and automation systems.
Key Features
- Regulated 24VDC output provides stable power to control circuits and sensors
- Compact DIN rail mounting fits standard industrial panel layouts
- Single-phase 120VAC 50/60 Hz input with integrated fuse protection
- Switching-mode design delivers high efficiency in space-constrained enclosures
- CSA-certified for North American industrial environments
- Proven reliability in machine tool, packaging, and process automation applications
Technical Specifications
Electrical Input
Nominal Input Voltage: 120VAC
Frequency Range: 50–60 Hz
Input Protection: 1.0A fuse (IEC 127-2/EN standard)
Nominal Power Consumption: ~55 VA
Electrical Output
Nominal Output Voltage: 24VDC (regulated)
Nominal Output Current: 1A
Output Wire Gauge: 24–12 AWG
Physical & Environmental
Mounting: DIN rail
Weight: 2.76 lbs
Certifications: CSA, UL
Status: Discontinued by manufacturer
Typical Applications
- PLC and microcontroller power supplies in industrial panels
- Servo drive and motion control auxiliary power
- Solenoid valve and actuator control circuits
- Sensor and fieldbus gateway power distribution
- Emergency stop and interlock circuit power
- Machine tool and packaging line control systems
Compatibility & Replacements
Compatible With
- Standard industrial DIN rail systems (35 mm)
- Allen-Bradley, Siemens, Mitsubishi, and Omron PLC power input terminals
- 24VDC solenoid and relay coil circuits
- Standard automation control panel architectures
- North American 120VAC single-phase power distribution
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This model is discontinued; ensure pin configuration and mounting footprint match your legacy system before installation.
Works With
- Rockwell Automation (Allen-Bradley) CompactLogix and ControlLogix power inputs
- Siemens S7-1200 and S7-1500 auxiliary 24VDC power rails
- Mitsubishi FX and Q-series PLC power supply circuits
- Omron CP/CJ-series controller 24VDC distribution networks
- Standard EtherNet/IP and PROFINET gateway auxiliary power
