Overview

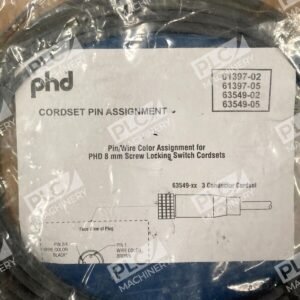

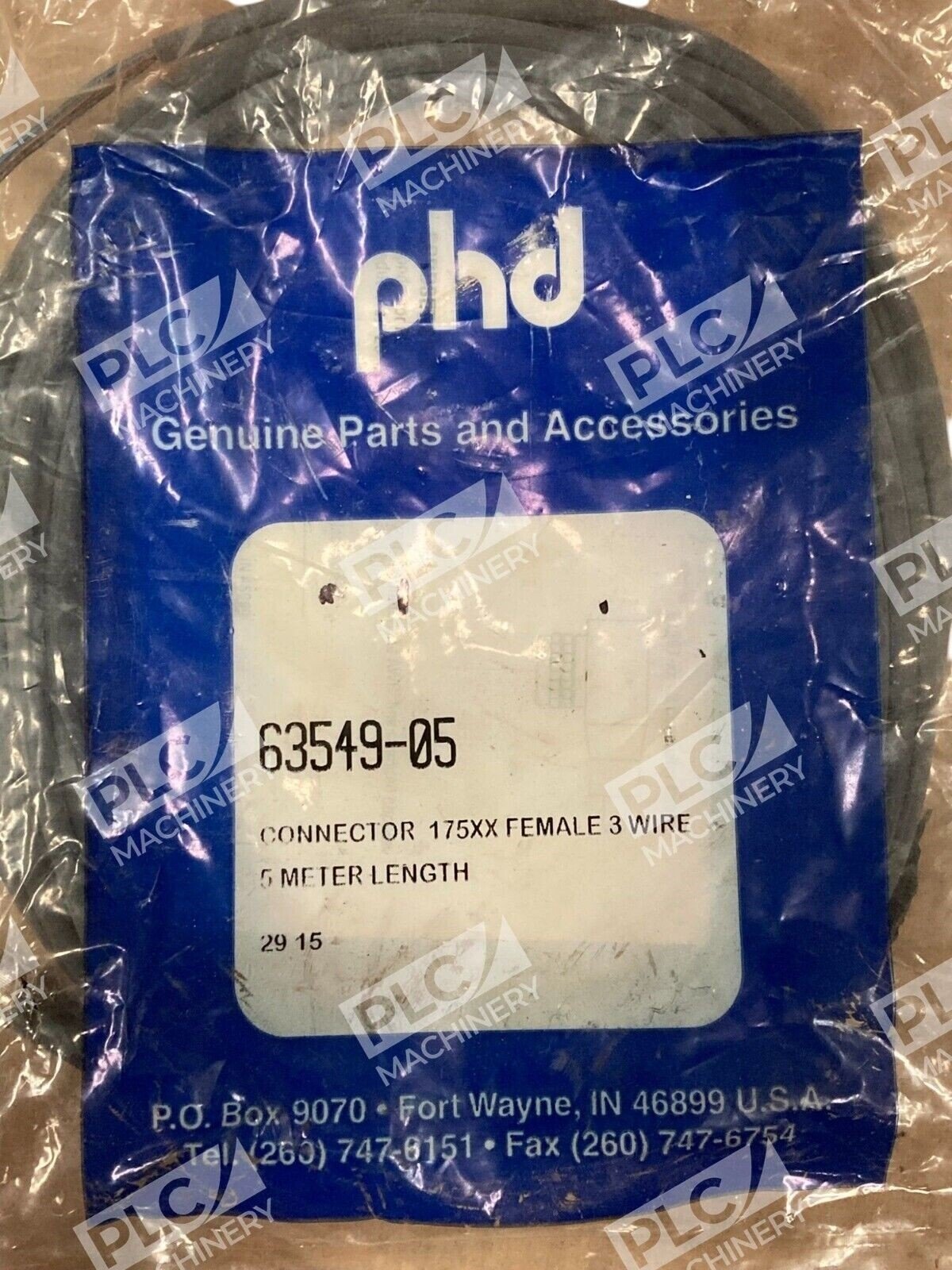

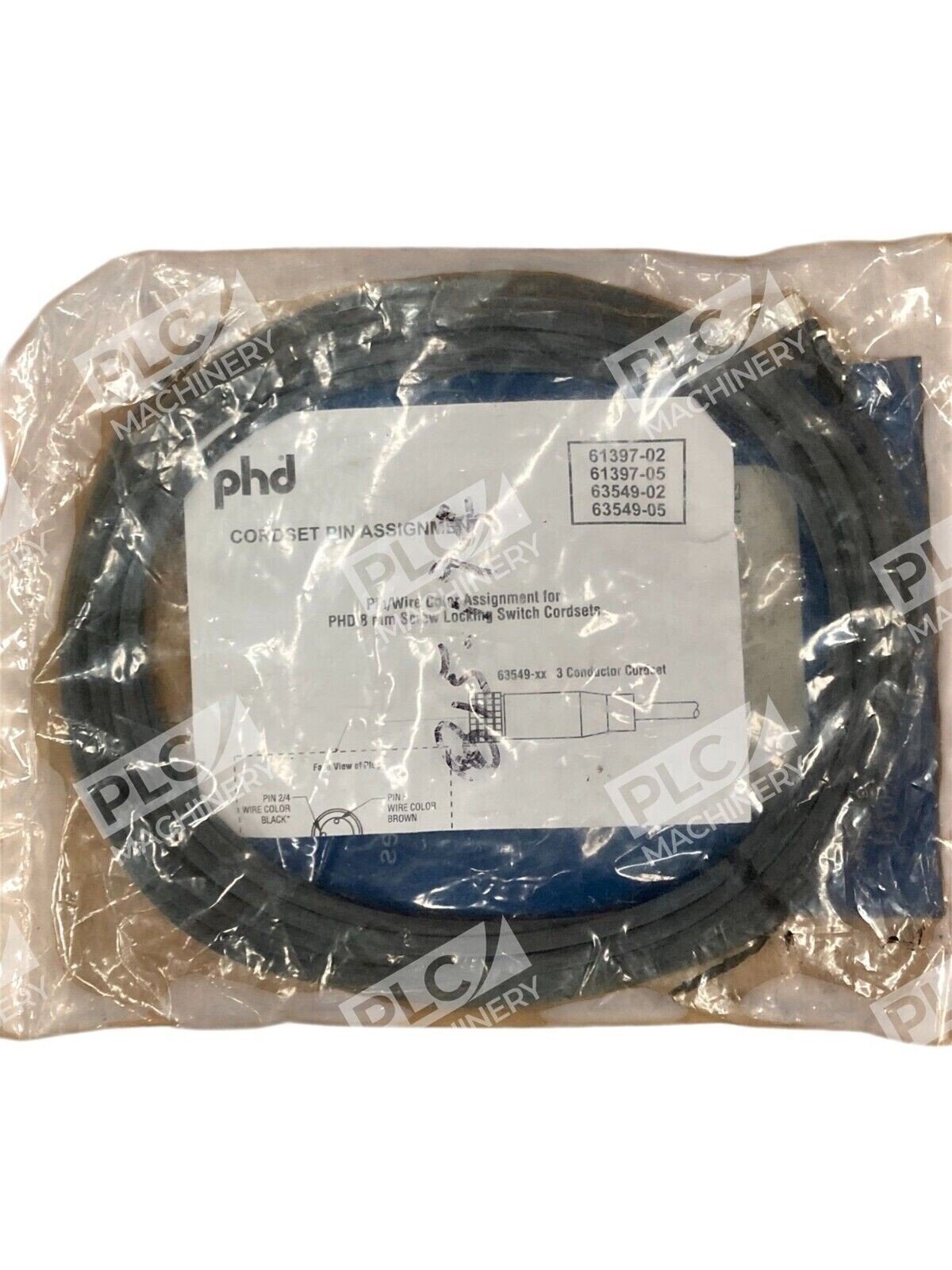

The PHD 63549-05 is a 5-meter quick-disconnect cable cordset designed for industrial automation applications. This PHD cable cordset features a female 175XX connector with three conductor wires, providing a standard-grade solution for sensor, valve, and control connections in automated manufacturing systems.
Key Features
- 5-meter cable length for extended reach in control circuits
- Female 175XX quick-disconnect connector for tool-free, leak-free coupling
- 3-conductor wire configuration for signal and power distribution
- Durable design suitable for frequent connection and disconnection cycles
- Straight connector orientation for standard panel and device mounting
Technical Specifications
- Cable Length: 5 meters
- Connector Type: Female 175XX
- Wire Configuration: 3 conductor
- Connector Style: Quick-disconnect (QD)
- Operating Environment: Industrial
- Model Number: 63549-05
Typical Applications
The PHD 63549-05 cordset is commonly deployed in:
- Pneumatic and sensor control circuits in factory automation
- Machine tool interconnects and control panel wiring
- Hydraulic and fluid logic valve solenoid connections
- PLC and distributed I/O module signal cables
- Process equipment requiring modular, field-replaceable cordsets
Compatibility & Replacements
Compatible With
- PHD 175XX connector family devices and panels
- Industrial automation control systems with quick-disconnect interfaces
- Pneumatic and solenoid valve manifolds
- PLC input/output modules with female connectors
Replaces / Drop-In Replacement For
- PHD 63549-02 (2-meter equivalent)
- Other PHD cordsets with identical 175XX female connector specifications
- Verify compatibility with your system integrator before ordering to ensure exact connector match
Works With
- Quick-disconnect (QD) mating connectors (male 175XX)
- Industrial automation control platforms
- Pneumatic and solenoid circuits
- Standard industrial cable routing and cable management systems
