Overview

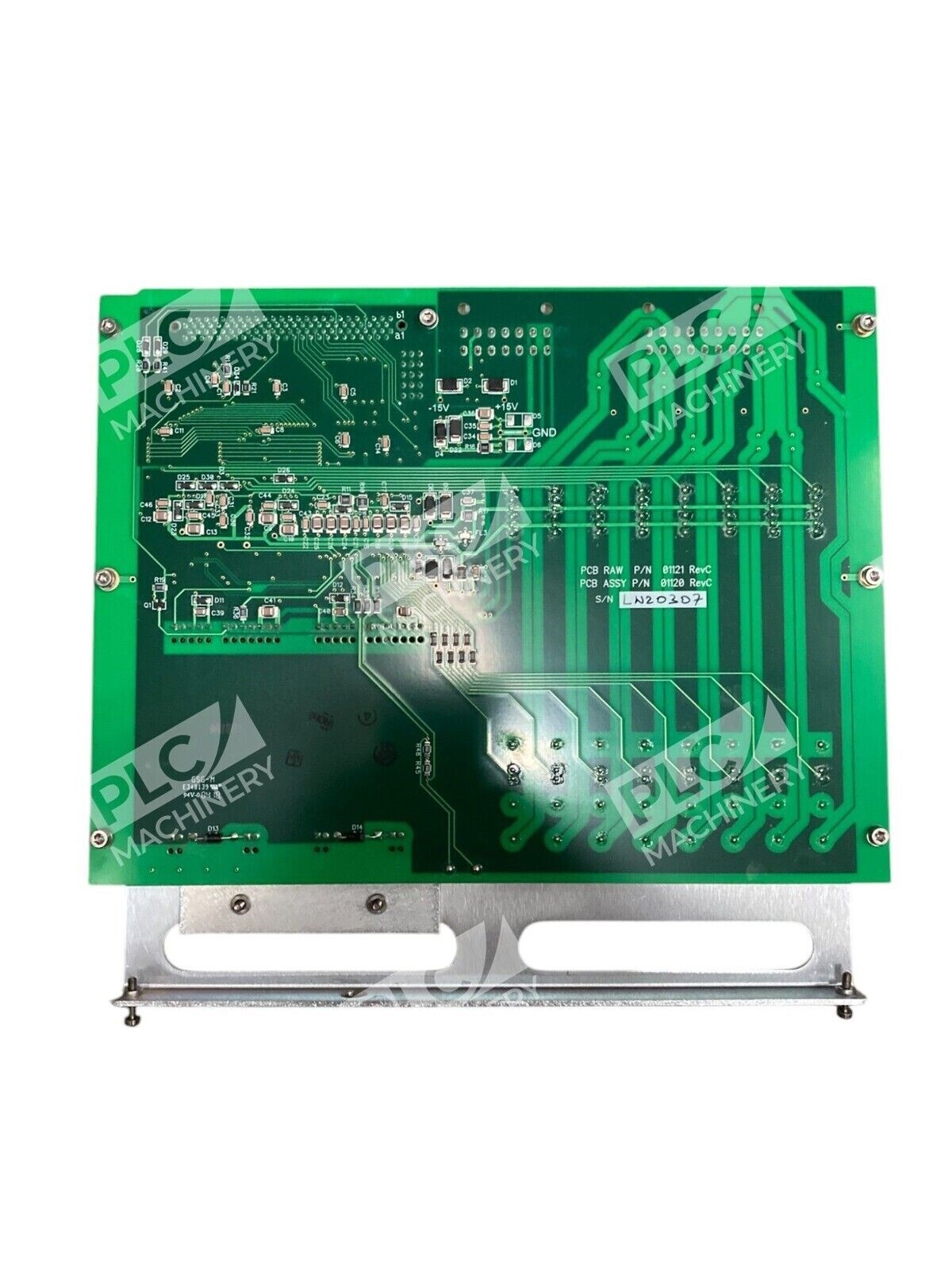

The Van Dorn 01120 Rev C PCB assembly (model 330037) is a circuit board component designed for injection molding machine control systems. This unit combines the PCB Raw 01121 Rev C and PCB Assembly 01120 Rev C in a single integrated module. Van Dorn is a recognized leader in the plastic injection molding industry, and this PCB represents legacy control architecture found in many operational systems worldwide.
Key Features
- Revision C design with proven field reliability in injection molding applications
- Compatible with Van Dorn’s Pathfinder control line and legacy operator stations
- PCB assembly includes both raw and assembled components in integrated form
- Modular design allows replacement without extensive system reconfiguration
- Tested and verified functional before shipment
Technical Specifications
- Manufacturer: Van Dorn
- Model Number: 01120 Rev C (part of assembly 330037)
- Revision: C
- Application: Injection molding machine control systems
- Condition: Used, fully functional

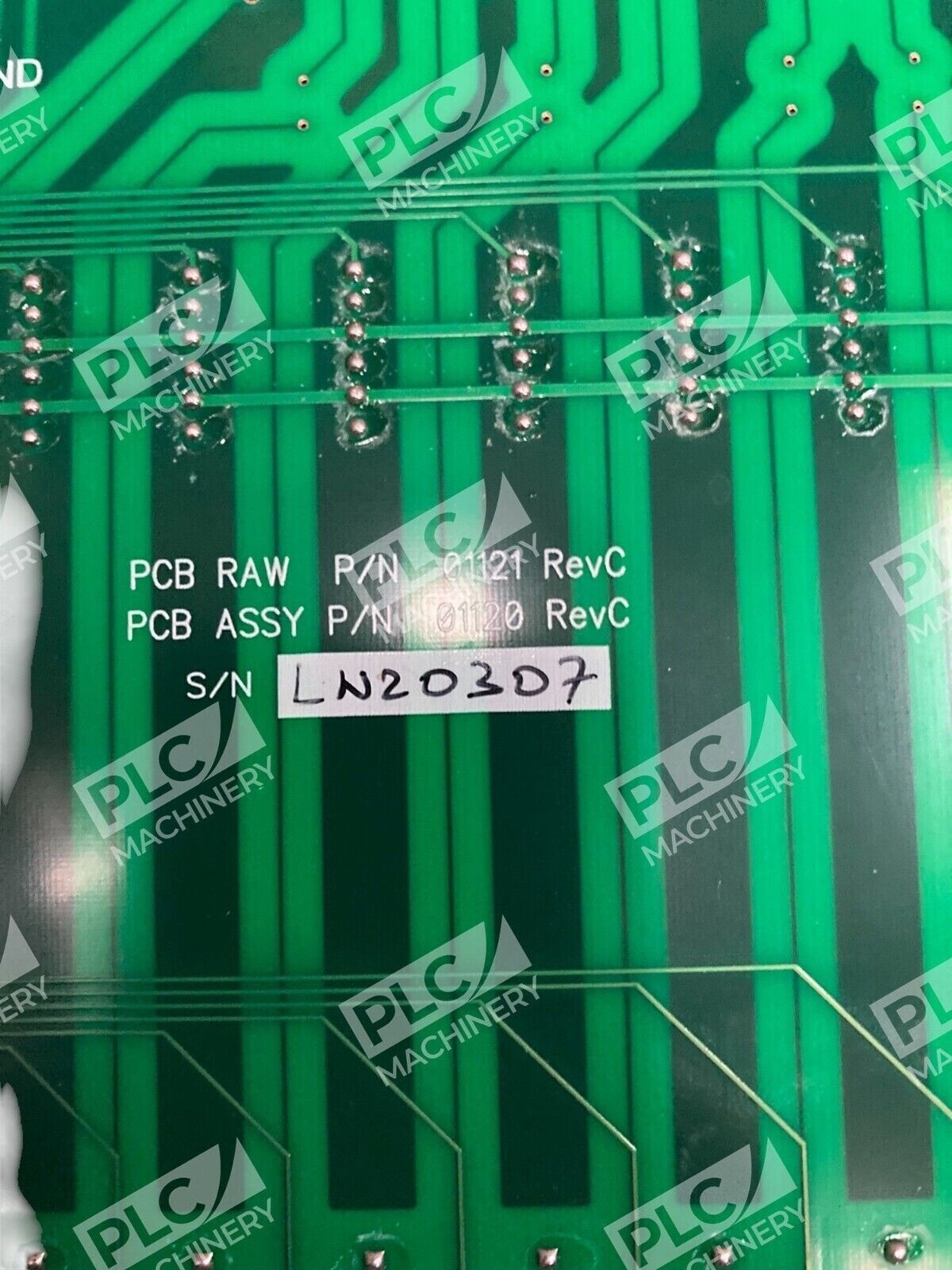

- Includes: PCB Raw 01121 Rev C and PCB Assembly 01120 Rev C
Typical Applications
- Van Dorn Pathfinder control system retrofits and repairs
- Injection molding machine panel upgrades
- Legacy equipment restoration and maintenance
- OEM replacement for failed circuit modules
- Injection molding equipment overhaul and rebuilding
Compatibility & Replacements
Compatible With
- Van Dorn Pathfinder 1000 Operator Station
- Van Dorn Pathfinder 3000 Operator Interface
- Van Dorn Pathfinder 5000 systems
- Van Dorn injection molding machine control chassis
- Legacy Van Dorn DEMAG integrated systems
Replaces / Drop-In Replacement For
- Original Van Dorn 01120 Rev A or Rev B assemblies
- Equivalent 330037 Rev A or earlier variants
- Direct replacement in Pathfinder control platforms
Works With
- Van Dorn operator control panels and HMI systems
- Injection molding machine electrical control architecture
- Legacy Van Dorn automation platforms
- Direct integration into Van Dorn chassis without adapter cards
