Overview

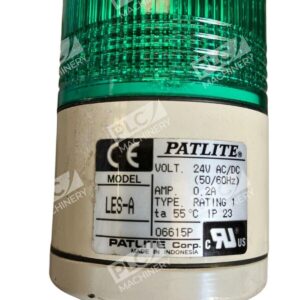

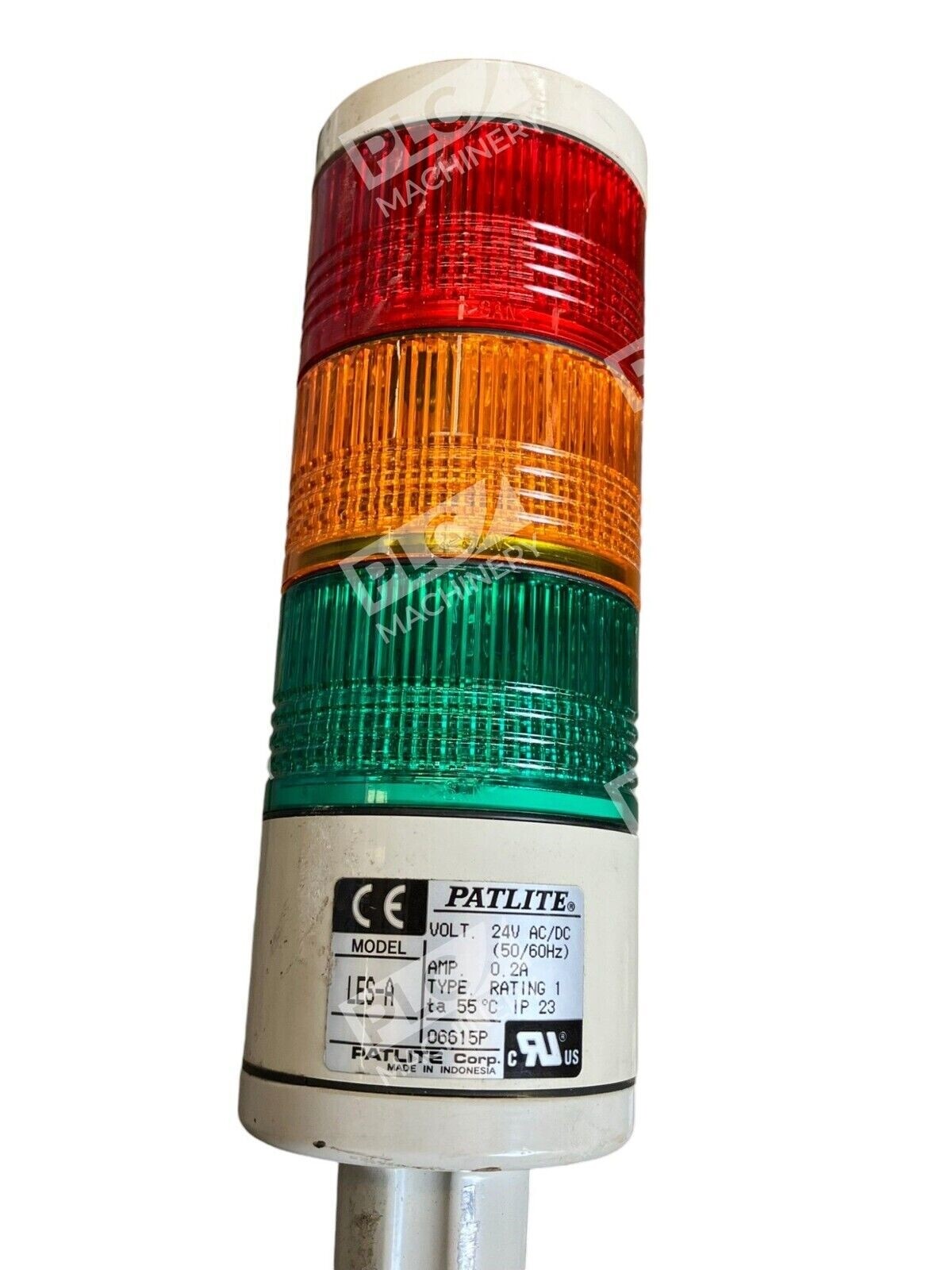

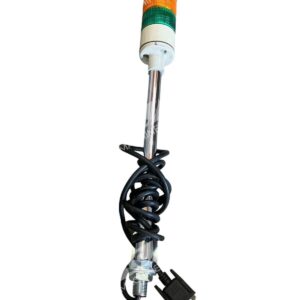

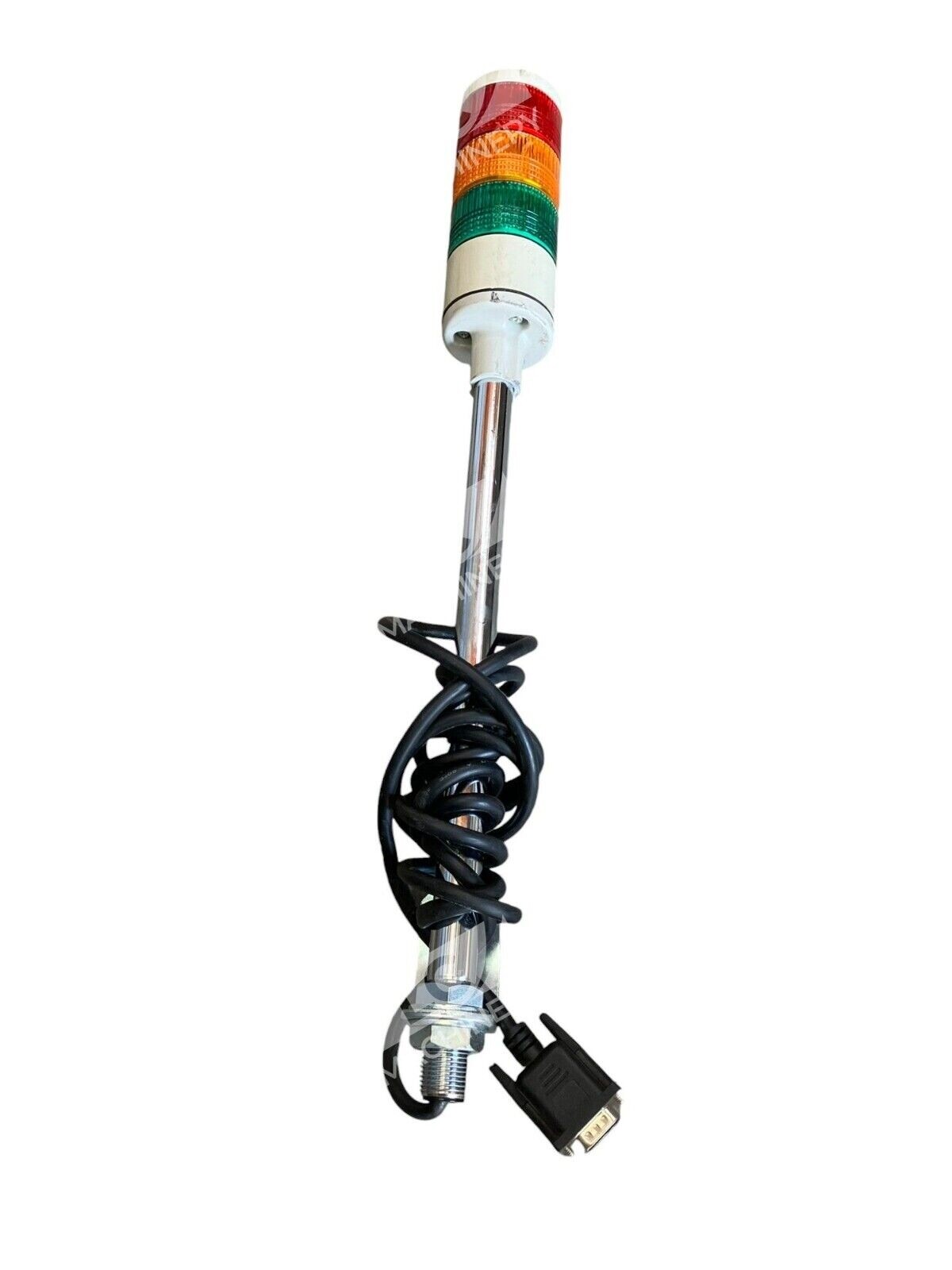

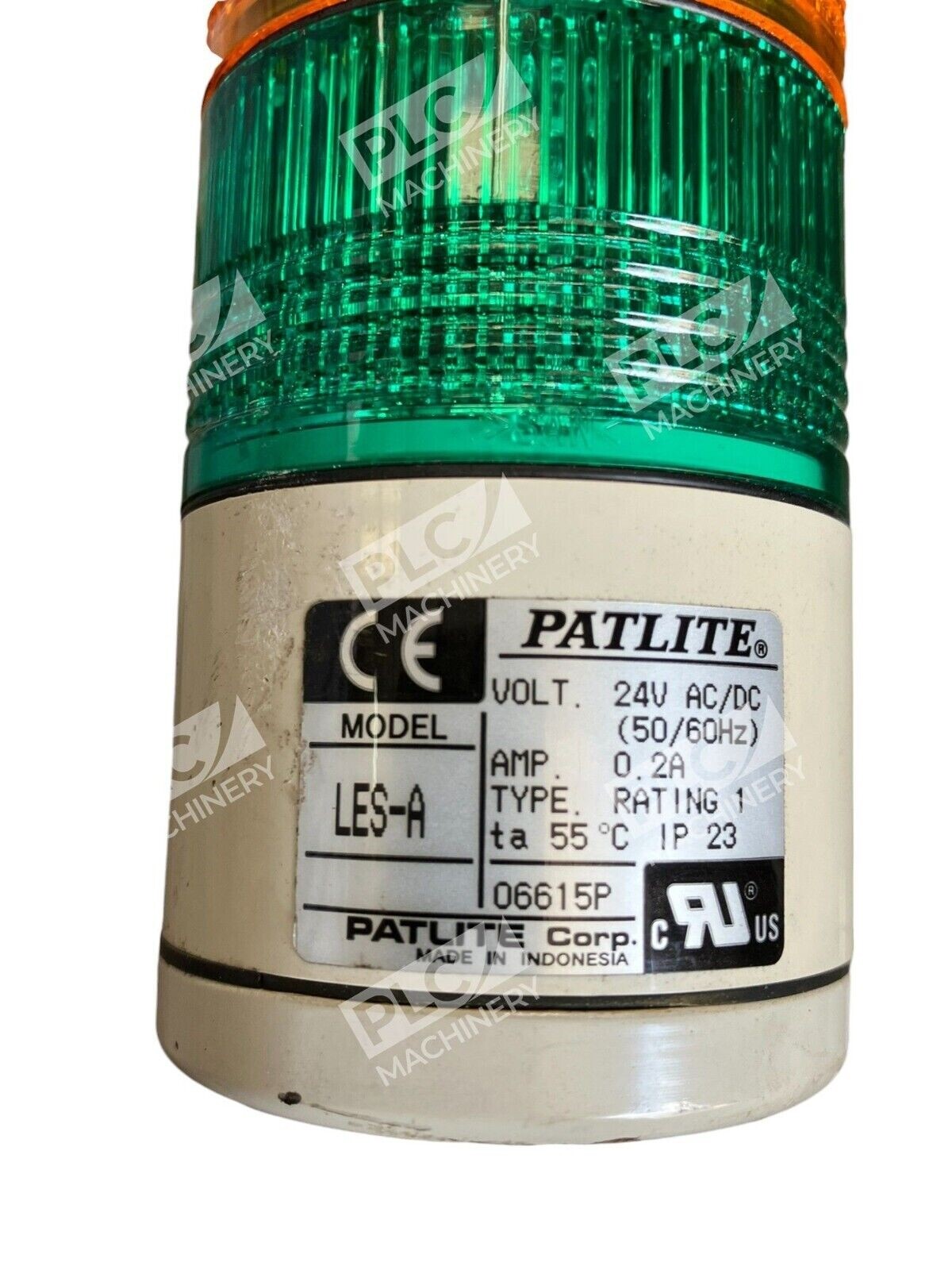

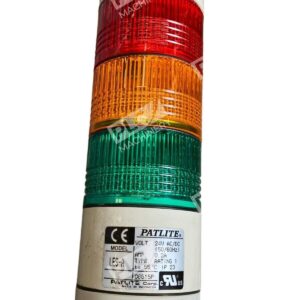

The Patlite LES-A 06615P is a compact LED signal tower light module rated for 24V AC/DC operation at 50/60Hz with a nominal current draw of 0.2A. This industrial-grade strobe and beacon light is designed for visual status indication, emergency signaling, and safety applications across manufacturing, facilities management, and process automation environments. The LES-A series combines advanced optical design with robust construction for reliable, long-service operation.
Key Features
- Prism-Cut Lens Design: Enhanced visibility from multiple angles and distances, ensuring clear signal recognition in busy industrial settings.
- Dual Reflection System: Proprietary hybrid optics deliver bright, distinctive illumination while minimizing energy consumption.
- Durable Construction: ABS resin body with superior impact and heat resistance; AS resin lens for long-term light transmission.
- Flexible Mounting: Supports both direct mount and pole mount configurations for versatile installation options.
- Certified for Safety: CE-compliant and UL Recognized (File No. E215660); meets global industrial signaling standards.
Technical Specifications
- Rated Voltage: 24V AC/DC
- Frequency: 50/60Hz
- Current Consumption: 0.2A nominal
- Lens Material: AS resin (impact resistant, light translucent)
- Body Material: ABS resin
- Mounting Types: Direct mount, pole mount with bracket
- Certifications: CE, UL Recognized (E215660)
- NPN/PNP Compatible: Yes
Typical Applications
- Machine status indication and process signaling in manufacturing plants
- Emergency and warning light systems for industrial facilities
- Safety status displays in assembly lines and production areas
- Facility maintenance and condition monitoring systems
- Traffic control and directional signaling in warehouses and logistics centers
Compatibility & Replacements
Compatible With
- 24V AC/DC industrial control systems
- Programmable Logic Controllers (PLCs) with 24V output modules
- Discrete relay and timer-based control circuits
- Safety-rated monitoring systems and status displays
- Standard pole mounting hardware and L-bracket assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The LES-A 06615P is designed to replace other Patlite LES-series beacon modules with identical voltage and mounting specifications.
Works With
- 24V DC power supplies rated 0.2A or greater per module
- Industrial relay logic control systems
- PLC discrete output cards (24V sink/source capable)
- Hardwired safety circuits and emergency stop systems
