Overview

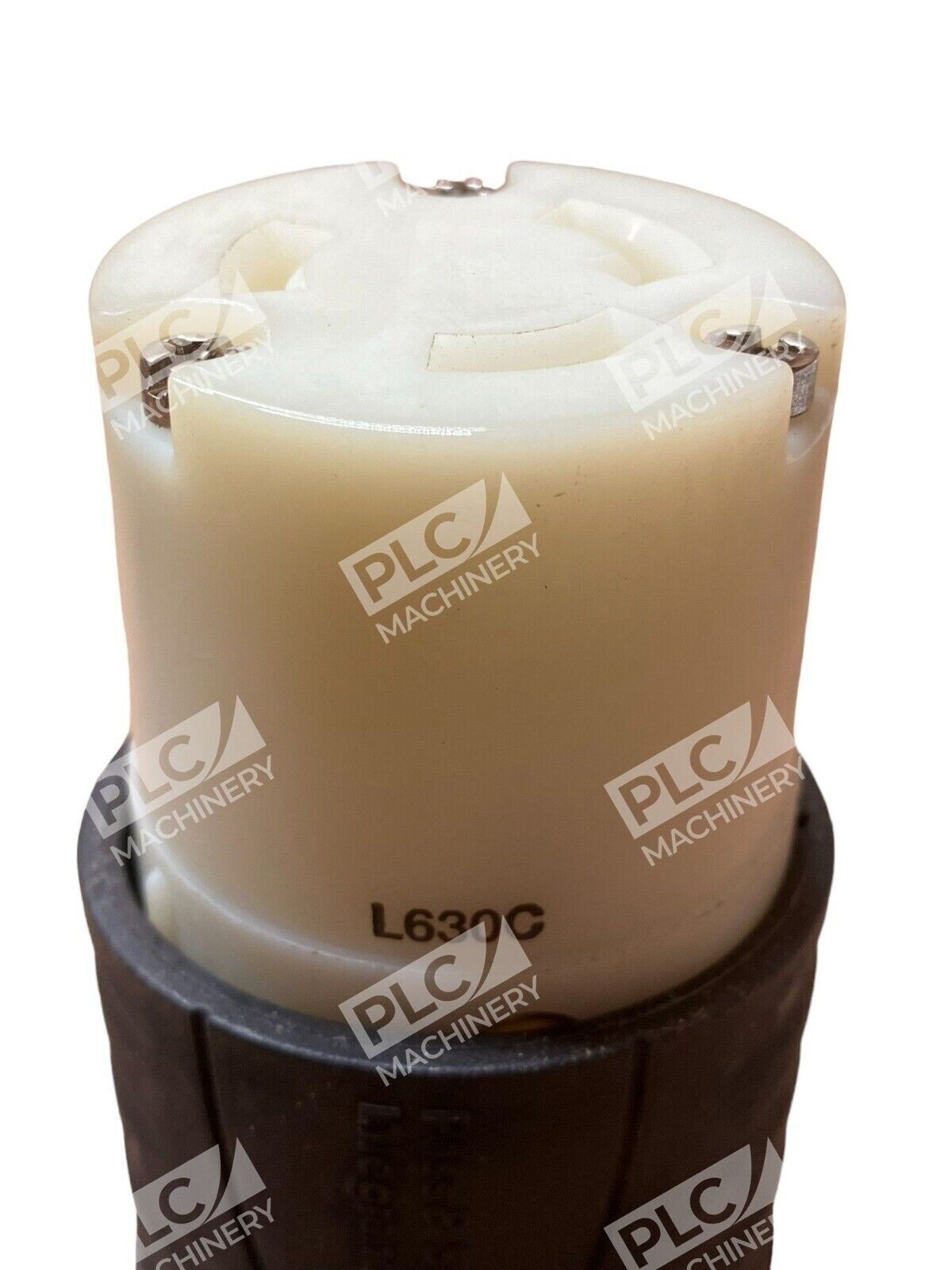

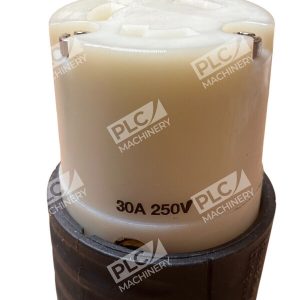

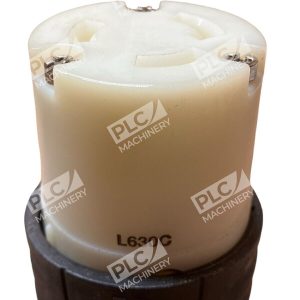

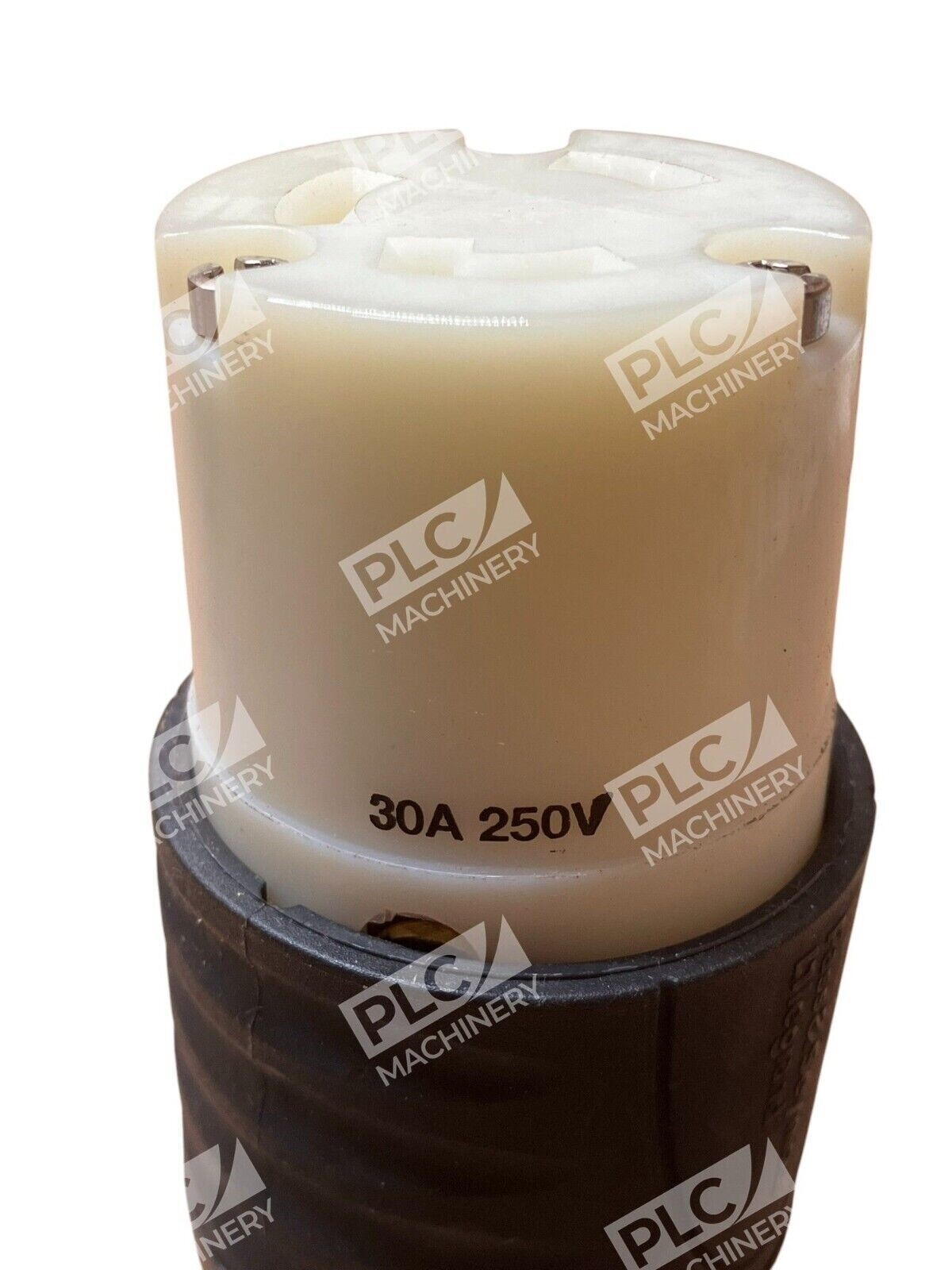

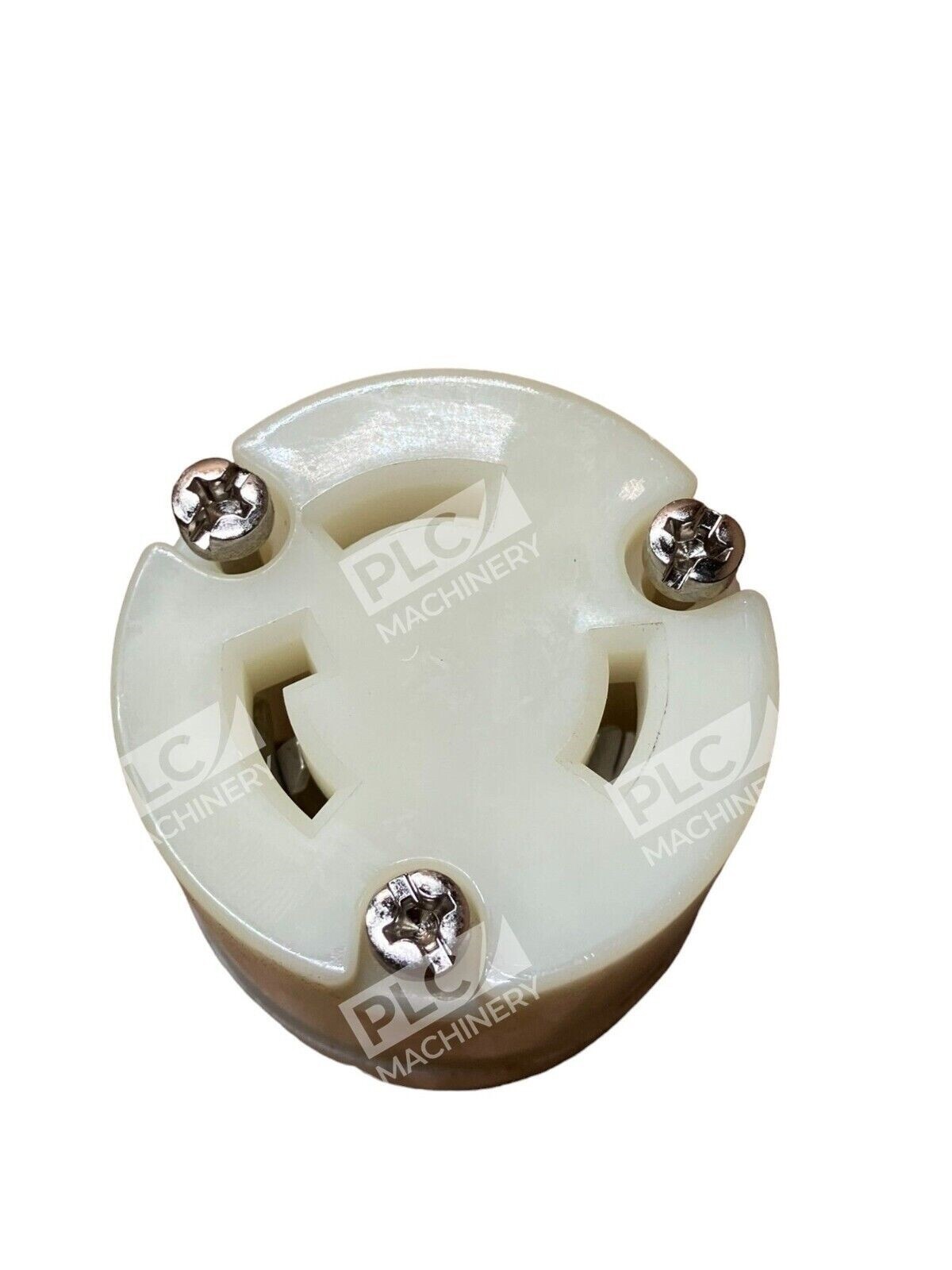

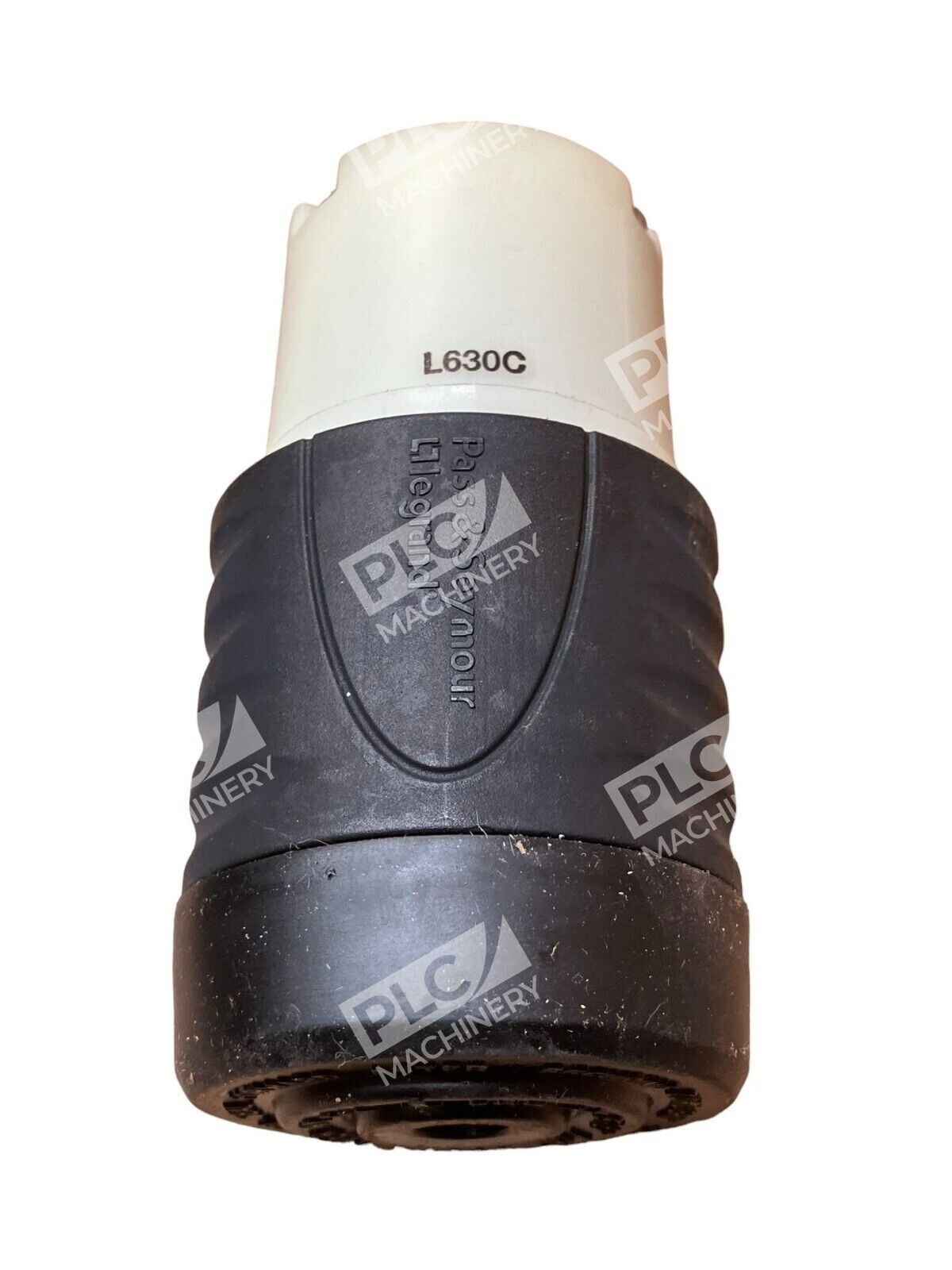

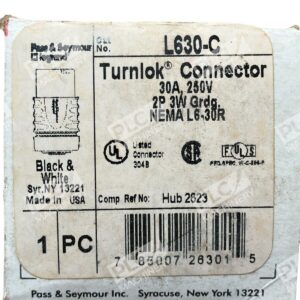

The Pass & Seymour L630-C Turnlok Connector is a heavy-duty locking connector rated for 30 amps at 250 volts, conforming to NEMA L6-30R specifications. Manufactured by Legrand and built for industrial environments, this 2-pole, 3-wire connector delivers reliable, polarized power connections for machine tools, welders, and stationary equipment. The L630-C accommodates 4 AWG wire and is designed for field assembly onto SO-type cables with quick-thread mechanisms.
Key Features
- Brass alloy plug blades and tin-plated Strescon contacts resist heat rise and provide excellent conductivity
- Double-dovetail design prevents cord pull-out forces and ensures secure mechanical retention

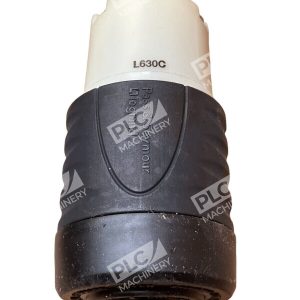

- Raised ribs on grip surfaces deliver non-slip turning profiles for safe locking and unlocking
- External cord grips provide visible confirmation of proper and safe cord retention

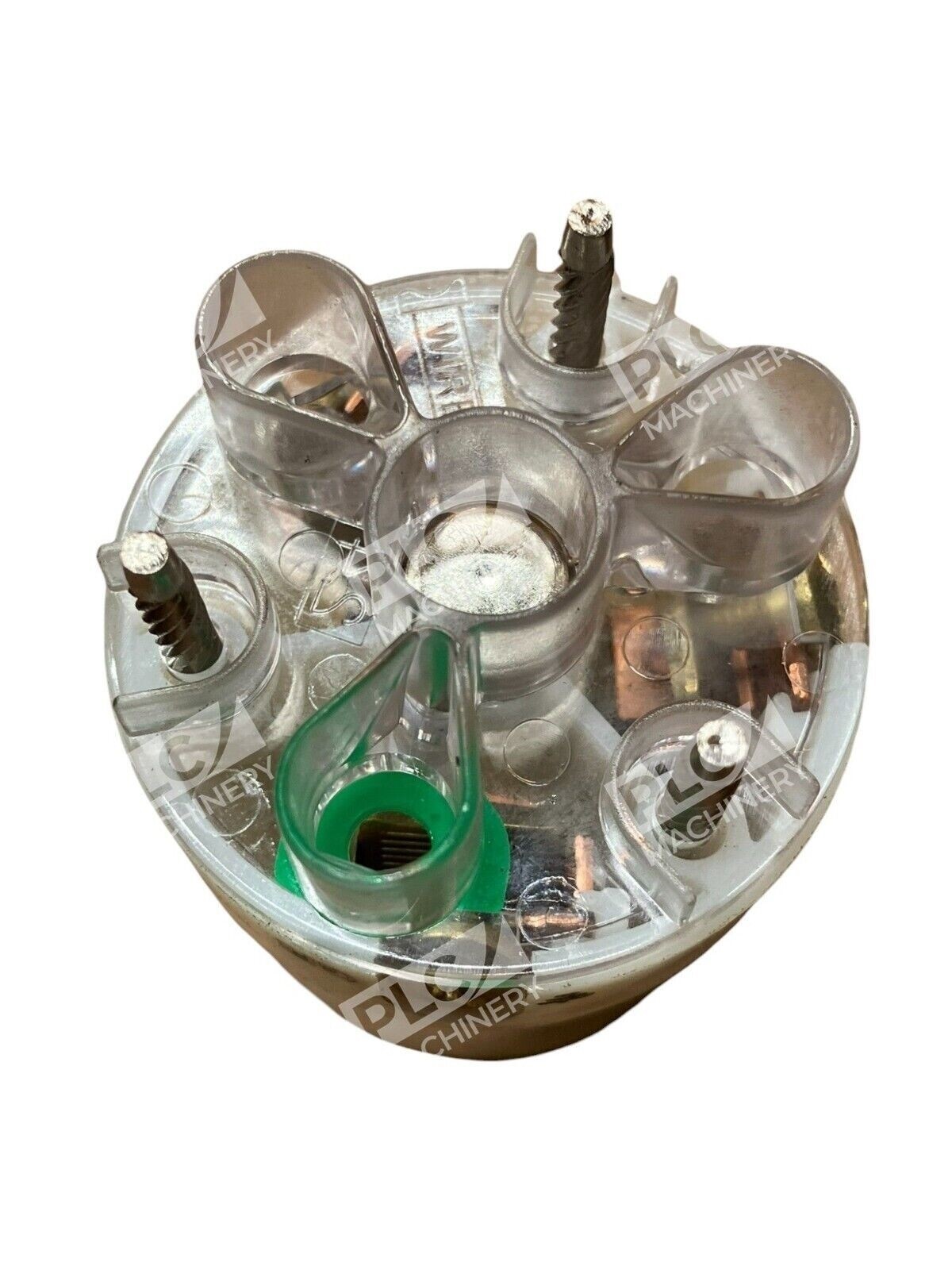

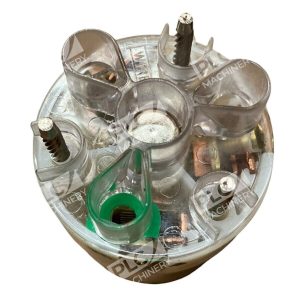

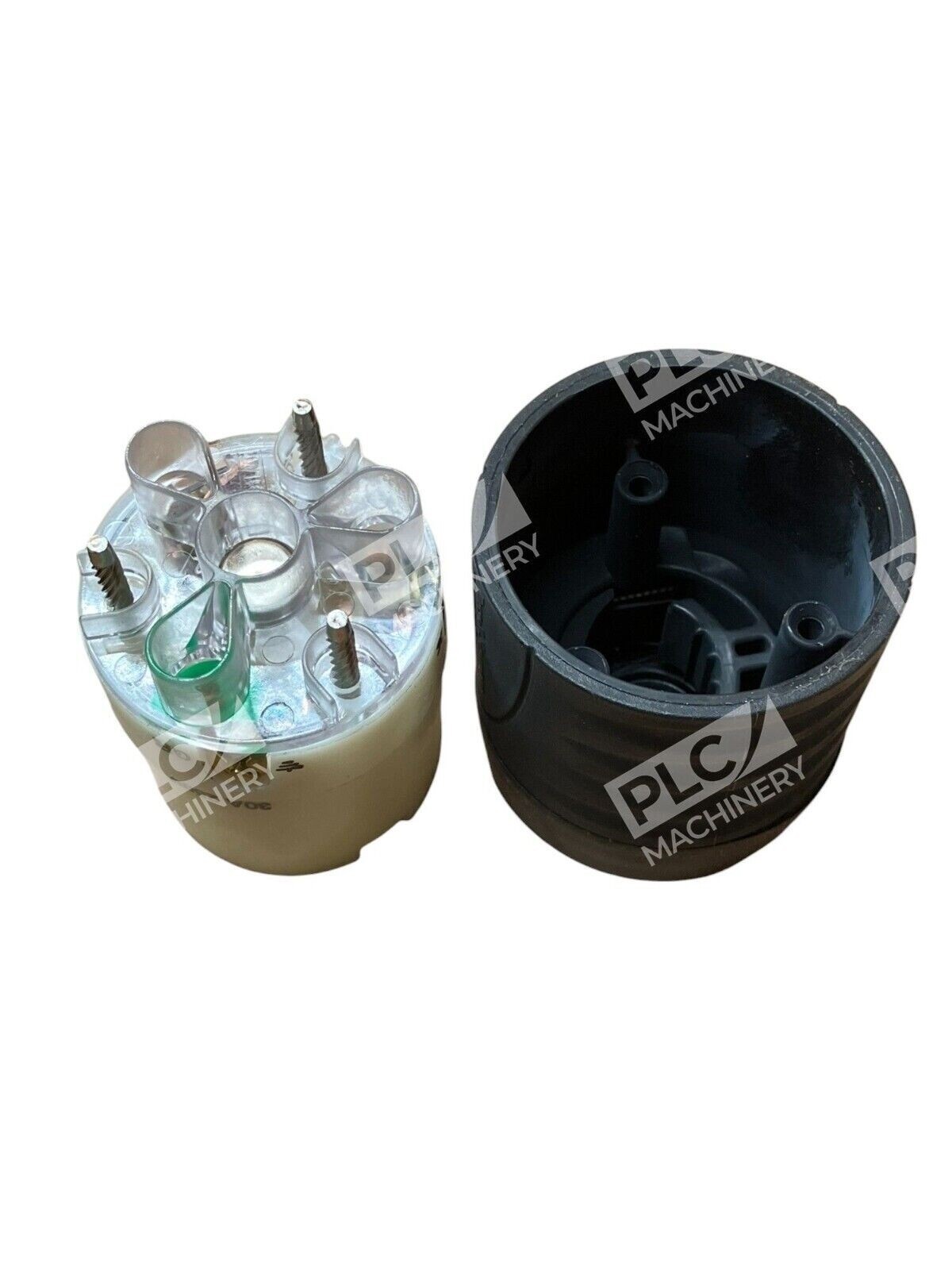

- Quick-thread assembly screws backed out and ready-to-wire; integral flexible rubber cord grommet seals against oils, water, and chips
- Impact- and corrosion-resistant nylon 6/6 shell with rounded back contour reduces snags on job sites
Technical Specifications
- Rated Voltage: 250 VAC
- Amperage: 30 A
- NEMA Configuration: L6-30R
- Poles/Wires: 2-Pole, 3-Wire
- Wire Size: 4 AWG
- Cable Range: 0.385–1.15 inch diameter
- Shell Material: Nylon 6/6, impact- and corrosion-resistant
- Plug Blades: Brass alloy
- Contacts: Tin-plated Strescon
- Connection Type: Screw terminal
- Diameter: 2.2 inches
- Length: 3.33 inches
- Operating Temperature: -40°C to +75°C
- Enclosure Rating: IP20
- Compliance: RoHS compliant
Typical Applications
- Machine tool power connections
- Welding equipment and arc welders
- Industrial machinery and press power distribution
- Stationary equipment requiring 30A service
- Laboratory and testing equipment
Compatibility & Replacements
Compatible With
- Any NEMA L6-30R receptacle (L630R or equivalent)
- Portable and stationary power distribution systems
- Industrial electrical equipment rated for 30A/250V service
- SO, SJO, and equivalent flexible cords (4 AWG)
Replaces / Drop-In Replacement For
- Previous-generation Pass & Seymour L630-C units
- Legrand L630-C Turnlok connectors
Works With
- NEMA L6-30R receptacles and outlets
- Standard industrial electrical cord assemblies
- Manual lock/unlock twist mechanism (no tools required)
