Overview

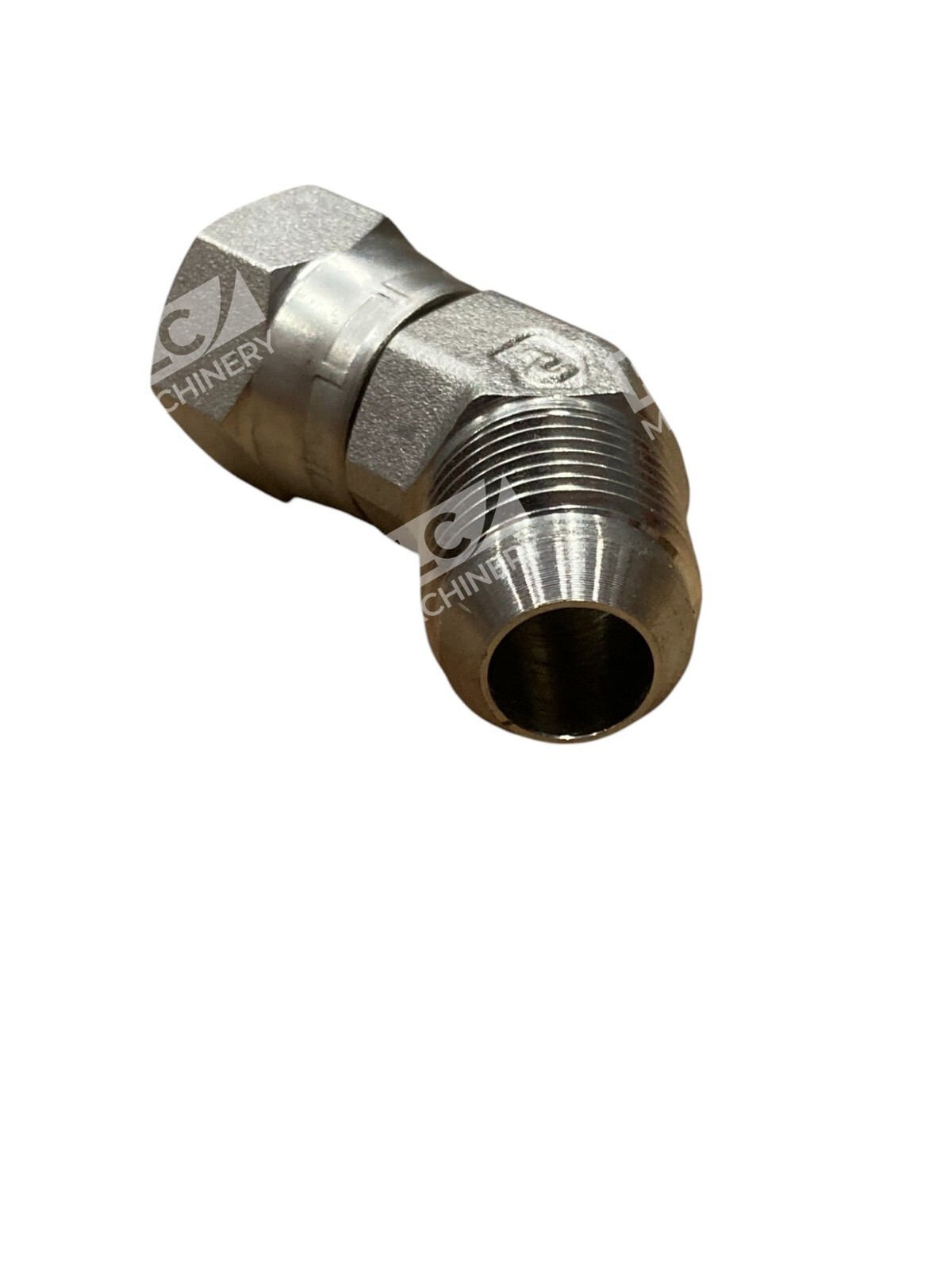

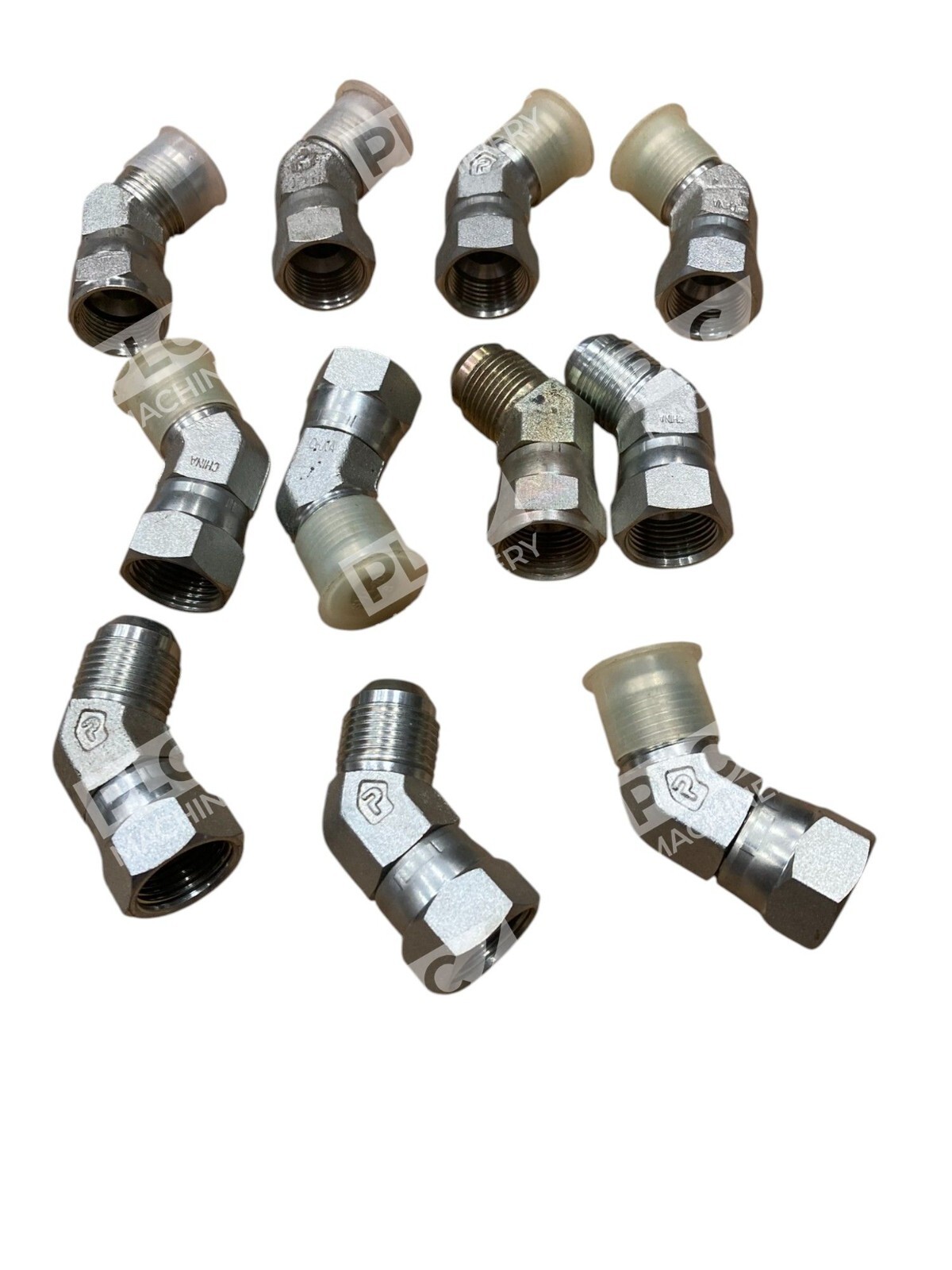

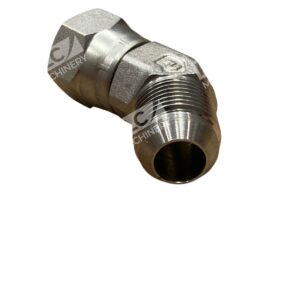

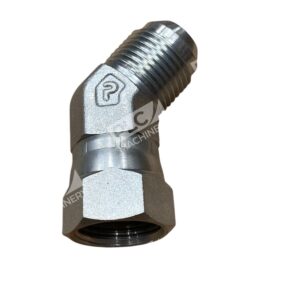

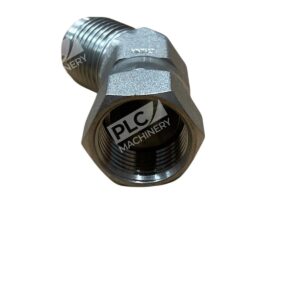

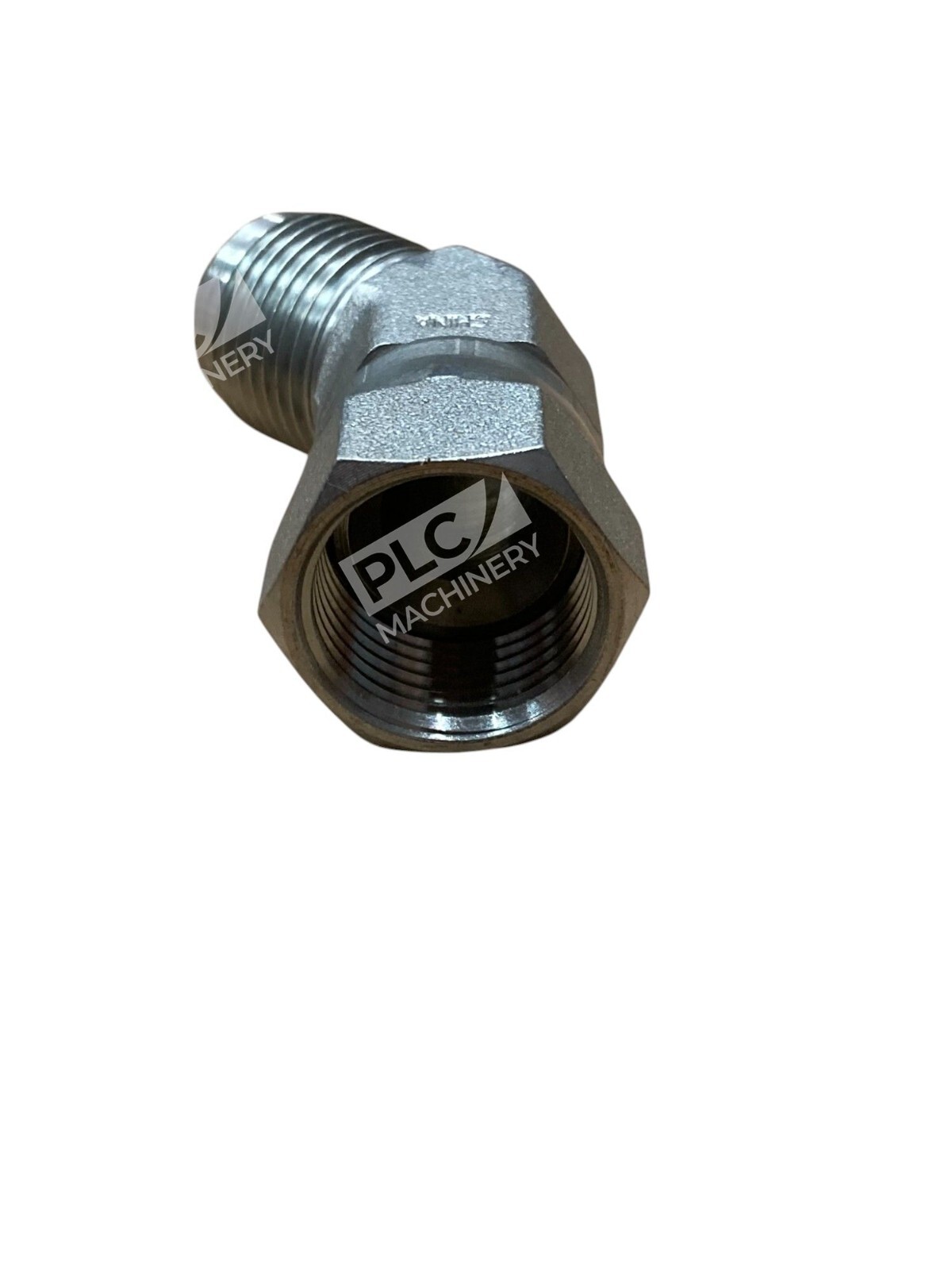

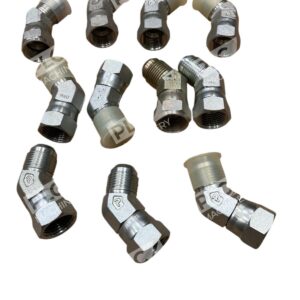

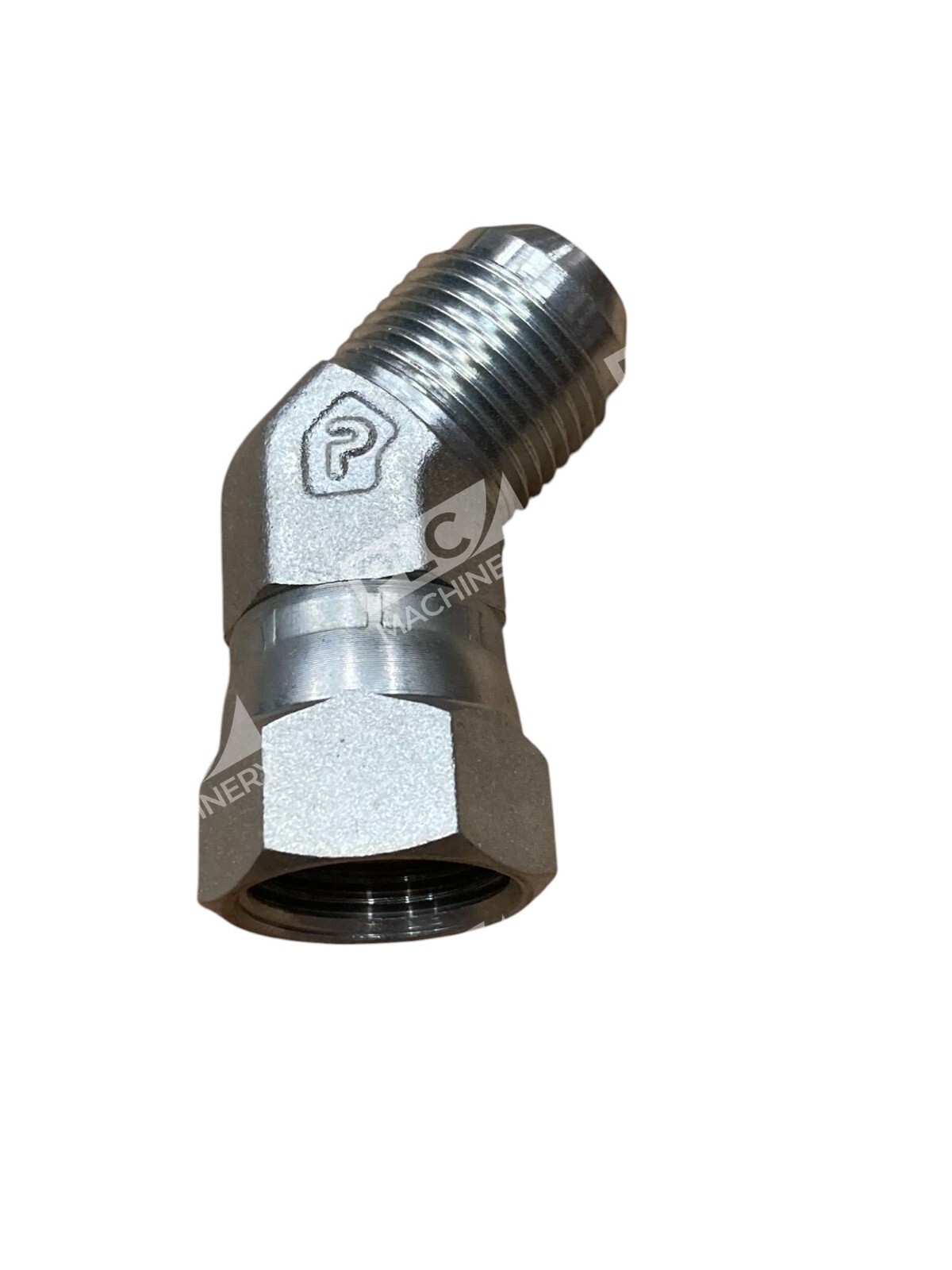

The Parker V6X-S is a Triple-Lok 45-degree swivel nut elbow fitting featuring JIC 37° flare connections. This swivel nut elbow delivers reliable, leak-free performance in high-pressure hydraulic, pneumatic, and fluid power systems. The V6X-S series is engineered for oil, water, and specialty fluids, offering proven durability across industrial and mobile equipment applications. This lot includes four individual fittings for convenient stocking.
Key Features
- 45-Degree Elbow Configuration: 45° swivel nut design enables compact piping layouts
- Triple-Lok Design: Metal-to-metal seating, blowout proof design, vibration resistance and almost unlimited remakeability
- JIC 37° Flare Connections: JIC 37° Flare connections provide reliable leak-free connections for high-pressure hydraulic applications
- Steel Construction: Steel material for durability and corrosion resistance
- Size Range: Available in sizes 1/8″ – 2 ½” with working pressures up to 7500 psi
Technical Specifications
Parker Triple-Lok 45° swivel elbow fittings from the Tube Fittings Division feature superior plating that provides unmatched protection against red rust, ensuring long-term reliability in harsh environments.
Typical Applications
- Hydraulic power units and manifolds
- Mobile equipment (loaders, excavators, backhoes)
- Industrial hydraulic systems
- Pneumatic distribution networks
- Fluid transfer lines requiring offset routing
- Machinery requiring 45-degree piping angles
Compatibility & Replacements
Compatible With
- Parker hydraulic and pneumatic systems
- JIC 37° flare threaded hose and tubing
- High-pressure hydraulic manifolds
- Industrial fluid power circuits
Replaces / Drop-In Replacement For
- Earlier Parker V6X-S configurations
- Other manufacturer 45-degree JIC swivel elbows with matching JIC ports
Works With
- Parker Hannifin hydraulic component ecosystems
- JIC-threaded hose assemblies and adapters
- Standard hydraulic fluid systems (mineral oil, synthetics)
- Pneumatic systems operating at equivalent pressures
