Overview

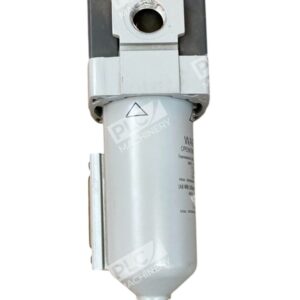

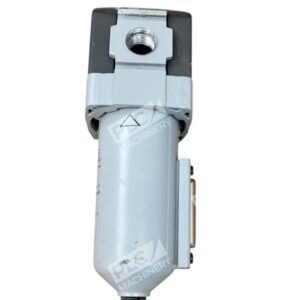

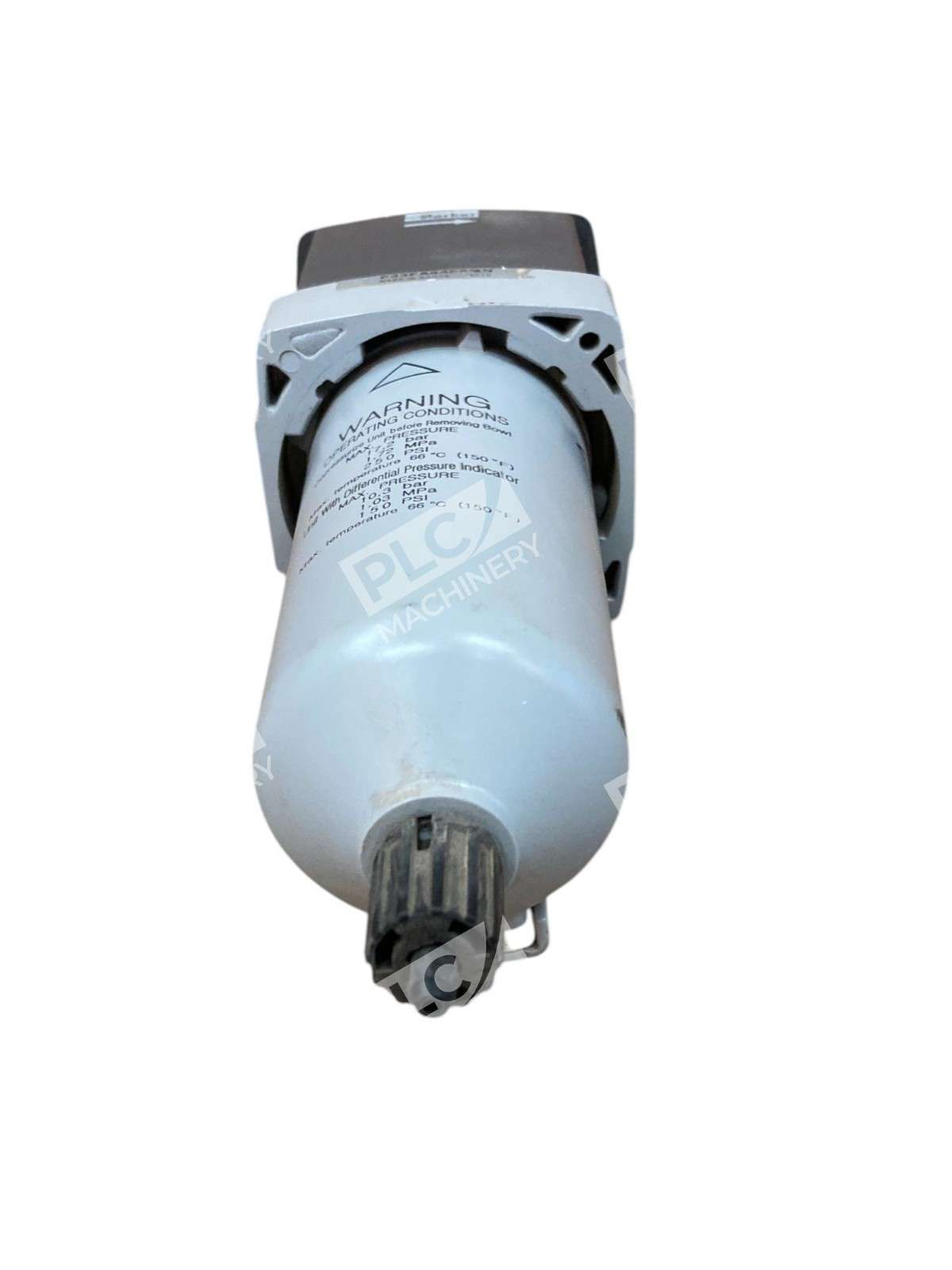

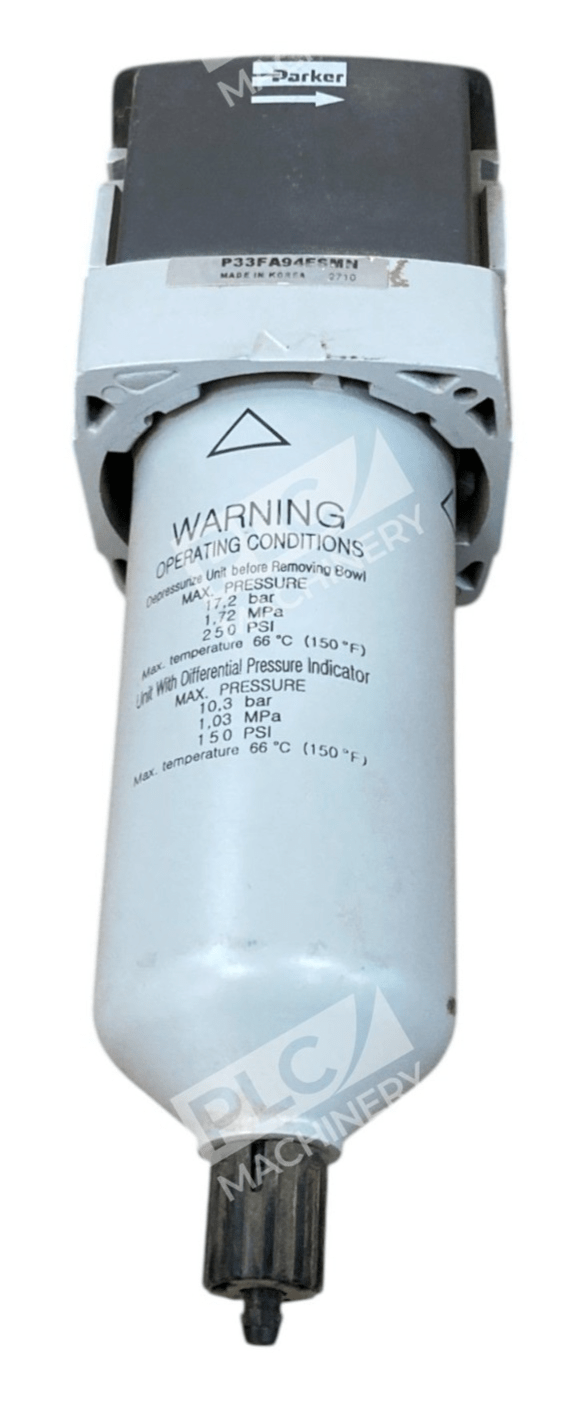

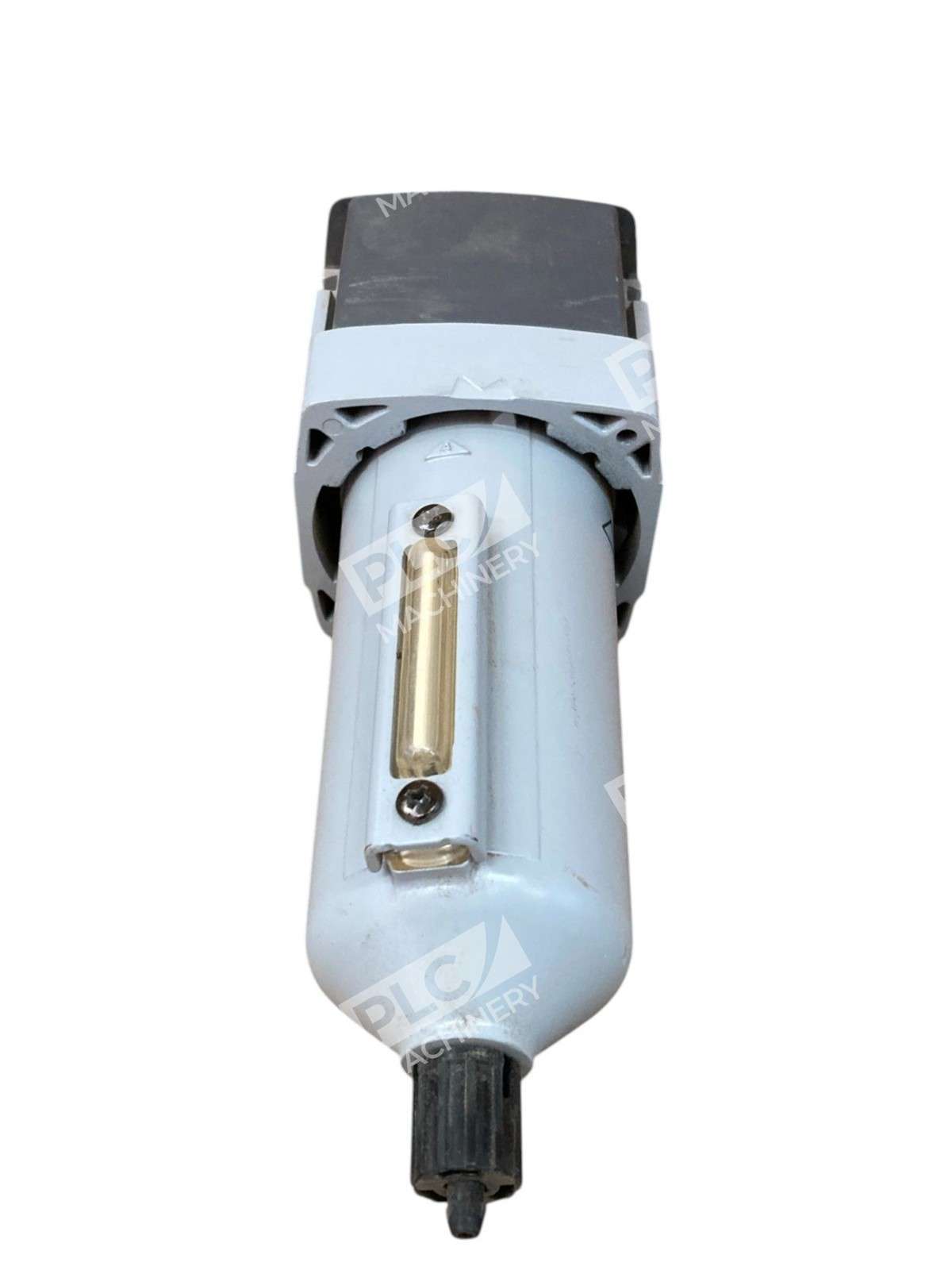

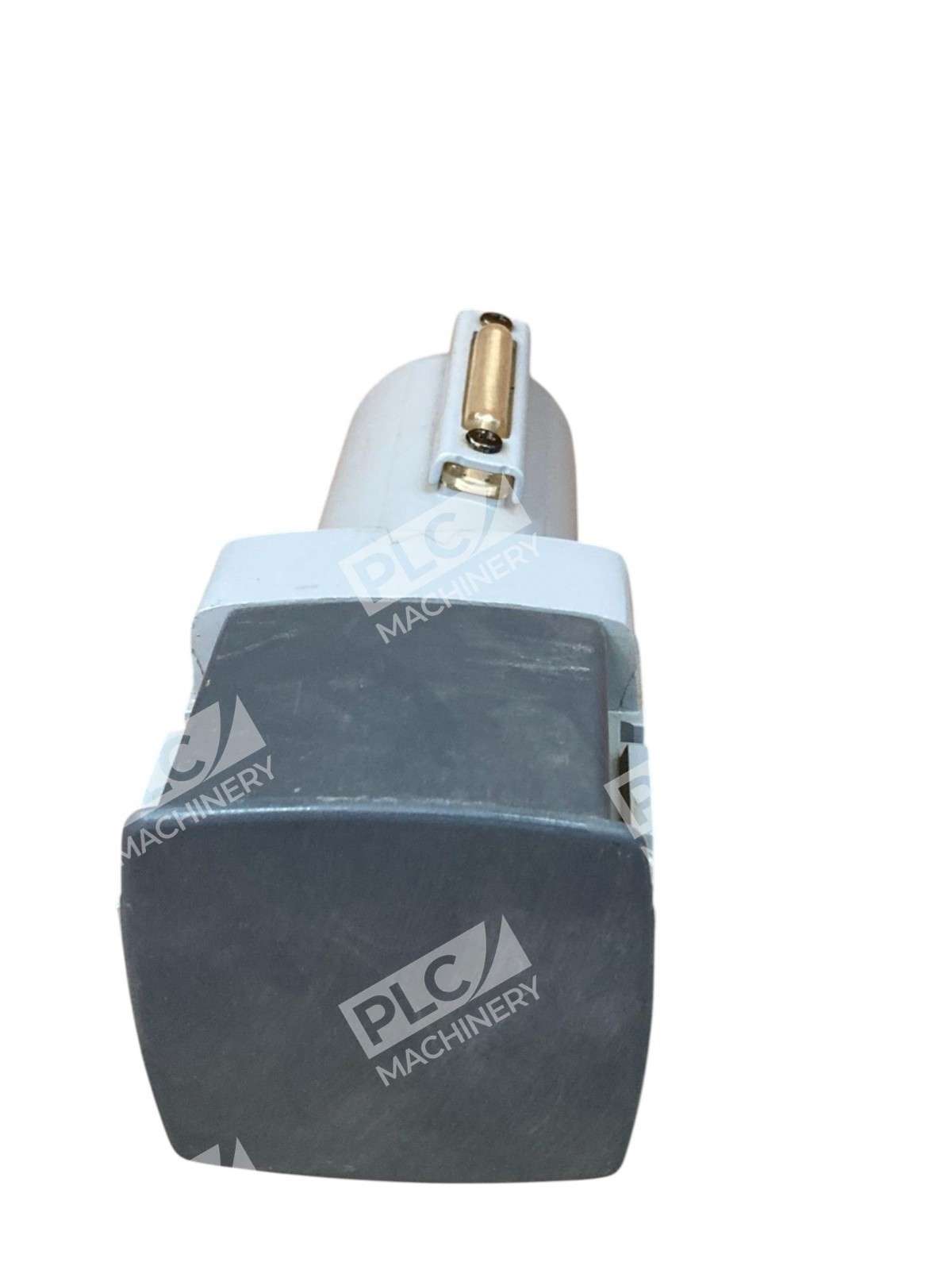

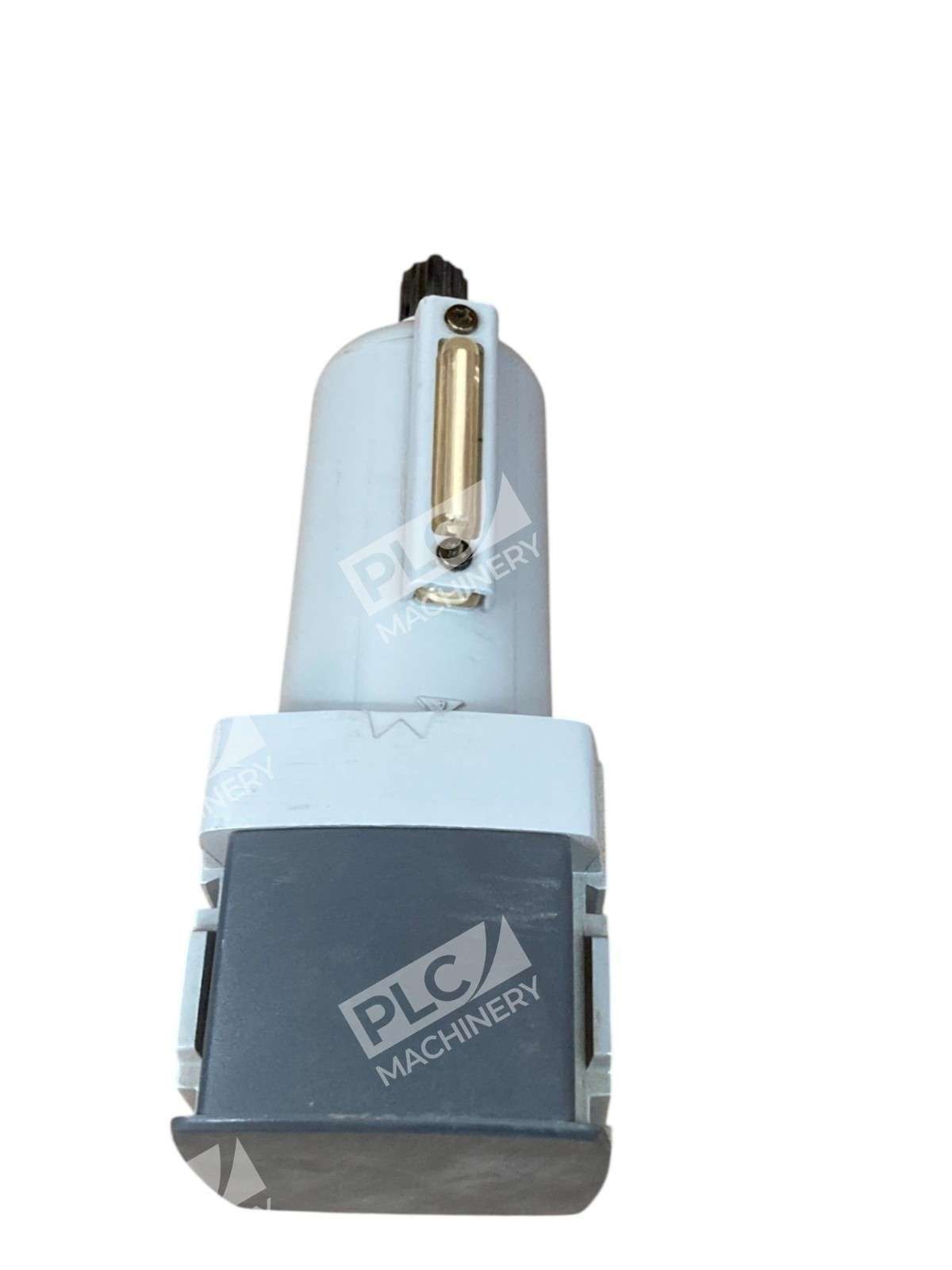

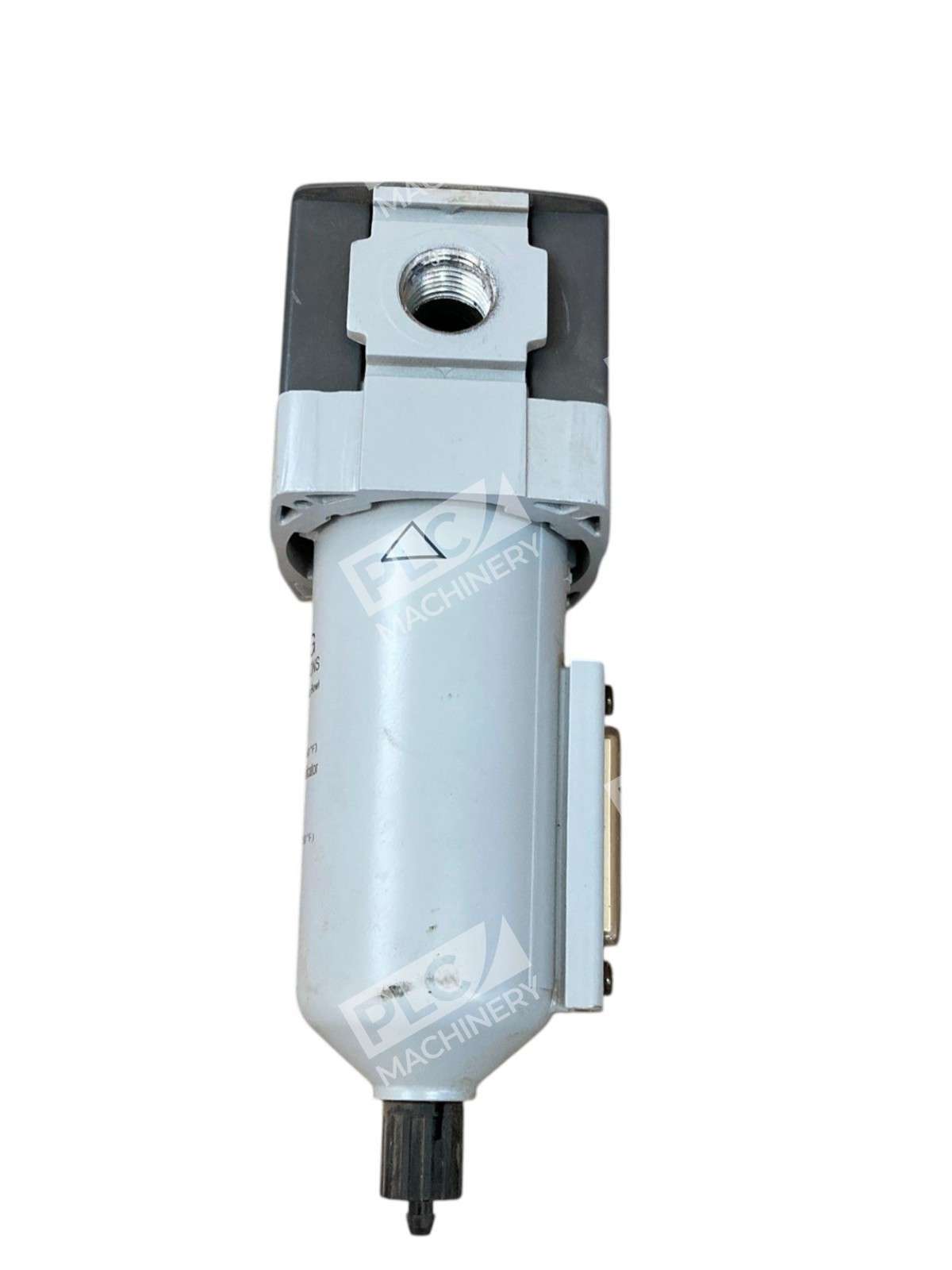

The Parker P33FA94ESMN is a standard particulate filter from Parker’s Global Modular air preparation line. Designed to remove particulates and liquid aerosols from pneumatic systems, this filter provides reliable contamination control in industrial pneumatic networks. The modular construction allows flexible integration into existing air lines, regulators, and manifold systems for maintenance and retrofit applications.
Key Features
- 5 micron element rating for fine particulate filtration
- Operating pressure range 0–150 PSIG (0–10.3 bar) with 85 SCFM maximum flow

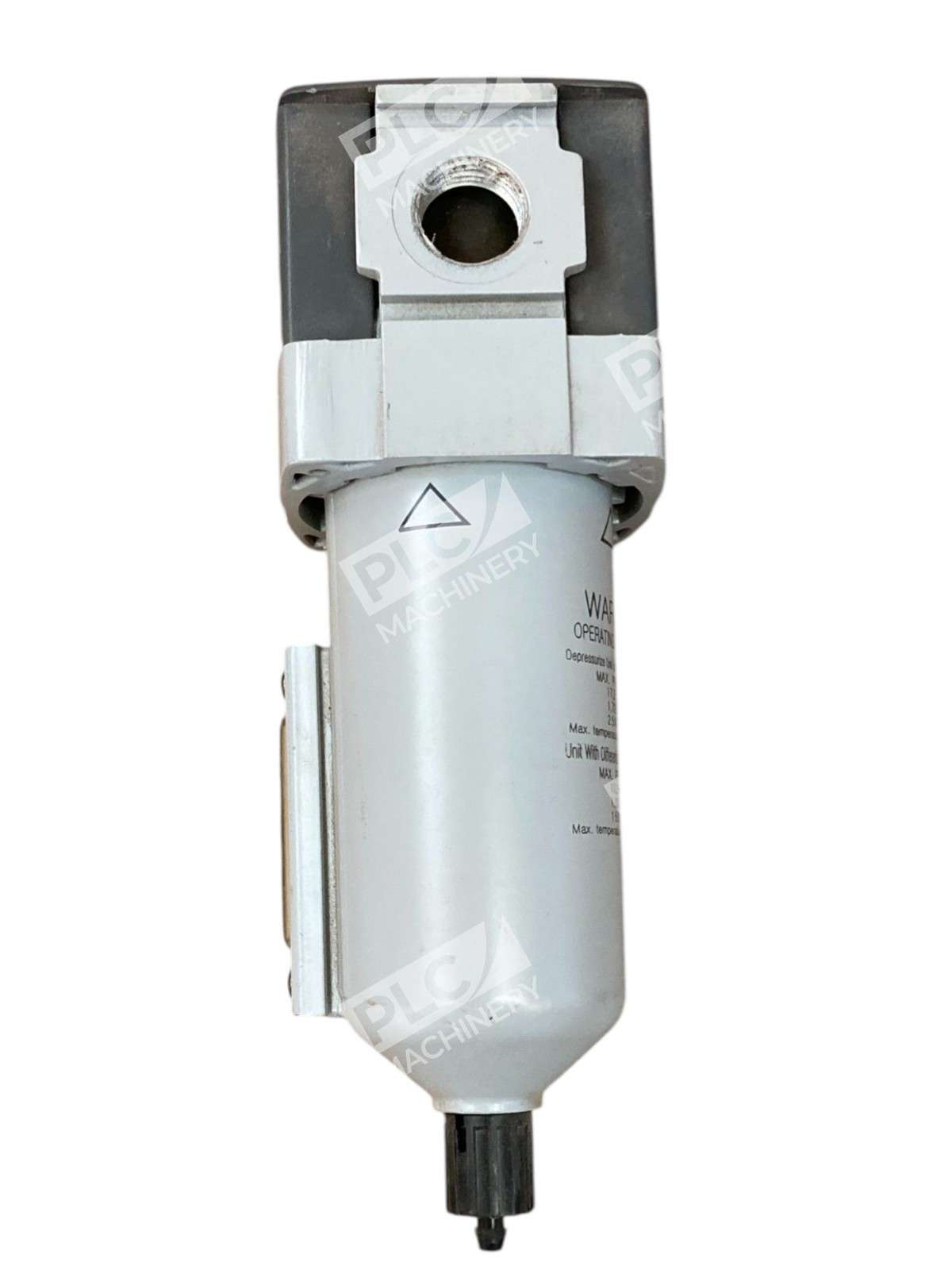

- 1/2″ NPT port connection with polycarbonate bowl and integral bowl guard
- Manual drain type for operator-controlled condensate removal
- Operating temperature range −25°C to +52°C (−13°F to +126°F)
- Modular design for drop-in replacement and system integration
Technical Specifications
- Element Rating: 5 micron
- Maximum Flow: 85 SCFM (40 dm³/s)
- Supply Pressure: 0–150 PSIG (0–10.3 bar)
- Port Size: 1/2″ NPT
- Bowl Type: Polycarbonate with bowl guard
- Drain Type: Manual
- Operating Temperature: −25°C to +52°C
- Series: Global Modular
- Product Type: Standard Particulate Filter
Typical Applications
- General industrial pneumatic systems requiring basic particulate filtration
- Manufacturing lines, assembly equipment, and automated machinery
- Compressed air systems in food processing, automotive, and textile industries
- Retrofit and replacement installations in existing air preparation networks
- Systems where 5 micron contamination control meets application requirements
Compatibility & Replacements
Compatible With
- Parker Global FRL modular air preparation systems
- Standard pneumatic networks with 1/2″ NPT female ports
- Systems operating at 0–150 PSIG pressure range
- Parker regulators, lubricators, and filter/regulator combinations in the Global series
Replaces / Drop-In Replacement For
- Parker P33FA94EGMN (equivalent variant with automatic drain option)
- Other P33 series standard particulate filters with identical port and pressure specifications
- Verify specific model compatibility with your system integrator before ordering
Works With
- Parker pneumatic components and modular manifold systems
- Industry-standard 1/2″ NPT pneumatic networks
- Compressed air preparation in ISO 8573-1 filtration classes
- Manual and automated drain systems in pneumatic networks
