Overview

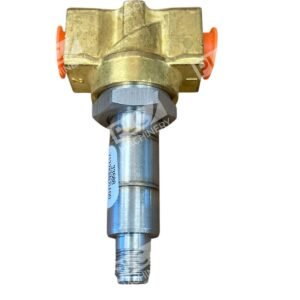

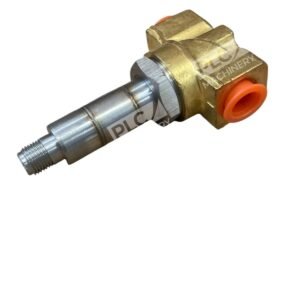

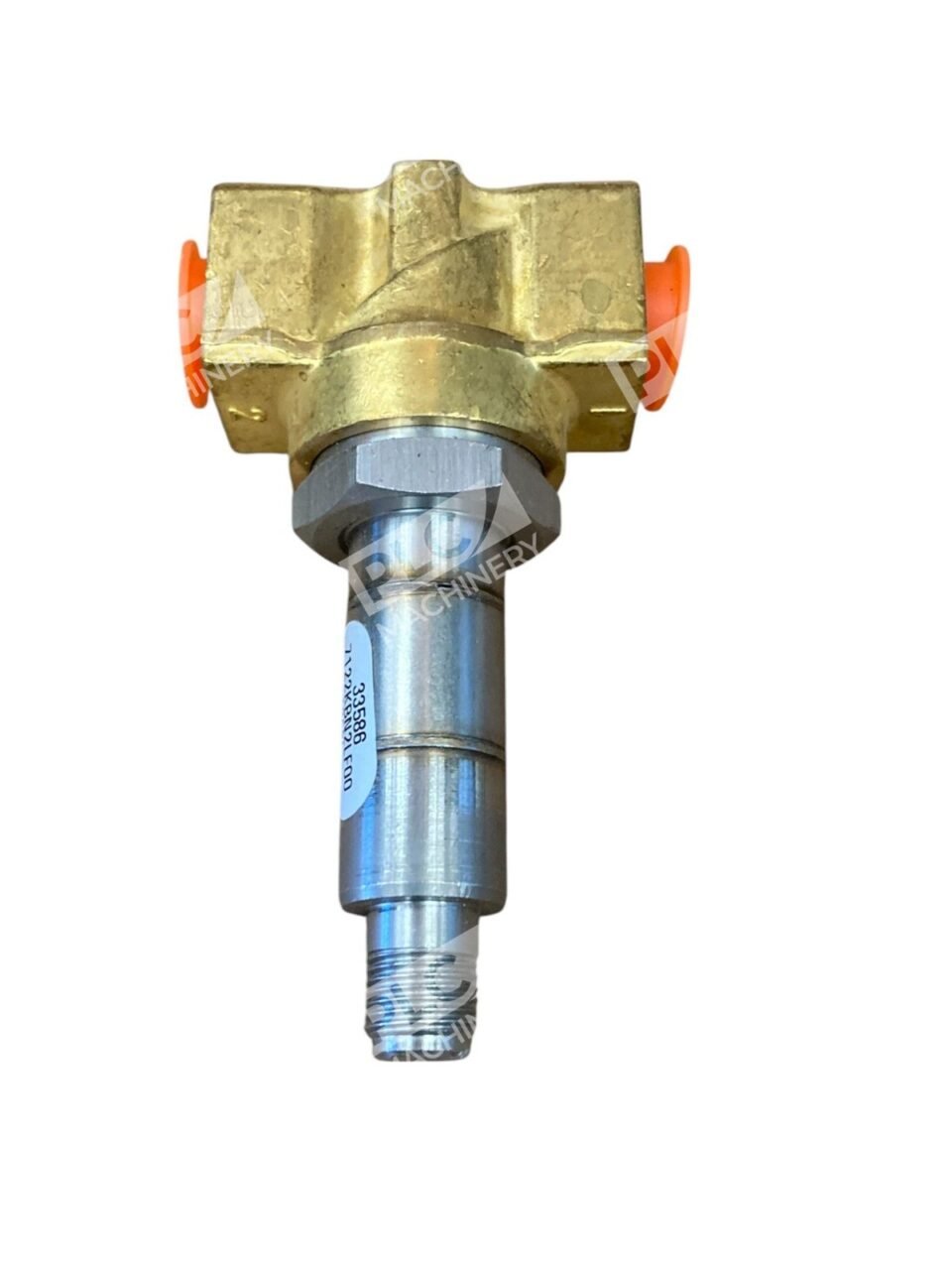

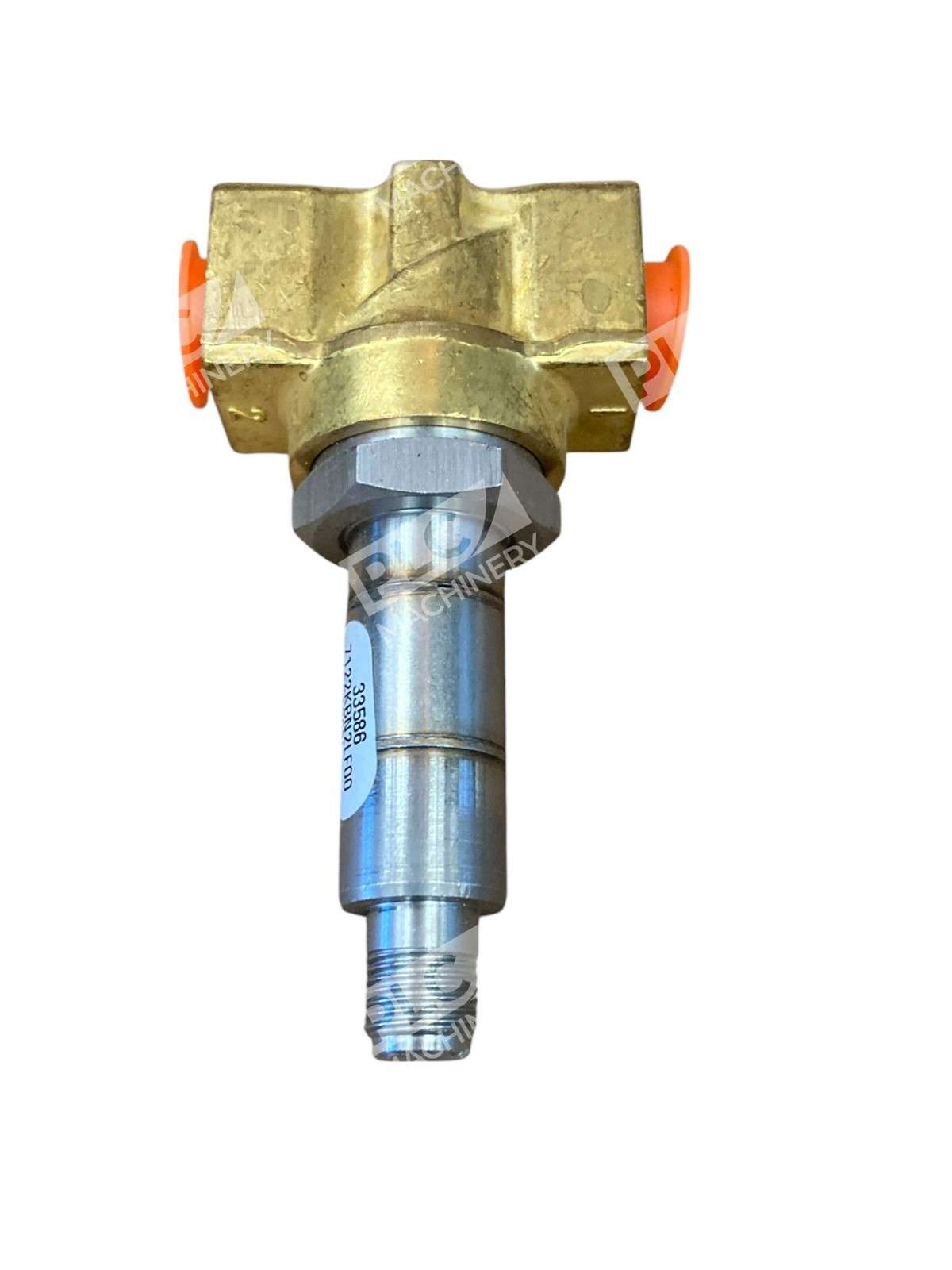

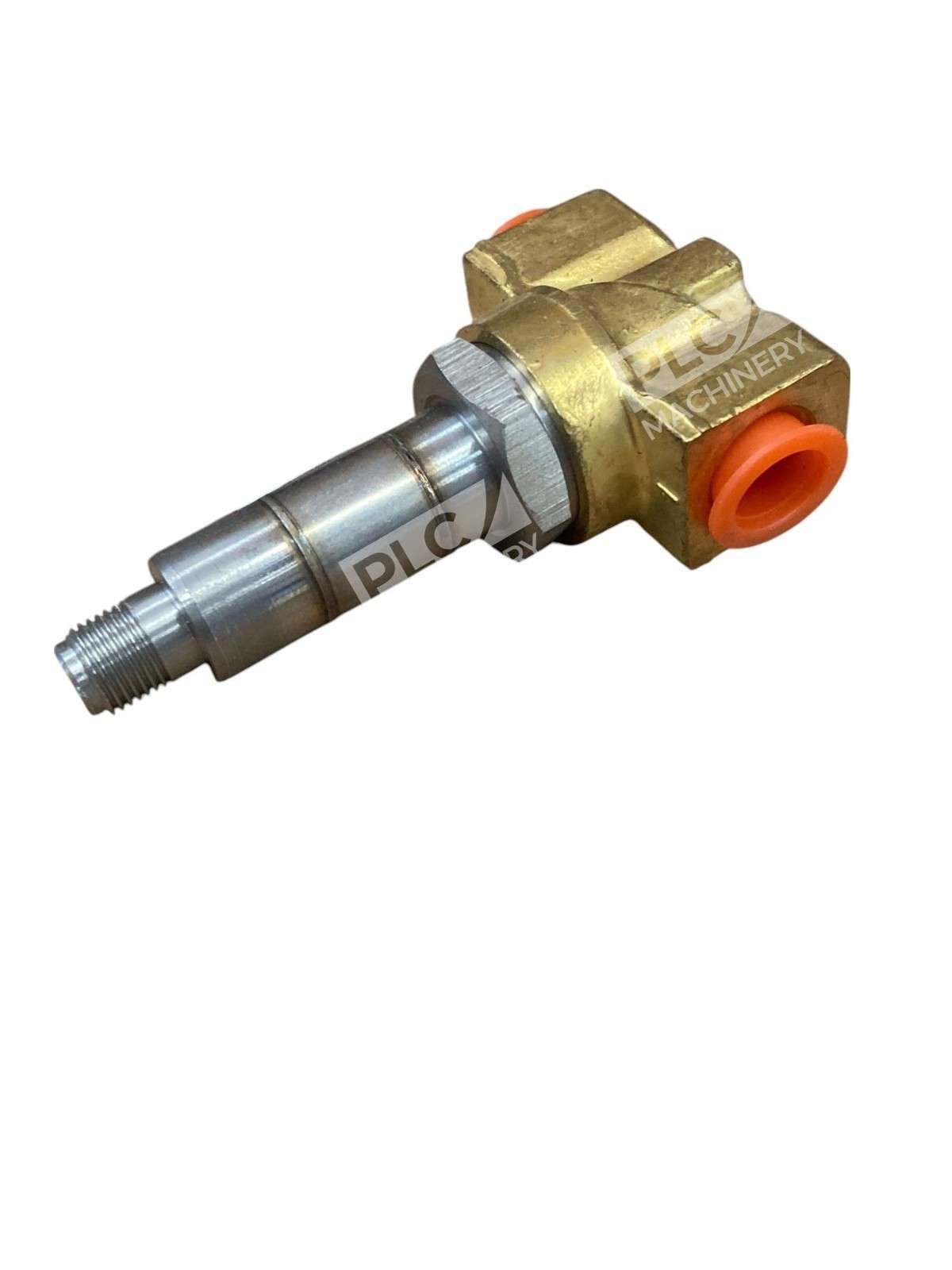

The Parker 7122KBN2LF00 is a 2-way, 2-position normally open (NO) direct-acting solenoid valve from Parker’s Skinner 7000 series. This industrial-grade valve combines brass construction with PCTFE seals to deliver reliable performance across compressed air, inert gases, water, and light oil applications. With a 24VDC solenoid coil and 1/4″ NPT threaded ports, it integrates seamlessly into pneumatic control systems requiring zero pressure differential actuation.
Key Features
- Normally Open (NO) Design: Valve passes flow in the unpowered state; energizing the coil closes the valve
- Direct-Acting Technology: Operates without pilot pressure; minimal response delay for fast switching
- Flow Factor (Cv): 0.21 Cv for precise flow control in compact systems
- 24VDC Solenoid: Class F coil rated 10W; DIN 43650A / ISO 4400 connector standard
- Versatile Media Compatibility: Air, inert gases, water, and light oil (up to 300 SSU)
- Multiple Mounting Orientations: Preferred vertical upright configuration; can be installed in any position
Technical Specifications
- Port Configuration: 1/4″ NPT Threaded (Base Valve 7122KBN2LF00)
- Valve Type: 2/2 Direct-Acting Solenoid (Poppet)
- Operation: Normally Open (NO)
- Solenoid Voltage: 24VDC
- Coil Class: Class F
- Coil Power: 10W
- Flow Factor (Cv): 0.21
- Pressure Range: 0–175 psi (differential); up to 300 psi pilot-operated models available
- Seal Material: PCTFE (Perfluorocarbon thermoplastic)
- Body Material: Brass
- Operating Fluids: Lubricated Air, Inert Gases, Water, Light Oil (300 SSU max.)
- Maximum Temperature: 185°F
- Connector Type: DIN 43650A / ISO 4400
- Coil Return Spring: Yes
Typical Applications
The Parker 7122KBN2LF00 is commonly used in:
- Pneumatic control circuits for on/off flow switching
- Compressed air distribution systems and blow-down applications
- Instrumentation and laboratory gas-control panels
- Water or light-oil flow isolation in general-purpose hydraulic systems
- Pilot-supply blocking in larger proportional control manifolds
Compatibility & Replacements
Compatible With
- Parker Skinner 7000 series valve mounting plates and manifolds
- DIN 43650A / ISO 4400 standard solenoid connectors and cable assemblies
- 24VDC industrial control power supplies and PLC outputs (with appropriate current capacity)
- Pneumatic system ISO 4401-05 (NG 05) cavity cavity-mount configurations
- Standard air regulators and pressure filters (Parker, SMC, Festo, Bosch, Norgren)
Replaces / Drop-In Replacement For
- Parker Skinner 7122 series with identical electrical and port specifications
- Legacy Skinner Electric 2-way solenoid valves with 24VDC, 1/4″ NPT, and Normally Open actuation
- Verify coil connector type (DIN vs. leads vs. terminal) before ordering as replacement; this unit uses DIN 43650A
Works With
- Standard 24VDC coil configuration; pilot-operated versions available for higher pressure differential applications
- Class F coil suitable for intermittent duty cycle applications; consult datasheet for continuous duty ratings
- Compatible with both AC and vacuum service with appropriate seal material upgrade (consult Parker factory)
- PCTFE seals provide chemical resistance; alternative elastomers available for specialized media
