Overview

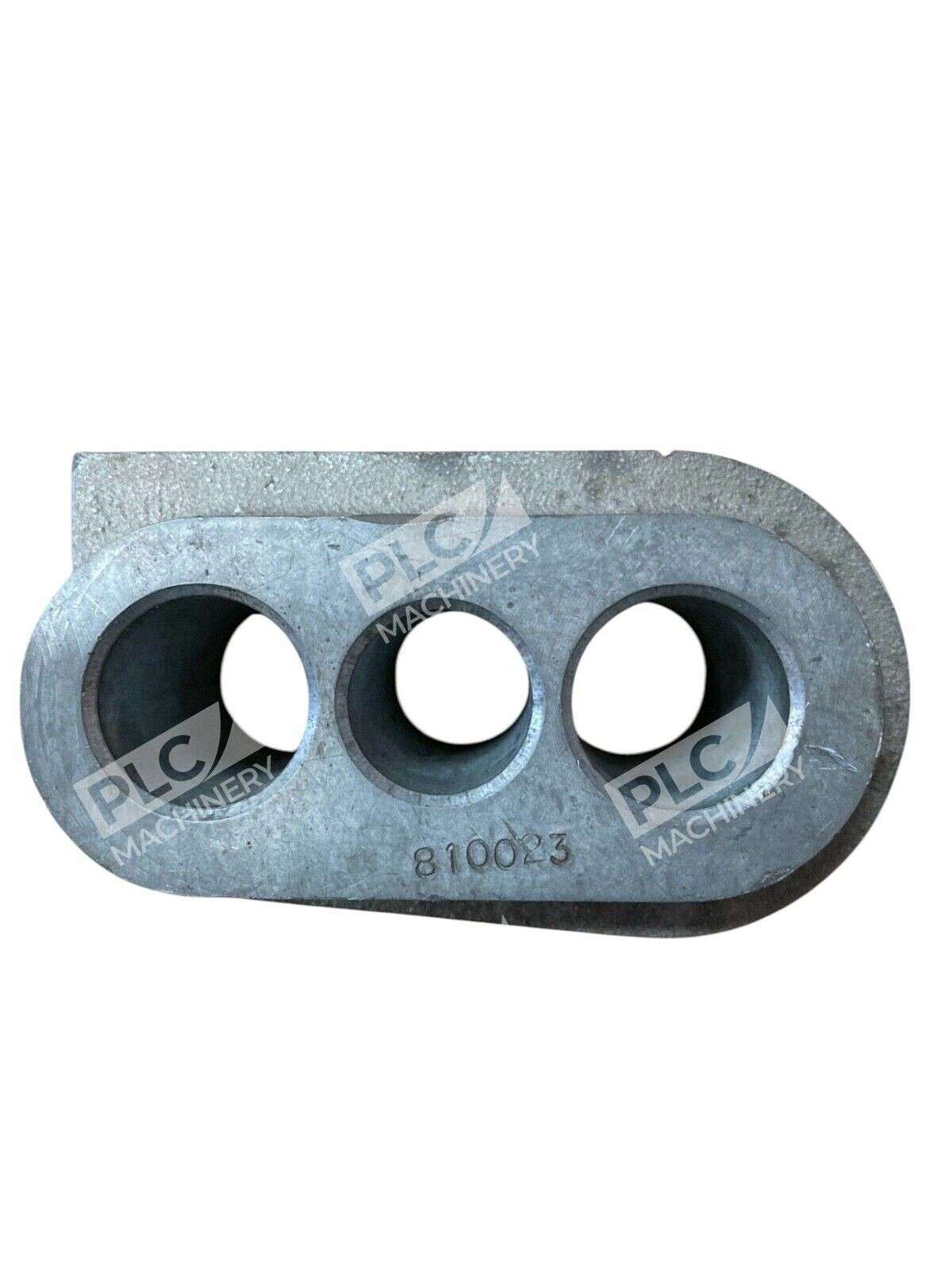

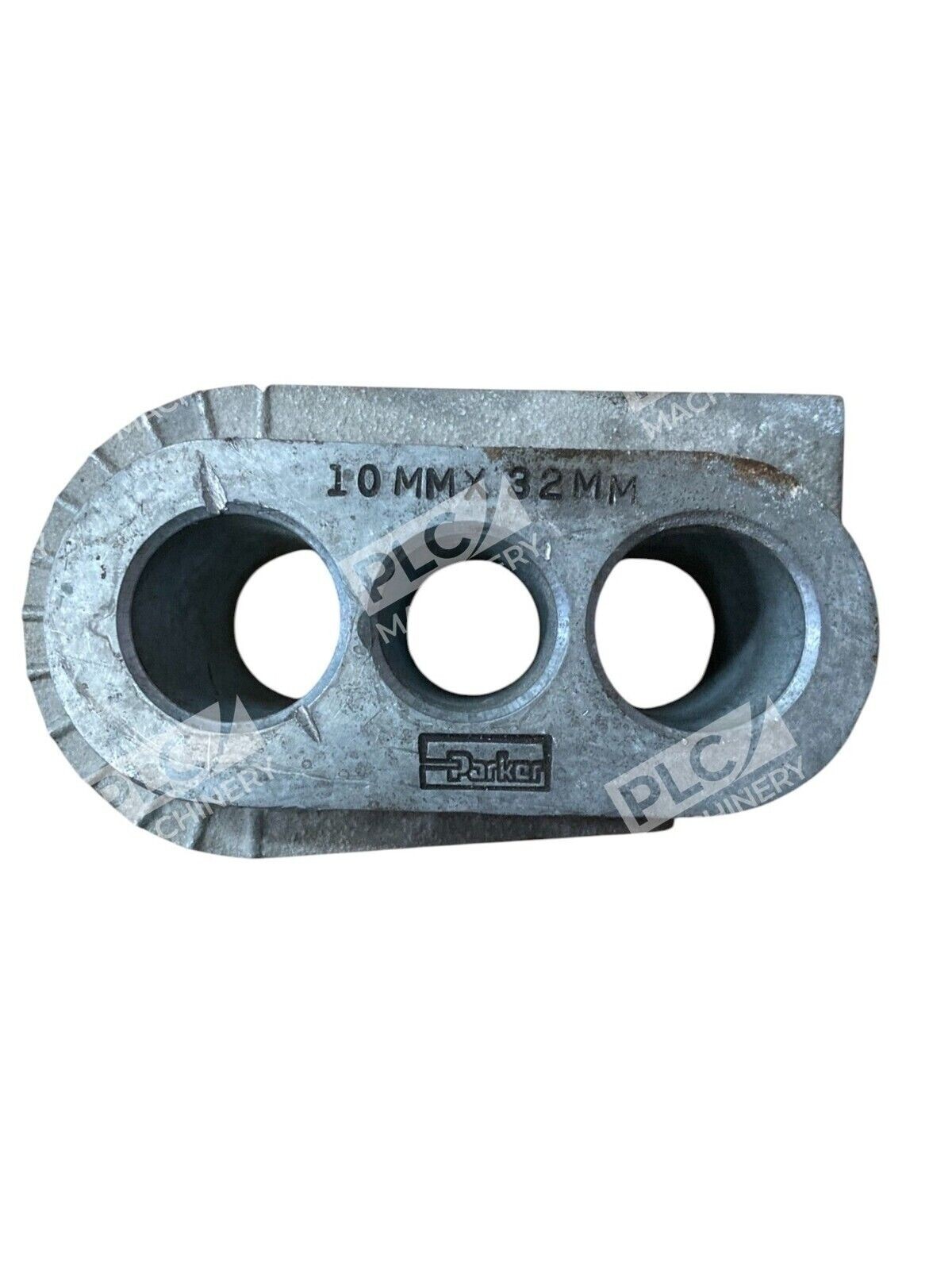

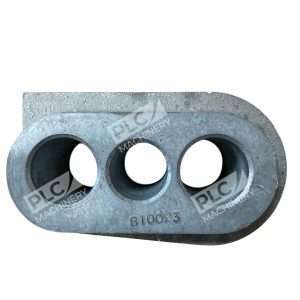

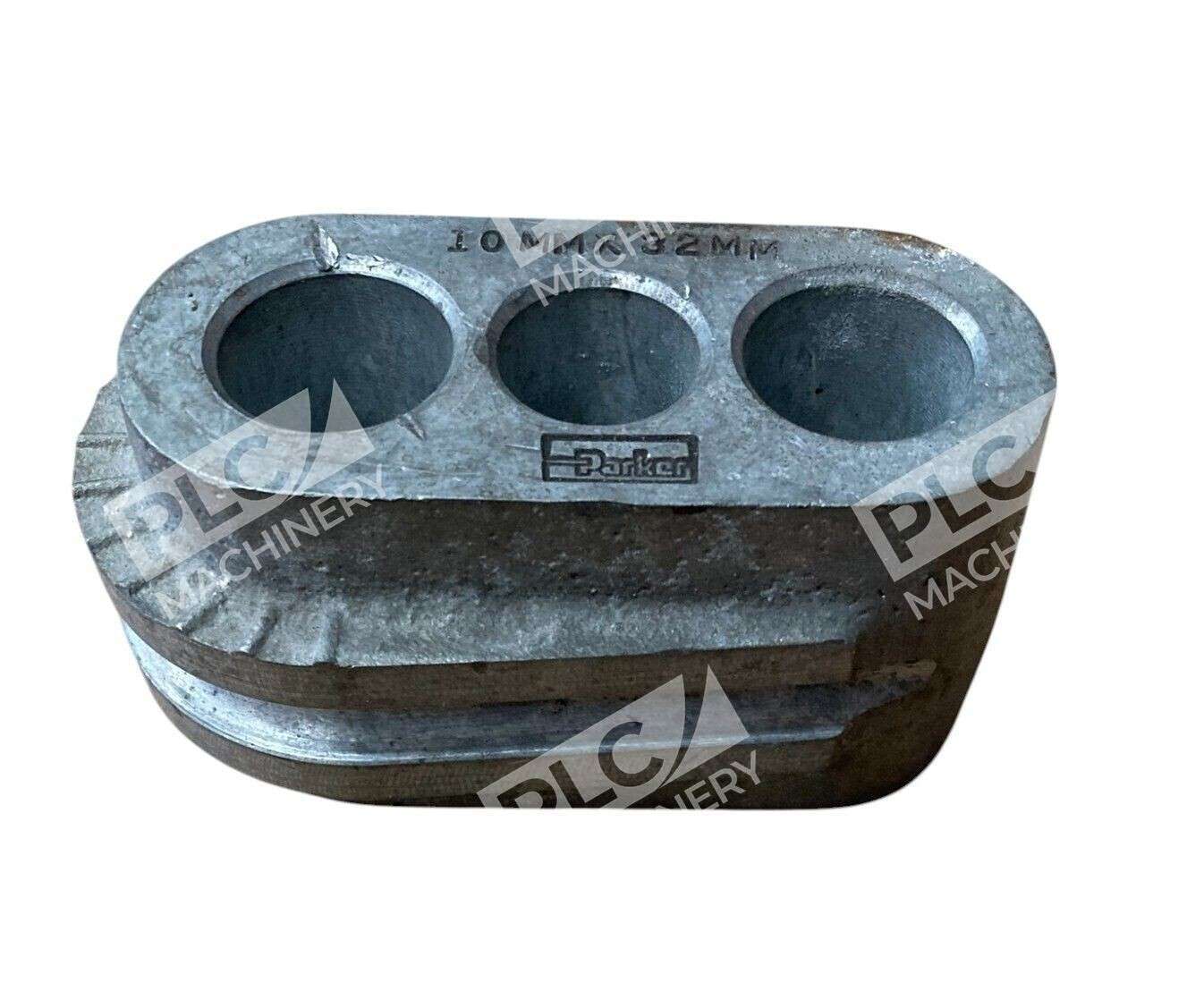

The Parker 810023 tube bender radius block is a precision-engineered die shoe component designed for manual and power tube bending operations. This radius block accommodates 10mm outer diameter tubing and provides a 32mm bend radius, ensuring accurate and repeatable bends in copper, aluminum, stainless steel, and annealed steel tubes. Parker manufactures these components to exacting tolerances, making them essential for production environments, maintenance shops, and fabrication facilities requiring consistent tube geometry.
Key Features
- Designed for 10mm OD tube sizes with 32mm bending radius
- Heat-treated alloy construction for durability and long service life
- Compatible with Parker manual and hydraulic tube bender systems
- Angle markings for quick setup and bend reference
- Supports bending of copper, aluminum, stainless steel, and annealed steel tubing
Technical Specifications
- Tube Outer Diameter: 10mm
- Bending Radius: 32mm
- Material: Heat-treated aluminum alloy
- Component Type: Radius block / die shoe
- Manufacturer: Parker Hannifin Corporation
- Part Number: 810023
Typical Applications
The Parker 810023 radius block is ideal for:
- Hydraulic and pneumatic system assembly and repair
- HVAC and refrigeration line fabrication
- Automotive cooling and brake line production
- Industrial equipment tubing replacement and custom bending
- Maintenance shops requiring precision tube bending capability
Compatibility & Replacements
Compatible With
- Parker Model 412 manual crank benders
- Parker Model 632 hydraulic benders
- Parker Series 400 tube bender systems
- Other Parker bender models equipped for 10mm tubing
Replaces / Drop-In Replacement For
The Parker 810023 is a direct replacement for Parker bender systems originally equipped with this 10mm x 32mm radius block die shoe. Verify your bender model and tube size requirements before ordering to ensure proper fit and operation.
Works With
- Parker manual hand benders (vise mount or table mount)
- Parker hydraulic tube bender systems
- Standard tube bending mandrels for thin-wall applications
