Overview

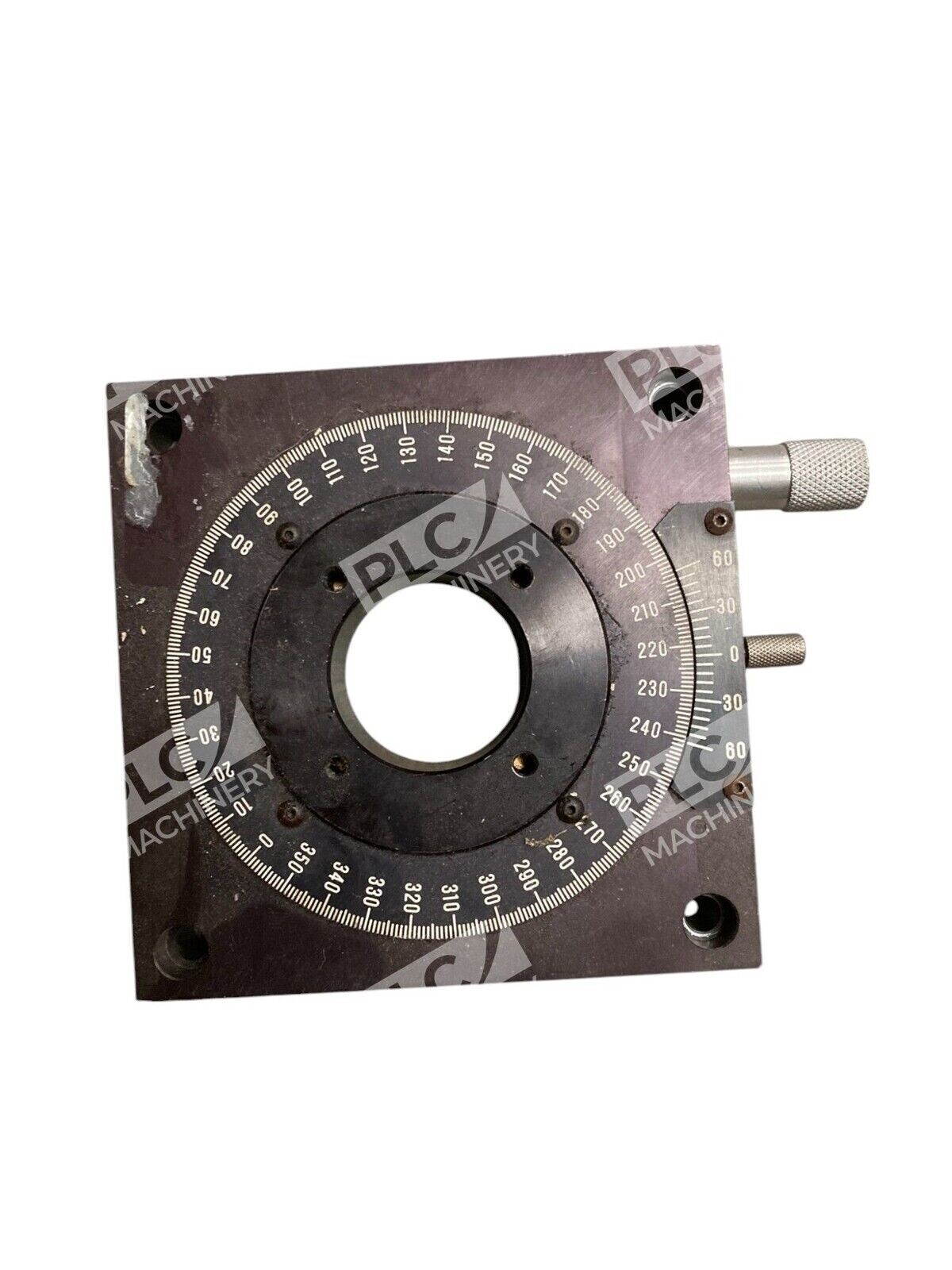

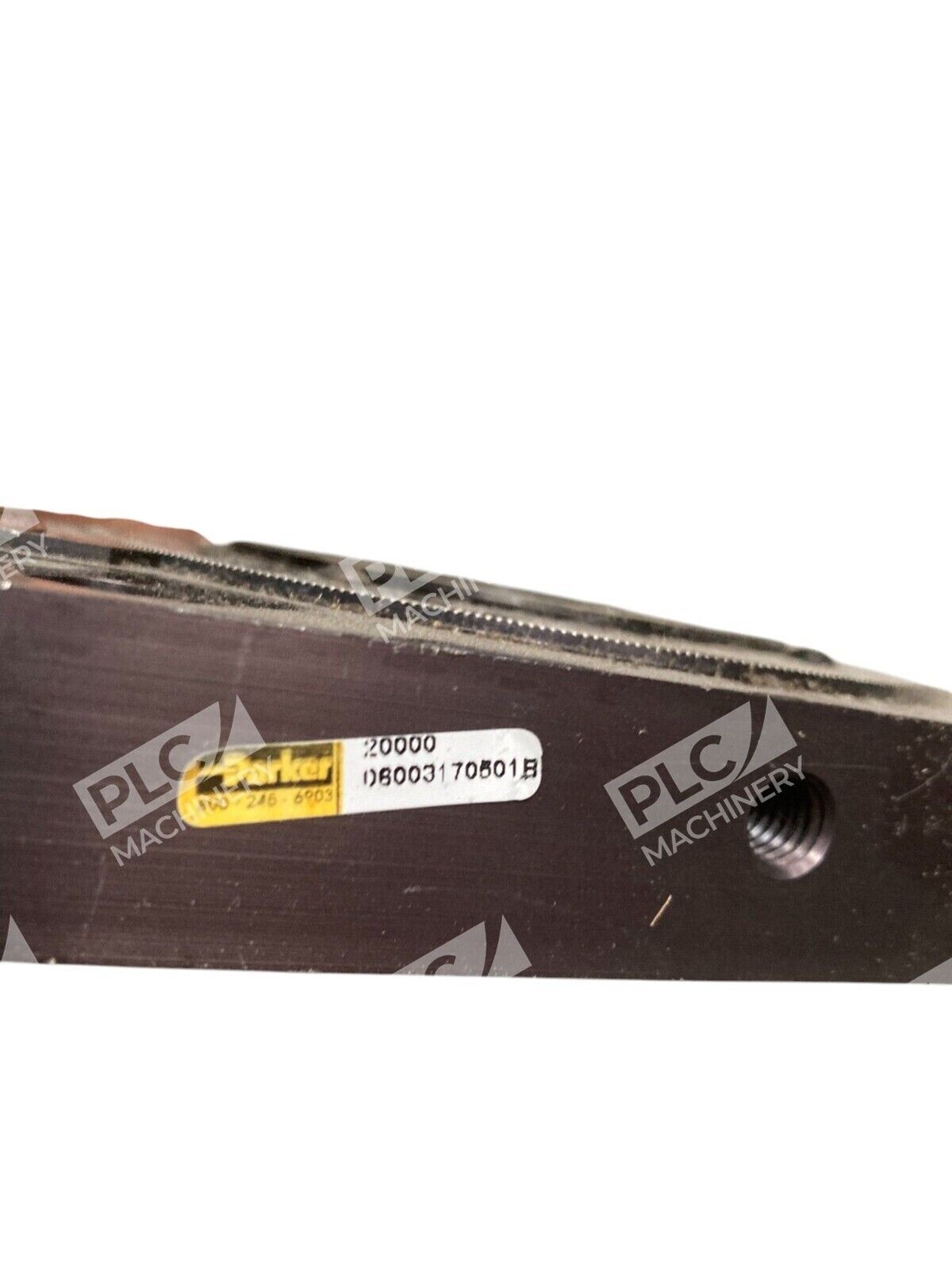

The Parker 06003170501B is a manual rotary positioning stage from the 20000 series, engineered by Parker Daedal for reliable, repeatable angular positioning in industrial automation and precision equipment. This Parker rotary positioning stage features manual worm gear drive technology with a calibrated dial and vernier readout for accurate angular control. Used units remain fully functional and are ideal for OEMs, system integrators, and maintenance teams seeking cost-effective surplus positioning solutions.
Key Features
- Worm gear drive mechanism — Features a worm gear drive with 120:1 drive ratio for smooth, controlled adjustment
- 360° continuous rotation — Provides smooth, continuous adjustment over a full 360° travel range
- Position locking knob — A position locking knob allows the stage to be positively locked in place
- Calibrated dial with vernier readout — 6 arc-min vernier, readable to 6.00 arc minutes for precise angular positioning
- Compact 2.75″ diameter table — Space-efficient design suitable for compact automation systems
- Aluminum/steel construction — Aluminum/steel construction with protective black anodize finish for durability in varied environments
Technical Specifications
- Load Capacity (Normal): 50 lb
- Rotation Range: 360° continuous
- Drive Ratio: 120:1
- Weight: 2.0 lbs
- Stage Diameter: 2.75 inches (69.8 mm)
- Resolution: 6 arc-min vernier readout
- Drive Type: Manual worm gear with calibrated dial
- Finish: Protective black anodize
Typical Applications
- Precision angular positioning in industrial automation
- Optical and metrology equipment requiring accurate rotary indexing
- Laboratory test stands and measurement systems
- Manufacturing tooling and fixture positioning
- Multi-axis motion control systems
- Research and educational automation setups
Compatibility & Replacements
Compatible With
- Parker Daedal automation systems and components
- Manual control and operator-driven positioning applications
- Integration into custom multi-axis stages
- Laboratory and bench-top precision equipment
- Standard industrial mounting configurations
Replaces / Drop-In Replacement For
- Parker 20000 manual rotary positioning stage (exact replacement)
- OEM systems requiring Parker Daedal 2.75″ rotary tables
- Upgrade from older Parker 10000-series units
Works With
- Manual operator control interfaces
- Standard industrial mounting brackets and adapters
- Parker multi-axis stage systems and configurations
- Custom integration with precision equipment and fixtures
