Overview

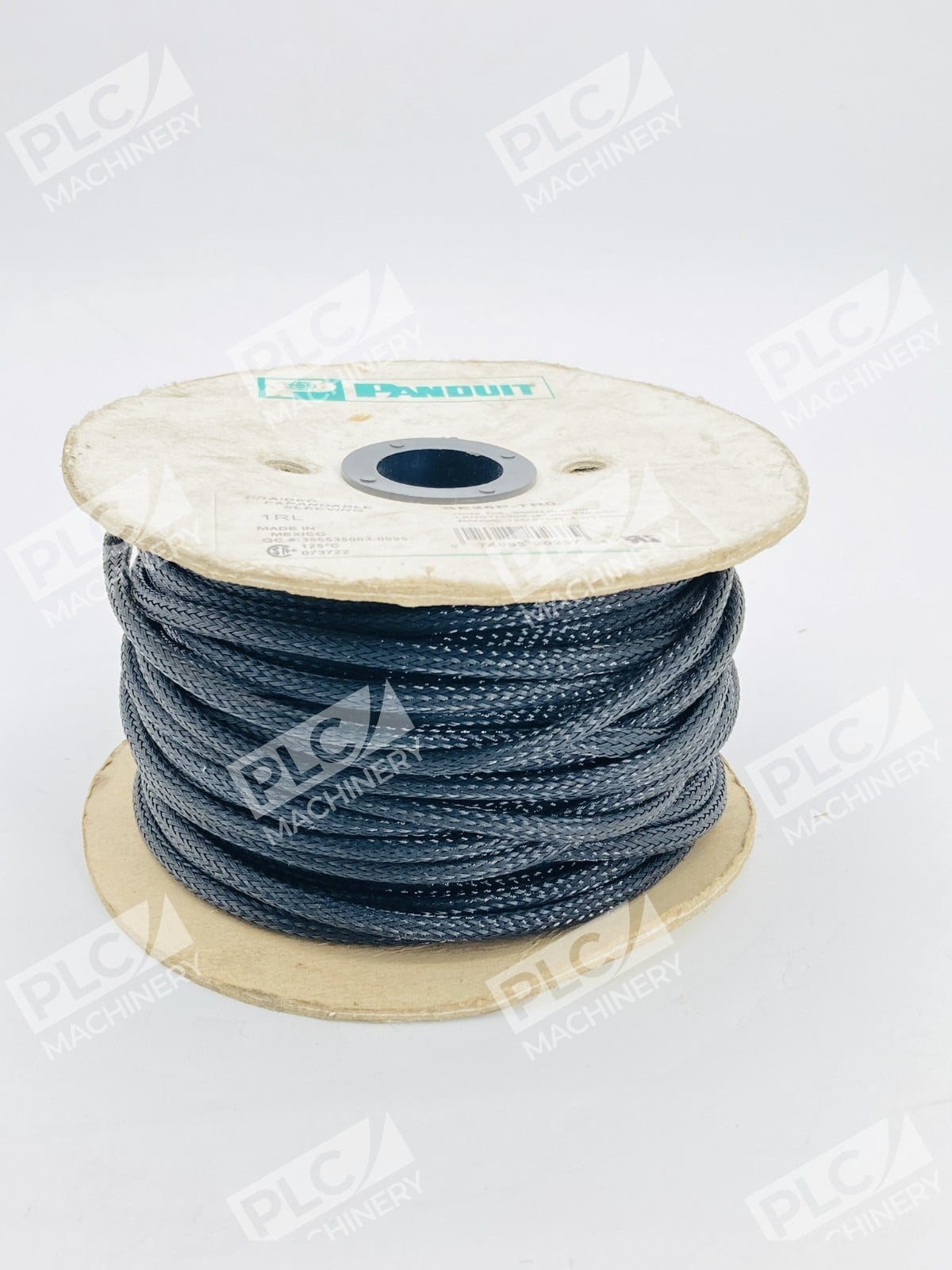

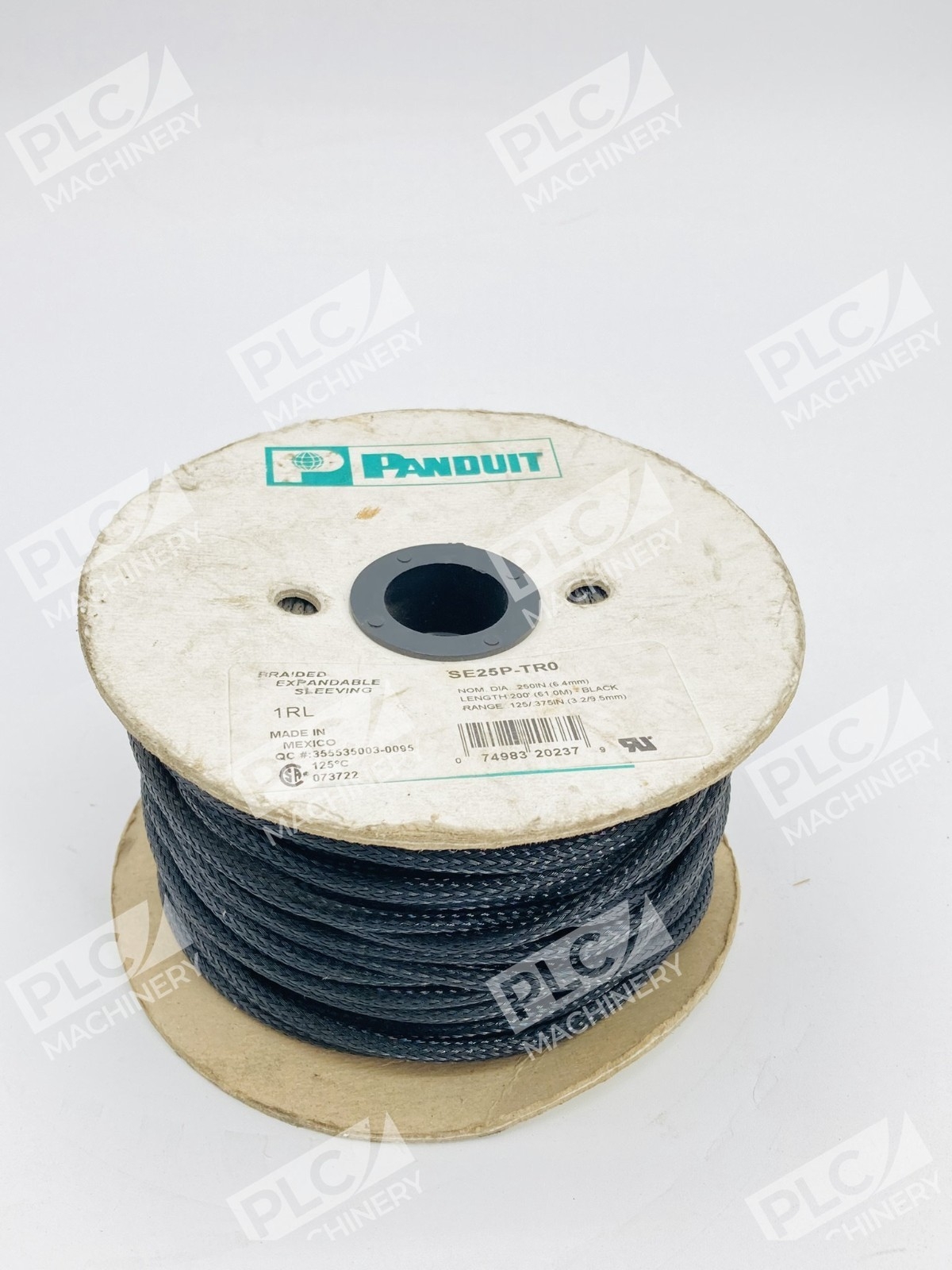

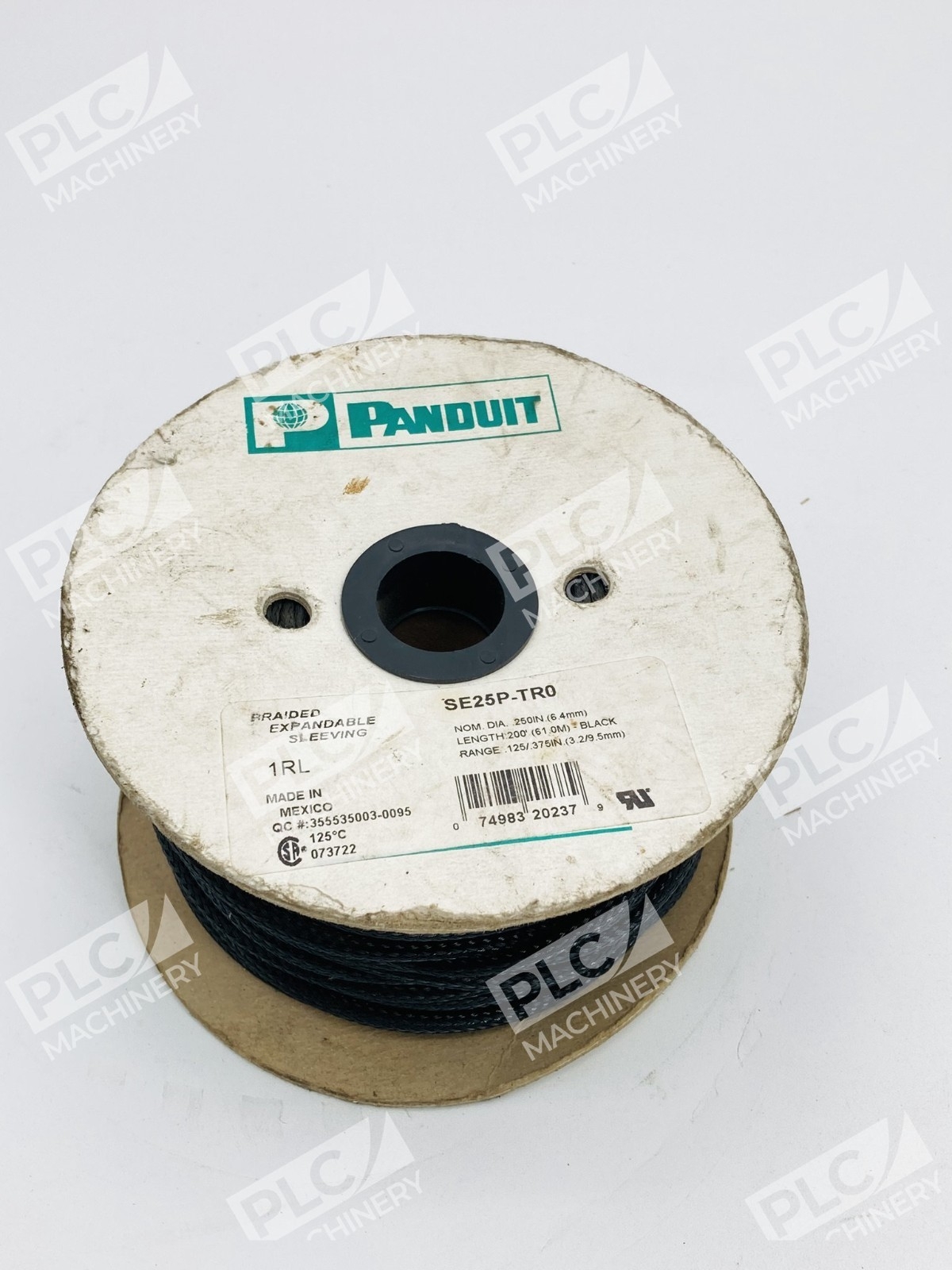

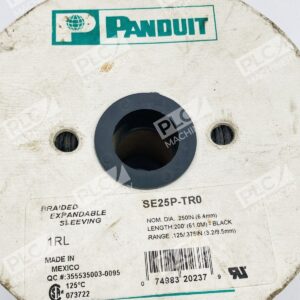

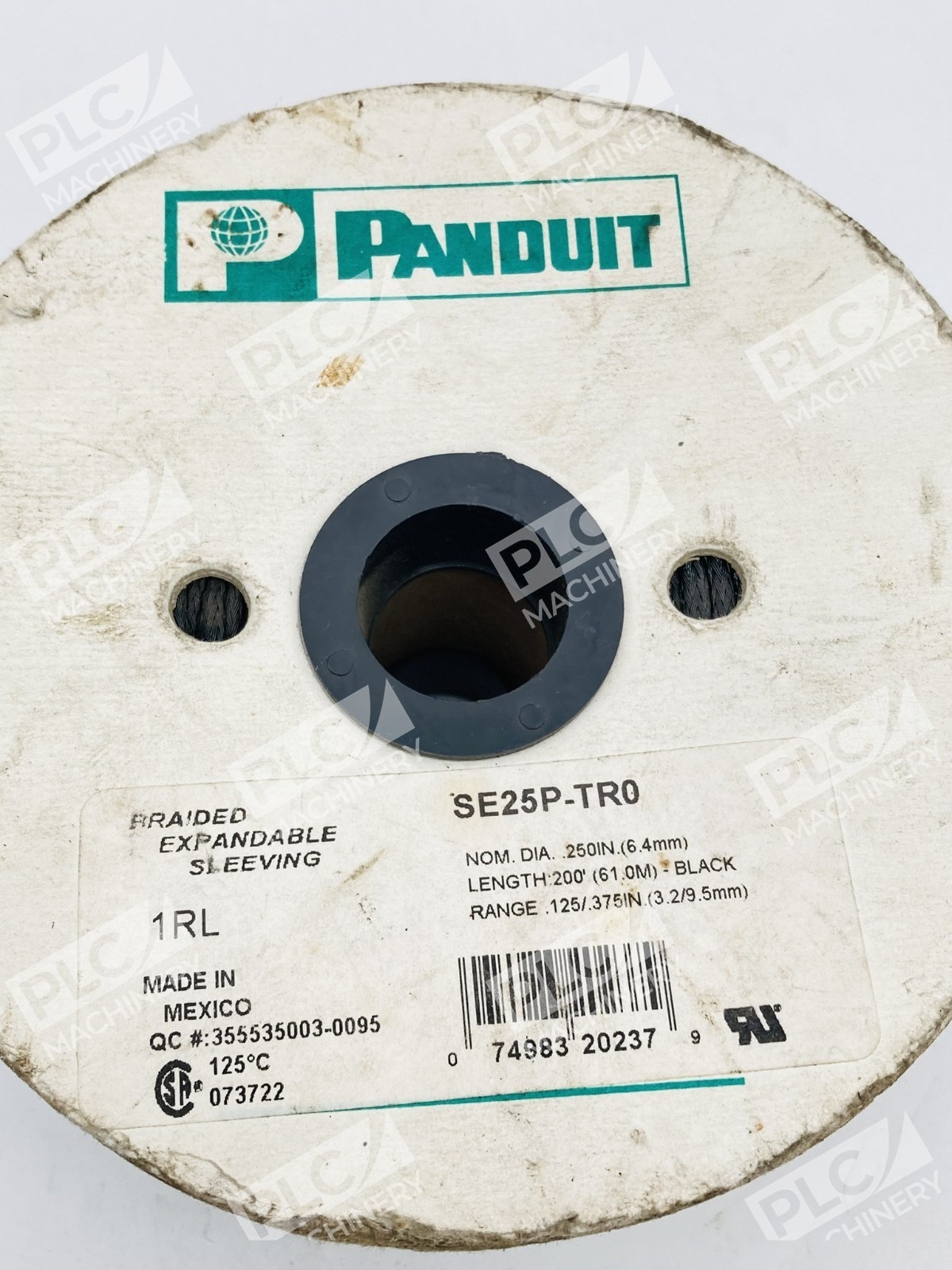

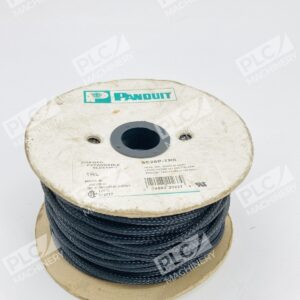

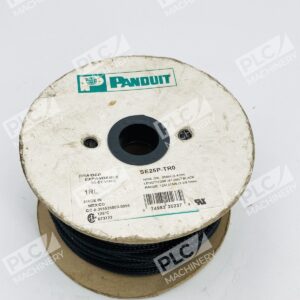

The Panduit SE25P-TR0 braided expandable sleeving delivers proven abrasion protection for wires, cables, and tubing in demanding industrial and automation environments. This sleeving provides continuous abrasion resistance with lightweight, durable protection that is highly flexible, and the open weave will not trap heat or humidity. Supplied on a 200-foot reel, it expands to accommodate cable diameters ranging from 0.125″ to 0.375″ for versatile, drop-in protection on existing or new installations.
Key Features
- Braided construction — Open-weave design prevents heat and humidity buildup
- Wide temperature range — Rated from -94°F to 257°F (-70°C to 125°C)
- PET material — Polyethylene Terephthalate for durability and flexibility
- Expandable sizing — Fits cable diameters 0.125″ to 0.375″ without pre-sizing
- Rail-compliant — Compliant with U.S. and European passenger rail standards
- CSA/UL certified — UL recognized E116868 standards
Technical Specifications
- Nominal Inside Diameter: 0.25″ (6.4 mm)
- Expandable Range: 0.125″ to 0.375″ (3.2 mm to 9.5 mm)
- Length per Reel: 200 feet (61 meters)
- Material: PET (Polyethylene Terephthalate)
- Color: Black
- Temperature Rating: -94°F to 257°F (-70°C to 125°C)
- Sleeving Type: Braided
- Quantity per Package: 1 reel
- NSN: 5970-01-605-5586
- Standards: UL E116868, CSA certified, U.S. and European rail compliant
Typical Applications
- Industrial automation and control wiring bundles
- Motor lead and servo cable protection
- Rail and transit system installations
- Factory automation and PLC enclosure wiring
- Power distribution and equipment harnesses
- Any application requiring lightweight, flexible abrasion resistance without heat trapping
Compatibility & Replacements
Compatible With
- Standard industrial control panels and enclosures
- Motor and servo cable assemblies of 0.125″ to 0.375″ diameter
- PLC, drive, and HMI wiring harnesses
- Legacy and modern automation systems
Replaces / Drop-In Replacement For
- Earlier Panduit SE25P models (alternative color or reel configurations)
- Generic or unbranded 1/4″ expandable braided sleeving
Works With
- All cable gauges and wire types (power, signal, control, servo)
- Irregular cable shapes and bundled harnesses
- Standard cable ties, clamps, and routing accessories
- UL/CSA-approved automation system designs
