Overview

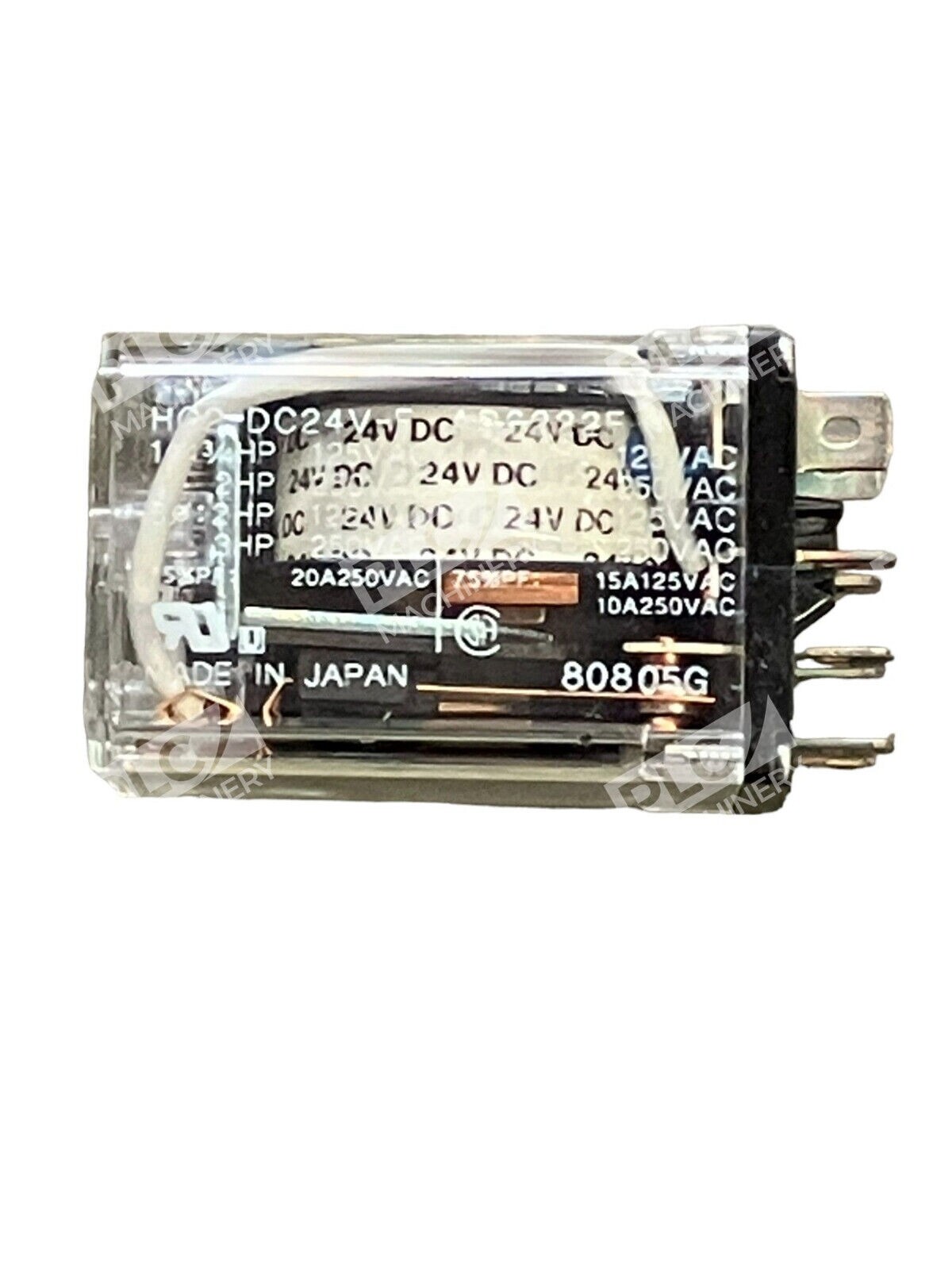

The Panasonic HG2-DC24V-F is a general-purpose power relay designed for industrial control applications. This 24VDC relay features DPDT (2 Form C) contact configuration with a 20A contact rating, making it suitable for motor control, automation logic, and panel-mounted switching applications. The socketable design allows for quick replacement without rewiring, simplifying maintenance and troubleshooting downtime.
Key Features
- 24VDC coil voltage with 57.6mA coil current draw
- DPDT (2 Form C) contact configuration for dual-circuit switching
- 20A contact current rating at 250VAC
- Silver tin oxide contact material for reliable long-term performance
- High electrical life: 100,000 operations at 250VAC and 20A

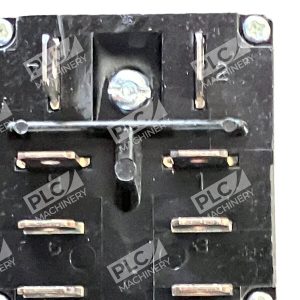

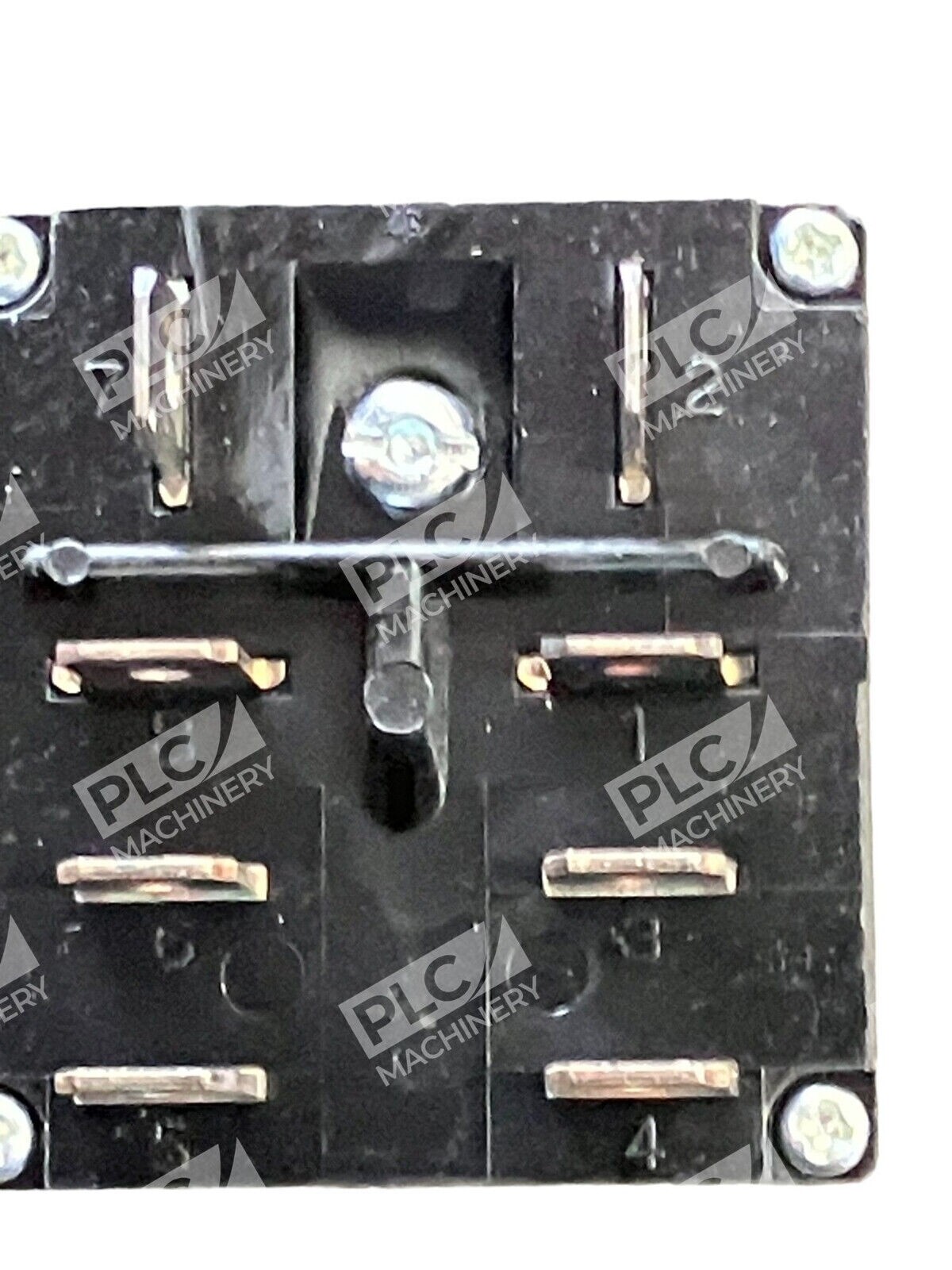

- Socketable terminal design for tool-free insertion and removal
- Operating temperature range: –50°C to +40°C

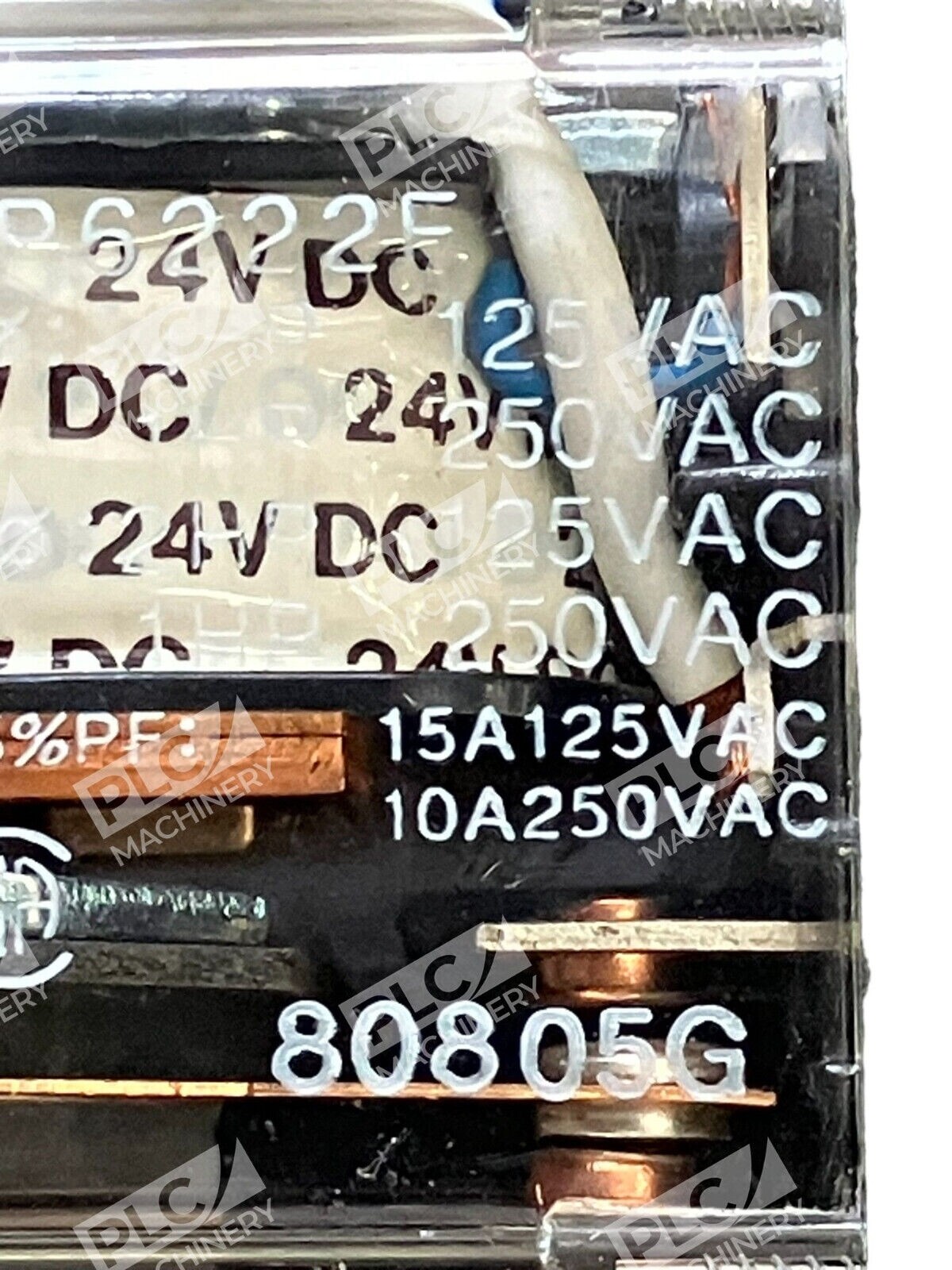

Technical Specifications

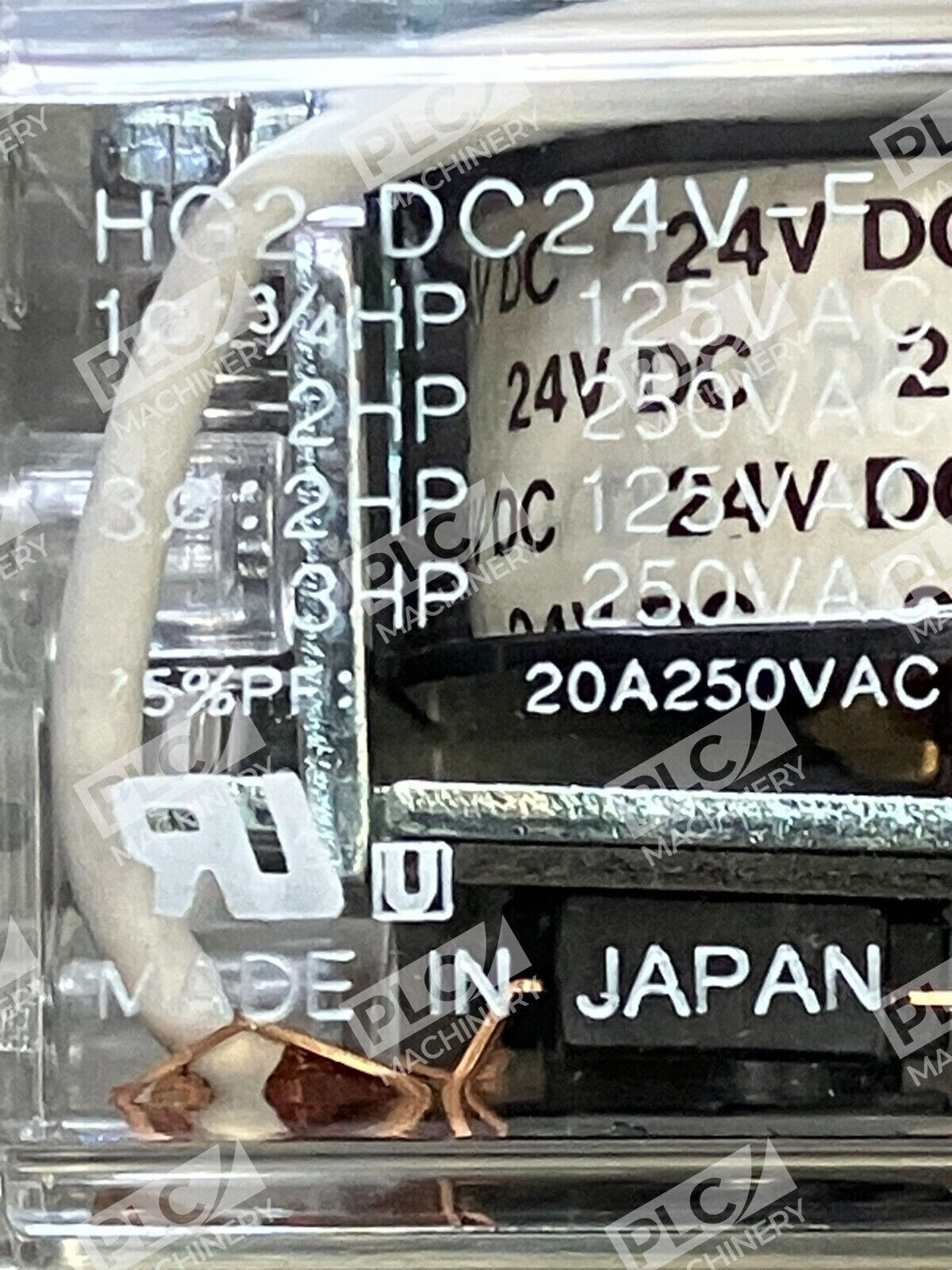

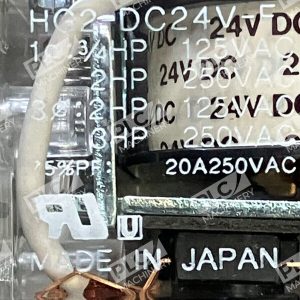

- Part Number: HG2-DC24V-F
- Series: HG Relays
- Coil Voltage: 24VDC
- Coil Current: 57.6mA
- Contact Configuration: DPDT (2 Form C)
- Contact Rating: 20A @ 250VAC
- Contact Material: Silver Tin Oxide (Ag/Sn/O)
- Dropout Voltage: 2.4VDC
- Dimensions (L × W × H): 34 × 64.5 × 36 mm
- Operating Temperature: –50°C to +40°C
- Contact Arrangement: Non-latching
- Number of Poles: 8
- Electrical Life: 100,000 operations @ 250VAC, 20A
- Mounting: DIN rail compatible
- Condition: New, Open Box
Typical Applications
The HG2-DC24V-F relay is widely used in:
- Motor control circuits (up to 1.5 kW, three-phase 200V systems)
- Industrial automation logic and sequencing
- Control panel interlocking and safety circuits
- Equipment switching and power distribution
- PLC output modules and auxiliary relay circuits
- Machinery control and emergency shutdown circuits
Compatibility & Replacements
Compatible With
- DIN rail-mounted control panels
- Industrial automation systems requiring 24VDC logic control
- Relay sockets designed for HG-series Panasonic relays
- Motor control systems and soft-starters
- PLC auxiliary output modules
- Safety control circuits and interlocks
Replaces / Drop-In Replacement For
- Other Panasonic HG2 series relays with compatible 24VDC socketable base
- Verify exact socket compatibility before installation
Works With
- Allen-Bradley CompactLogix and ControlLogix PLC auxiliary relay outputs
- Siemens S7-1200 and S7-1500 relay output modules
- Mitsubishi FX and Q-series PLC general-purpose relay outputs
- Omron CP and NX-series controller relay modules
- Schneider Electric Modicon and Harmony control panels
- Any 24VDC control system requiring DPDT relay switching
