Overview
The Oriental Motor FPW560C2-60 is a single-phase washdown gear motor featuring a 60:1 gear reduction ratio. This compact induction motor is designed for wet, humid, and washdown environments where moisture and dust resistance are critical. Conforming to IEC standard IP67, the FPW560C2-60 delivers sealed, reliable performance in food processing, beverage lines, agricultural equipment, and outdoor industrial applications.
Key Features
- IP67 Watertight & Dust-Resistant: Sealed gearbox and motor housing protect against washdown spray, moisture ingress, and environmental contaminants.
- High Gear Reduction: 60:1 ratio provides substantial torque multiplication from a compact 60W (1/12 HP) motor frame.
- Single-Phase 220/230 VAC: Standard single-phase AC supply; suitable for US 230V or European 220V networks.
- Induction Motor Technology: Robust squirrel-cage design with no brushes or commutators, ensuring low maintenance and long service life.
- Flange and Foot Mount Options: Versatile mounting configurations for retrofit and new installations.

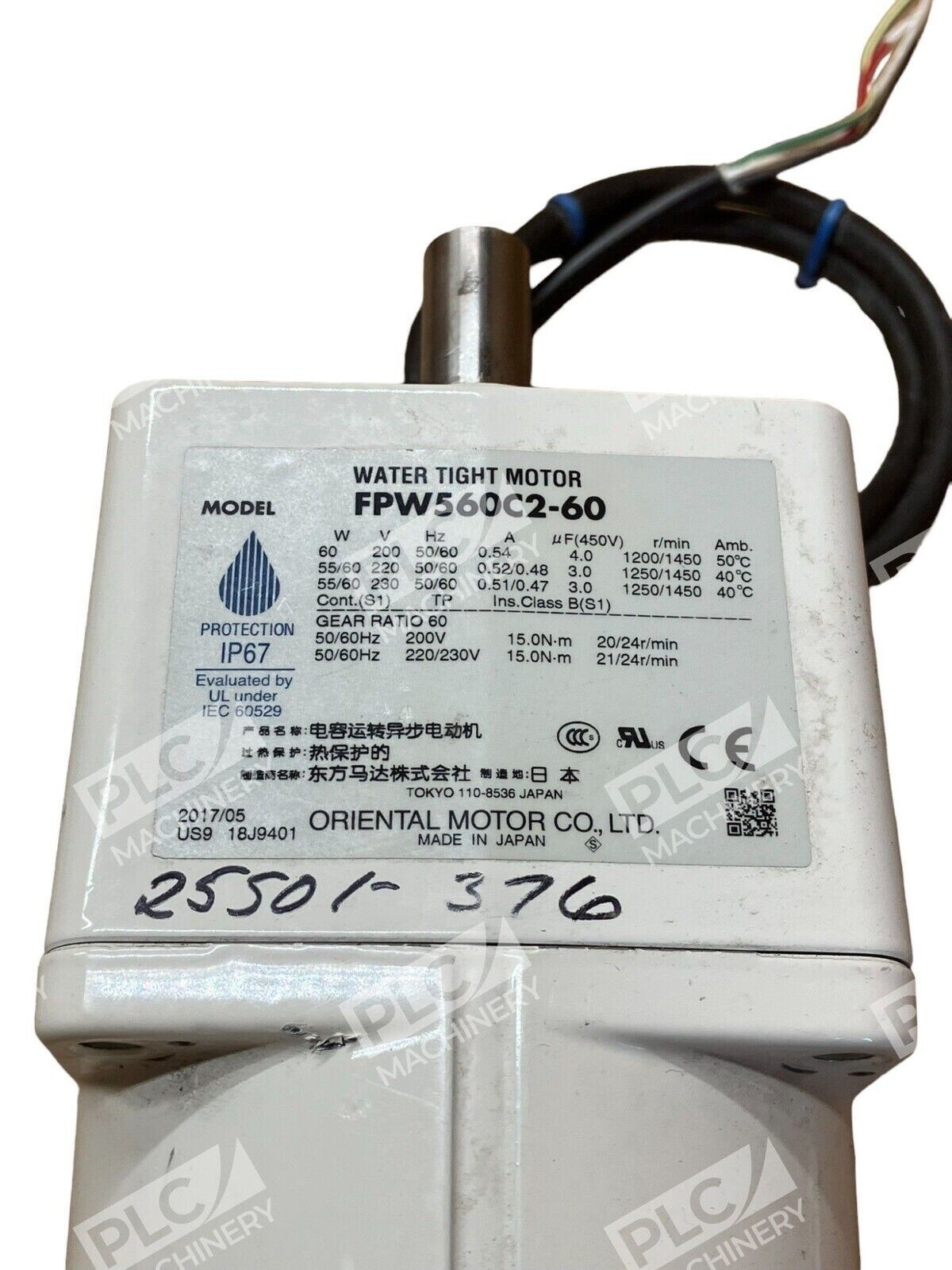

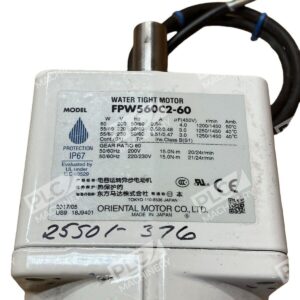

Technical Specifications
- Rated Power: 60 W (0.06 kW, 1/12 HP)
- Gear Ratio: 60:1
- Input Supply: Single-phase 220/230 VAC, 50/60 Hz
- Rated Current: ~0.48 A (60 Hz, 230 VAC)
- Motor Speed: 1450 rpm (60 Hz), 1250 rpm (50 Hz)
- Output Speed: ~24 rpm (60 Hz) / ~21 rpm (50 Hz)
- Ingress Protection: IP67 (IEC 60529)
- Series: FPW (washdown gear motor series)

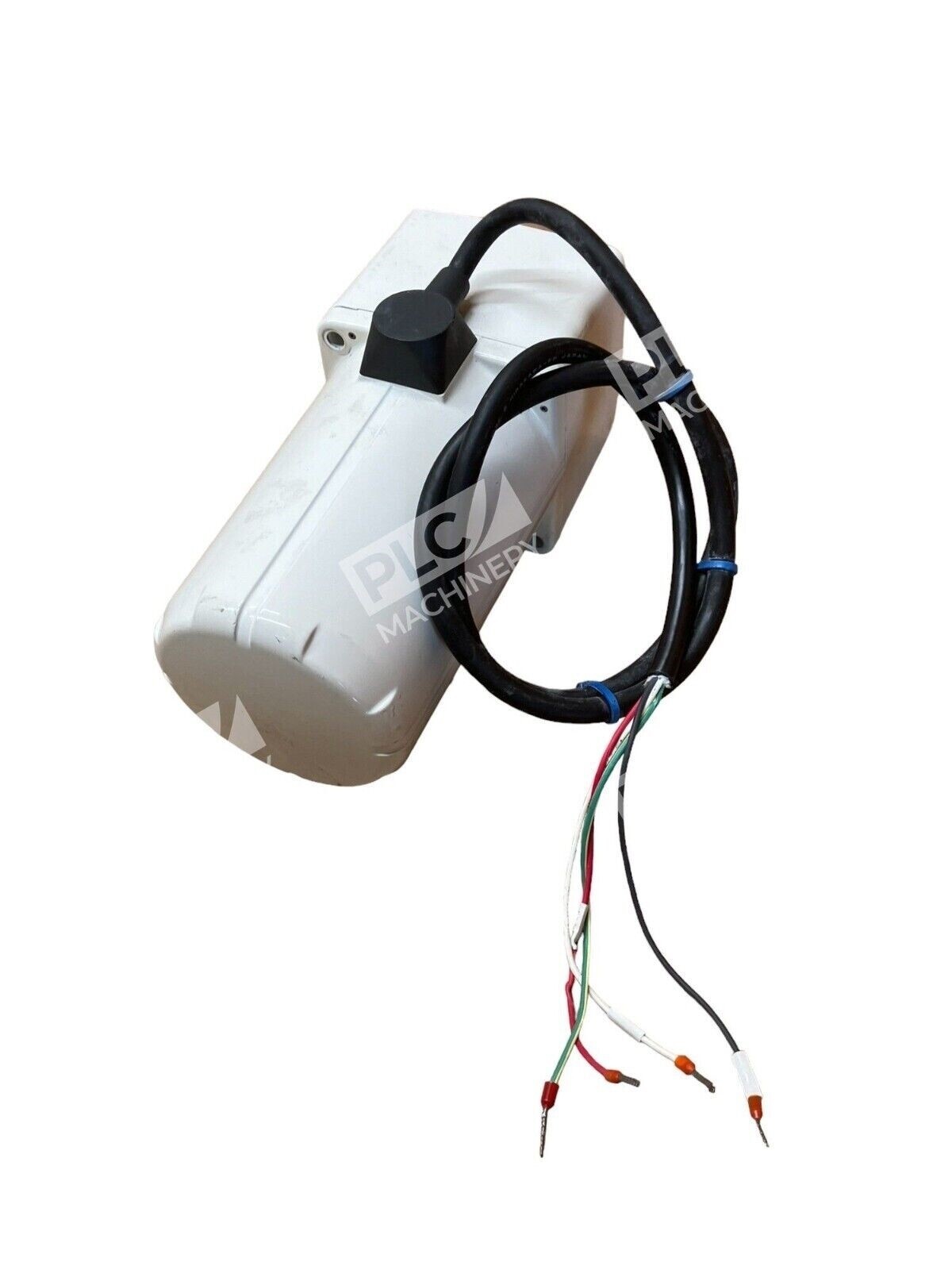

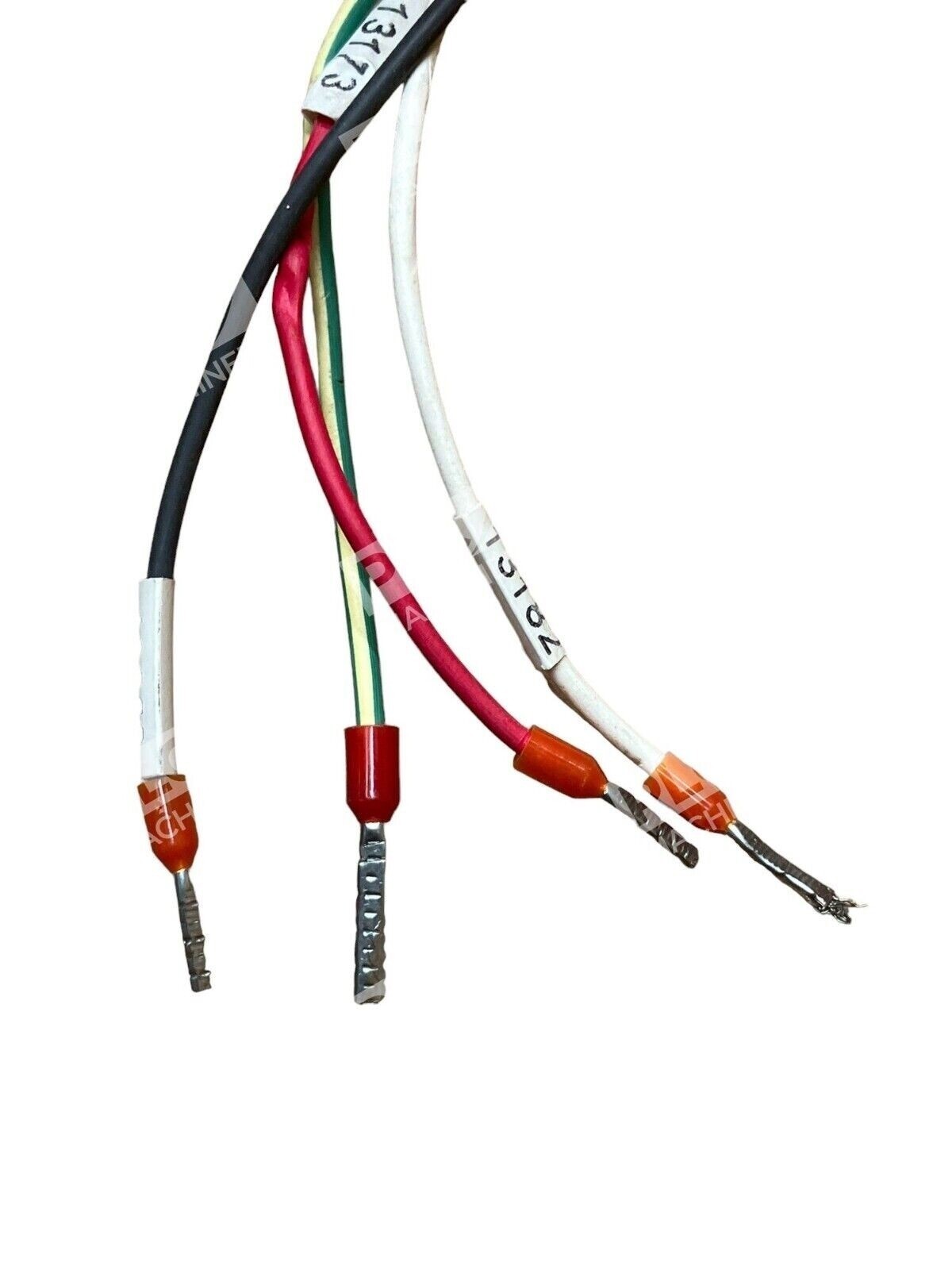

- Connection: 2 m pigtail with bare-end flying leads (standard)
Typical Applications
The Oriental Motor FPW560C2-60 is well-suited for:
- Food & Beverage: Conveyor drives, mixer paddle drives, washdown equipment where water spray exposure is frequent.
- Agricultural Equipment: Grain augers, feed mixers, outdoor machinery requiring sealed motor protection.
- Pump & Fan Drives: Low-speed, high-torque applications requiring compact footprint and reliable torque delivery.
- Industrial Washdown Systems: Wet environments including seafood processing, beverage plants, and water treatment facilities.
Compatibility & Replacements
Compatible With
- Single-phase 220/230 VAC, 50/60 Hz industrial power supplies
- Standard single-phase AC motor starters and soft-starters
- Thermal overload relays sized for ~0.5 A rated current
- Capacitor-run induction motor control circuits (where applicable per nameplate wiring diagram)
Replaces / Drop-In Replacement For
- Oriental Motor FPW560C2-60E: Direct equivalent (60 Hz, 230 VAC variant with “E” suffix)
- Other 60W washdown gearmotors with 60:1 ratio: Verify mounting footprint, shaft diameter, and output speed before ordering; consult your system integrator for exact mechanical fit.
Works With
- Standard AC induction motor control and soft-start devices
- Mechanical power transmission (belts, chains, shaft couplings compatible with standard keyway outputs)
- PLC and automation controllers via motor contactor and overload protection
- No special VFD or servo drive compatibility; operates at fixed speed (1450 rpm input).
