<h2>Overview</h2>

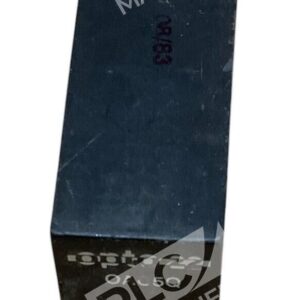

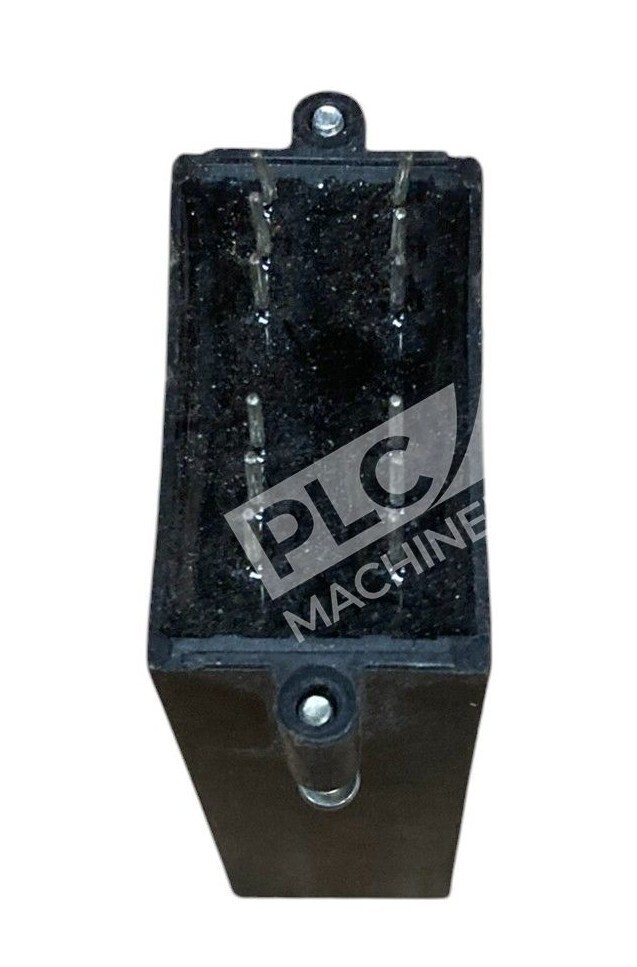

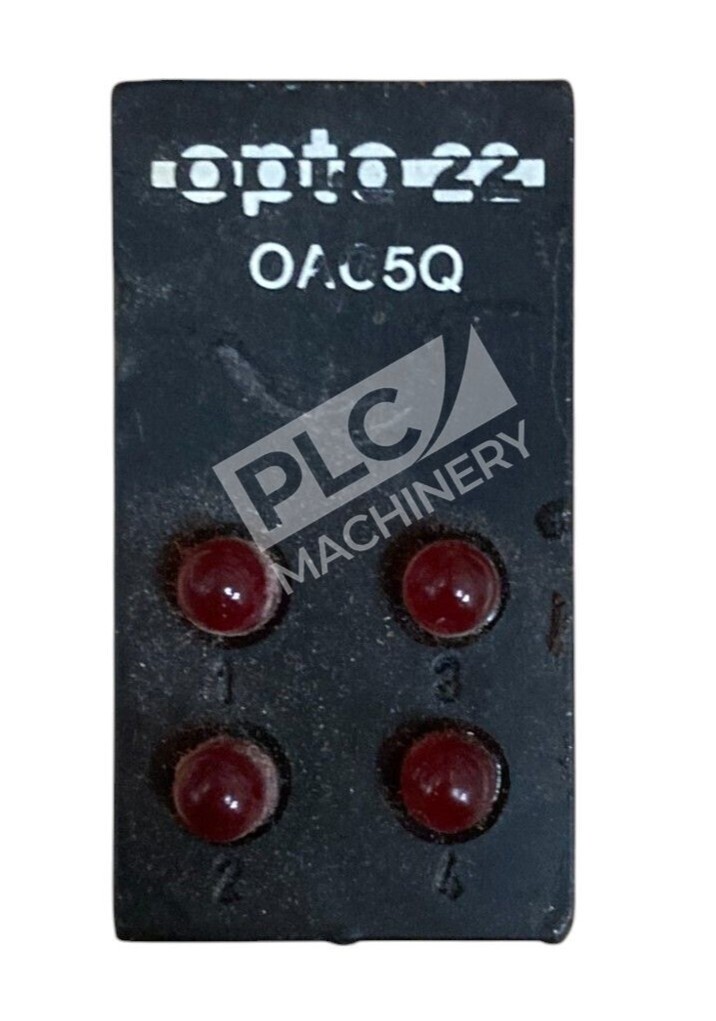

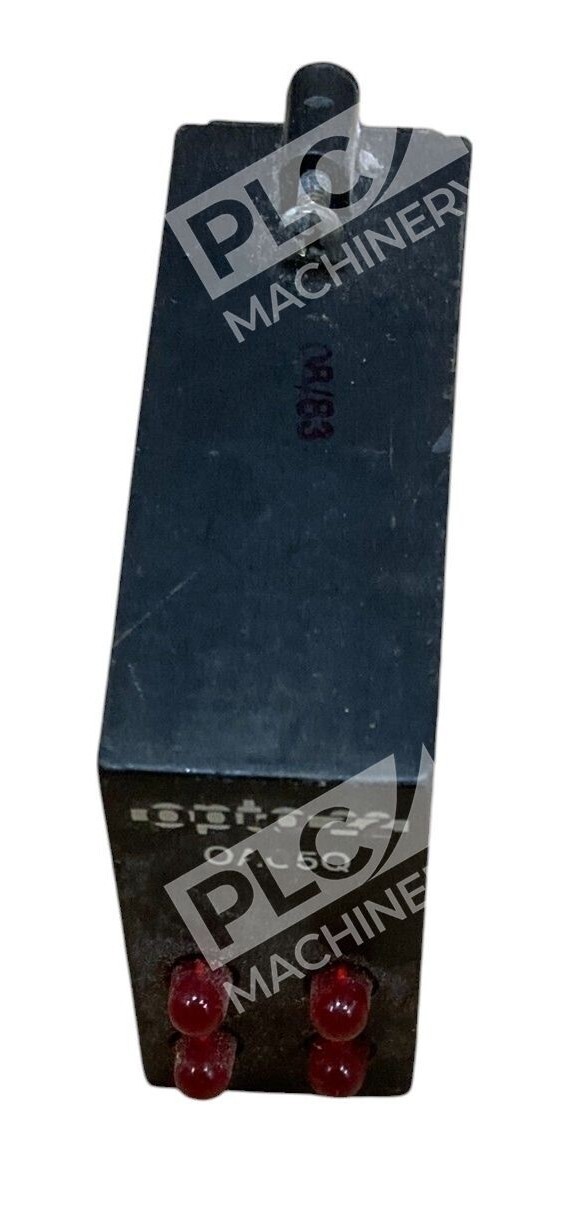

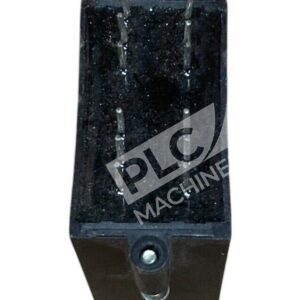

<p>The <strong>Opto 22 OAC5Q</strong> is a 4-channel AC output module designed for high-density I/O control in industrial automation systems. This Quad Pak module switches AC loads between 12–280 VAC while operating on 5 VDC logic control. Each module integrates four single-channel AC output circuits into a compact package, allowing flexible configuration as two independently paired channels with shared common connections.</p>
<h2>Key Features</h2>
<ul>
<li><strong>4-Channel AC Output:</strong> Switches AC loads from 12–280 VAC with high voltage range flexibility</li>
<li><strong>4000V Optical Isolation:</strong> Transient isolation between field devices and control logic protects system integrity</li>
<li><strong>Zero Voltage Turn-On:</strong> All AC outputs feature synchronized switching at AC zero-crossing for EMI reduction</li>
<li><strong>Quad Pak I/O Form Factor:</strong> Mounts exclusively in Quad Pak high-density racks, not compatible with single-channel systems</li>
<li><strong>Flexible Configuration:</strong> Each module divisible into two independently paired channels with shared common connections</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Output Voltage Range:</strong> 12–280 VAC</li>
<li><strong>Logic Supply Voltage:</strong> 5 VDC</li>
<li><strong>Number of Channels:</strong> 4</li>
<li><strong>Optical Isolation:</strong> 4000 V (transient)</li>
<li><strong>Contact Type:</strong> FORM A (SPST-NO, Make)</li>
<li><strong>Module Family:</strong> Opto 22 Quad Pak I/O</li>
</ul>
<h2>Typical Applications</h2>
<p>The OAC5Q is deployed in industrial environments for switching and controlling AC loads including:</p>
<ul>
<li>Motor starters and contactors</li>
<li>Solenoid valves and relays</li>
<li>Heating elements and resistive loads</li>
<li>Lighting circuits and indicator lamps</li>
<li>HVAC control and compressor switching</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Opto 22 Quad Pak I/O mounting racks (required)</li>
<li>Optomux protocol brain boards</li>
<li>Pamux protocol controllers</li>
<li>Mistic protocol interface boards</li>
<li>Direct cable connection to computer systems</li>
<li>Raspberry Pi (via Digital I/O Carrier Board OPTO-P1-40P)</li>
<li>PB16HQ mounting rack</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The OAC5Q replaces earlier single-channel AC output modules in Quad Pak configurations. Verify compatibility with your system integrator before ordering, as Quad Pak modules are not backward compatible with single-channel mounting racks.</p>
<h3>Works With</h3>
<ul>
<li>Opto 22 Optomux, Pamux, and Mistic protocol systems</li>
<li>Opto 22 groov EPIC automation controllers</li>
<li>SNAP PAC controllers and I/O platforms</li>
<li>Legacy Opto 22 D-series controllers</li>
<li>Computer direct-connection I/O systems</li>
</ul>
