Overview

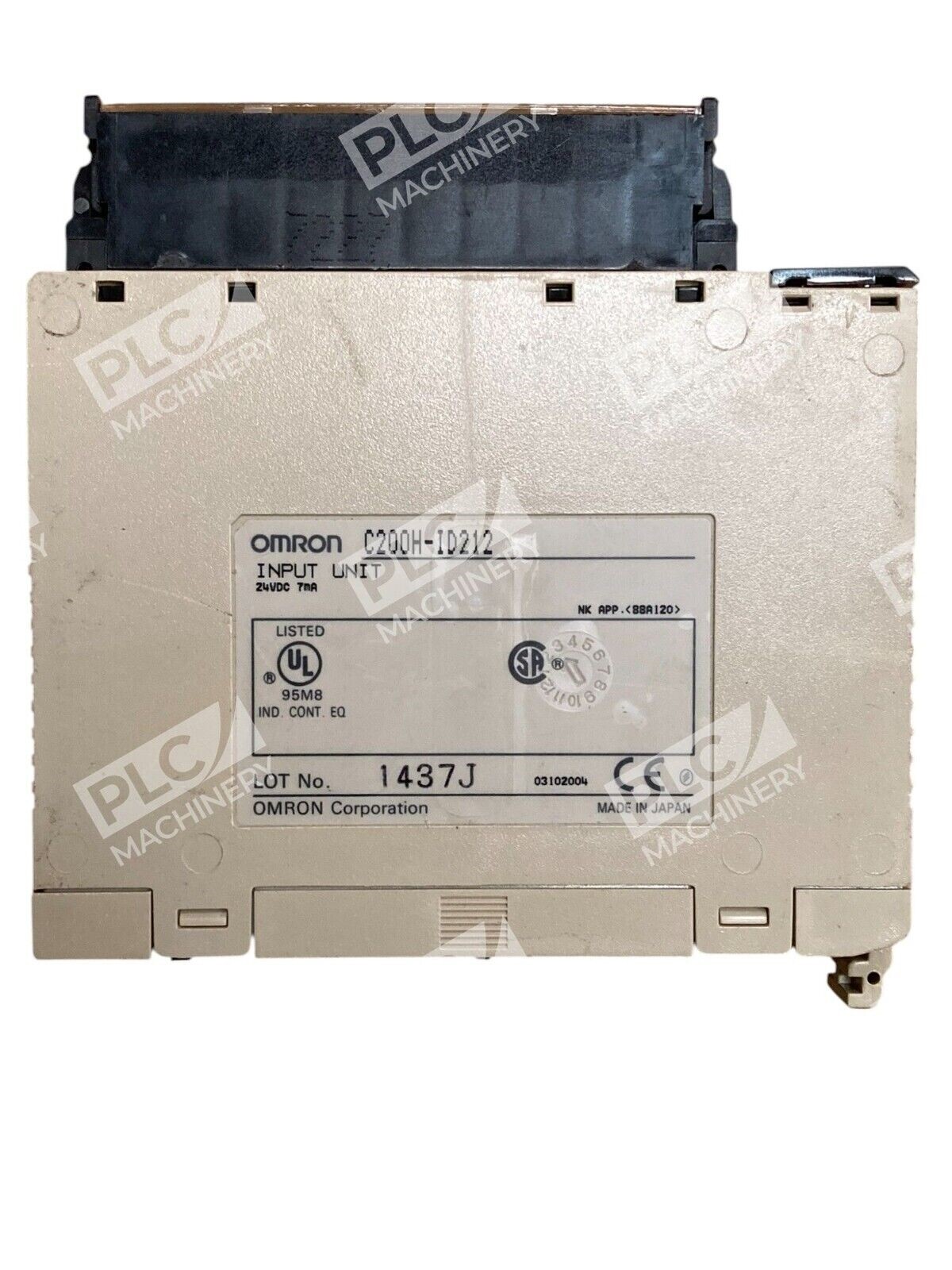

The Omron C200H-ID212 is a discrete DC input module engineered for integration with the Omron SYSMAC C200H programmable logic controller series. This 16-point input module accepts 24VDC logic-level signals at 7mA per input channel, providing photo-coupler isolation between field signals and the controller backplane. Built for industrial automation, process control, and discrete I/O applications, the C200H-ID212 delivers reliable signal conditioning for sensor inputs, limit switches, and proximity detector connections.
Key Features
- 16 Digital Input Channels — All points accept 24VDC signals at 7mA per channel
- Photo-Coupler Isolation — Protects controller from electrical noise and surges
- LED Status Indicators — Individual LEDs for each input channel enable rapid troubleshooting

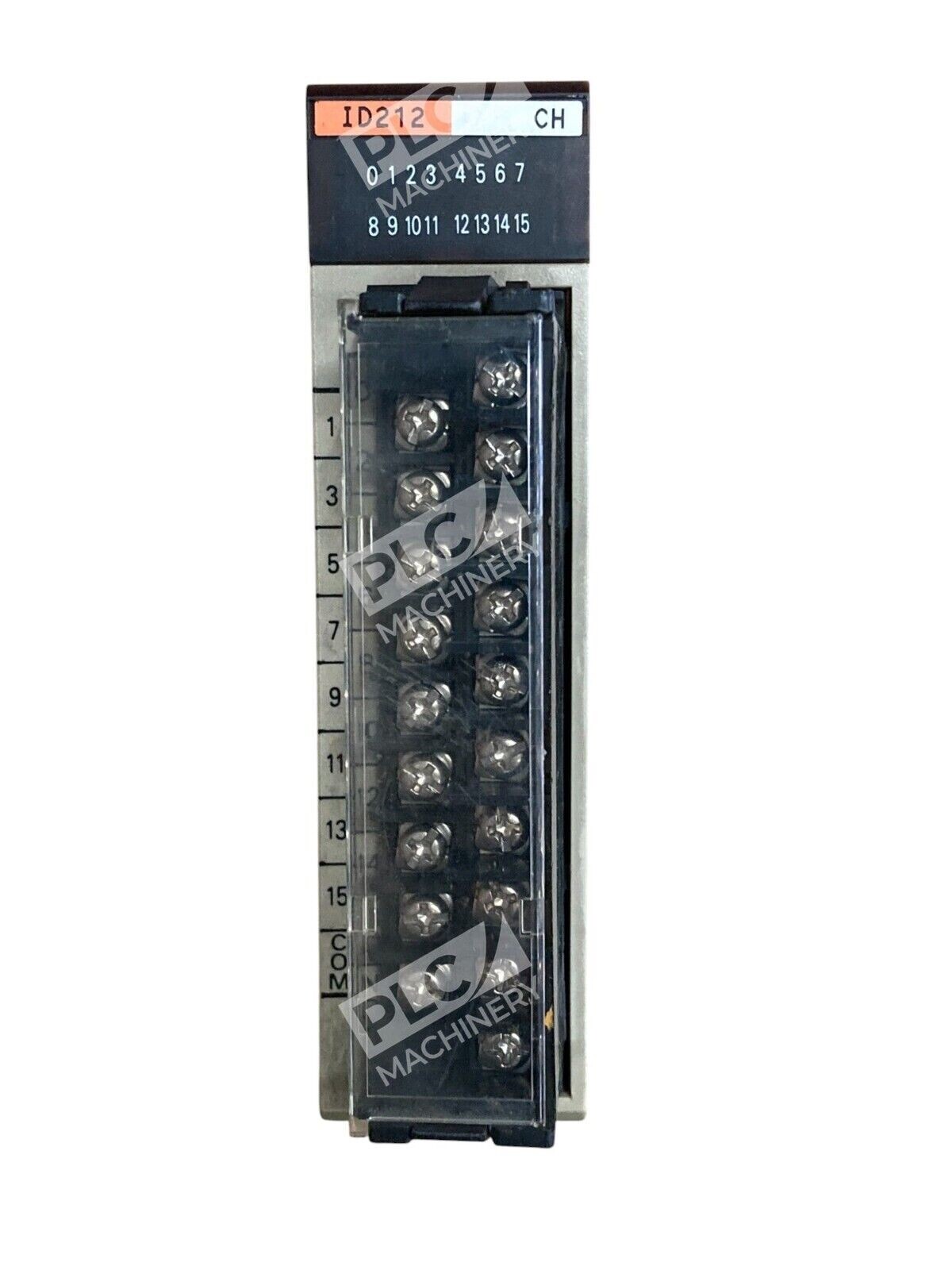

- Removable Terminal Blocks — Simplifies field wiring and module replacement

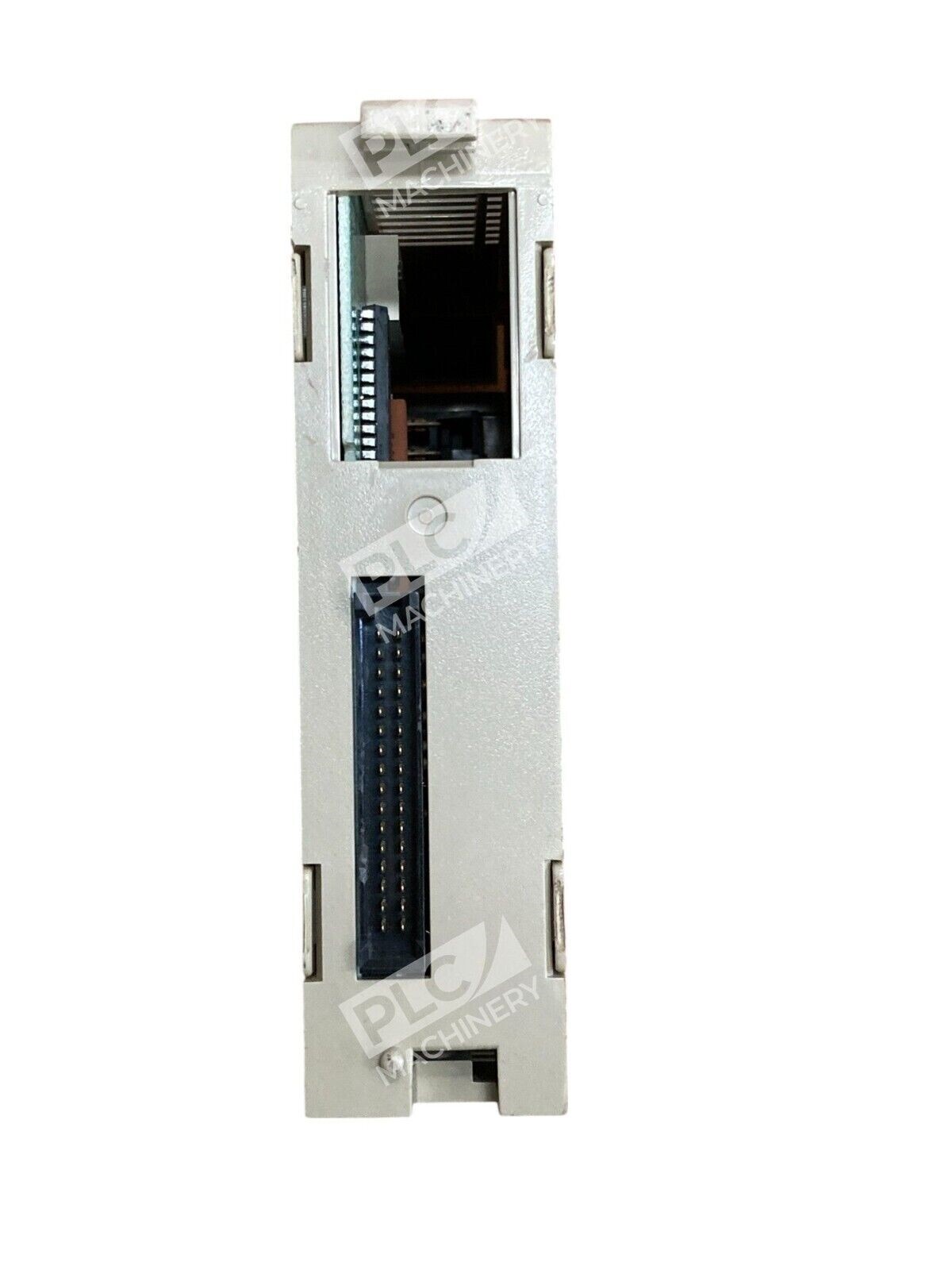

- Backplane Mount — Plugs directly into SYSMAC C200H baseframe for compact integration
- Wide Operating Range — Rated 0°C to +55°C ambient temperature
Technical Specifications
- Number of Inputs: 16 points (24VDC)
- Input Voltage Range: 24VDC ±10% to −15%
- Input Current: 7 mA (nominal)
- Internal Current Consumption: 10 mA maximum
- Signal Isolation: Photo-coupler
- Indicator Type: LED (per input channel)
- Connector: Removable terminal blocks
- Operating Temperature: 0°C to +55°C
- Dimensions: 130 × 35 × 145 mm (5.1 × 1.4 × 5.7 inches)
- Weight: 0.3 kg (10.6 oz)
- Mounting: Backplane / rack mount
- Series: Omron SYSMAC C200H
Typical Applications
The C200H-ID212 suits a wide range of automation and control scenarios:
- Discrete sensor input conditioning for manufacturing equipment
- Limit switch and proximity detector signal capture
- Process control systems requiring multi-point 24VDC inputs
- Machine safety interlocks and emergency stop circuits
- Facility automation and building management systems
- Retrofit and upgrade of legacy SYSMAC C200H installations
Compatibility & Replacements
Compatible With
- Omron SYSMAC C200H programmable logic controller (baseframe required)
- Omron C200H series backplane/rack mounting systems
- 24VDC discrete signal sources (sensors, switches, indicators)
- Omron programming software (CX-Programmer, SYSMAC Studio)
- Standard industrial 24VDC power supplies
Replaces / Drop-In Replacement For
- Original equipment Omron C200H-ID212 modules
- Equivalent legacy input modules in SYSMAC C200H installations
- Verify compatibility with your system integrator before ordering.
Works With
- Omron CX-Programmer software development environment
- SYSMAC Studio automation engineering platform
- Standard 24VDC industrial automation networks
- Omron NS-series HMI/touchpanel systems for integrated control
- Third-party SCADA and process monitoring software via gateway integration
