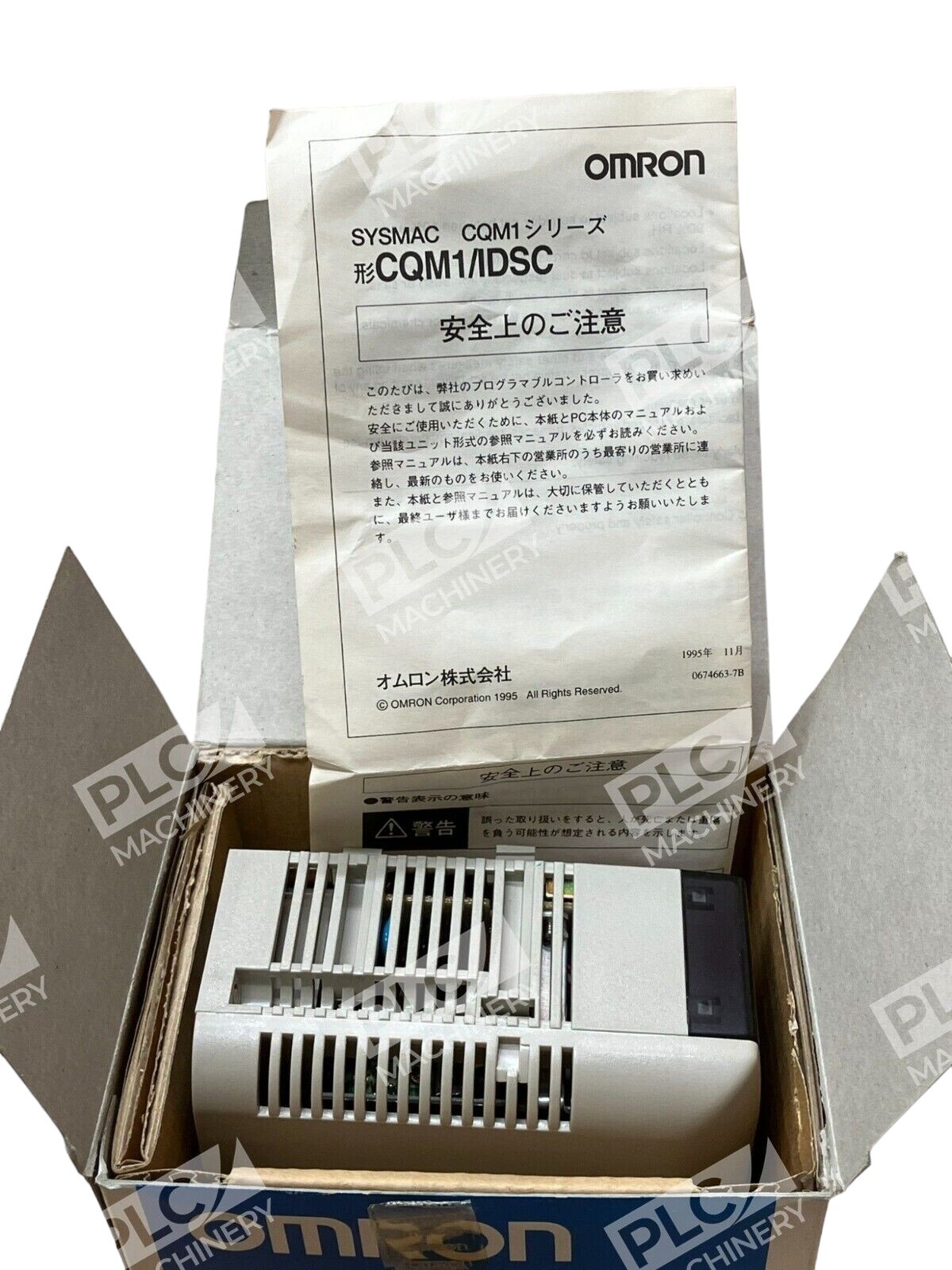

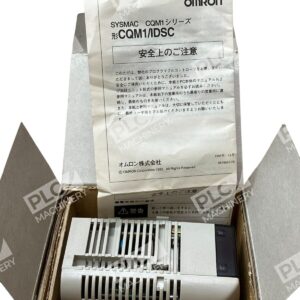

Overview

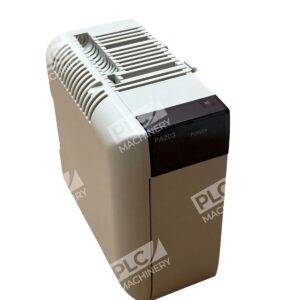

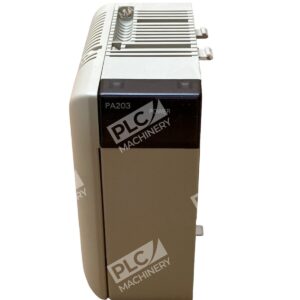

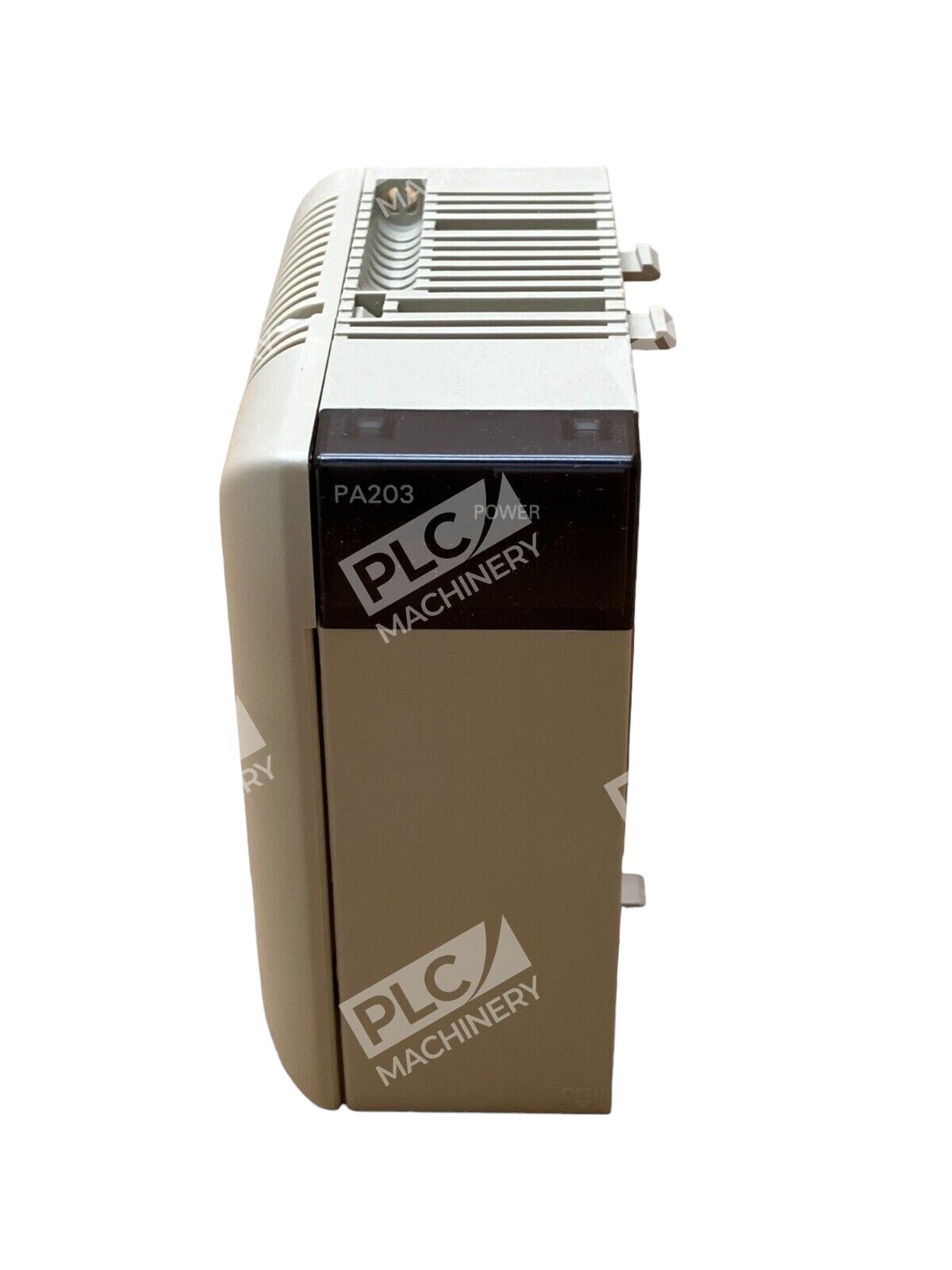

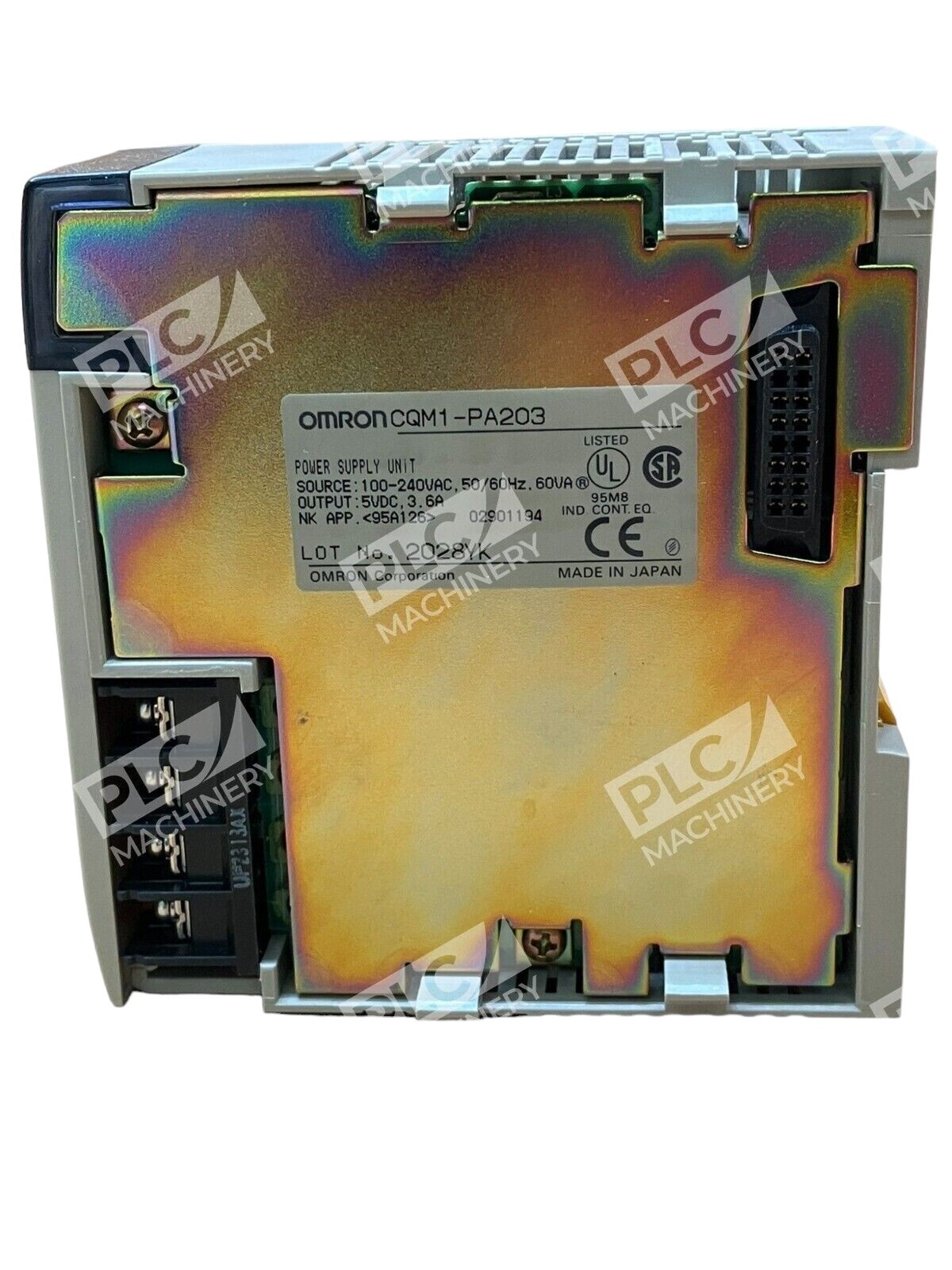

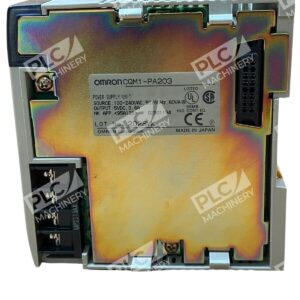

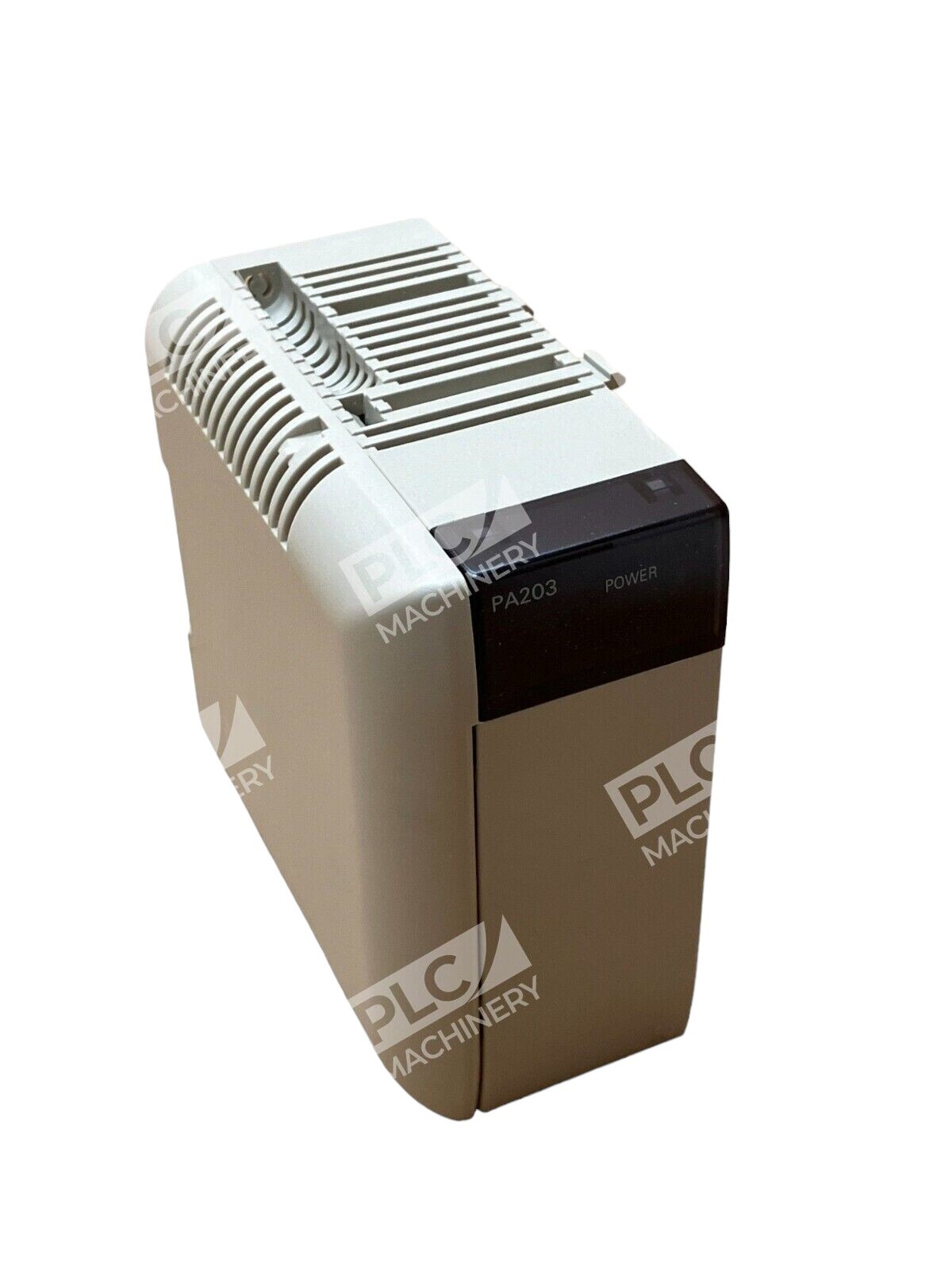

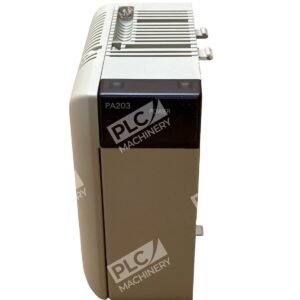

The Omron CQM1-PA203 is a compact AC power supply designed for the SYSMAC CQM1 series programmable controller platform. It accepts universal AC input (100–240 VAC) and provides stabilized 5 VDC and 24 VDC outputs to power controller units and I/O modules. This unit is essential for maintaining legacy automation systems and serves as a drop-in replacement for existing SYSMAC installations.
Key Features
- Universal AC input (100–240 VAC, 50/60 Hz) for global deployment flexibility
- Dual output voltages: 5 VDC at 3.6 A (18 W) and 24 VDC at 0.5 A
- Compact form factor, 460 g weight for space-constrained control cabinets
- Rated for 60 VA maximum power consumption
- Meets international safety standards (UL, CSA, CE certification)
Technical Specifications
- Supply Voltage: 100–240 VAC, 50/60 Hz
- Operating Voltage Range: 85–265 VAC
- Output Capacity: 5 VDC @ 3.6 A (18 W); 24 VDC @ 0.5 A
- Total Power Consumption: 60 VA max.
- Inrush Current: 30 A max.
- Insulation Resistance: 20 MΩ minimum at 500 VDC
- Dielectric Strength: 2,300 VAC 50/60 Hz for 1 min between AC and GR terminals
- Weight: 460 g
- International Certifications: UL, CSA, CE
Typical Applications
- SYSMAC CQM1 and CQM1H programmable controller systems
- Legacy industrial control panel retrofit and maintenance
- Multi-unit modular controller configurations requiring distributed power
- Manufacturing equipment, process automation, and machine controls
- Material handling and packaging machinery control systems
Compatibility & Replacements
Compatible With
- SYSMAC CQM1 series CPU units (CQM1-CPU42-E, CQM1-CPU22-E, CQM1-CPU21-E)
- SYSMAC CQM1H series controllers
- CQM1 I/O units and expansion modules
- Omron Programming Console and Ladder Support Software (LSS Version 3 or later)
- SYSMAC Support Software (SSS) for configuration and maintenance
Replaces / Drop-In Replacement For
- Legacy CQM1-PA203 power supplies in existing systems
- Systems requiring 5 VDC @ 3.6 A and 24 VDC @ 0.5 A dual-output architecture
Works With
- SYSMAC CQM1 family of controllers and distributed I/O architecture
- Omron Sysmac Support Software (SSS) and Ladder Support Software (LSS) v3+
- Industrial automation cabinets and modular control configurations
- Any multi-module SYSMAC system requiring universal AC power input
