Overview

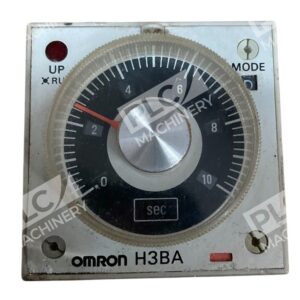

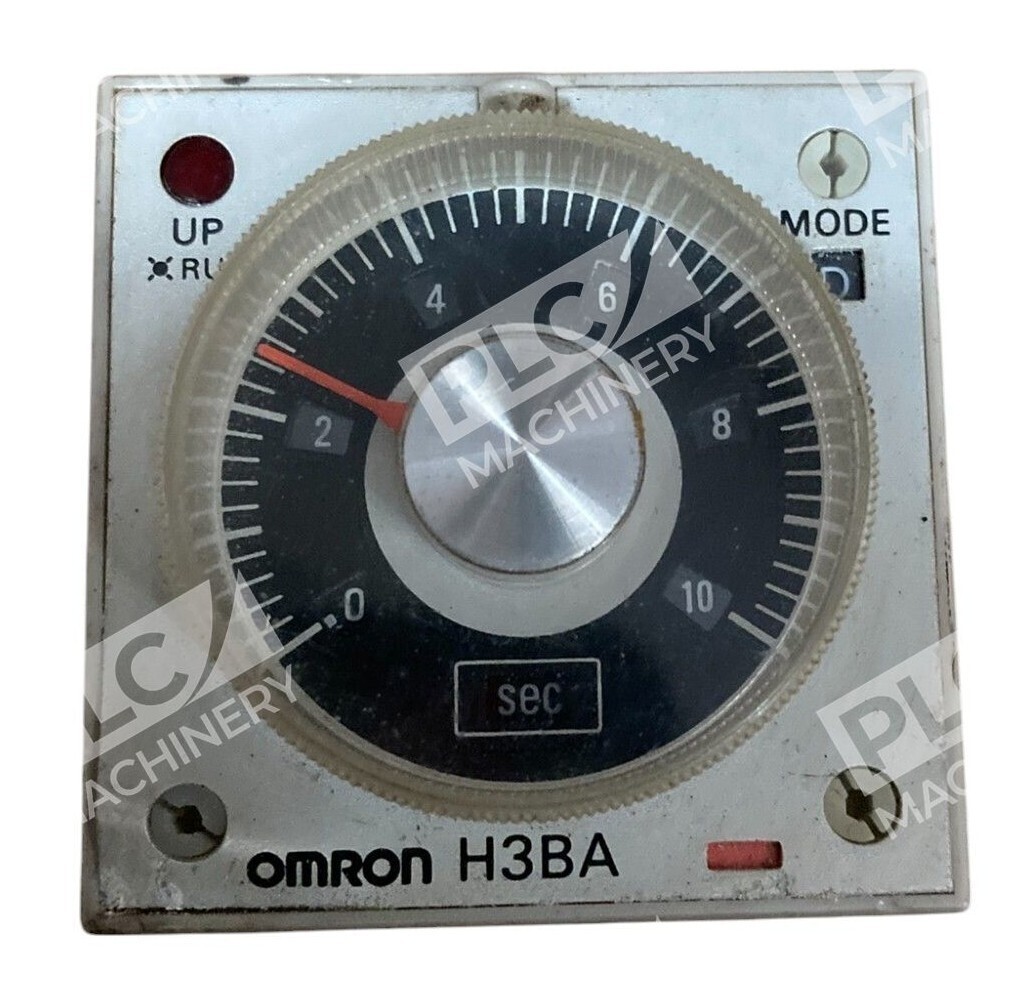

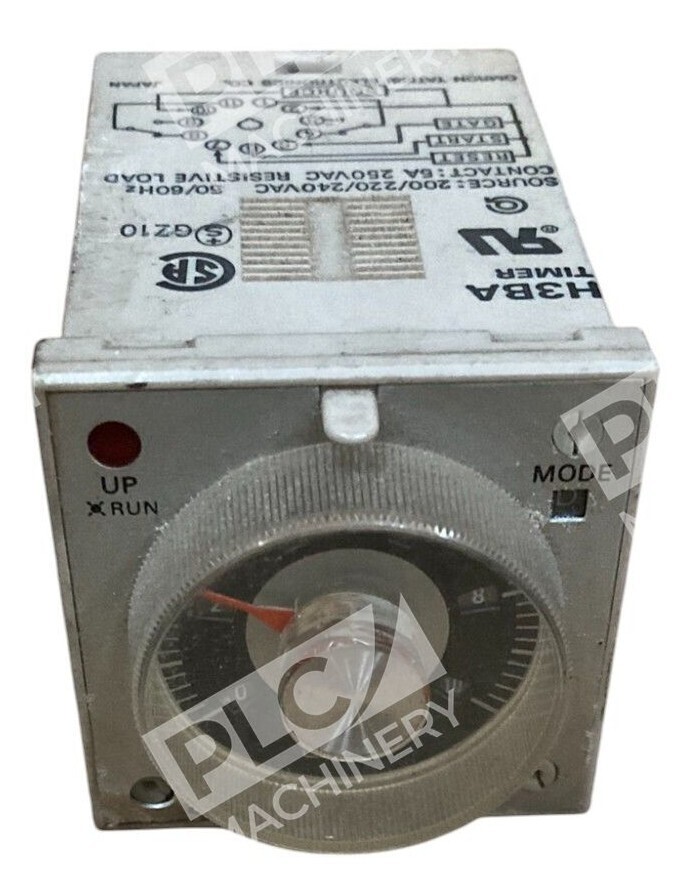

The Omron H3BA timer module is a compact solid-state on-delay timer engineered for general industrial automation and control applications. It combines a wide 200/220/240VAC supply voltage range with a 5A @ 250VAC output rating, making it suitable for motor soft-start timing, equipment warm-up delays, and process sequencing in DIN-rail and panel-mount control environments. The H3BA-N series delivers eight flexible operating modes and four selectable time ranges spanning 0.05 seconds to 300 hours.
Key Features
- On-Delay Solid-State Timing – Reliable electronic switching without mechanical components; supports 8 distinct operating modes for flexible timing control
- Wide Voltage Supply Range – 200/220/240VAC (50/60 Hz) accommodates diverse industrial electrical infrastructure
- Four Selectable Time Ranges – 0.05s to 300h enables applications from millisecond-precision to long-duration delays (warm-up, cool-down, cycle timing)
- Compact 1/16 DIN Panel Mount – 45mm × 45mm cutout fits standard control panel layouts; plug-in terminal block simplifies wiring and replacement
- Single Changeover Relay Output (SPDT) – One changeover contact (NO/NC switchable) rated 5A @ 250VAC resistive load
- Industrial Certifications – UL, CSA, CE Marking, and CCC certified for global deployments
Technical Specifications

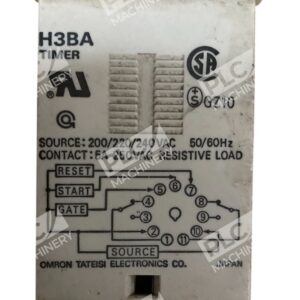

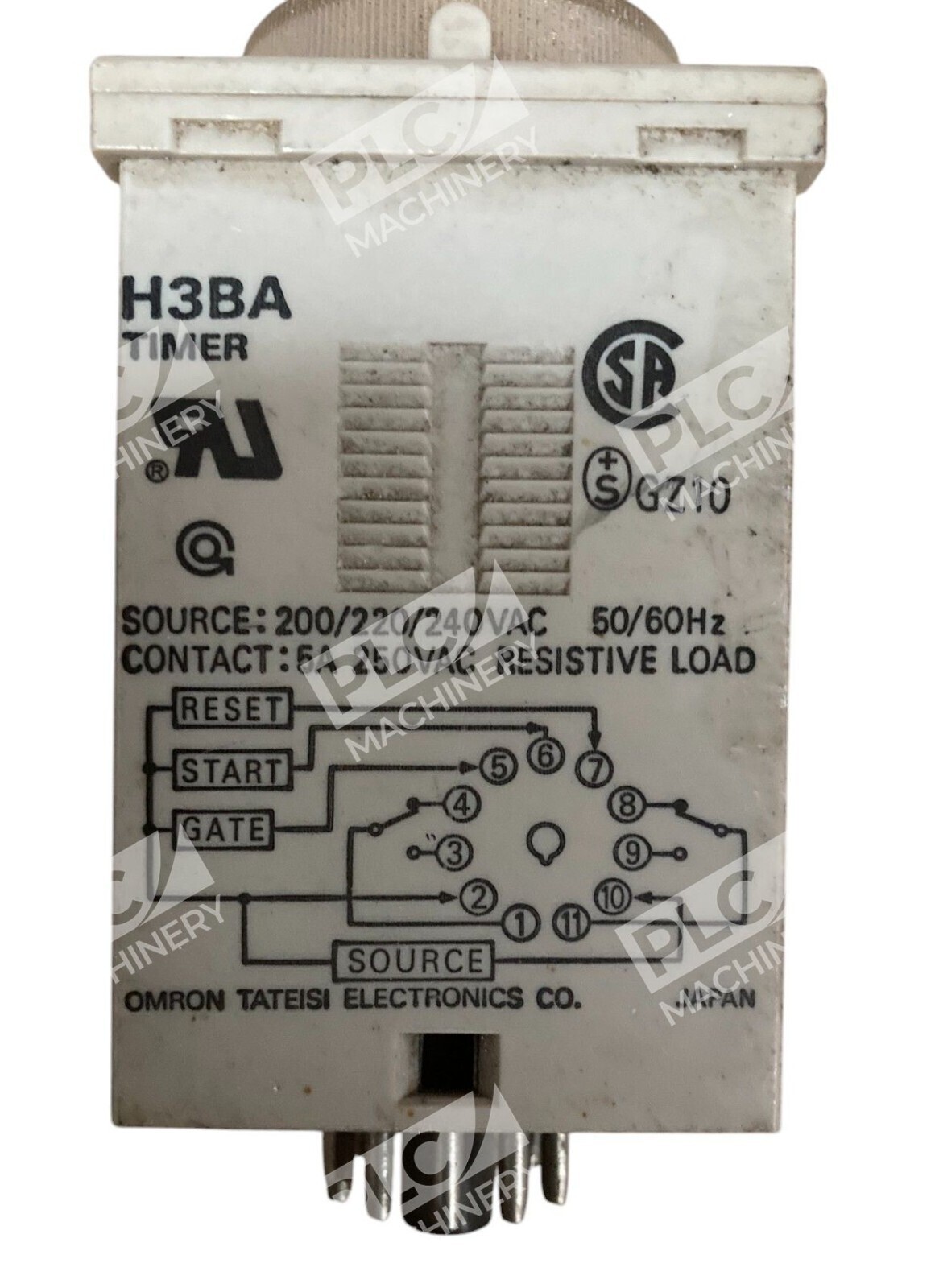

- Supply Voltage: 200/220/240VAC (50/60 Hz)
- Output Rating: 5A @ 250VAC (resistive load)
- Timer Type: On-Delay Solid-State
- Time Range: 0.05s–300h (four selectable ranges)
- Operating Modes: 8 modes
- Output Contact: 1 Changeover Relay (SPDT)
- Form Factor: 1/16 DIN
- Panel Cutout: 45mm H × 45mm W

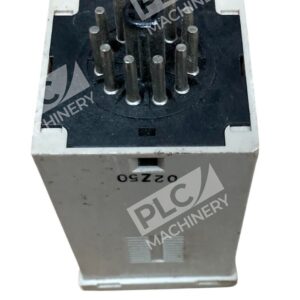

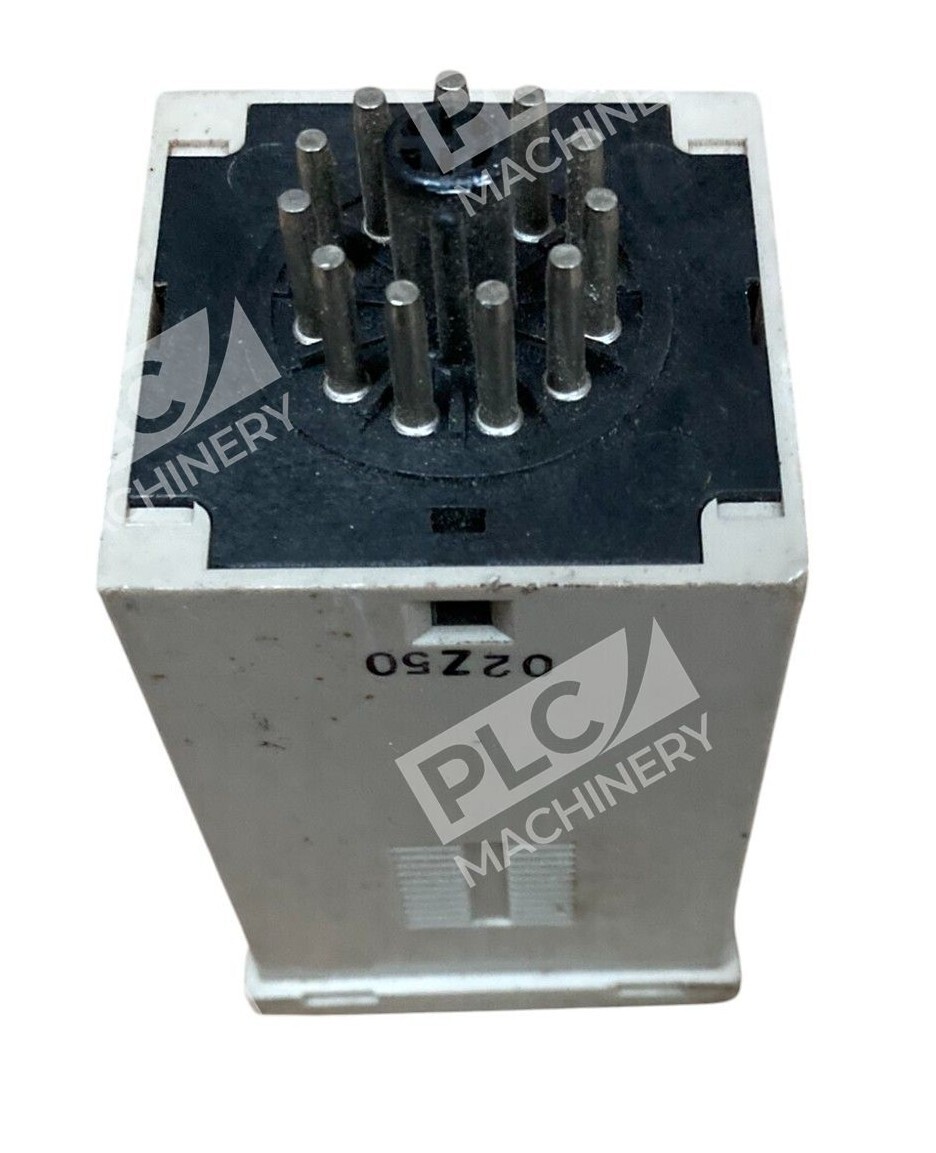

- Connection: Plug-In Terminal Block
- Mounting: DIN Rail / Panel Mount
- Certifications: UL, CSA, CE Marking, CCC
- Series: H3BA-N
Typical Applications
- Motor soft-start and pump priming delay circuits
- Equipment warm-up and cool-down timing sequences
- Production line cycle synchronization and sequencing control
- Alarm reset and self-clearing timer functions in relay logic
- Process automation and pneumatic/hydraulic equipment startup delays
- Hardwired control circuits requiring precise on-delay timing without programmable logic
Compatibility & Replacements
Compatible With
- General industrial relay and contactor control circuits
- DIN-rail mounted control panels (45mm × 45mm cutout spaces)
- G2R relay socket bases and compatible socket assemblies
- AC supply systems operating at 50 or 60 Hz frequency
- Hardwired control logic and motor-control centers
- Pneumatic and hydraulic timer-controlled switching applications
Replaces / Drop-In Replacement For
- Earlier Omron H3BA models with equivalent 200/220/240VAC and 5A @ 250VAC ratings
- Legacy solid-state and mechanical timer relays with 1/16 DIN form factor
- Other 5A 250VAC on-delay timer modules requiring equivalent timing ranges and operating modes
Works With
- AC power distribution and motor-control systems (50/60 Hz industrial infrastructure)
- Thermal overload relays and contactor assemblies in combination starter circuits
- Hardwired relay logic (non-programmable control applications)
- Standard control panel terminals and DIN-rail enclosures
- Omron setting rings and panel covers (ordered separately)
