Overview

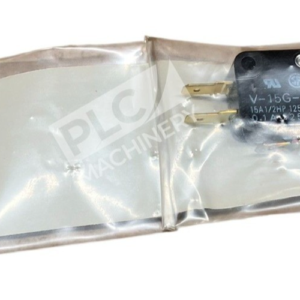

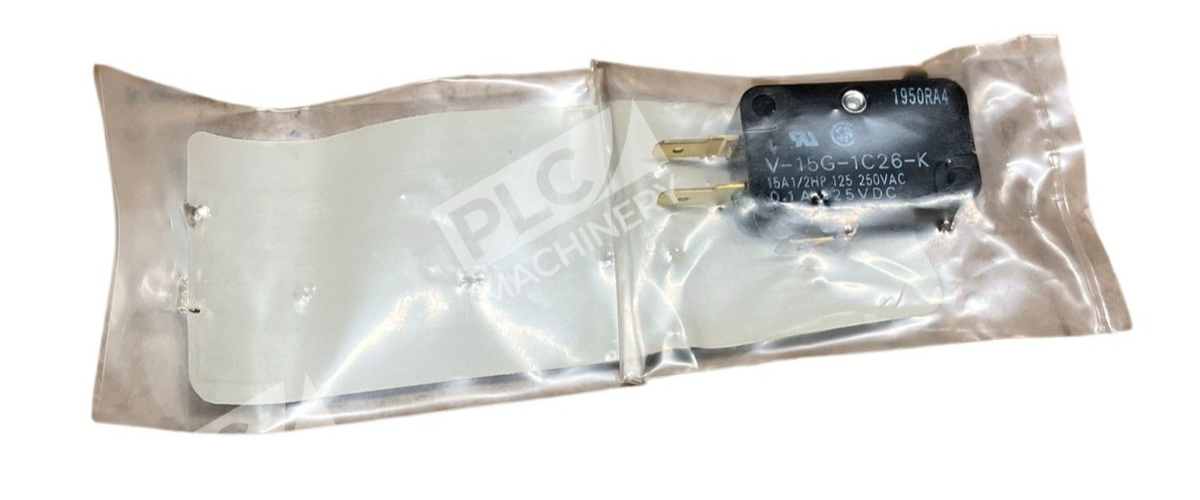

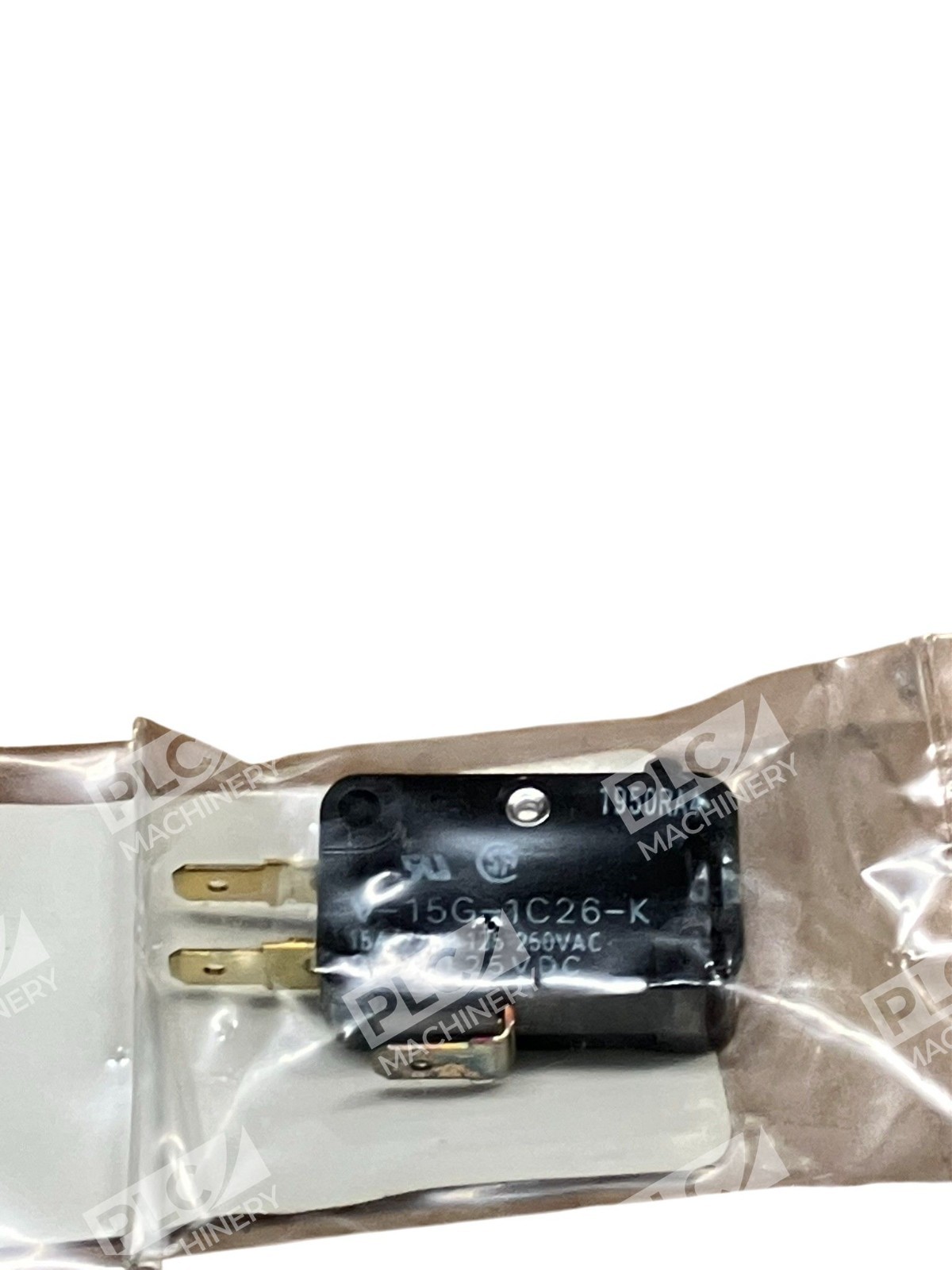

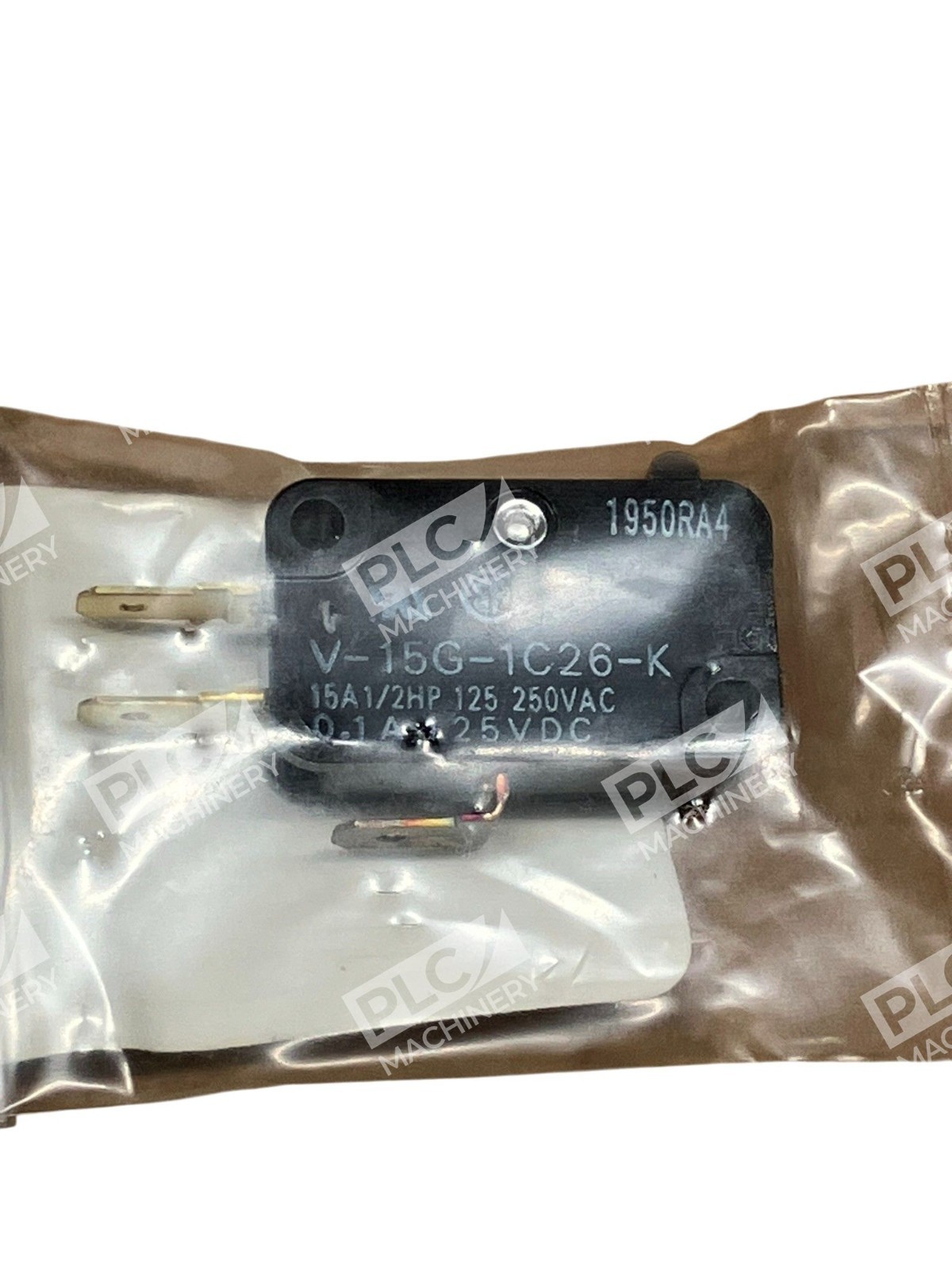

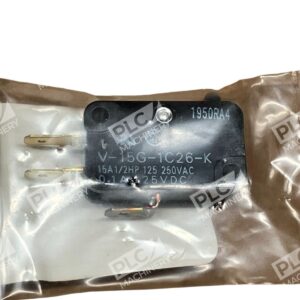

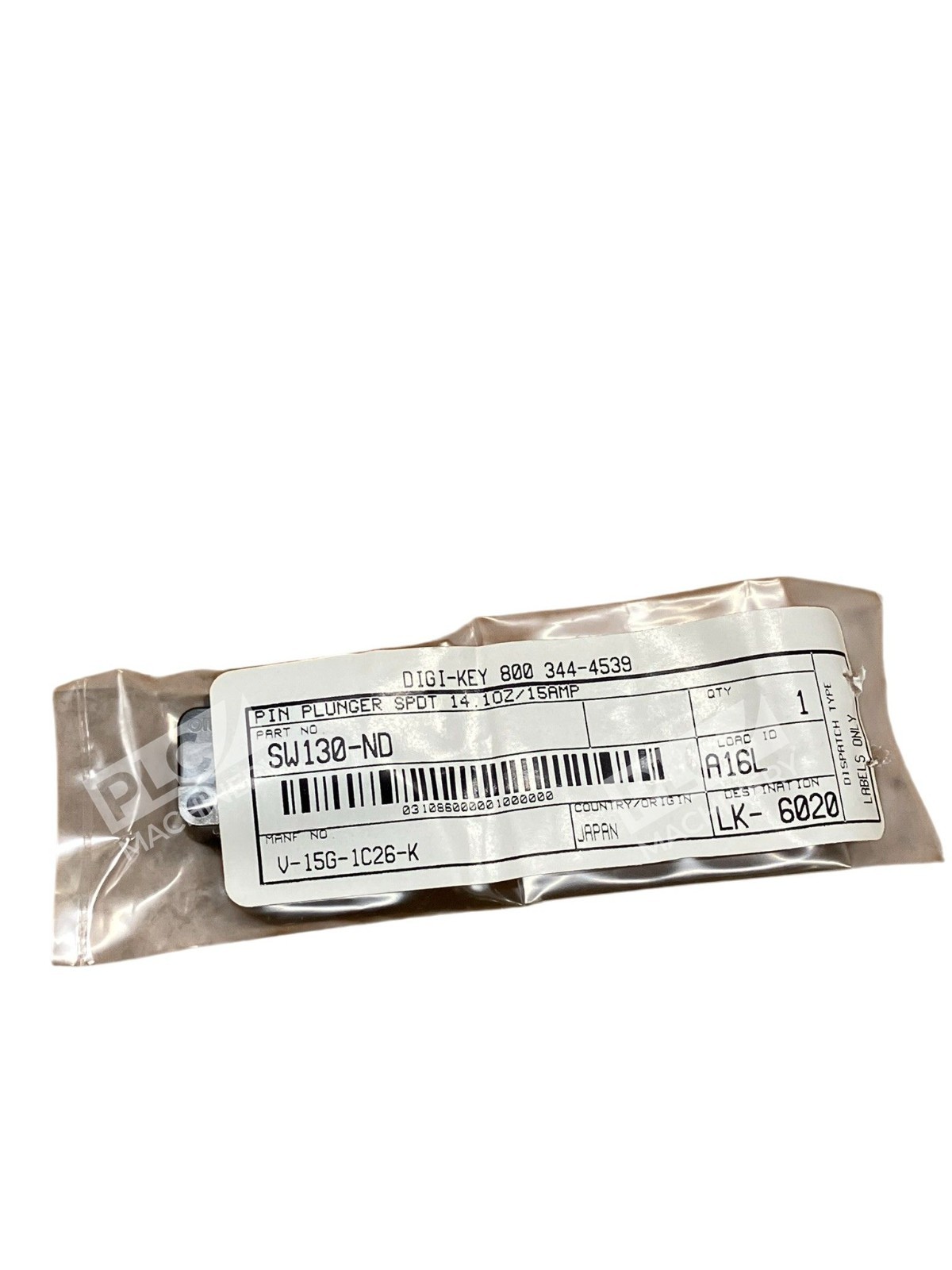

The Omron V-15G-1C26-K is a compact snap-action microswitch designed for industrial motion control, position sensing, and automation applications. This limit switch combines proven snap-action contact technology with a pin plunger actuator for reliable, repeatable switching performance in machinery and control systems requiring precise position feedback and emergency stop functionality.
Key Features
- 15A rated current — handles typical AC motor and solenoid loads without de-rating
- SPDT contact configuration — simultaneous opening and closing of normally open and normally closed contacts enables flexible logic implementation
- Snap-action mechanism — rapid contact separation prevents arcing and extends contact life
- Pin plunger actuator — precise, tactile engagement ideal for mechanical linkages and rotating cam follower applications
- 400GF operating force — moderate actuation force reduces unintended switching while maintaining repeatability
- Compact form factor — chassis-mount design fits standard control panel layouts
Technical Specifications
- Contact Rating: 15A @ 250VAC
- Contact Type: SPDT (Single Pole Double Throw)
- Switching Type: Snap Action
- Actuator Style: Pin Plunger
- Operating Force: 400GF (gram-force)
- Voltage Rating: 125–250VAC
- Horsepower Rating: 1/2 HP @ 250VAC
- Weight: 0.04 lbs
- Mounting Style: Chassis Mount
Typical Applications
- Machine tool limit switches and end-of-travel stops
- Motor and pump motor start/stop control circuits
- Door and access panel interlocks
- Conveyor and automation equipment position sensing
- Emergency stop (E-stop) circuit confirmation and feedback loops
- Light machine control and manual machinery guarding
Compatibility & Replacements
Compatible With
- Standard industrial motor control circuits rated 125–250VAC
- AC induction motors up to 1/2 HP @ 250VAC
- Solenoid valve control circuits
- Relay and contactor coil feedback loops
- General industrial automation relay logic and PLC input modules
Replaces / Drop-In Replacement For
- Verify specific replacement compatibility with your system integrator or OEM documentation before ordering, as actuator style and mounting footprint variations exist within the V-15G family.
Works With
- Standard 24VDC, 120VAC, and 250VAC control relay circuits
- PLC discrete input modules (24VDC input compatible via auxiliary relay)
- Hardwired safety circuits and motor control centers (MCCs)
- Industrial switch cabinets and control enclosures
- OEM automation equipment requiring mechanical position feedback
