Overview
The Omron C500-PS223 power module is a dedicated CPU backplane power supply unit designed for the Sysmac C500 series programmable logic controller systems. This module provides clean, regulated power to the C500 CPU backplane and supports flexible input voltage selection, making it suitable for global installations with varying AC supply standards. The C500-PS223 is essential for stable operation in industrial automation and process control applications.
Key Features
- Selectable input voltage: 100-120 VAC or 200-240 VAC (50/60 Hz)
- Regulated 5VDC output with 12-amp capacity
- Backplane mounting design for seamless C500 integration
- Screw terminal connectivity for field wiring
- Compact form factor for standard CPU rack installations
- Continuous operation in industrial environments
Technical Specifications
- Input Voltage: 100-120 VAC / 200-240 VAC selectable
- Output Voltage: 5 VDC
- Output Current: 12 A
- Frequency: 50/60 Hz
- Mounting Type: Backplane
- Termination: Screw terminal
- Series: Sysmac C500

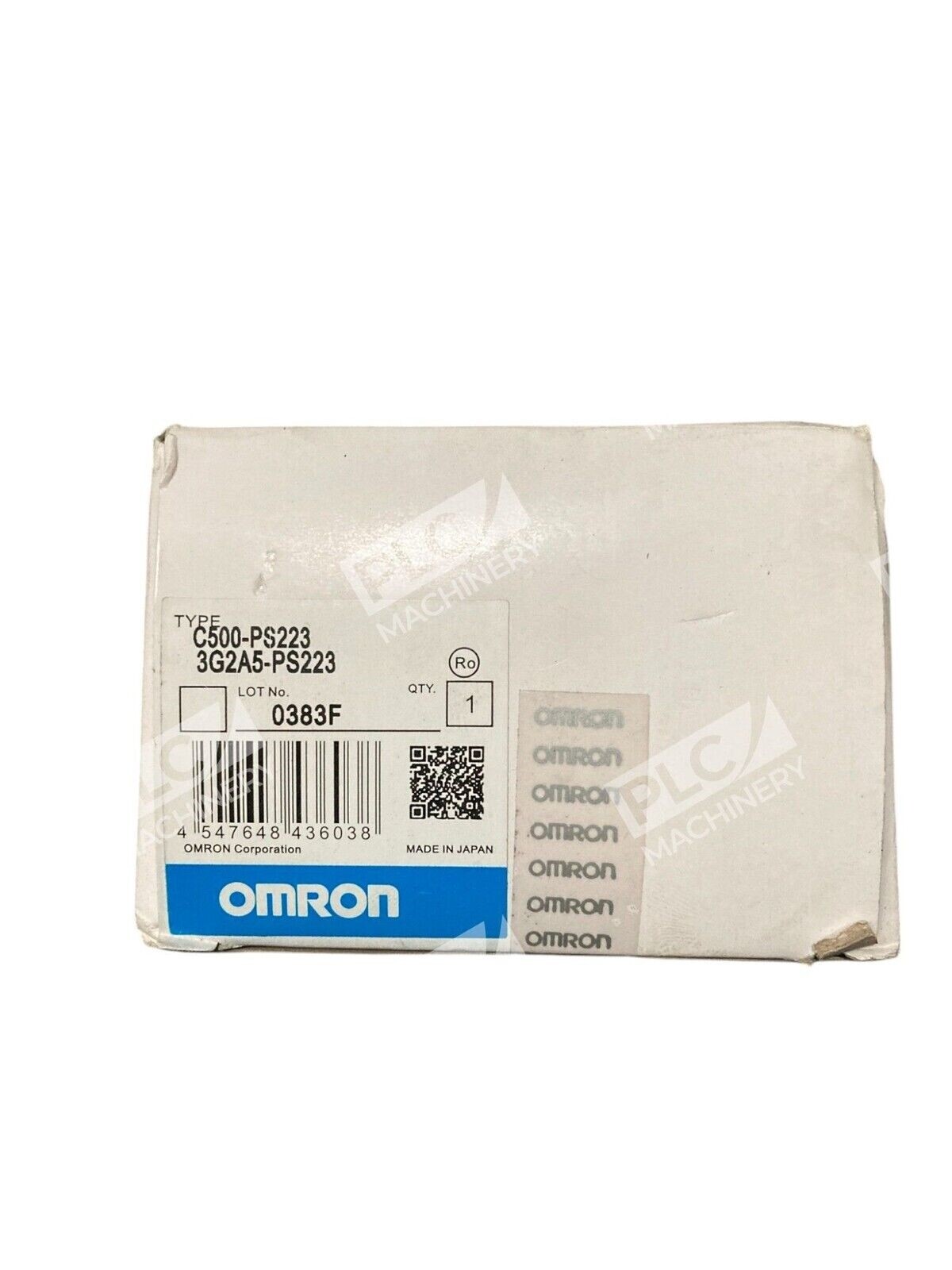

- Manufacturer Part Number: C500-PS223 / 3G2A5-PS223
Typical Applications
- Programmable logic controller power distribution
- Industrial manufacturing automation
- Process control systems
- Machine control and sequencing
- Facility-wide automation racks
- OEM machinery integration
Compatibility & Replacements
Compatible With
- Omron Sysmac C500 CPU systems
- C500 I/O modules and expansion units
- C500 CPU processor modules
- C500 communication units
- Standard 110/220 VAC industrial power supplies
Replaces / Drop-In Replacement For
- C500-PS223-E (earlier revision)
- 3G2A5-PS223-E (Omron alternate designation)
Works With
- Omron Sysmac C500 PLC programming software
- C500 backplane CPU rack architecture
- Industrial facility power distribution (single-phase AC)
- Standard 19-inch rack enclosures
