Overview

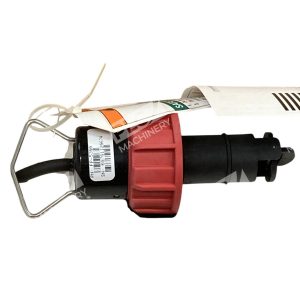

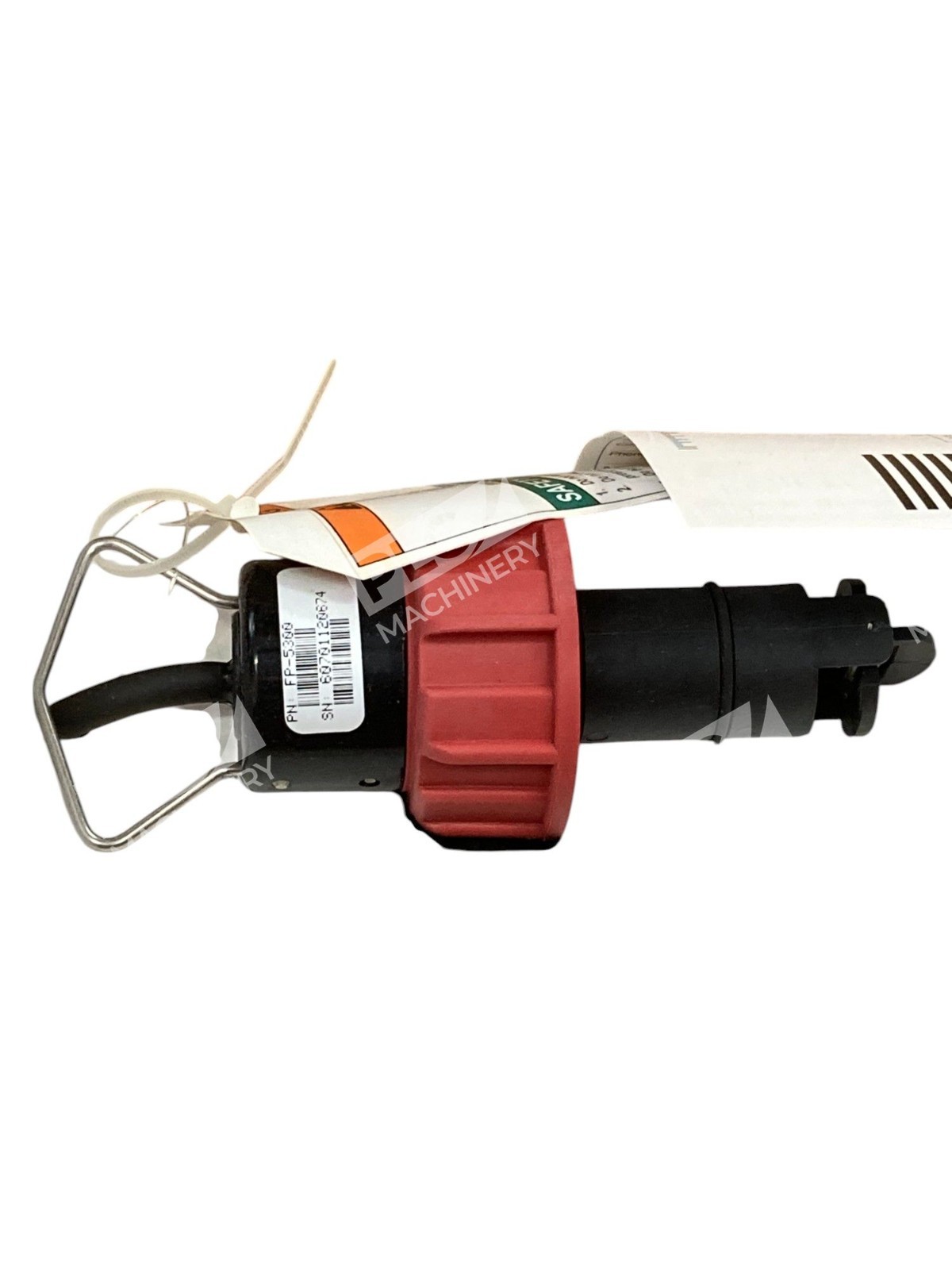

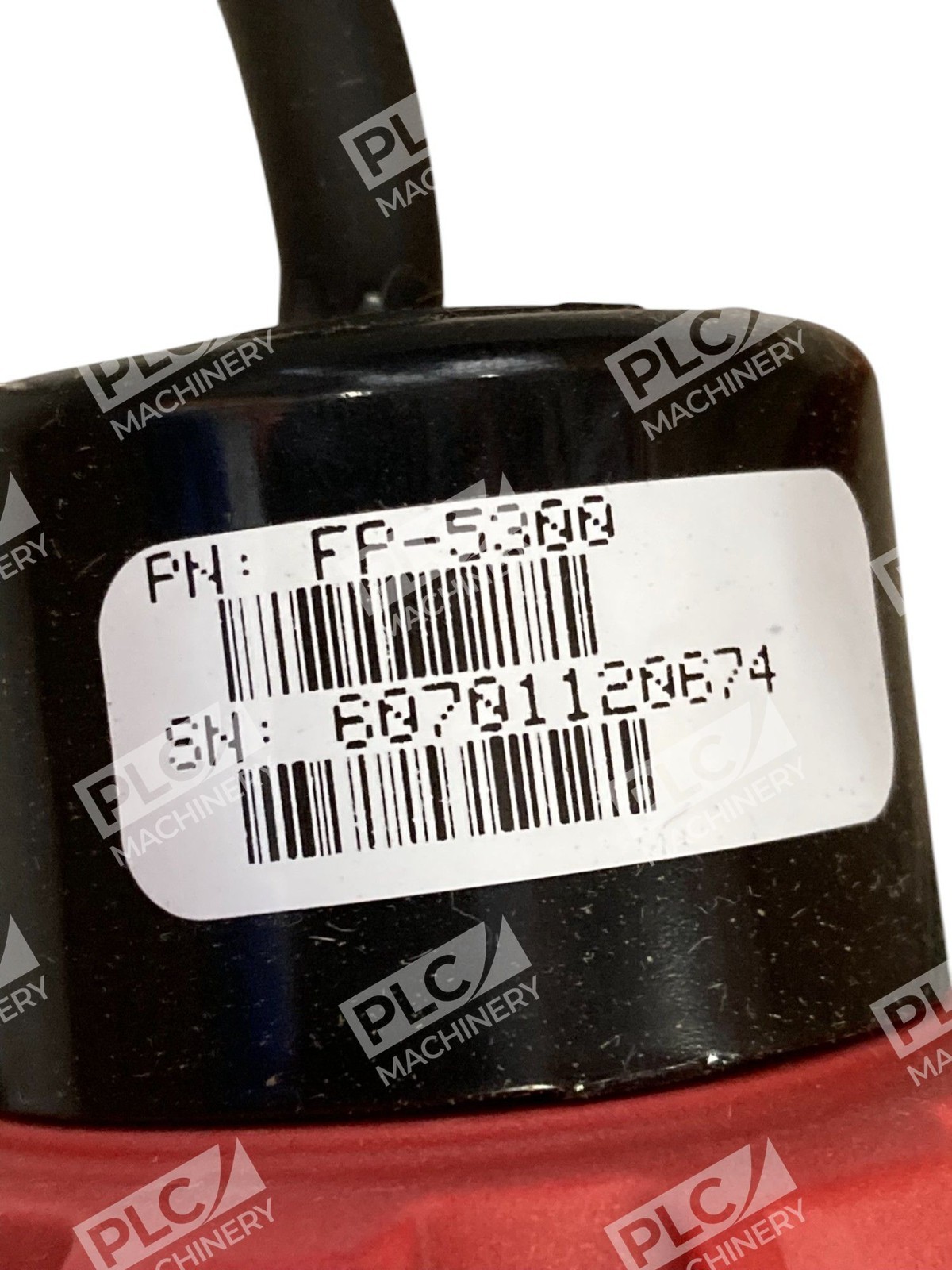

The Omega FP-5300 paddlewheel flow sensor is an electro-mechanical volumetric flow transducer designed for accurate, cost-effective flow measurement in industrial piping systems. This RTR-X series variant utilizes durable polypropylene and titanium construction with PVDF materials, providing exceptional chemical resistance for corrosive and ultra-pure liquid applications. The FP-5300 generates a sinusoidal AC signal output with frequency directly proportional to flow velocity, enabling reliable integration with flow meters, controllers, and data acquisition systems.
Key Features
- Open-cell rotor design eliminates cavitation up to 50 FPS for superior linearity and repeatability
- ±1% accuracy with ±0.5% repeatability across full operating range
- Sinusoidal AC output signal: 1 V peak-to-peak per FPS, 6 Hz/FPS nominal frequency
- Fits pipes 1/2″ to 4″ NPT; adaptable to larger 6–8″ pipes with extended insertion
- Conduit-ready design with optional adaptor kits for harsh-environment protection

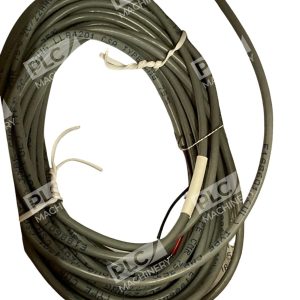

- 2-conductor shielded cable (25 ft standard; extendable to 200 ft without amplification)
Technical Specifications
- Flow Rate Range: 1–20 FPS (0.3–6 m/s)
- Accuracy: ±1% full scale
- Repeatability: ±0.5% of maximum range
- Output Signal: Sinusoidal AC, 1 V p-p per FPS
- Output Frequency: 6 Hz/FPS nominal
- Maximum Pressure: 180 psig @ 20°C (68°F)
- Pipe Size Range: 0.5″ to 4″ (1/2″–4″), up to 36″ with special mounting
- Cable Length: 7.6 m (25 ft) standard; spliced extension up to 60 m (200 ft)

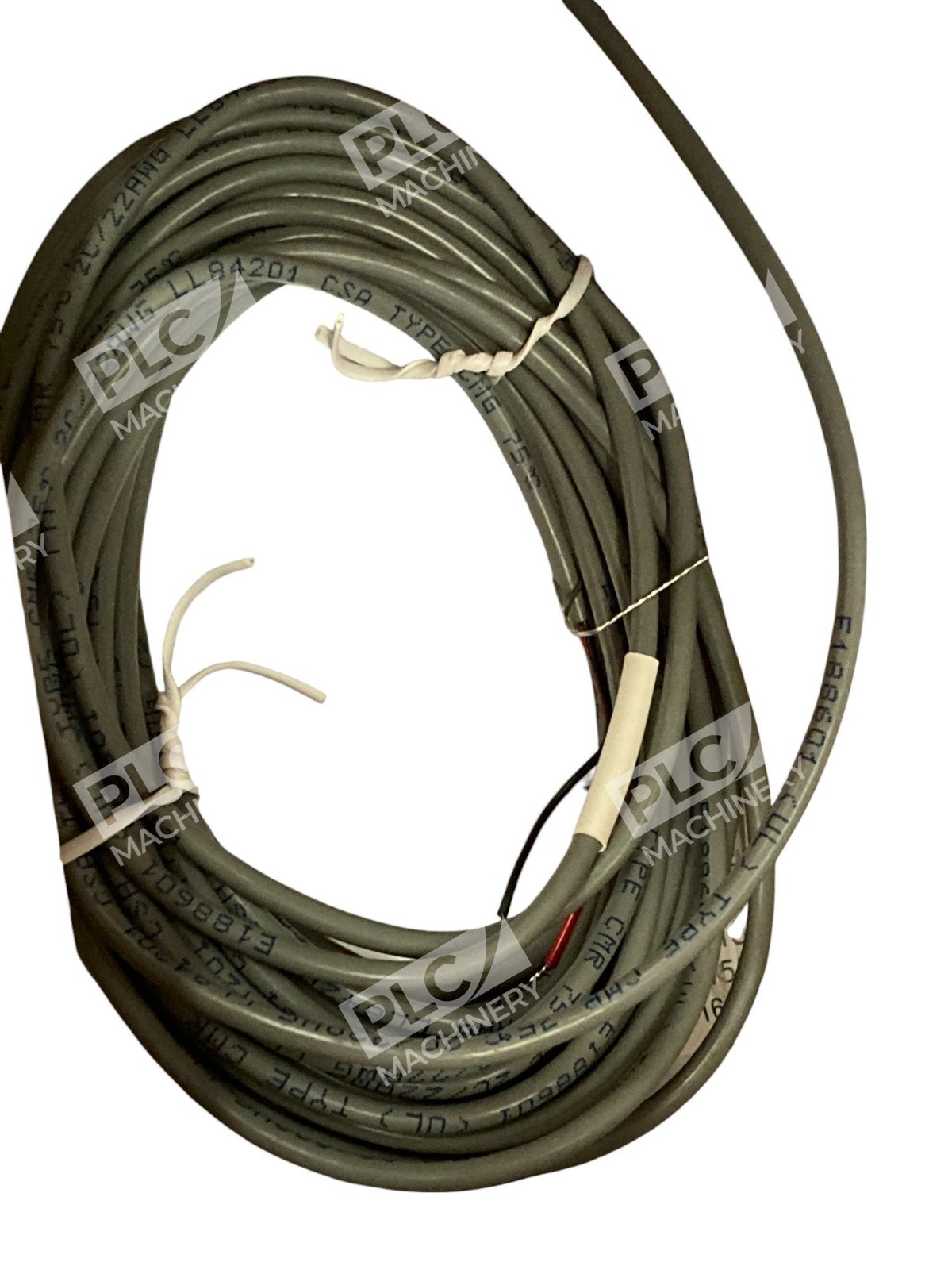

- Cable Type: 2-conductor twisted pair with shield
- Source Impedance: 8 kΩ

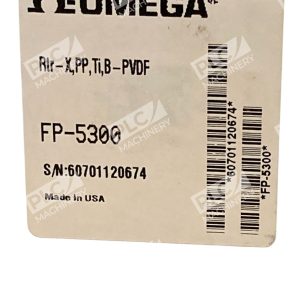

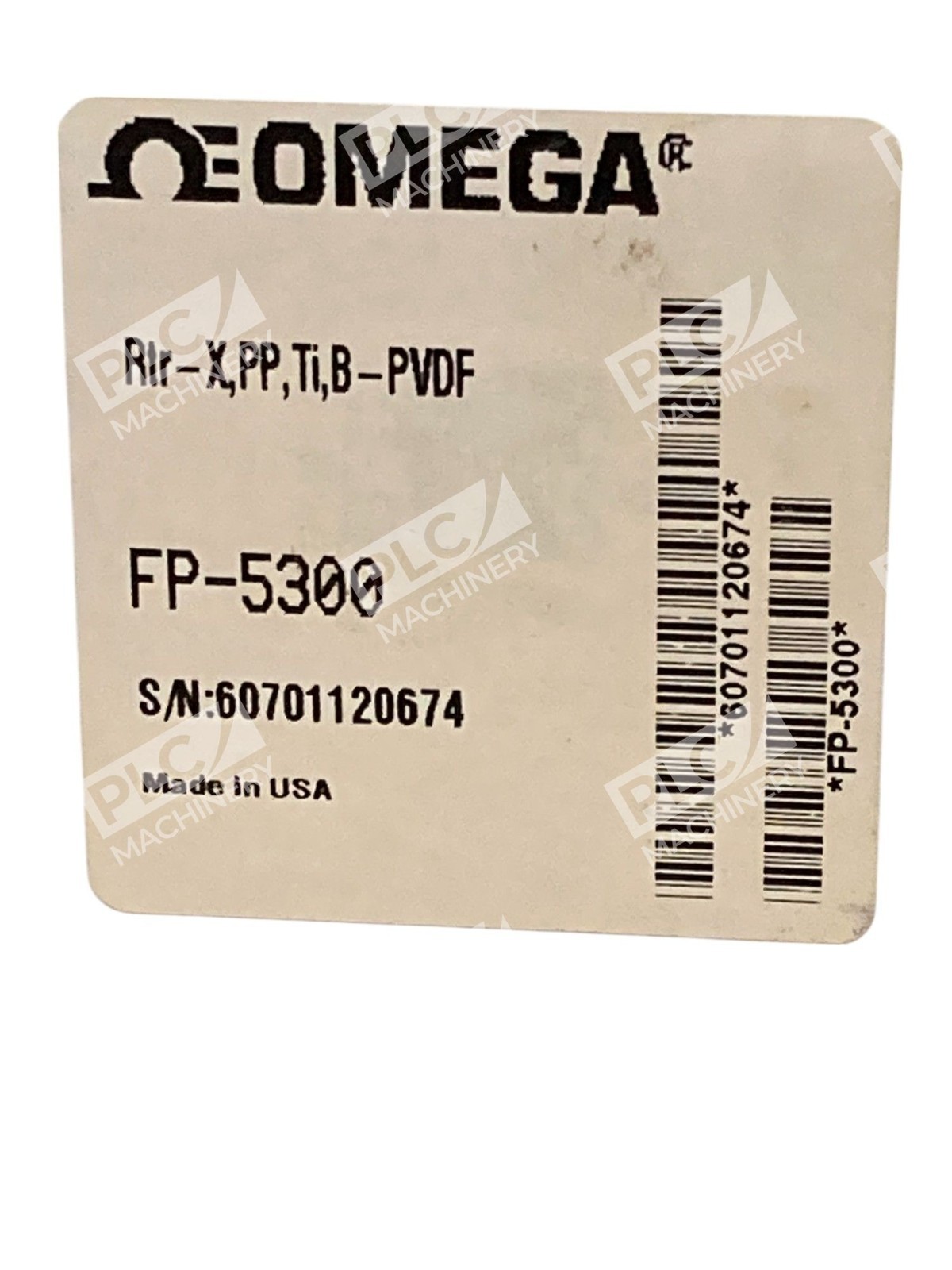

- Materials: PP (polypropylene), Ti (titanium), B-PVDF (Polyvinylidene fluoride)
- O-Ring Material: Viton®
- Mounting Position: Horizontal (upright 0°); vertical (upward flow only)
- Minimum Temperature: 0°C (32°F)
Typical Applications
The Omega FP-5300 is widely deployed in:
- Chemical processing and corrosive liquid handling (RTR-X PVDF variant)
- Ultra-pure water and pharmaceutical fluid systems
- Wastewater treatment and municipal water distribution
- Industrial HVAC and cooling loops
- Oil & gas production and refinery operations
- Food & beverage processing and fermentation monitoring
- Laboratory and bench-top flow measurement
Compatibility & Replacements
Compatible With
- Industrial flow controllers and PLC/DCS systems accepting sinusoidal AC input
- Flow totalizers and data loggers with frequency-input capability
- Pipe sizes 0.5″ to 4″ NPT (1/2″–4″) with standard insertion
- Extended insertion for 6–8″ pipe applications
- Conduit adaptor kits (FPM-5000-SCAK and optional back-cover kits)
Replaces / Drop-In Replacement For
- OMEGA FP-5100 (PVDF variant; verify material compatibility before substitution)
- Previous-generation turbine and rotor-type flow sensors in 1/2″–4″ applications
- Legacy Omega paddlewheel models with equivalent 1–20 FPS range
Works With
- Omega flow meters, indicators, and signal conditioners
- Industrial control systems with analog frequency-input modules
- Data acquisition systems supporting AC frequency signals
- PLC and DCS platforms via discrete frequency input cards
- Custom signal conditioning and amplification circuits
