Overview

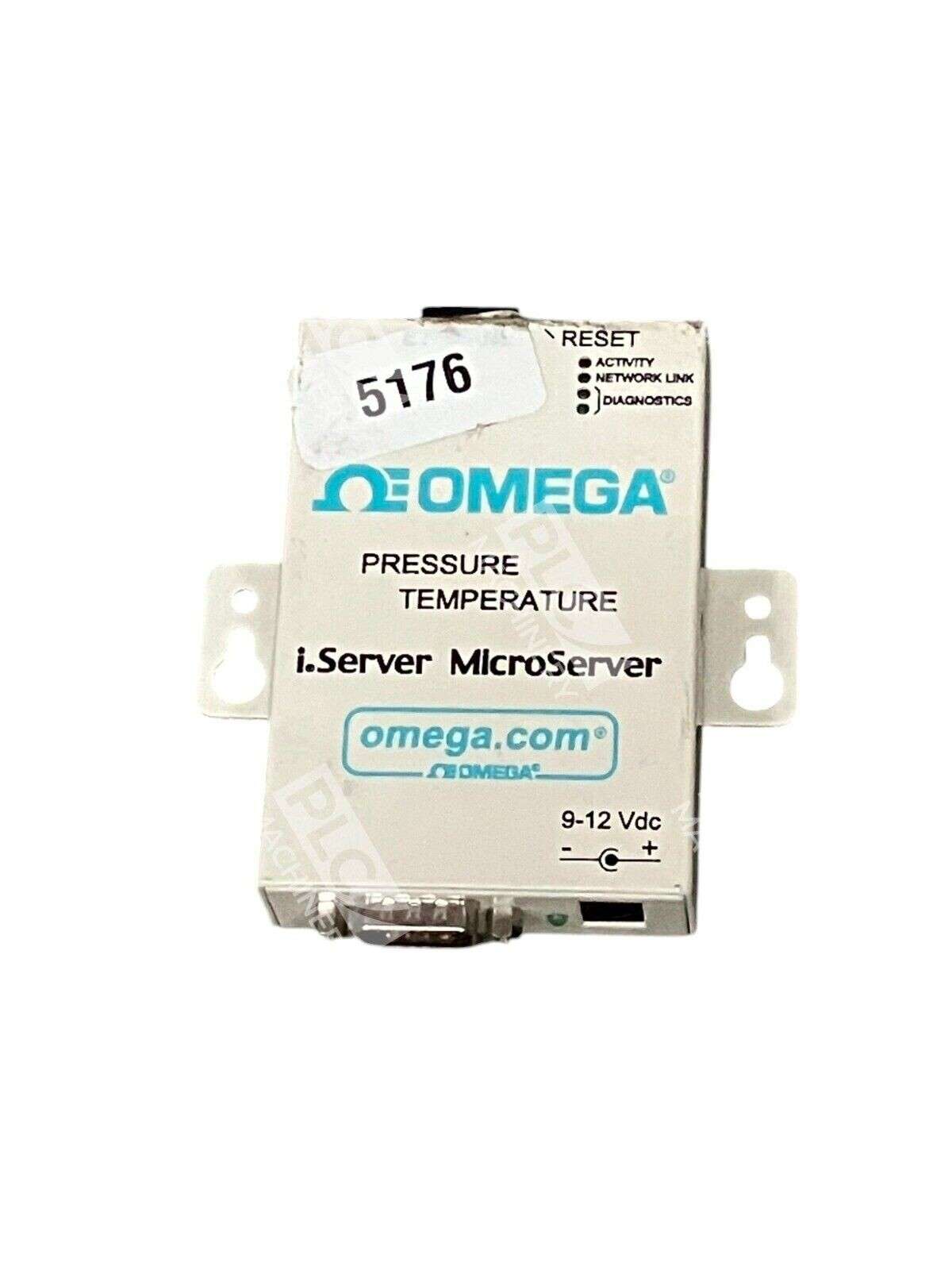

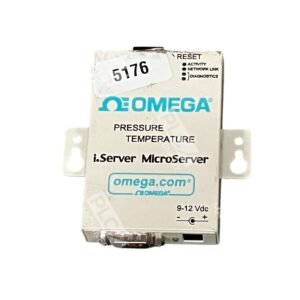

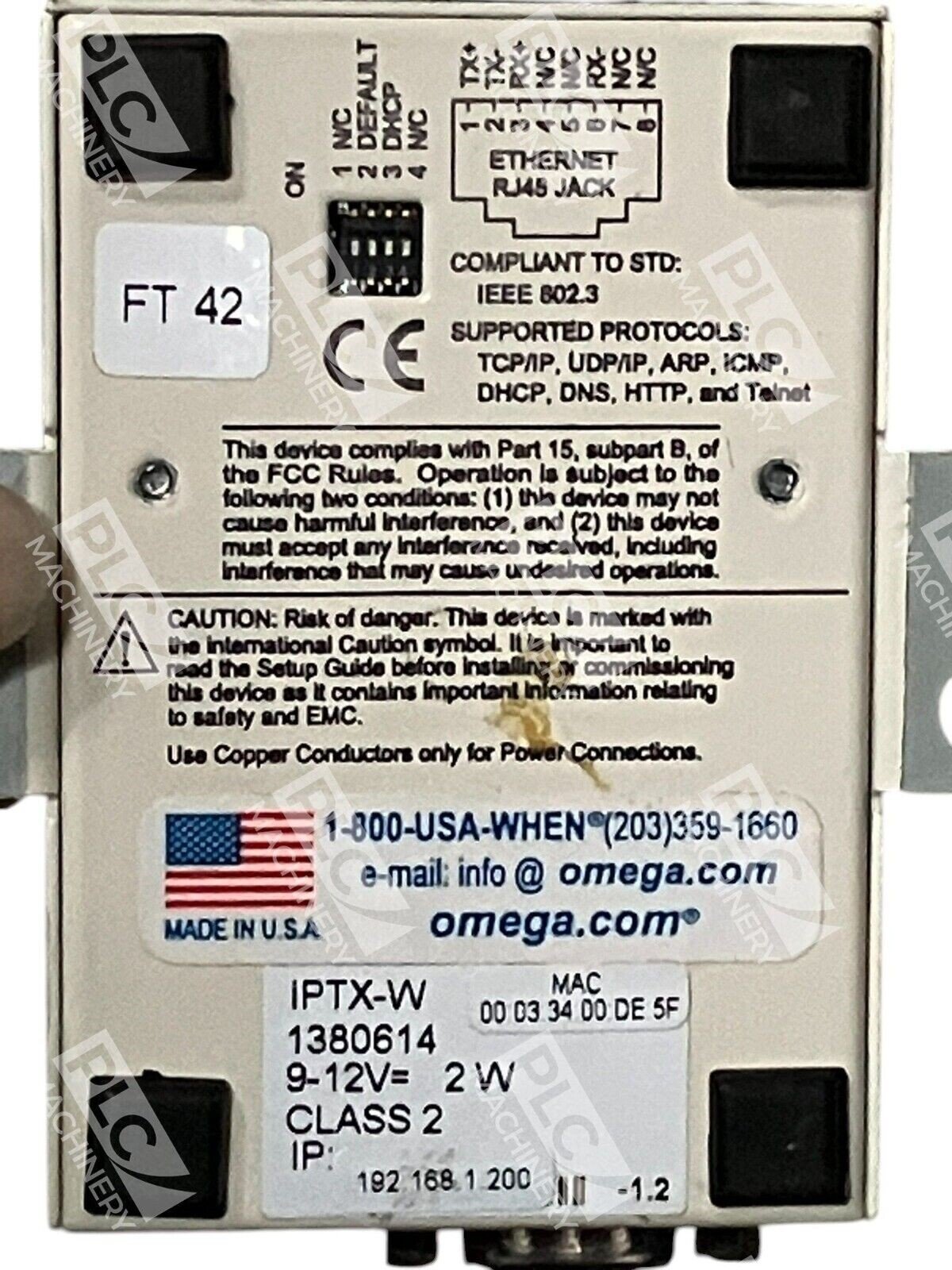

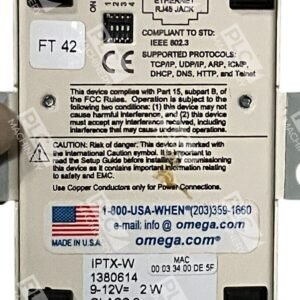

The Omega IPTX-W 1380614 is a network-connected pressure and temperature transmitter from Omega’s iServer MicroServer product line. Designed for remote monitoring of air (inert gas) pressure and temperature via Ethernet, the IPTX-W integrates web server technology to deliver real-time readings and historical data logging directly through a standard Web browser. This unit connects via RJ45 Ethernet and transmits data in standard TCP/IP packets, eliminating the need for specialized proprietary software.
Key Features
- Web-based monitoring: Access real-time pressure and temperature data from any Web browser over LAN or the Internet
- iServer technology: Built-in Web server with no additional software installation required
- Standard connectivity: RJ45 Ethernet interface with TCP/IP communication
- Virtual charting: JAVA-based real-time data charts with selectable time spans (minute to year)
- Flexible display units: Pressure displayed in kPa, psi, or kg/cm²; temperature in °C
- Complete probe package: Includes air pressure and temperature probe for single-point measurement
Technical Specifications
Note: The iPTX series is discontinued. Confirm specifications with Omega or contact your system integrator for exact performance details on this legacy unit.
- Pressure range: 0 to 200 psi (air/inert gas)
- Temperature range: 0 to 70°C (adjustable charting within any narrow range)
- Connection: RJ45 Ethernet (standard TCP/IP)
- Communication protocol: HTTP/TCP/IP
- Web interface: Configurable via Web browser menu
- Data format: Compatible with Excel and standard spreadsheet formats
- Security: Password-protected access available
Typical Applications
- Industrial air compressor pressure monitoring
- Cleanroom environmental pressure tracking
- Laboratory gas system monitoring
- HVAC system pressure observation
- Data center or server room environmental logging
- Manufacturing process pressure verification
Compatibility & Replacements
Compatible With
- Standard Ethernet networks (LAN/WAN)
- Any Web browser (Chrome, Firefox, Safari, Edge, Internet Explorer)
- Standard TCP/IP network infrastructure
- Data acquisition and spreadsheet software (Excel, Visual Basic)
- SNMP-enabled monitoring systems
Replaces / Drop-In Replacement For
The Omega IPTX-W 1380614 is a legacy discontinued product. Verify compatibility with your system integrator before ordering. No direct plug-and-play replacement confirmation available; contact Omega or an authorized distributor for current alternative recommendations.
Works With
- Omega iServer MicroServer ecosystem
- Standard Web browsers (no proprietary software required)
- Ethernet LAN/WAN and Internet connectivity
- Email-based alarm notifications (when Internet-connected)
- Standard data export formats (CSV, spreadsheet-compatible)
