Overview

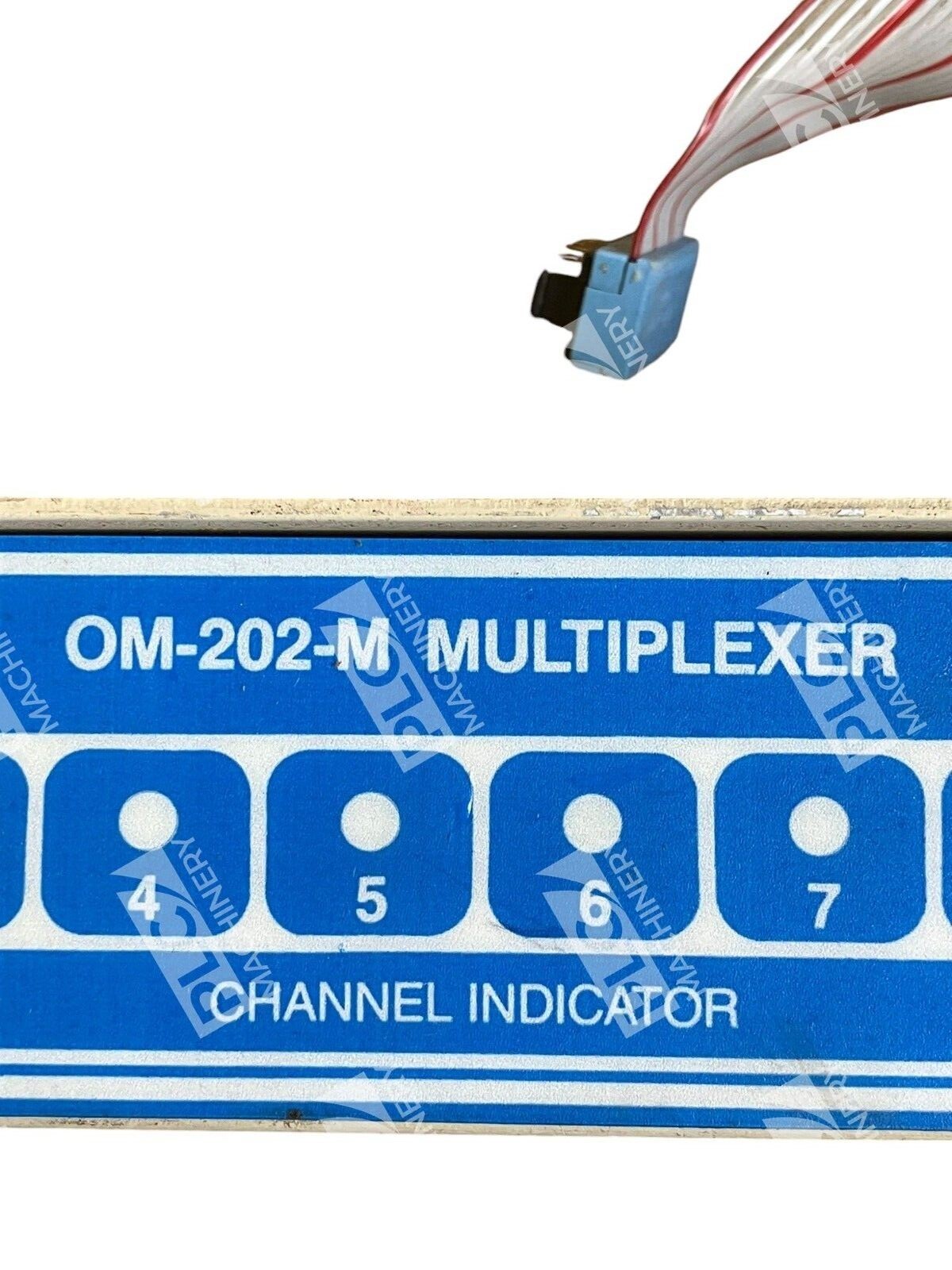

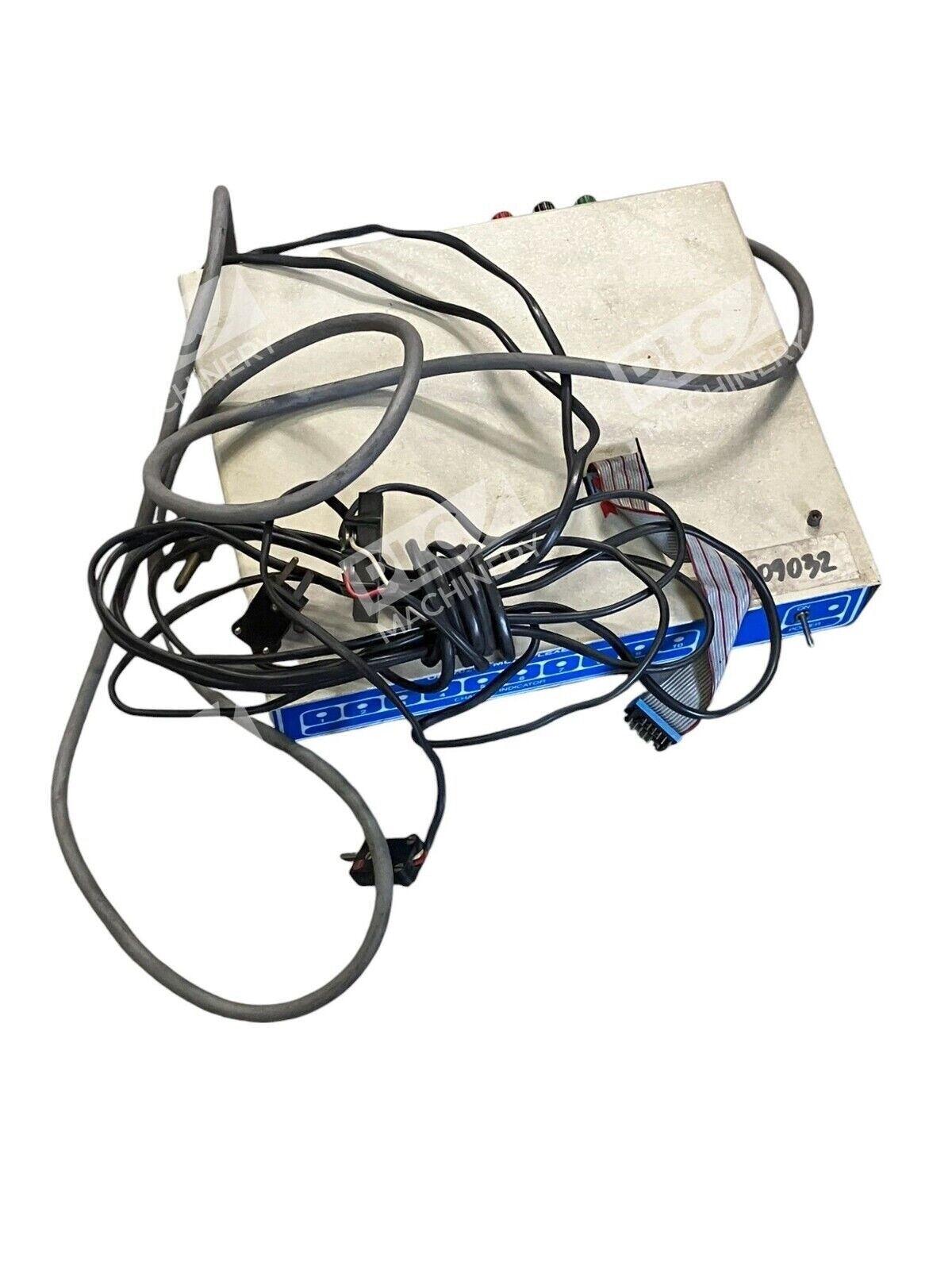

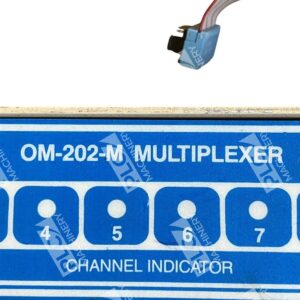

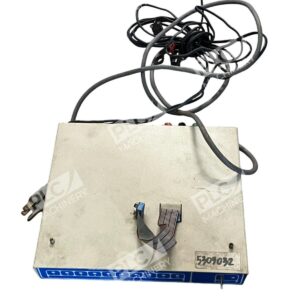

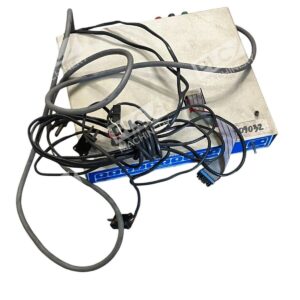

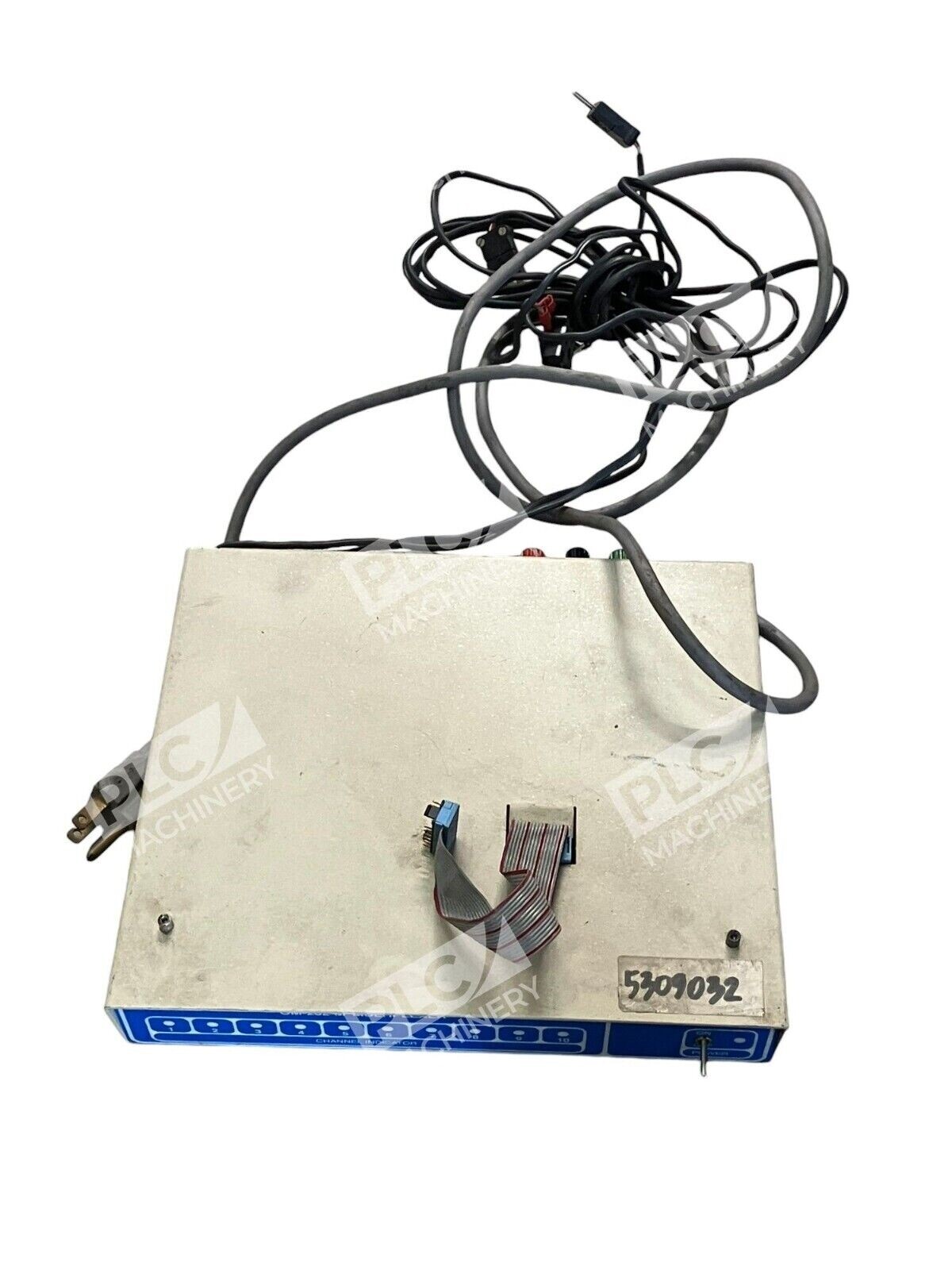

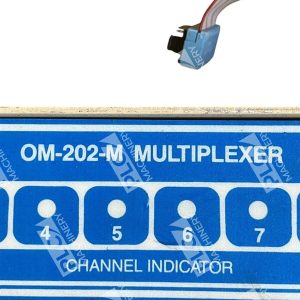

The Omega OM-202-M multiplexer scanner is a compact 10-channel switching device engineered for consolidating and routing multiple analog or digital signals into a single measurement instrument or data acquisition system. This component is ideal for test laboratories, manufacturing facilities, and industrial process monitoring where sequential signal sampling reduces overall equipment costs while maintaining measurement accuracy.
Key Features
- 10-channel multiplexing capacity for simultaneous or sequential signal switching
- Compact form factor suitable for bench-top and integrated system installations
- Reliable signal routing and switching for multi-sensor applications
- Solid-state design for fast channel selection and minimal crosstalk
- Used condition with full functionality verification and testing prior to shipment
Technical Specifications
The OM-202-M accepts multiple analog or digital input signals and routes them to a single output for measurement or recording. This multiplexer is commonly integrated with data loggers, oscilloscopes, and data acquisition boards that lack sufficient input channels. The unit supports standard industrial connector types and operates reliably in laboratory and factory environments.
Typical Applications
- Temperature and pressure monitoring across multiple process points
- Multi-channel sensor signal consolidation
- Laboratory test and measurement setups
- Manufacturing quality assurance and data logging
- Industrial equipment condition monitoring and diagnostics
Compatibility & Replacements
Compatible With
- OMEGA data acquisition systems and data loggers
- Standard industrial oscilloscopes with analog input channels
- Multi-channel data acquisition cards and modules
- Laboratory test and measurement equipment
- PLC-based monitoring systems with analog input modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The OM-202-M may serve as a direct replacement for similar OMEGA multiplexer models; however, specific model interchange information should be confirmed with documentation.
Works With
- OMEGA OM-EL data logger series
- OMEGA OM-240 Ethernet data logger
- Standard industrial data acquisition software
- Modbus and RS-485 enabled monitoring systems
- Legacy laboratory test equipment with analog inputs
