Overview

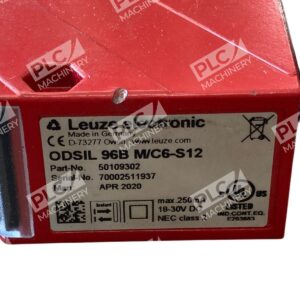

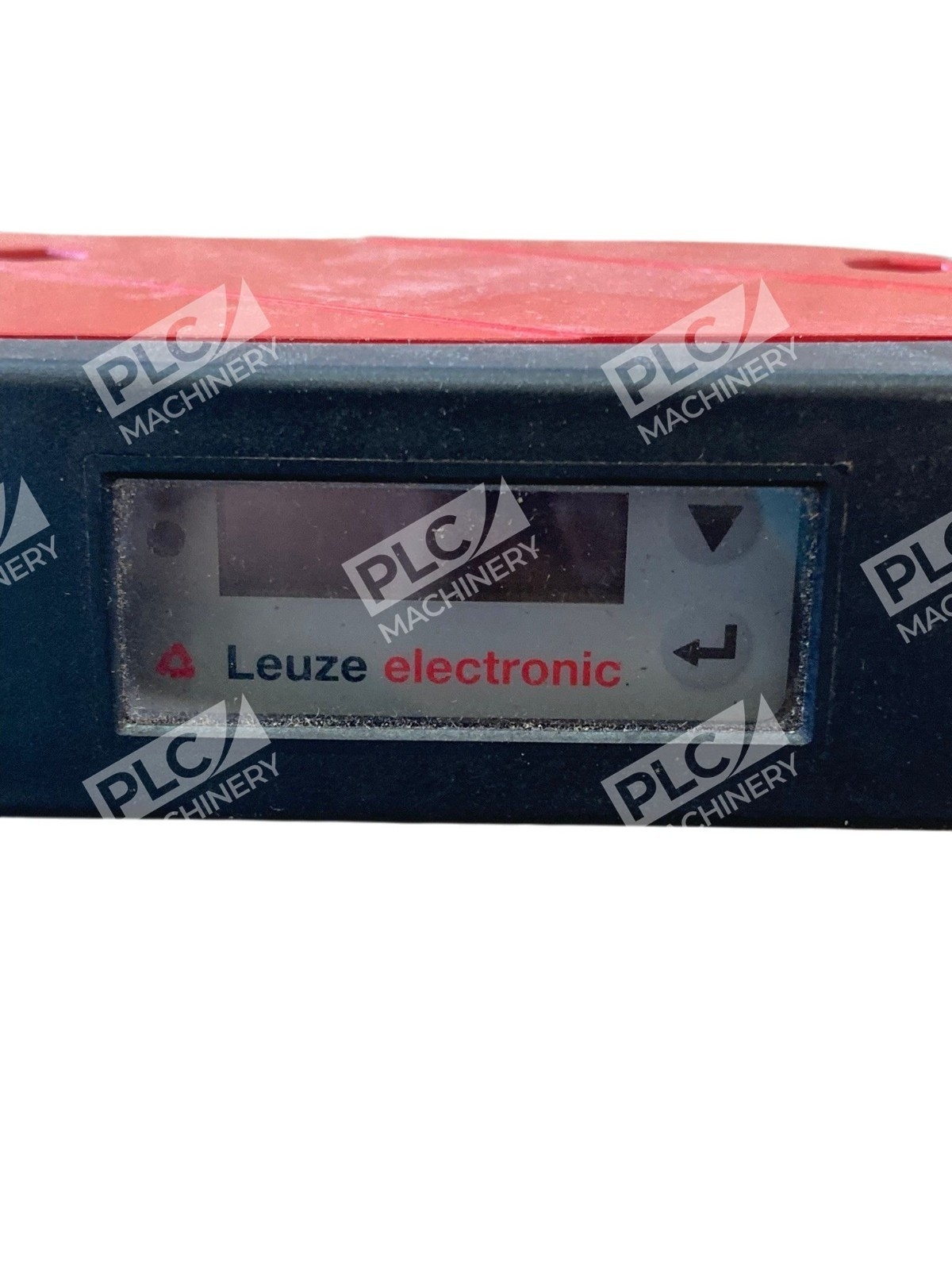

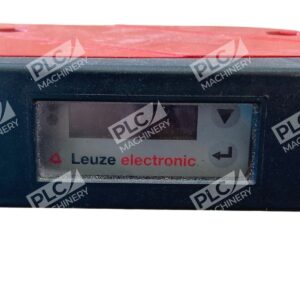

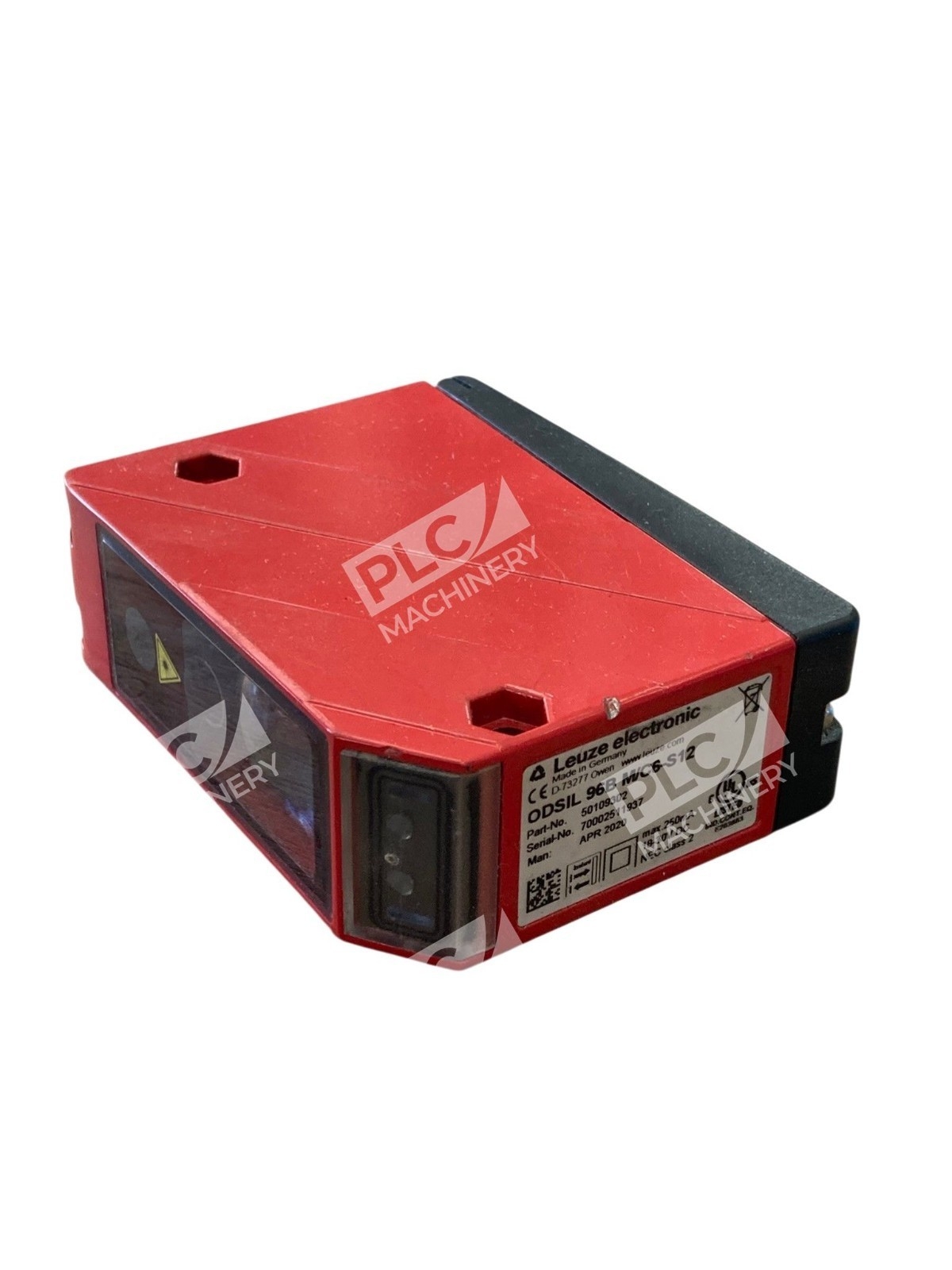

The Leuze ODSIL 96B M/C6-S12 is a laser optical distance sensor engineered for demanding industrial applications requiring accurate, non-contact distance measurement. As part of Leuze’s established ODSIL 96B series, this sensor combines proven reliability with precision optics to meet the exacting requirements of modern manufacturing and automation environments.
Key Features

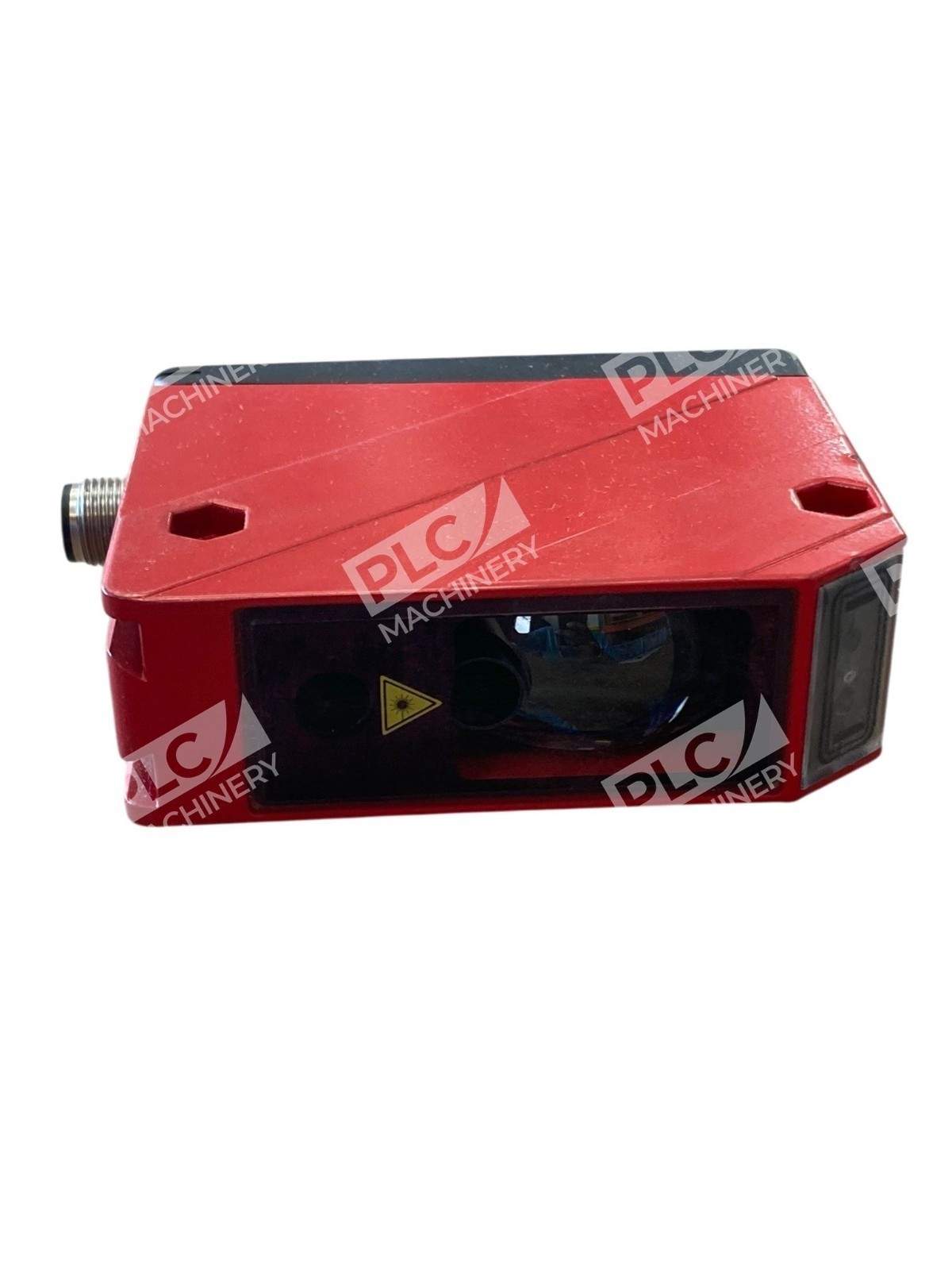

- Laser light source: Red laser for sharp, defined light spot and precise targeting
- Wide measurement range: 300–10,000 mm enables both close-range and mid-distance sensing
- High accuracy: ±0.5% relative measuring accuracy ensures consistent, repeatable results

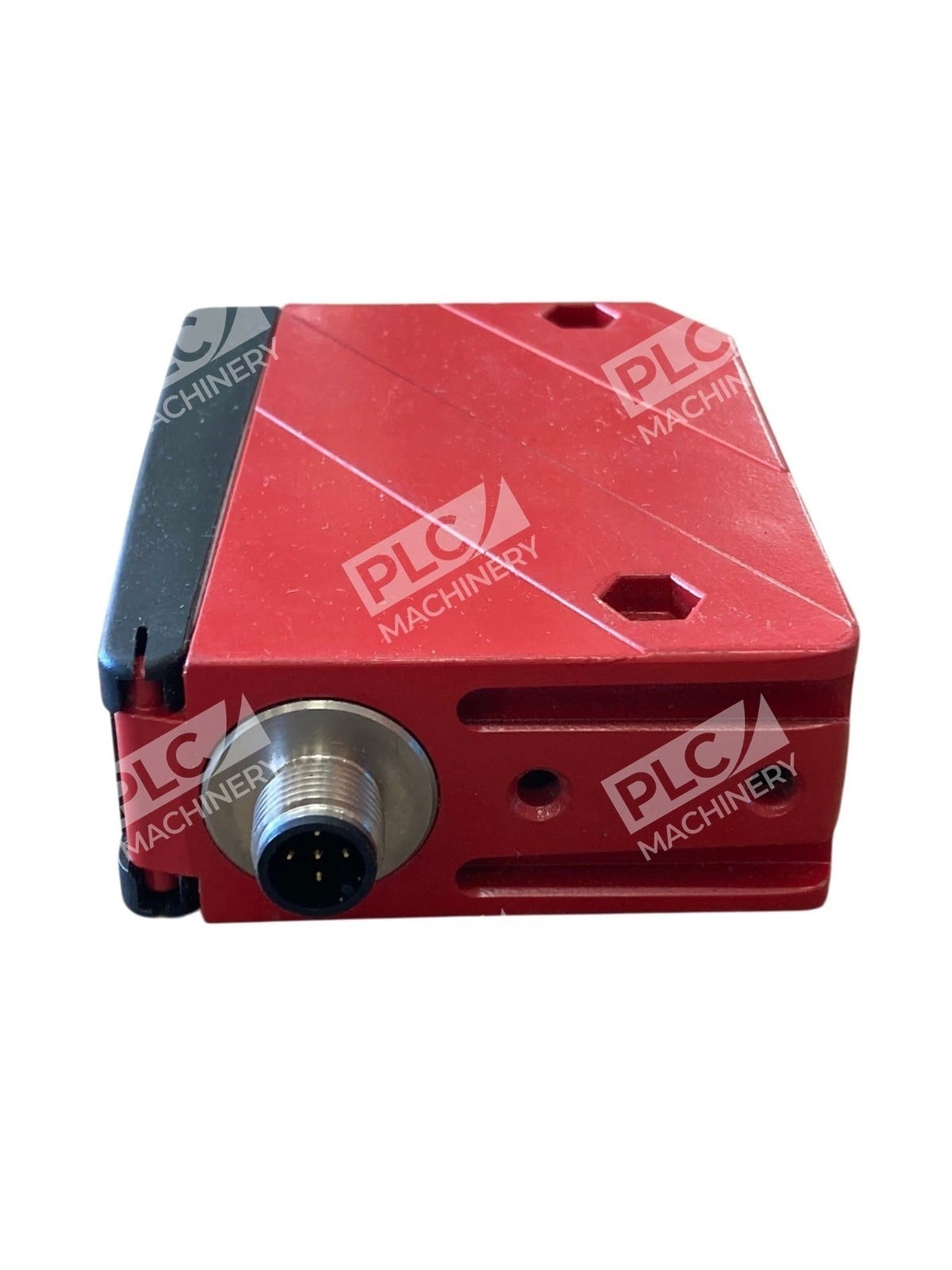

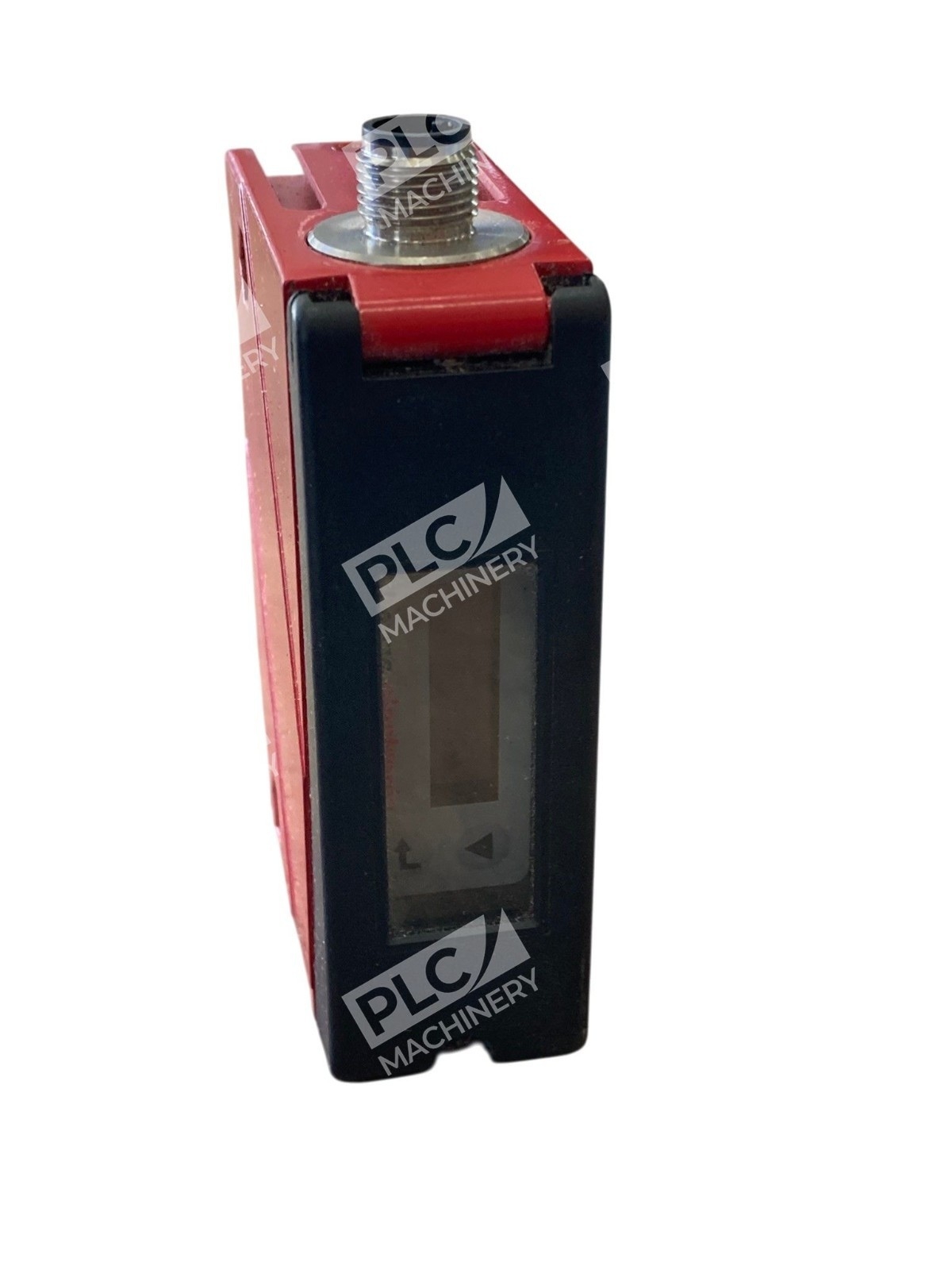

- M12 A connector: Industry-standard 5-pin M12 connection for fast integration

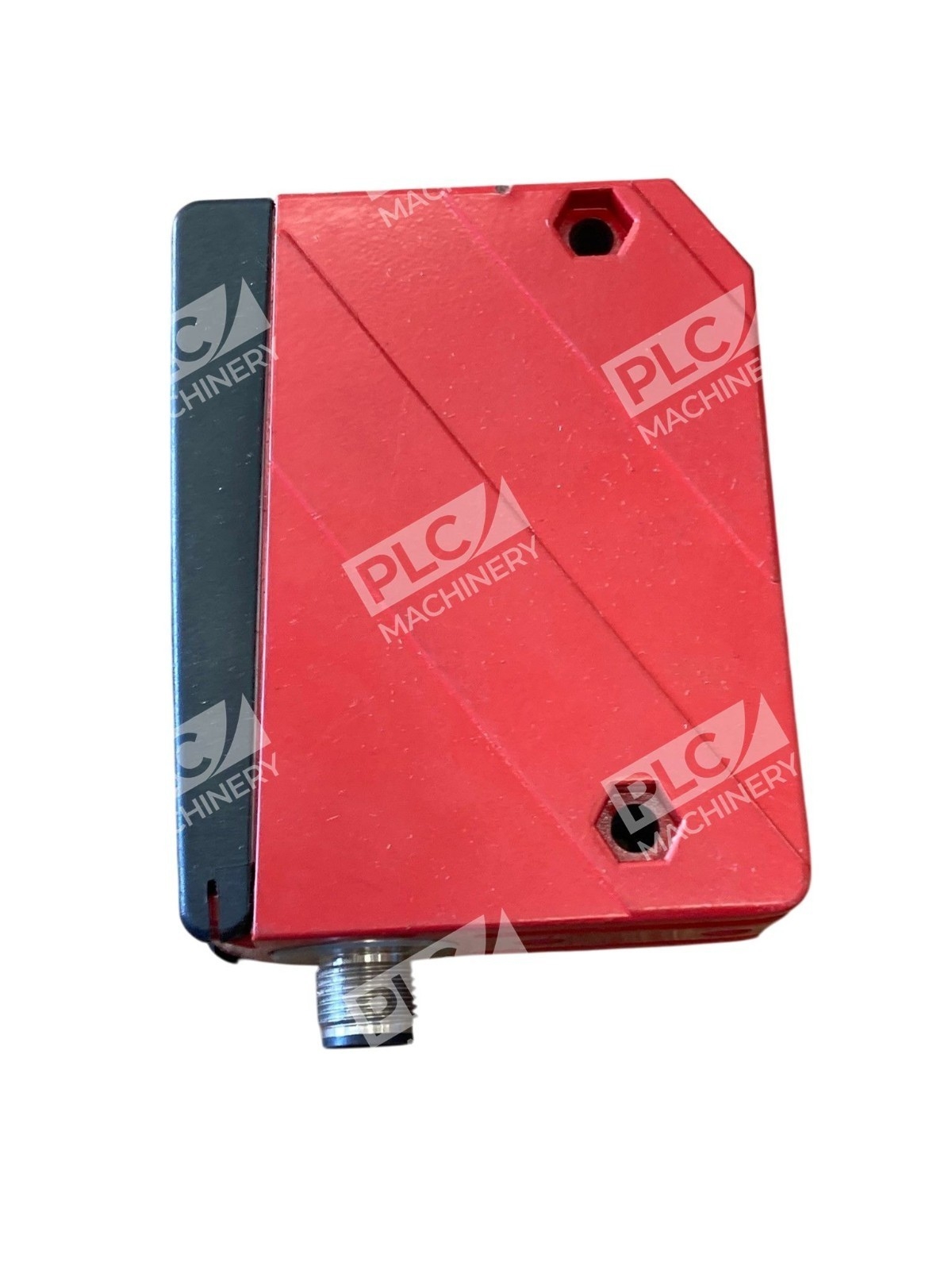

- Compact cuboid housing: 70 mm × 90 mm × 30 mm (L×H×W) fits tight assembly spaces
- IP67 protection rating: Robust defense against dust, moisture, and direct spray
- Laser protection: Class 2 laser safety classification for personnel protection

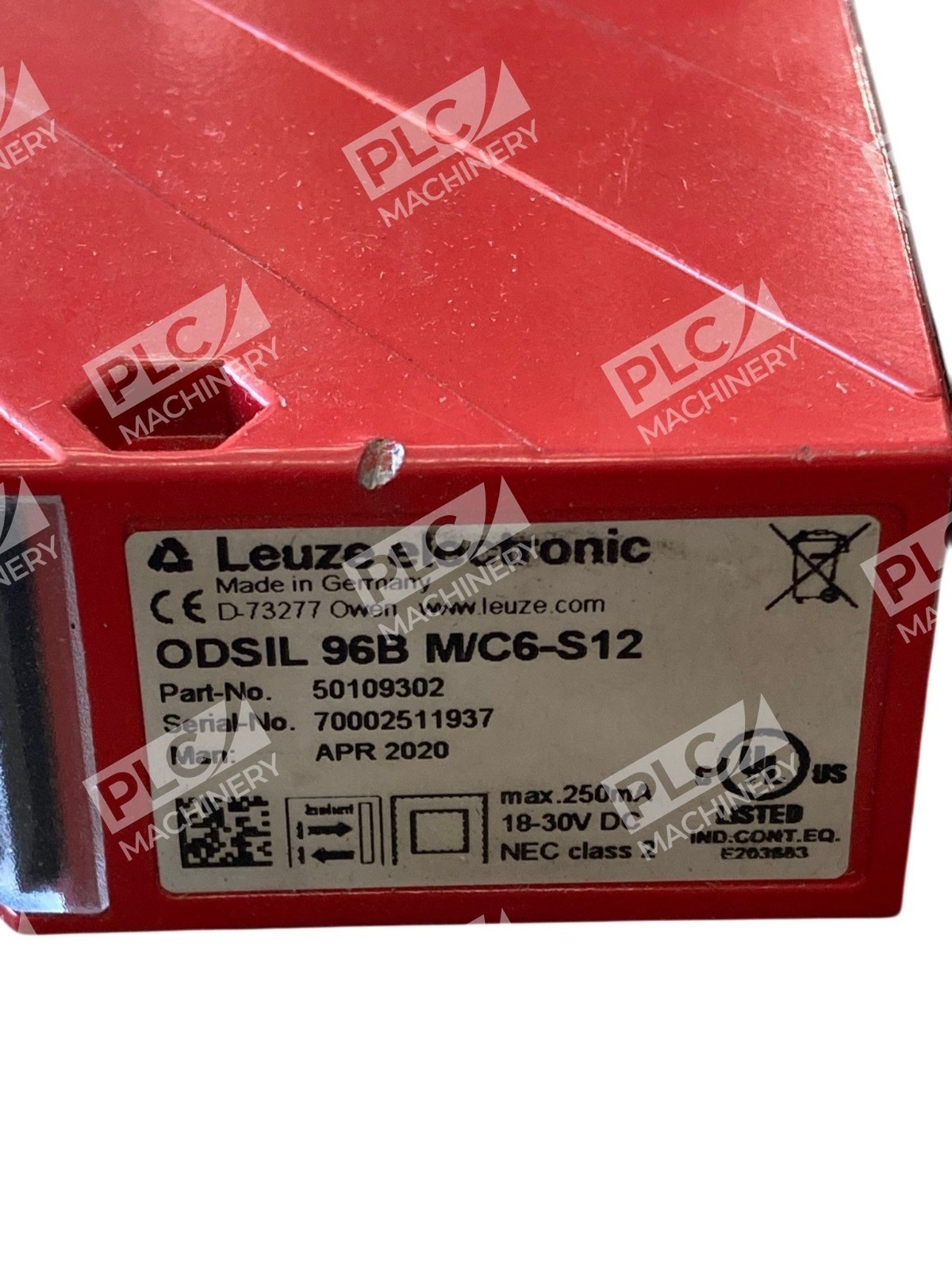

Technical Specifications
- Light source: Laser diode (red, ~650 nm)
- Scanning principle: Against object (direct reflection)
- Measurement range: 300–10,000 mm
- Light spot size: 7 mm × 7 mm
- Geometric resolution: 3.0 mm
- Accuracy: ±0.5%
- Supply voltage: 18–30 V DC
- Connector: M12 A, 5-pin
- Electrical connection: M12 connector
- Housing material: Cuboid (thermoplastic)
- Dimensions: 70 L × 90 H × 30 W mm
- Protection class: IP67
- Laser safety class: Class 2
- Operating temperature: −20 to +50°C
- Optical surface material: Glass
Typical Applications
The ODSIL 96B M/C6-S12 is widely used in:
- Packaging and material handling machinery
- Hydraulic and mechanical press control systems
- Conveyor and assembly line process control
- Dimensional inspection and gap detection
- Robotic work areas and part positioning
- Bottle filling and container positioning
- Sheet metal and component sorting applications
Compatibility & Replacements
Compatible With
- Standard industrial PLC and controller systems supporting analog or digital I/O
- M12 A-coded connector-based automation architectures
- Industrial Ethernet gateways with appropriate signal conditioning
- Machine control systems requiring 18–30 V DC supply
- Process automation and material handling control networks
Replaces / Drop-In Replacement For
The ODSIL 96B M/C6-S12 shares the same mechanical form factor and electrical interface with other members of the ODSIL 96B M/C6 family. Verify compatibility with your system integrator before ordering to ensure electrical interface and measurement range requirements are met.
Works With
- Siemens SIMATIC S7 controllers with analog input modules
- Allen-Bradley CompactLogix and ControlLogix systems
- Mitsubishi MELSEC controllers
- Omron CJ and NJ series PLCs
- Beckhoff TwinCAT industrial control software
- M12 sensor networks and distributed I/O architectures
- Custom machine builders using 18–30 V DC logic systems
