Overview

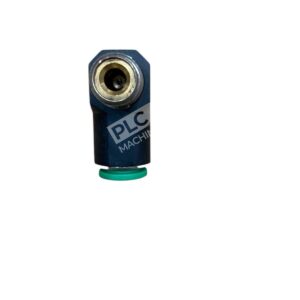

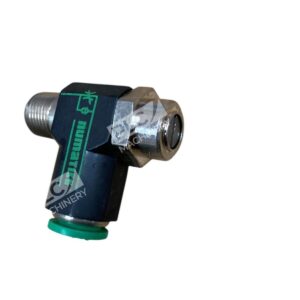

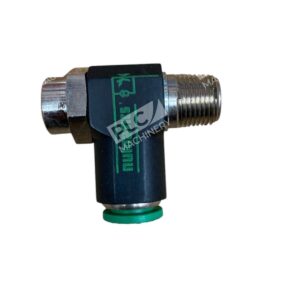

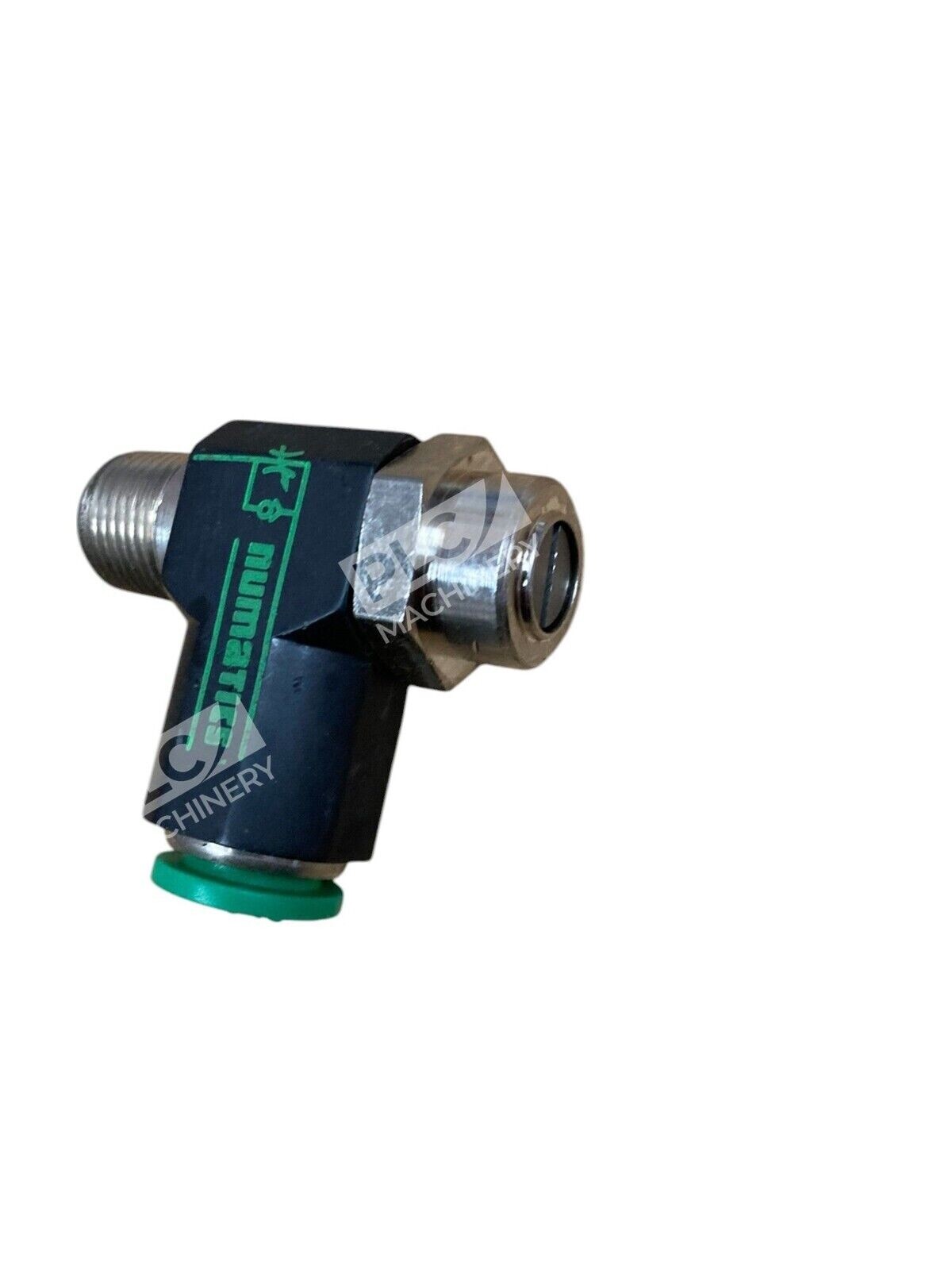

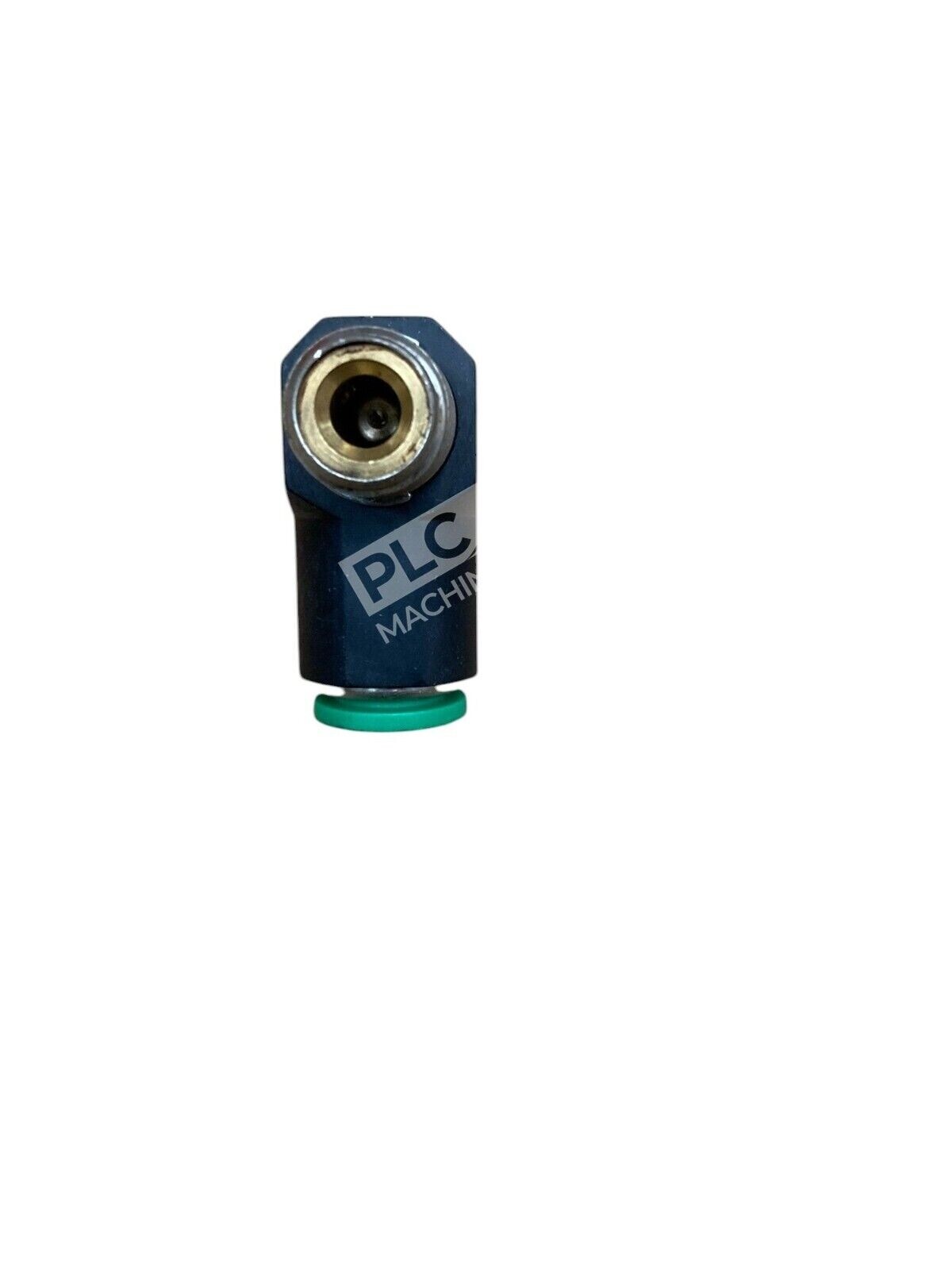

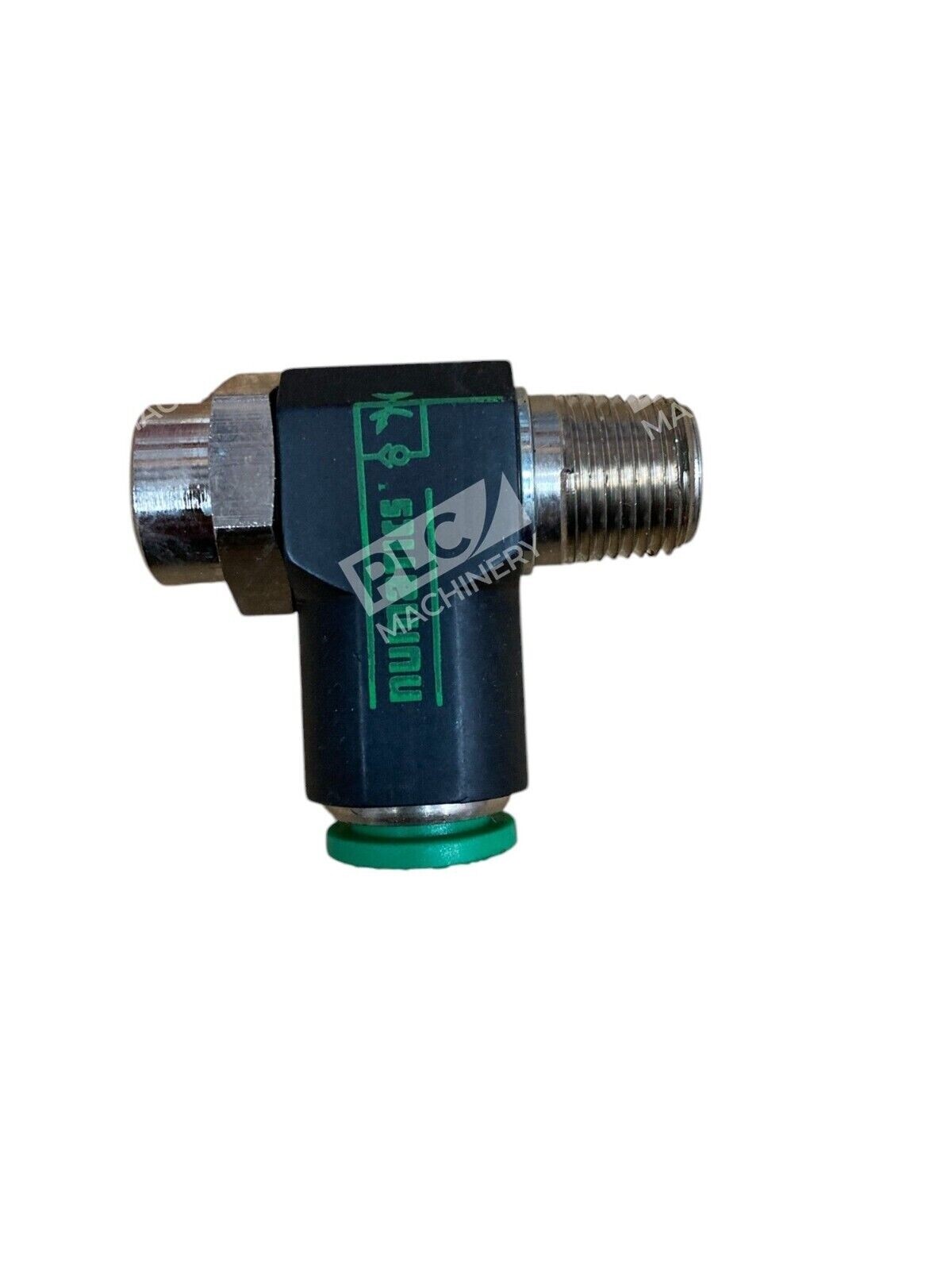

The Numatics 3FPRN16 is a precision pneumatic flow control valve engineered for accurate exhaust regulation and speed control in pneumatic circuits. This swivel-body meter-out valve combines compact design with reliable performance, making it ideal for original equipment manufacturers (OEMs) and system integrators managing fluid automation across manufacturing, packaging, and material handling applications.
Key Features
- 360-degree swivel body: Eliminates the need for fittings, simplifying installation in confined spaces
- Dual port configuration: 3/8 in NPT inlet port and 1/2 in push-to-connect outlet port
- Knurled adjustment knob: Plastic locking adjustment knob for intuitive speed control
- Durable construction: Anodized aluminum body with nickel-plated brass screws and stainless steel springs and seals for extended service life
- Industrial-rated performance: Maximum pressure rating 175 psi, maximum CFM 90 cfm, pressure range 0 to 175 psi
Technical Specifications
- Inlet Port: 3/8 in NPT
- Outlet Port: 1/2 in push-to-connect
- Maximum Pressure: 175 psi
- Maximum Flow: 90 cfm
- Pressure Range: 0 to 175 psi
- Operating Temperature: 160 degrees F
- Body Material: Anodized aluminum
- Rotation Capability: 360 degrees
- Spring Material: Stainless steel
- Adjustment Type: Knurled plastic locking knob
- Overall Length: 3 20/87 in
- Overall Width: 1 9/20 in
Typical Applications
The Numatics 3FPRN16 serves critical roles in pneumatic automation systems requiring precise exhaust flow regulation. Common applications include:
- Assembly and material handling equipment — controlling actuator speeds for smooth, repeatable motion
- Packaging machinery — meter-out speed control for synchronized clamps and ejectors
- Industrial presses and stamping machines — accurate pressure and speed regulation
- Laboratory and test equipment — fine-tuned pneumatic control in compact enclosures
- Retrofit and maintenance projects — drop-in replacement for existing Numatics or equivalent valves
Compatibility & Replacements
Compatible With
- Standard 3/8″ NPT pneumatic circuit fittings
- 1/2″ push-to-connect tube (standard metric or imperial tubing)
- 0–175 psi pneumatic systems with air supply
- Any meter-out or speed-control pneumatic application requiring NPT inlet connection
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 3FPRN16 is part of the Numatics swivel flow control family and may interchange with similar Numatics swivel models such as 1FCRN and 2FCRN depending on your port and flow requirements. Consult technical documentation or contact your pneumatics supplier for exact cross-reference.
Works With
- Pneumatic air compressors and regulators (0–175 psi rated)
- Standard industrial solenoid valves and directional control valves
- Push-to-connect and NPT adapter fittings from major pneumatic suppliers
- ISO/IEC standard pneumatic circuit design and ISO 1219-1 schematic conventions
- Now rebranded and supported as ASCO/Numatics and Aventics products under Emerson ownership
