Overview
The IFM IZ5026 inductive sensor is a compact, stainless steel proximity switch designed for non-contact metal detection in industrial control systems. This PNP-configured sensor operates across the 10-36VDC range, making it compatible with most industrial power supplies and control logic. With its 0.8mm flush-mount sensing range and normally open output configuration, it integrates seamlessly into machinery automation, position sensing, and machinery interlock applications.
Key Features
- PNP Output Configuration — Normally open output compatible with standard industrial controllers and PLCs.
- 0.8mm Flush Sensing Range — Detects metal objects at precise, close distances without protruding sensors.
- 10-36VDC Operating Voltage — Accepts wide input range for flexible power architecture and reduced power supply variation risk.
- Reverse Polarity Protection — Prevents damage from accidental voltage reversal during installation.
- Stainless Steel Housing — Provides corrosion resistance and durability in wet or washdown environments.
- 2m Cable Included — Pre-terminated cable reduces installation labor and material costs.

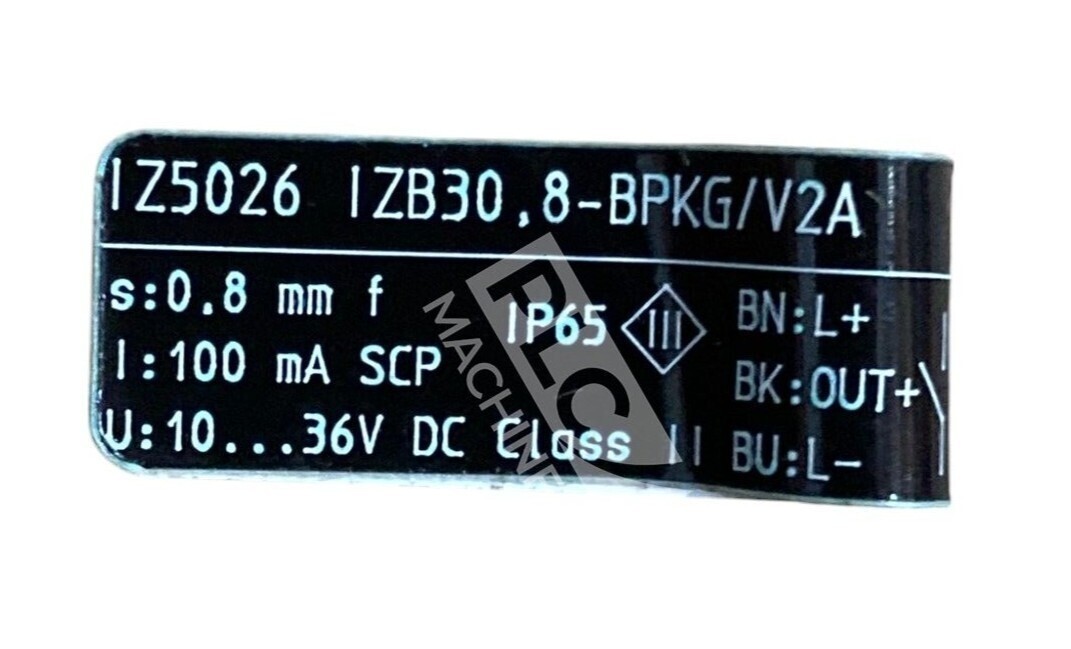

Technical Specifications
- Operating Voltage: 10–36VDC
- Output Type: PNP, Normally Open
- Sensing Range: 0.8mm (flush mount)
- Max. Voltage Drop (Switching Output): 2.5VDC
- Protection Class: III

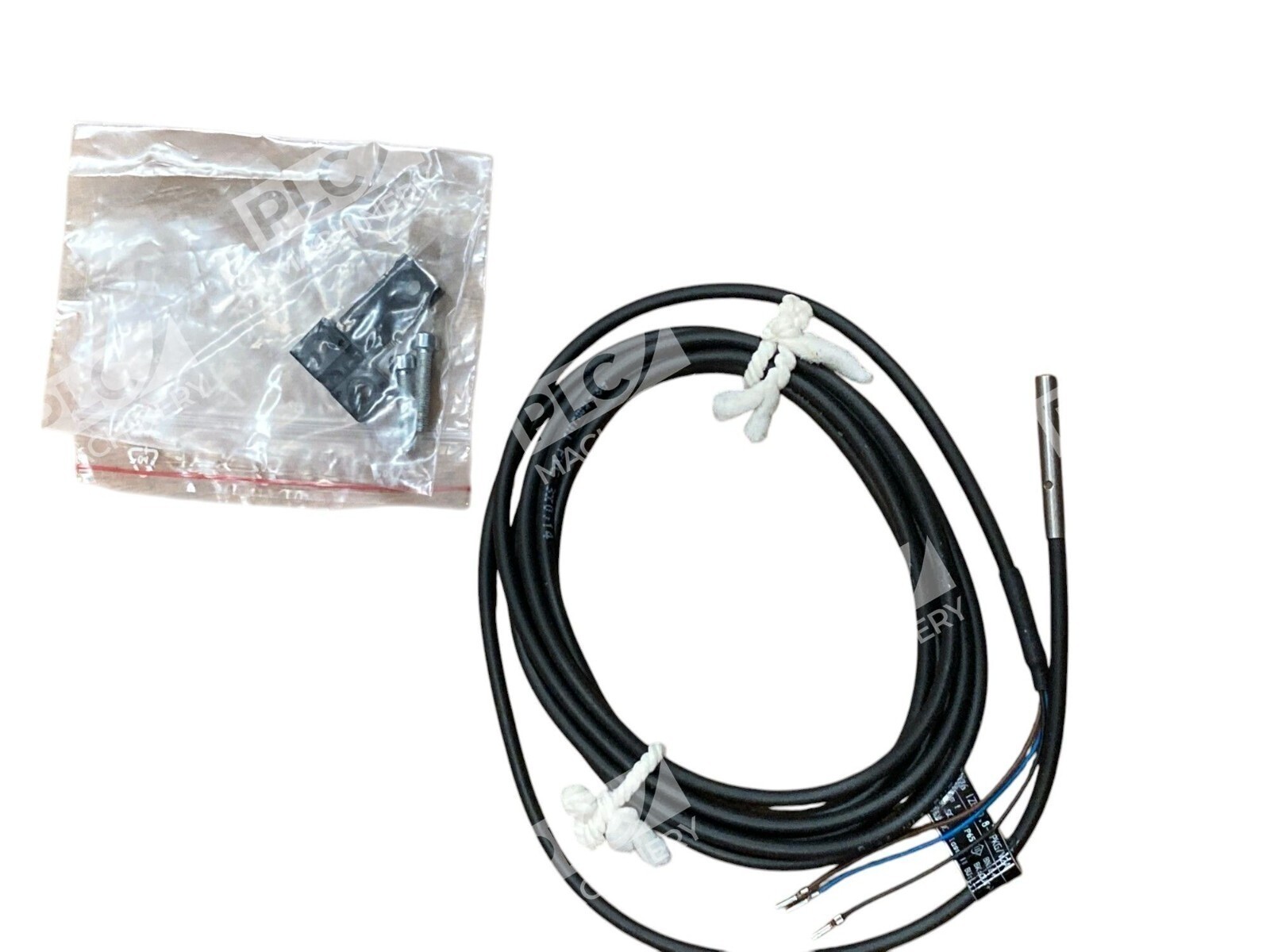

- Cable Length: 2m
- Housing Material: Stainless Steel
- Reverse Polarity Protection: Yes
- Detection Type: Metal (ferrous and non-ferrous)
- Hysteresis: Typical 10% (of sensing range)
Typical Applications
- Machinery position and limit sensing for automated equipment startup/shutdown.
- Production line metal object detection and sorting systems.
- CNC machine tool reference point sensing and tool magazine indexing.
- Assembly machine component presence verification and end-of-arm tooling feedback.
- Conveyor and material handling system status monitoring and collision prevention.
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, MicroLogix series controllers
- Siemens S7-1200, S7-1500 PLC controllers
- Mitsubishi FX, Q series programmable logic controllers
- Omron CP series and NX series controllers
- 24VDC and 12VDC industrial control systems
- Standard EtherNet/IP and PROFINET automation networks (via gateway modules)
Replaces / Drop-In Replacement For
- Earlier versions of the IZB30 series inductive sensors with variant codes IZB30,8-BPKG/M18/V2A
- IFM Efector 100 series inductive proximity switches with equivalent 0.8mm range and 10-36VDC rating
- Generic M8 stainless steel inductive sensors with PNP output and flush-mount design
Works With
- Rockwell Studio 5000 and RS Logix programming environments (via discrete I/O input modules)
- Siemens TIA Portal engineering software for S7 controllers
- Mitsubishi GX Works 2 and GX Works 3 programming suites
- Omron Sysmac Studio development platform
- Standard PLC discrete input modules and digital I/O cards (24VDC logic level compatible)
- Industrial Ethernet gateways for remote monitoring and SCADA integration
