Overview

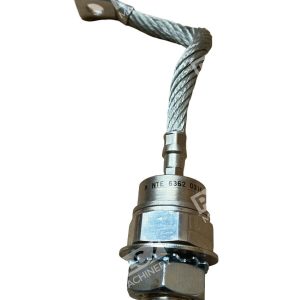

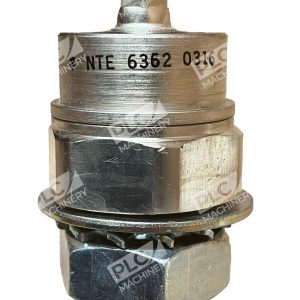

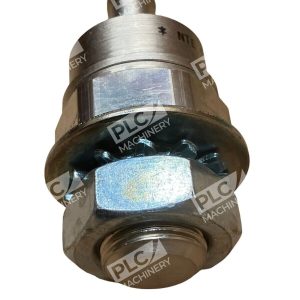

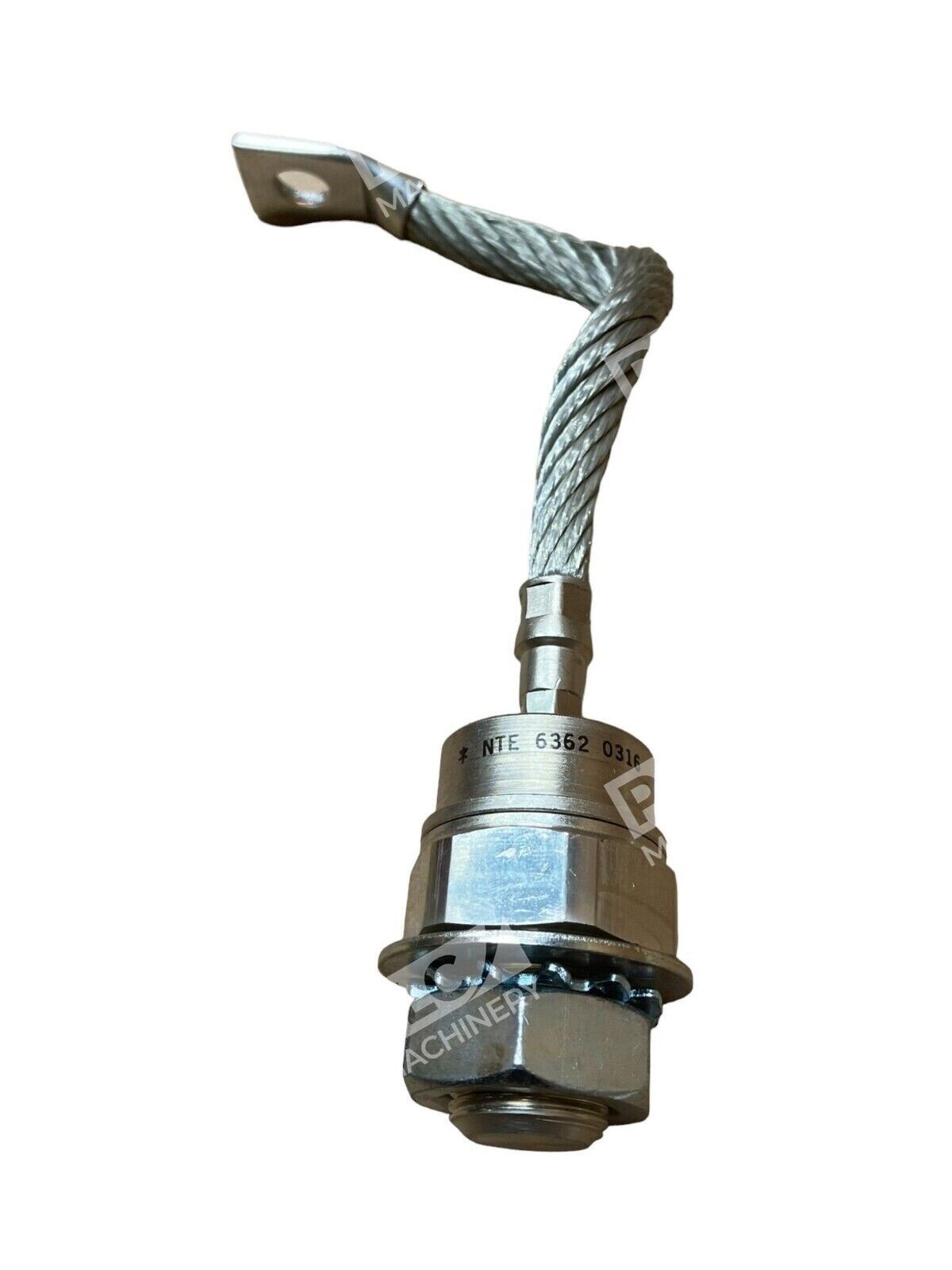

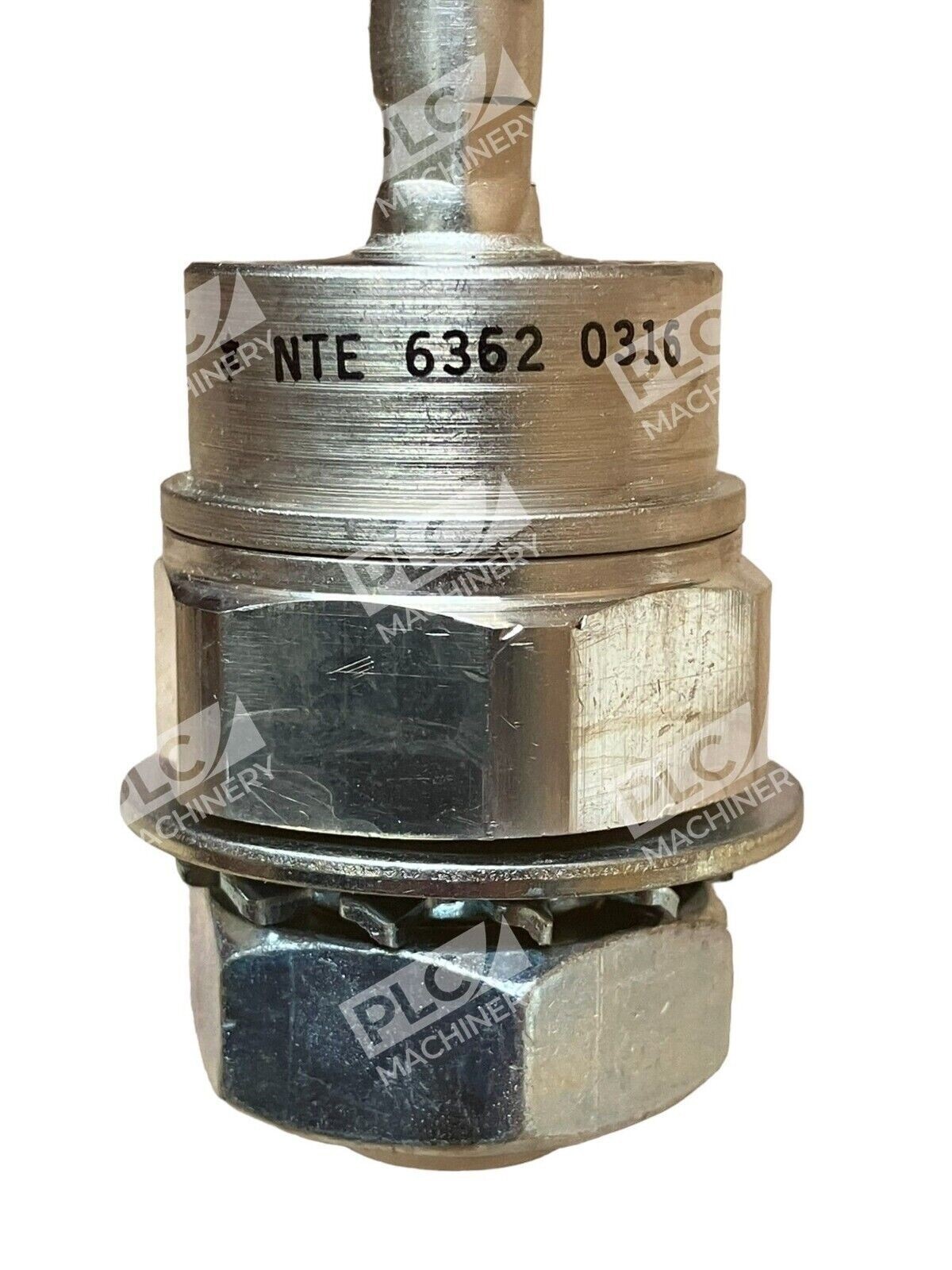

The NTE NTE6362 is a silicon power rectifier diode designed for high-current industrial applications. Rated at 1400V maximum repetitive peak reverse voltage (VRRM) with a 300-amp average forward current (IF), this diode delivers reliable performance in power supplies, battery chargers, converters, and motor control circuits. The DO-9 package with cathode case configuration provides robust thermal management and mechanical stability for demanding environments.
Key Features
- 1400V maximum repetitive peak reverse voltage (VRRM)
- 300 amps average forward current (IF)
- Silicon junction technology for stable operation across temperature ranges

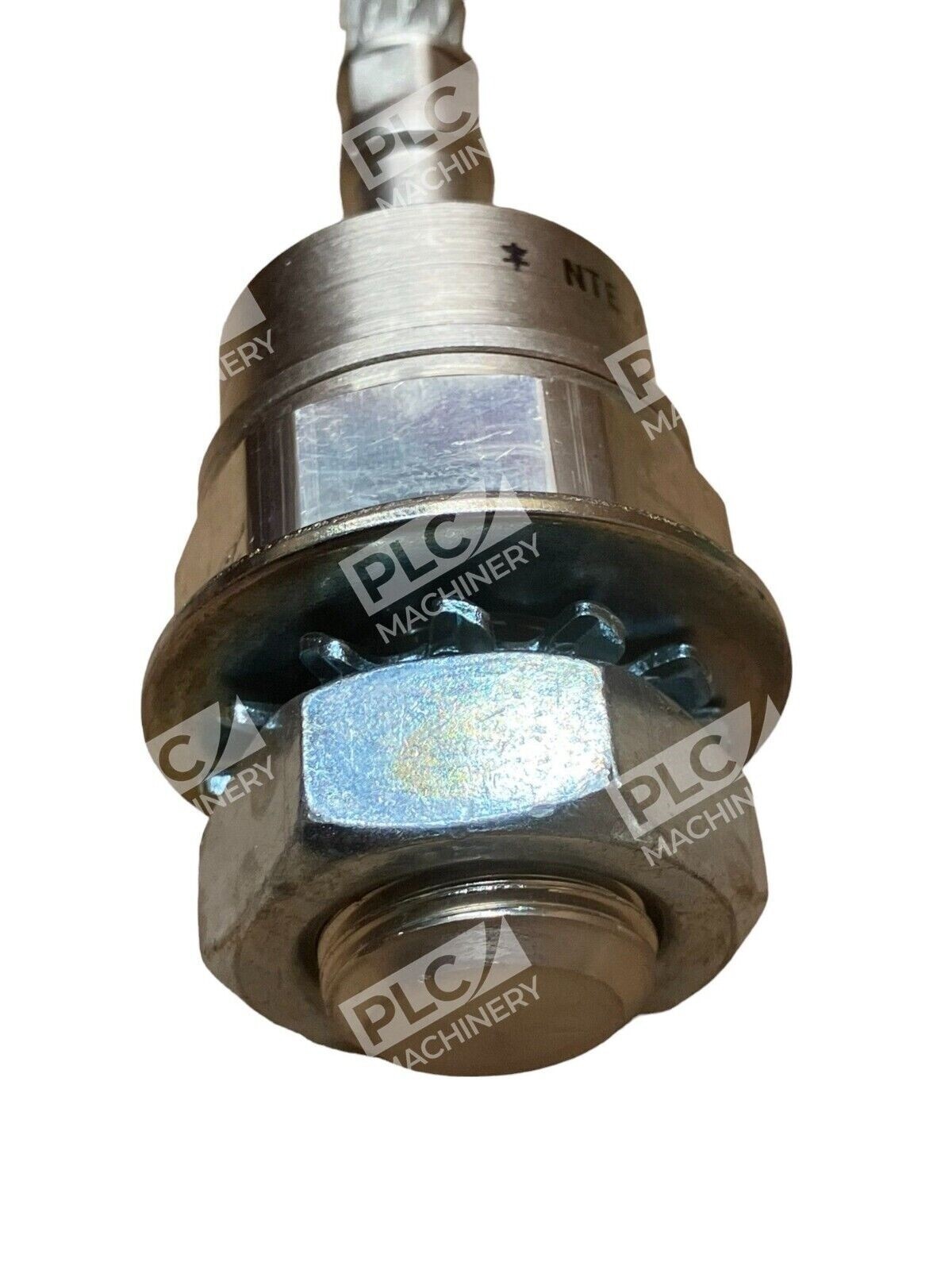

- DO-9 package with cathode case for secure mounting and heat dissipation
- Industry-standard replacement for legacy rectifier circuits
- RoHS compliant construction
Technical Specifications
The NTE NTE6362 combines high voltage blocking capability with impressive current-handling capacity, making it ideal for industrial power conversion. Below are the critical electrical and mechanical characteristics:
Typical Applications
- Power supplies: High-current AC-to-DC conversion in industrial and telecom equipment
- Battery chargers: Float and boost charging circuits for backup power systems
- Motor controls: Rectification in variable-frequency drive precharge networks
- Welding equipment: Full-wave or bridge rectifier configurations in arc welders
- Converter circuits: Phase-controlled rectification in industrial DC power systems
- UPS systems: Rectifier stage in uninterruptible power supply units
Compatibility & Replacements
Compatible With
- Industrial power supplies requiring 1400V rectification
- Bridge rectifier circuits and full-wave topologies
- High-current DC power generation systems
- Motor drive precharge and snubber networks
- Telecom and data center battery charging systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The NTE NTE6362 is a standard replacement for legacy 1400V, 300A rectifier applications, but original circuit design parameters should be confirmed prior to substitution.
Works With
- Power electronics design software (PSIM, SPICE simulation)
- Standard PCB assembly and industrial mounting techniques
- Thermal management solutions (heatsinks, forced-air cooling)
- UL, IEC, and ISO-certified power supply and equipment designs
