Overview

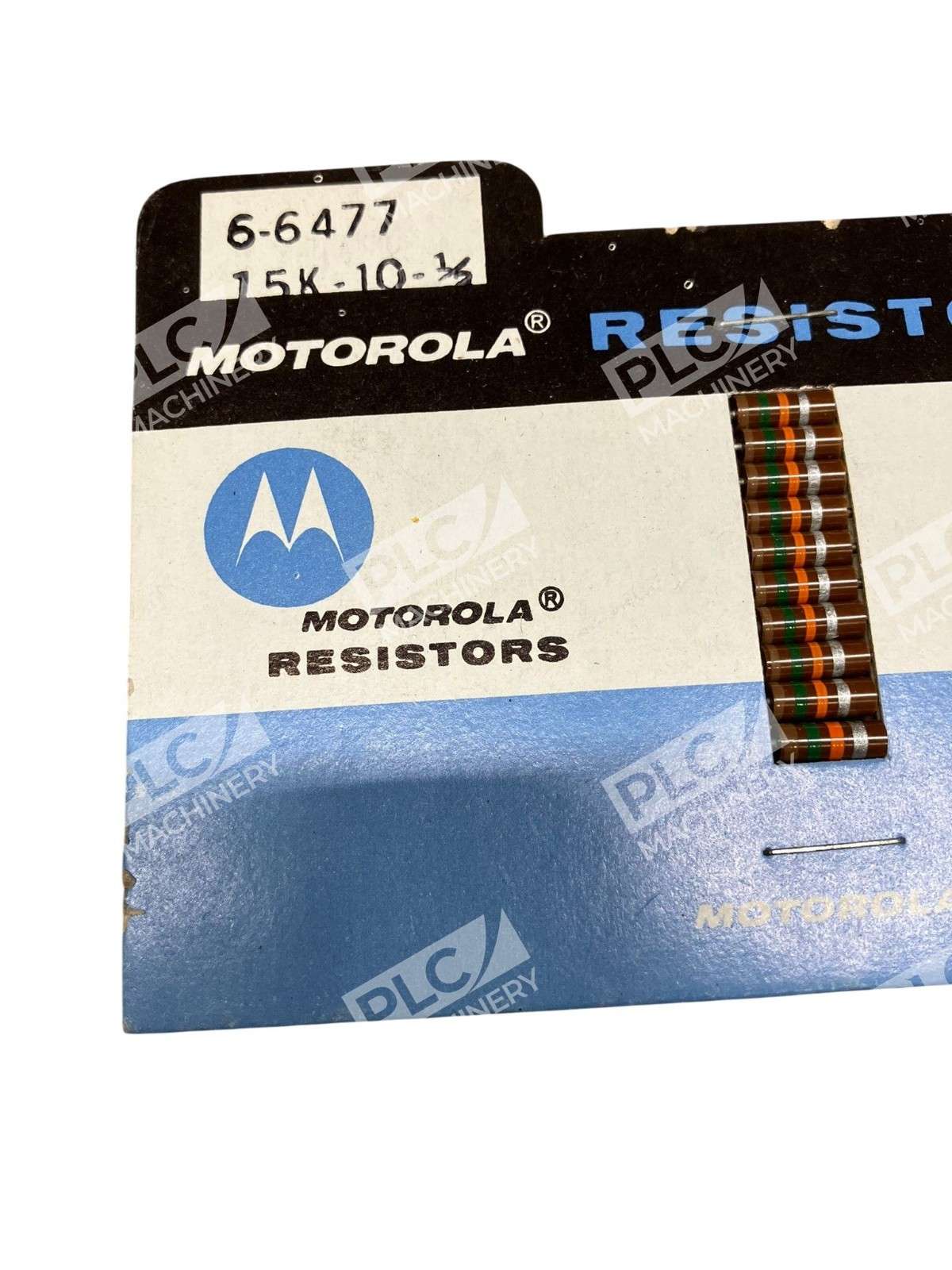

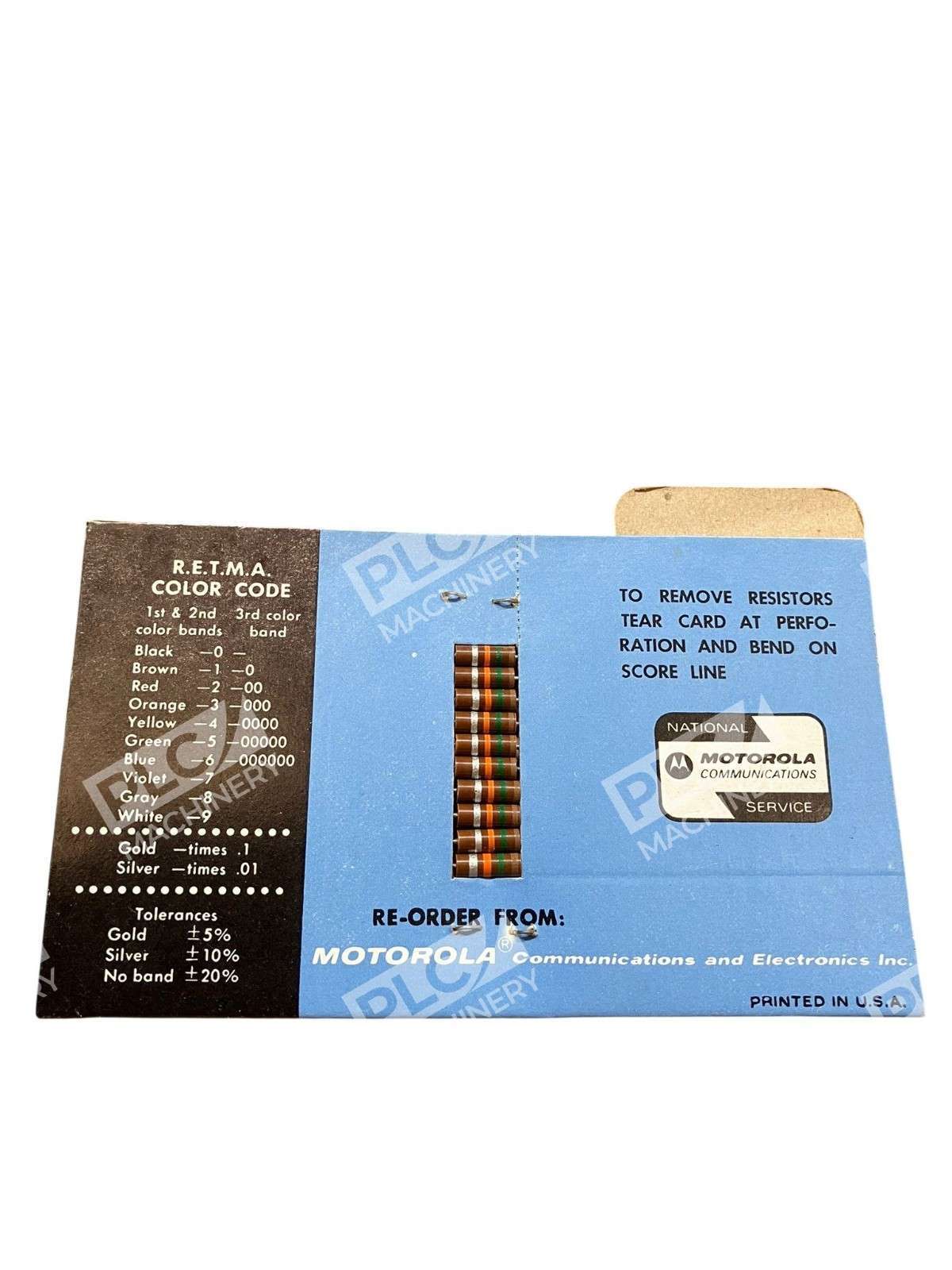

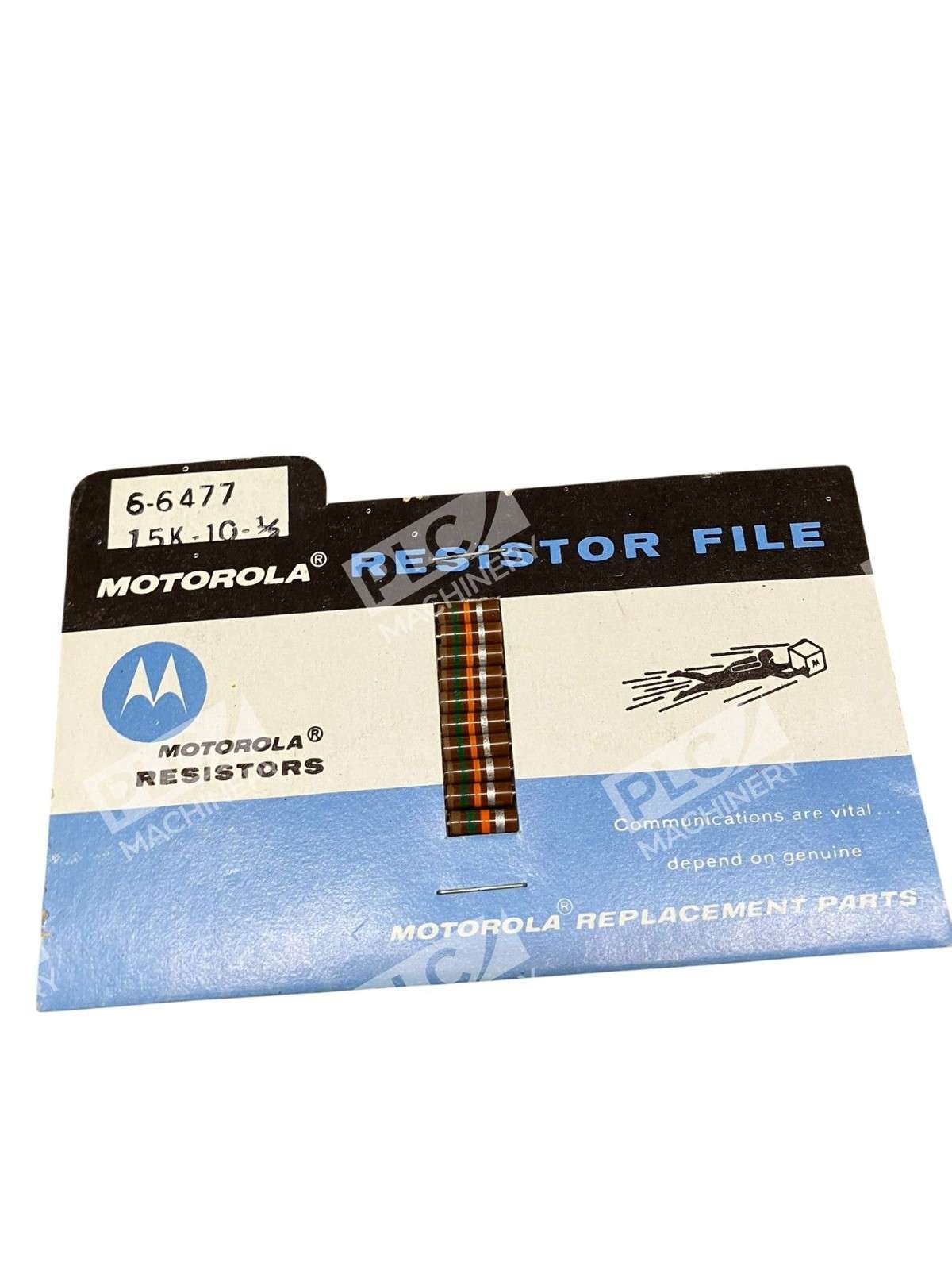

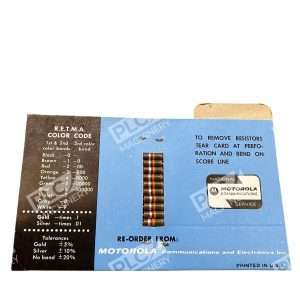

The Motorola 6-6477 is a fixed-value carbon composition resistor from Motorola’s legacy component line. Rated at 15kΩ with ±10% tolerance and 0.5W continuous power dissipation, this resistor features axial leads for through-hole mounting. Carbon composition resistors were the standard passive component in consumer electronics, professional audio, and tube-based equipment for decades. The 6-6477 remains a drop-in replacement for original applications and is valued by restorers and vintage electronics enthusiasts.
Key Features
- Fixed resistance value: 15kΩ
- Tolerance: ±10%
- Power rating: 0.5W continuous dissipation
- Axial lead configuration for through-hole PCB mounting
- Carbon composition construction provides excellent pulse withstanding capability
- Low inductance design suitable for audio and RF circuits
- New Old Stock (NOS) condition — factory sealed, never used
Technical Specifications
Carbon composition resistors like the 6-6477 deliver thermal mass and energy handling characteristics that modern thin-film resistors cannot match. The entire carbon body conducts current, enabling superior performance during transient events and high-energy pulses common in vintage tube amplifiers and radio equipment. This construction provides inherent robustness when restoring equipment to original specifications.
Typical Applications
- Tube amplifier restoration and biasing networks
- Vintage radio receiver repair and alignment
- Classic hi-fi equipment servicing
- Audio preamplifier and microphone input circuits
- Guitar amplifier restoration (Fender, Marshall, Mesa Boogie era designs)
- Laboratory and test equipment refurbishment
- Collector-grade electronics preservation
Compatibility & Replacements
Compatible With
- Any application originally specified for a 15kΩ ±10% 0.5W resistor
- Vintage vacuum tube equipment (1950s–1970s era)
- Tube amplifiers (all major manufacturers)
- Vintage radio and Hi-Fi receivers
- Telecommunication and broadcast equipment
Replaces / Drop-In Replacement For
- Any original Motorola 6-6477 installation
- Equivalent vintage 15kΩ carbon composition resistors from manufacturers of the era
Works With
- Through-hole PCB assembly (standard 0.1″ breadboard spacing)
- Point-to-point hand-wired amplifier chassis
- All analog circuit topologies requiring fixed resistive elements
- No special tools or software required — direct solder-in replacement
