Overview

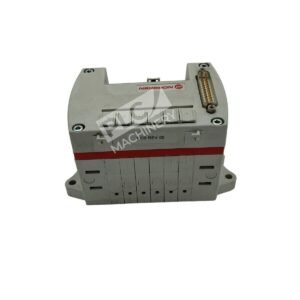

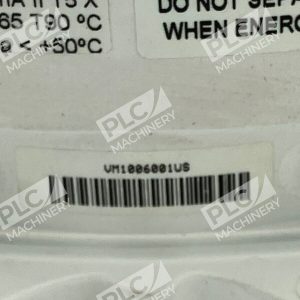

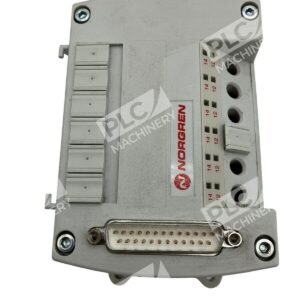

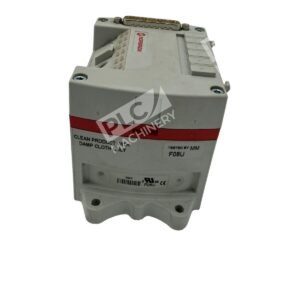

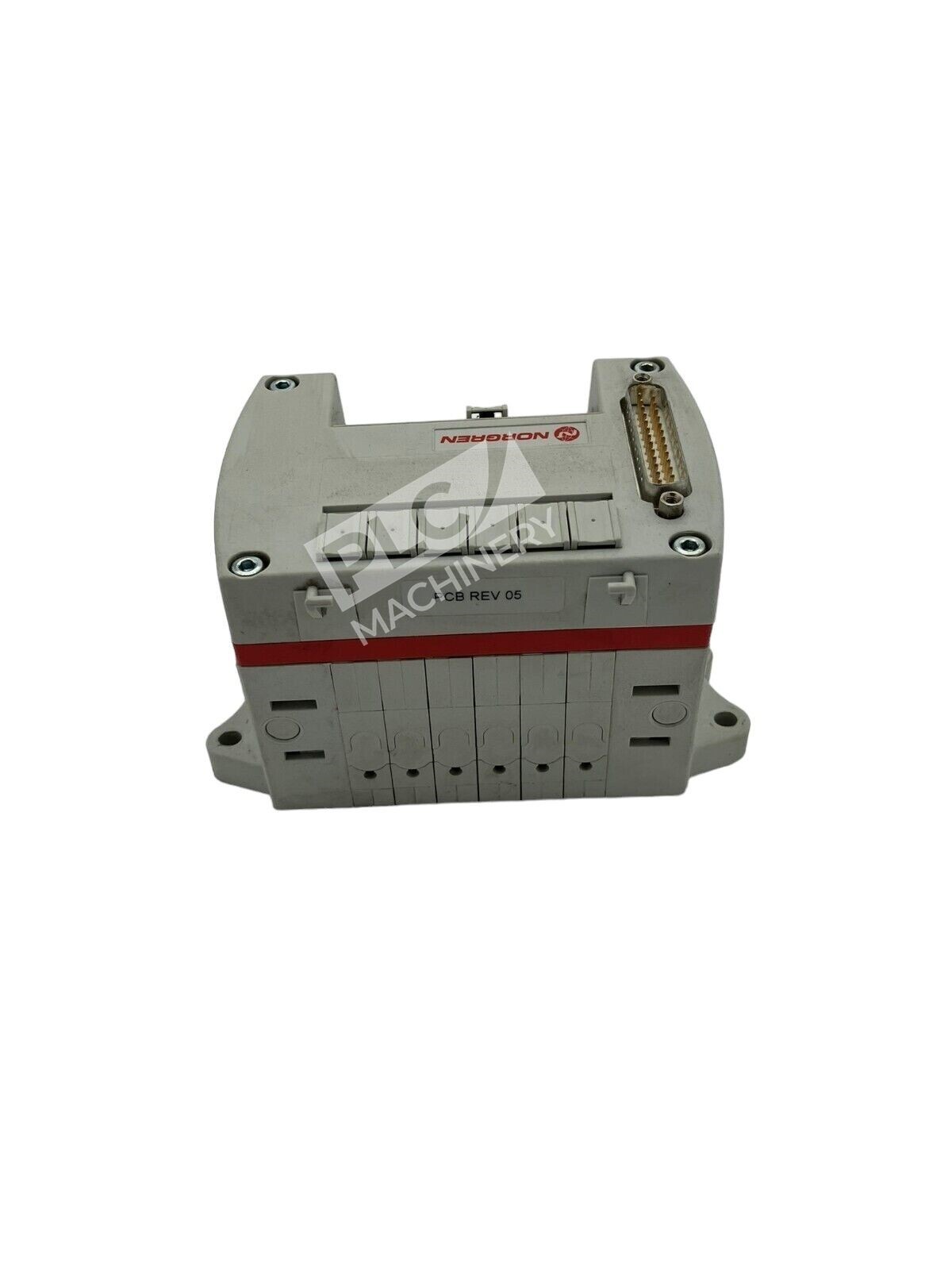

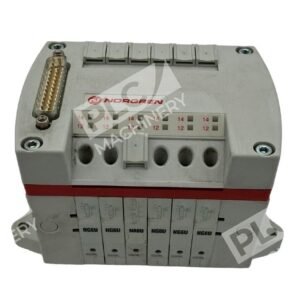

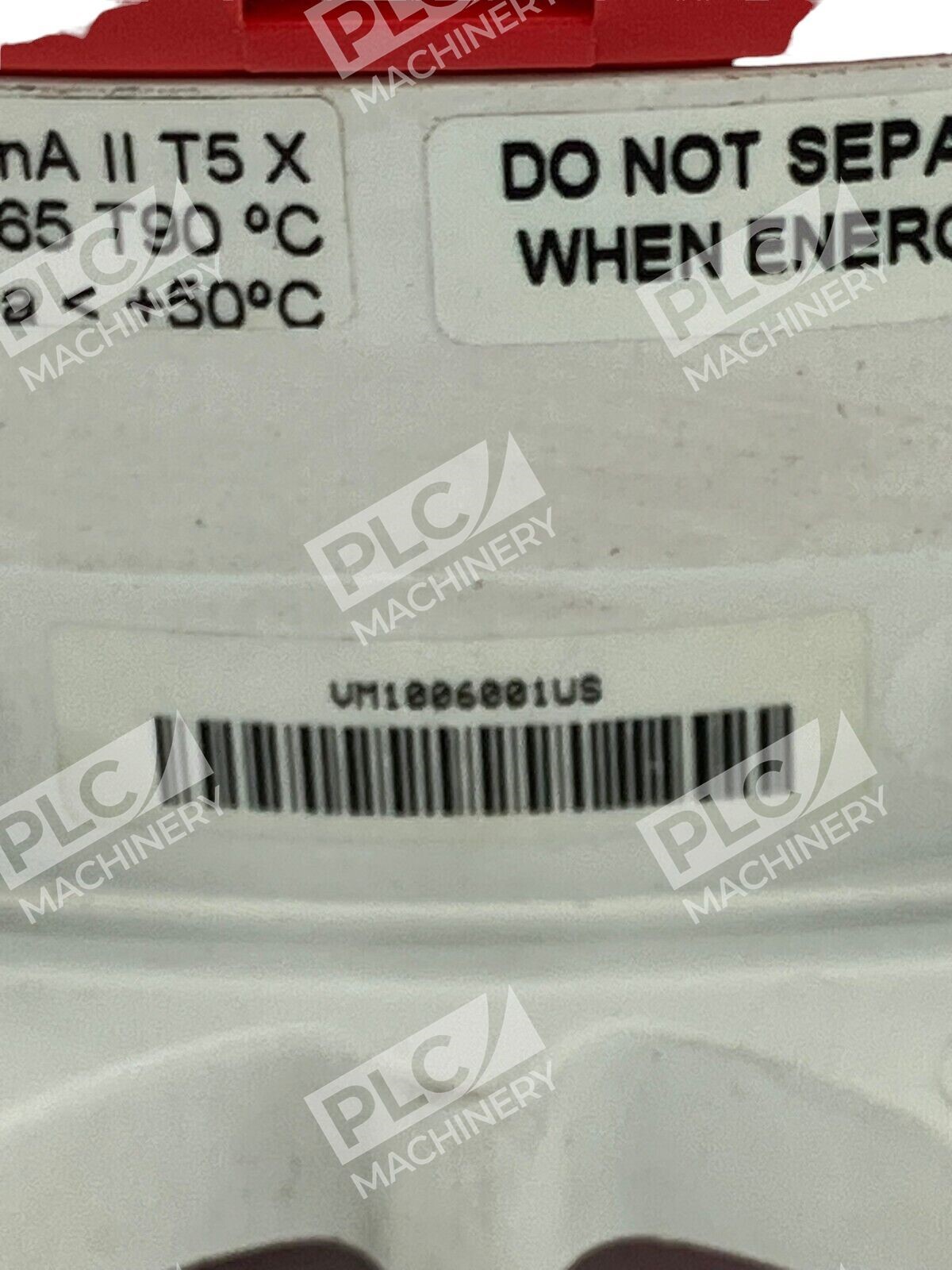

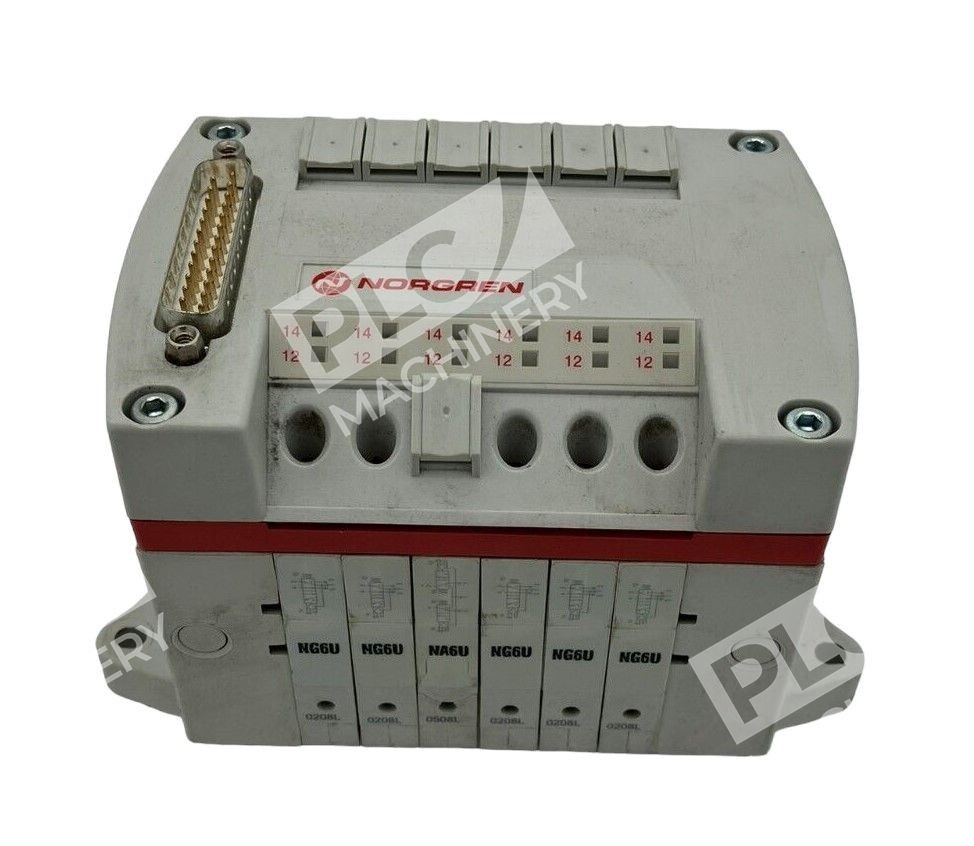

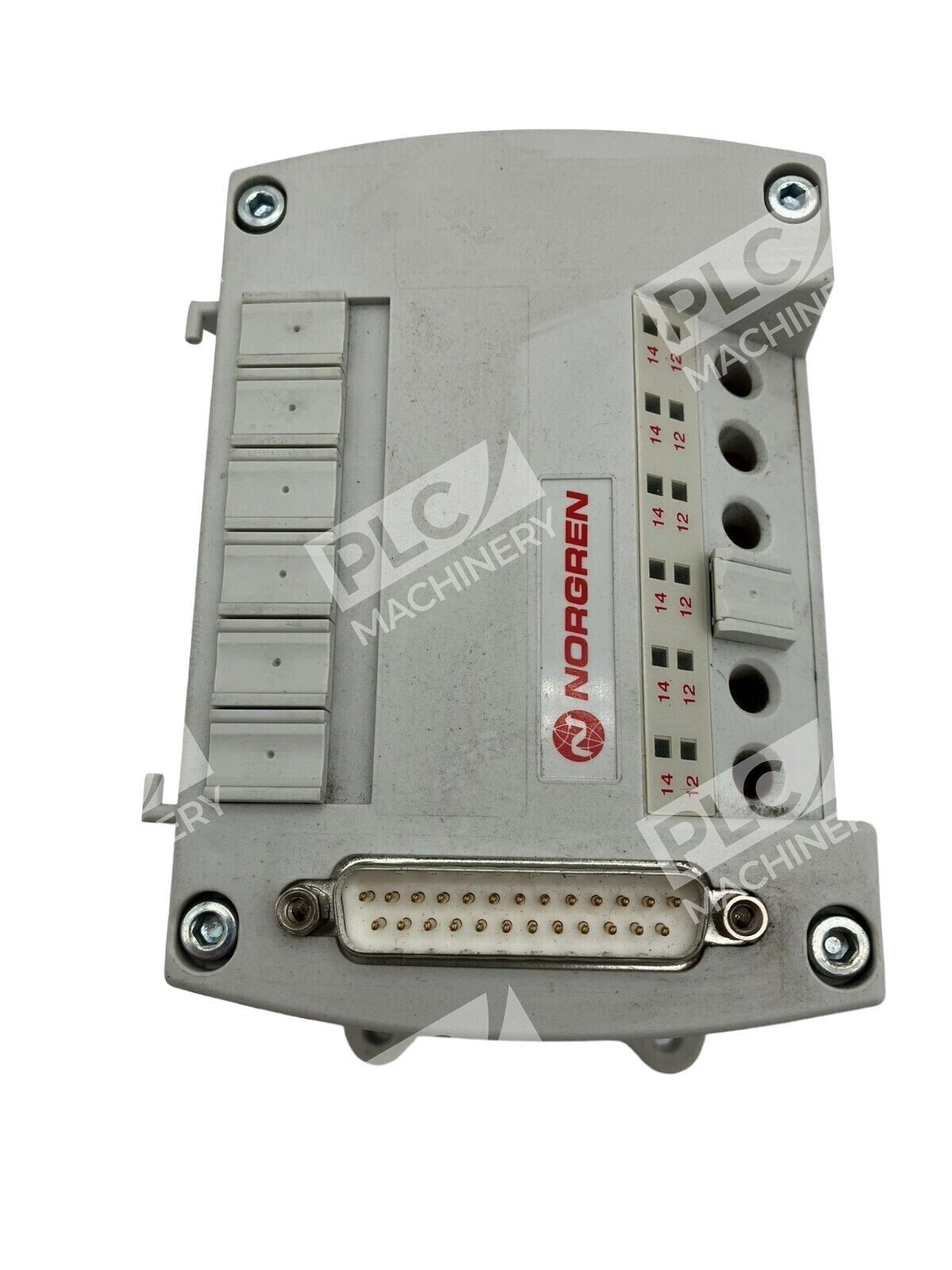

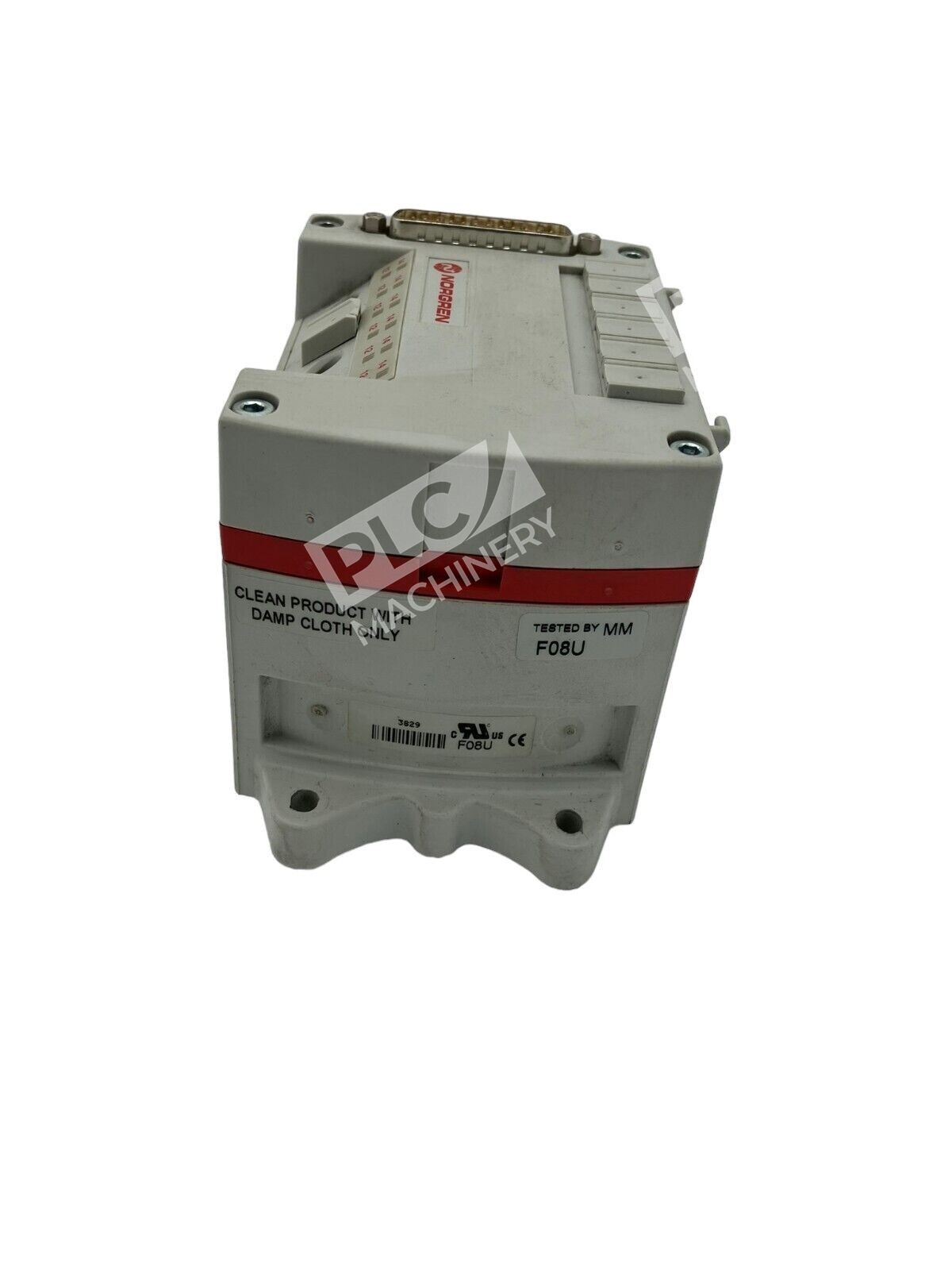

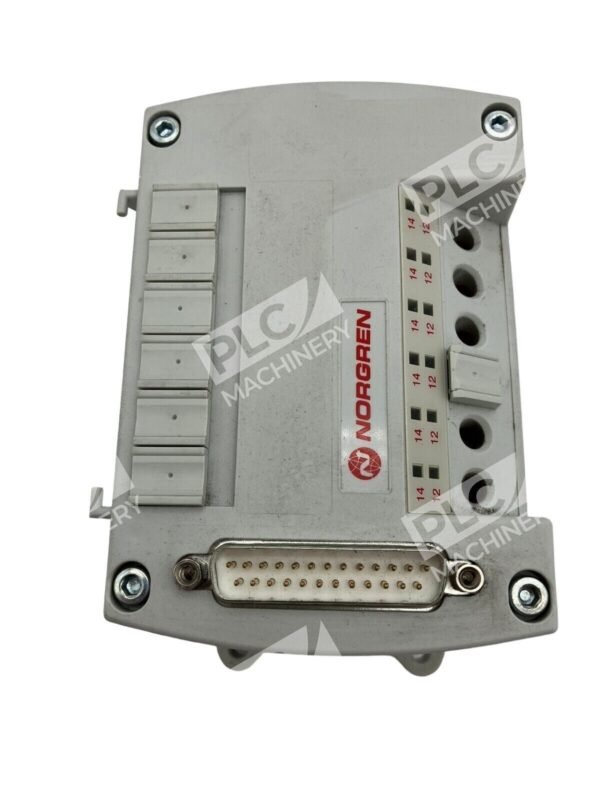

The Norgren VM1006001US is a VM10 series NG6U valve island—a compact, modular pneumatic valve manifold designed for flexible industrial automation applications. This 6-station valve stack assembly provides a foundation for multi-valve control in production machinery, robotic systems, and hydraulic/pneumatic circuits. The unit is supplied in used condition and has been tested for functionality.
Key Features
- 6-station modular configuration for flexible valve combinations
- NG6U cavity pattern for international compatibility
- Integrated pilot and pressure zone management
- Support for multiple fieldbus communication protocols
- IP65 protection rating when fully assembled
- Compact sandwich-stack design for space-constrained installations
Technical Specifications
The VM10 series supports 2×3/2, 5/2, and 5/3 valve configurations with integrated or external pilot control. Valve islands feature modular endplates and internal pilot valve options for efficient pneumatic control. Multi-pressure operation and reverse porting via external ports enable complex control logic without stacking additional modules.
Typical Applications
- Automated packaging and assembly machinery
- Robotic arm actuator control systems
- Material handling press equipment
- CNC and industrial production lines
- Multi-stage pneumatic work cell integration
Compatibility & Replacements
Compatible With
- Norgren VM10 series modular valve system
- Standard NG6U cavity industrial valve blocks
- AS-interface communication networks
- Interbus-S, DeviceNet, and CANopen fieldbus systems
- Allen-Bradley RIO link compatible networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Norgren VM1006001US is a 6-station NG6U configuration; confirm your existing manifold footprint and cavity count match this specification.
Works With
- Norgren fieldbus controllers and I/O modules
- Industrial PLC systems via AS-interface or CANopen
- Standard pneumatic pressure regulation equipment (4–8 bar typical)
- Multi-pressure zone control circuits
