Overview

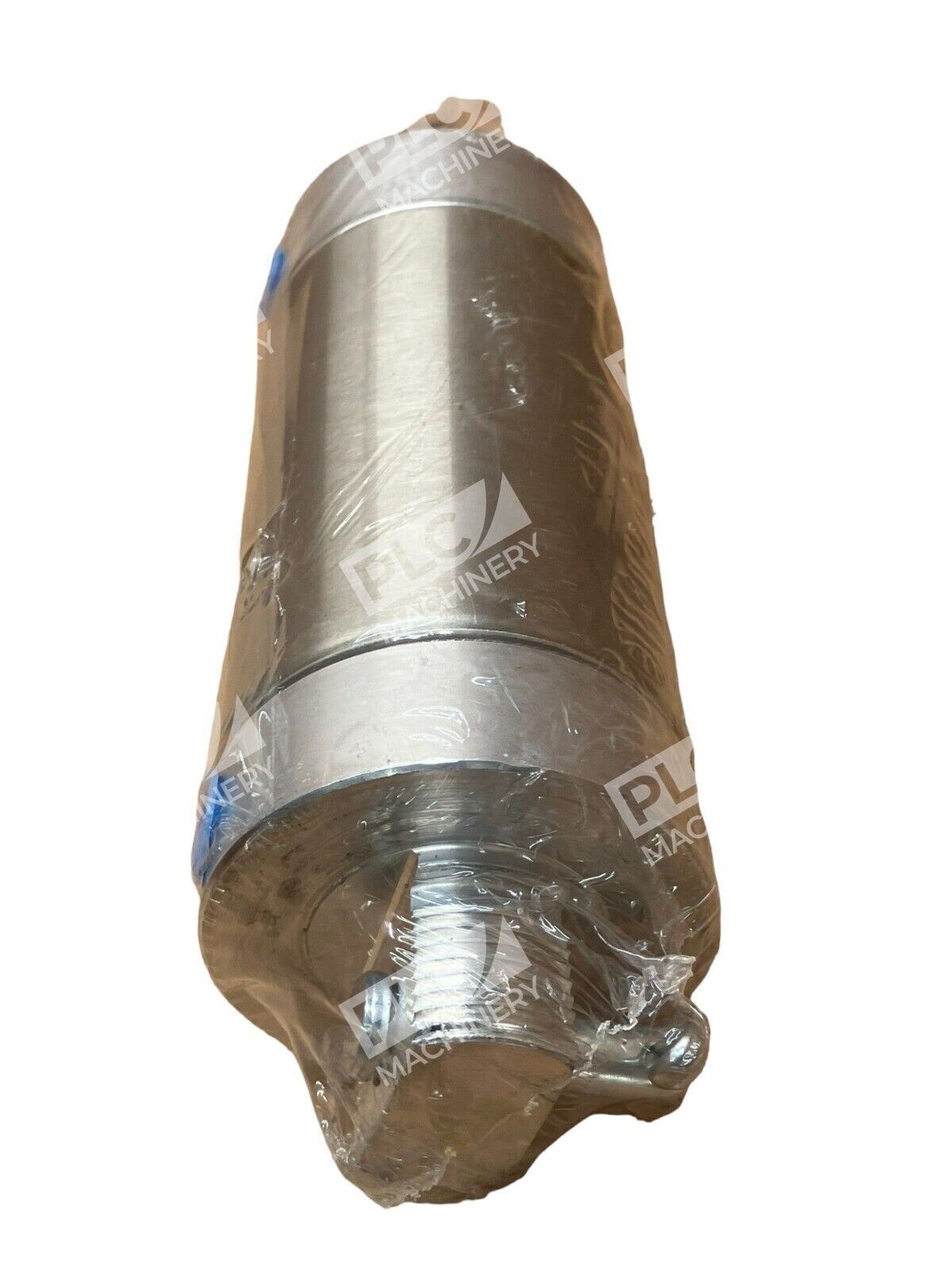

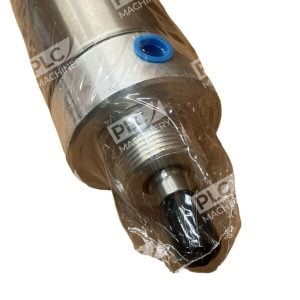

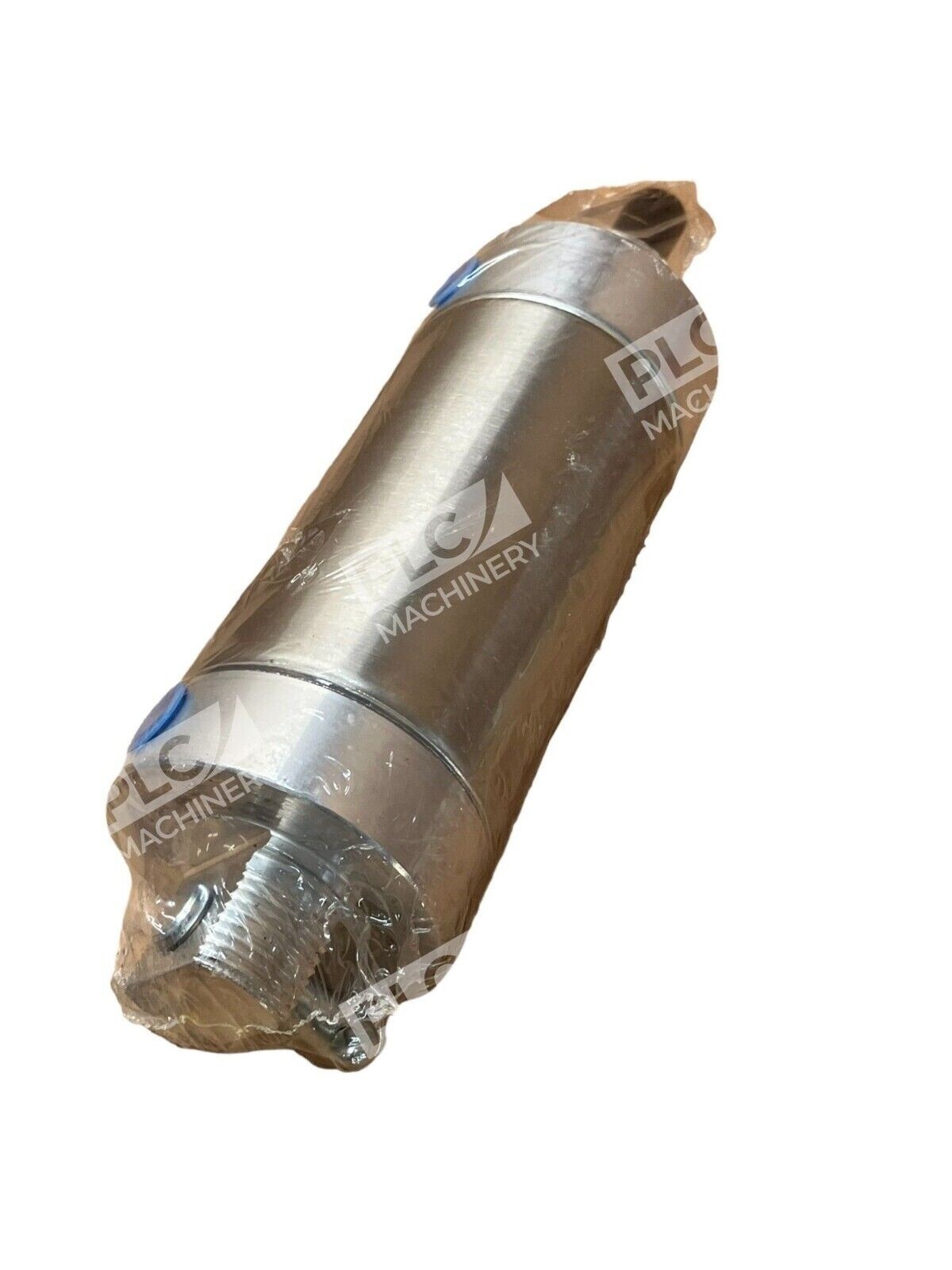

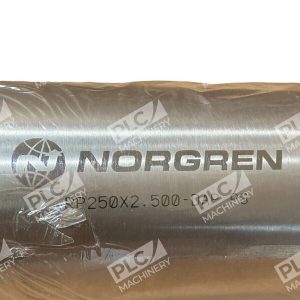

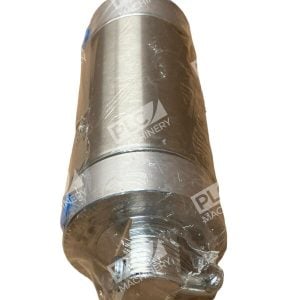

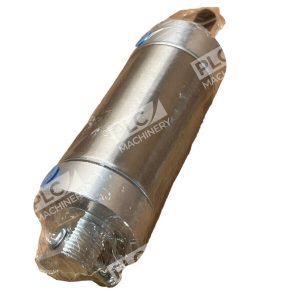

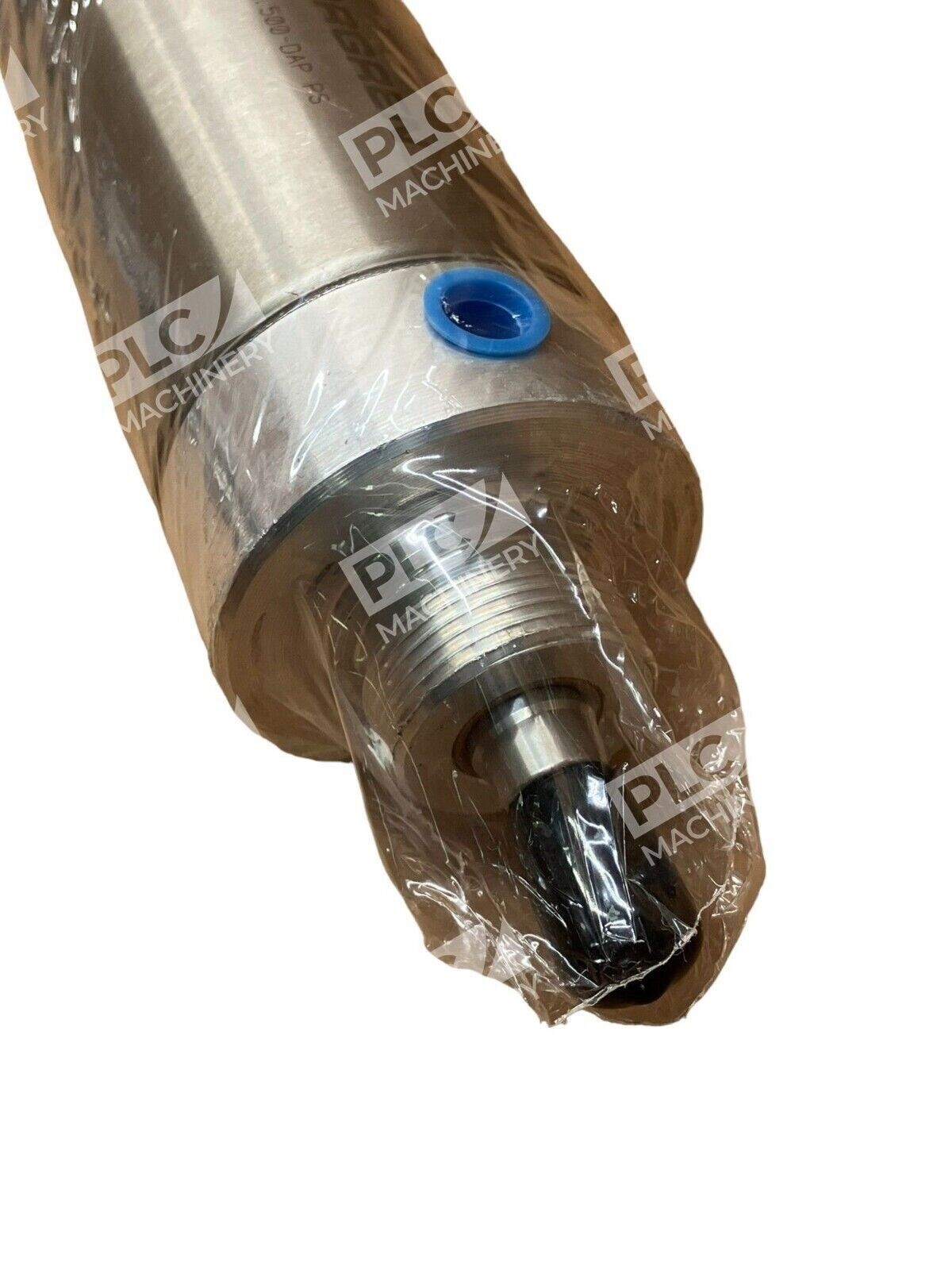

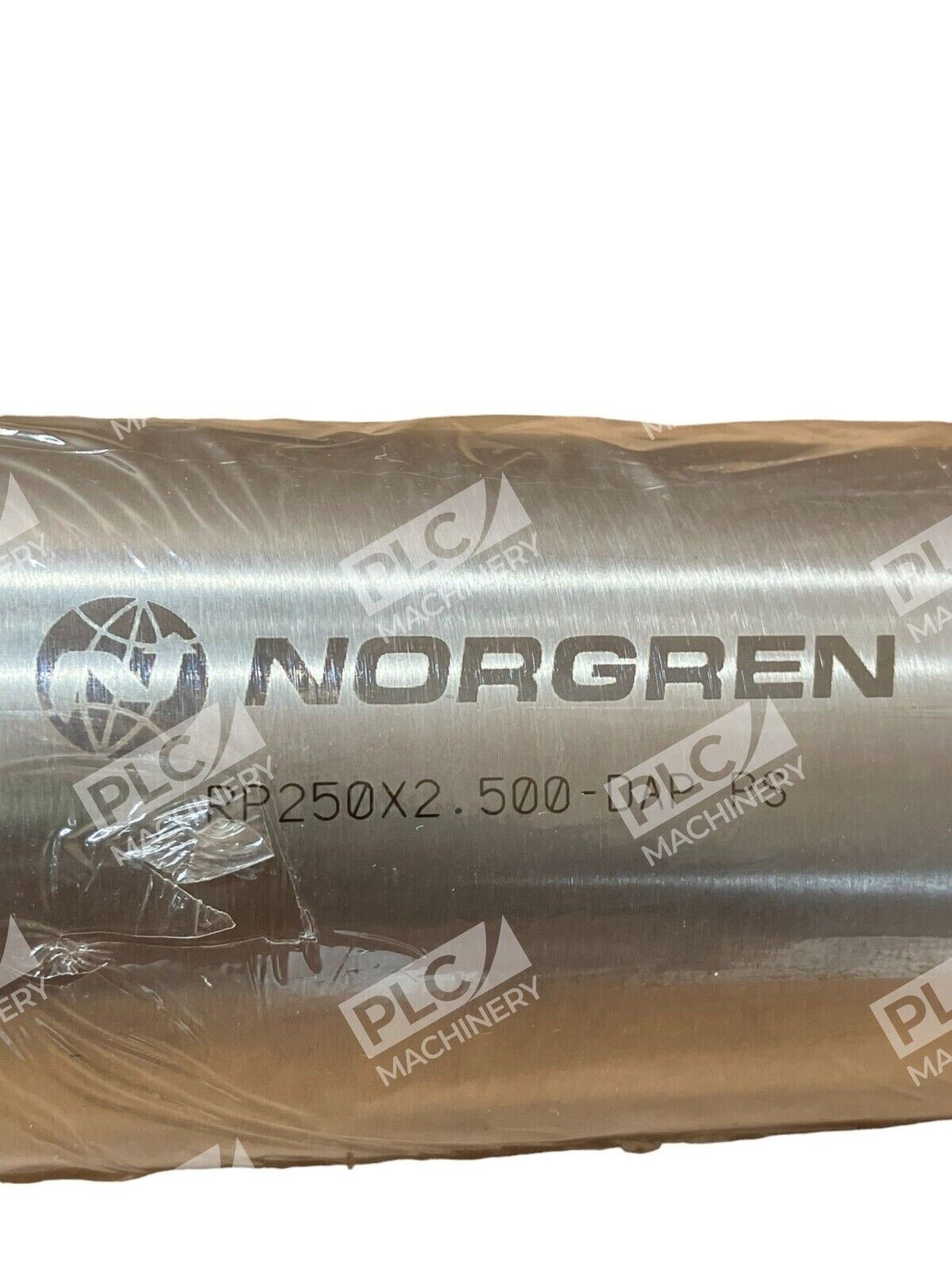

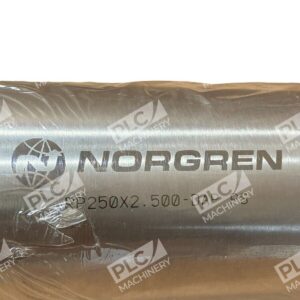

The Norgren RP250X2.500-DAP PS is a double-acting pneumatic actuator from the Roundline Plus series, engineered for dependable performance in light- to medium-duty industrial automation applications. This model features a 2.5″ bore diameter and 2.5″ stroke length with a pivot mounting configuration, making it ideal for machinery requiring precise linear motion and force control.
Key Features
- Double-acting design for power in both extension and retraction
- Pivot mount configuration for flexible installation in constrained spaces
- Roundline Plus series construction for durability and reliability
- Suitable for lighter duty and general-purpose industrial motion control
- Pneumatic operation—clean, responsive, and maintenance-efficient
Technical Specifications
- Bore Size: 2.5″ (63.5 mm)
- Stroke Length: 2.5″ (63.5 mm)
- Mount Type: Pivot
- Operating Mode: Double Acting
- Series: Roundline Plus
- Connection Type: Pneumatic (port size determined by standard)
- Body Material: Aluminum
- Condition: New – No Original Box
Typical Applications
- Clamping and holding mechanisms in assembly equipment
- Automated positioning and actuation in machine tools
- Industrial machinery requiring linear reciprocating motion
- Flow control and directional actuation in pneumatic systems
- OEM equipment retrofitting and maintenance replacement
Compatibility & Replacements
Compatible With
- Compressed air systems (typically 80–250 psi operating range)
- Standard pneumatic control solenoid valves (pilot or direct operated)
- ISO 4401 NG6 and NG10 directional control valves
- Pneumatic port configurations per ISO 6149 (metric) or NPT (US) standards
- Industrial automation controllers with pneumatic output modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The RP250X2.500-DAP PS is designed as a direct replacement for legacy or damaged Roundline Plus actuators with matching bore, stroke, and pivot mount specifications. Consult Norgren documentation or your controls engineer to confirm interchangeability with your existing equipment.
Works With
- Pneumatic control circuits and manifold systems
- Air pressure regulators and flow control units
- Pneumatic solenoid valve banks
- Pressure switches and position sensors
- Standard industrial compressed air compressors (oil-lubricated or oil-free)
