Overview

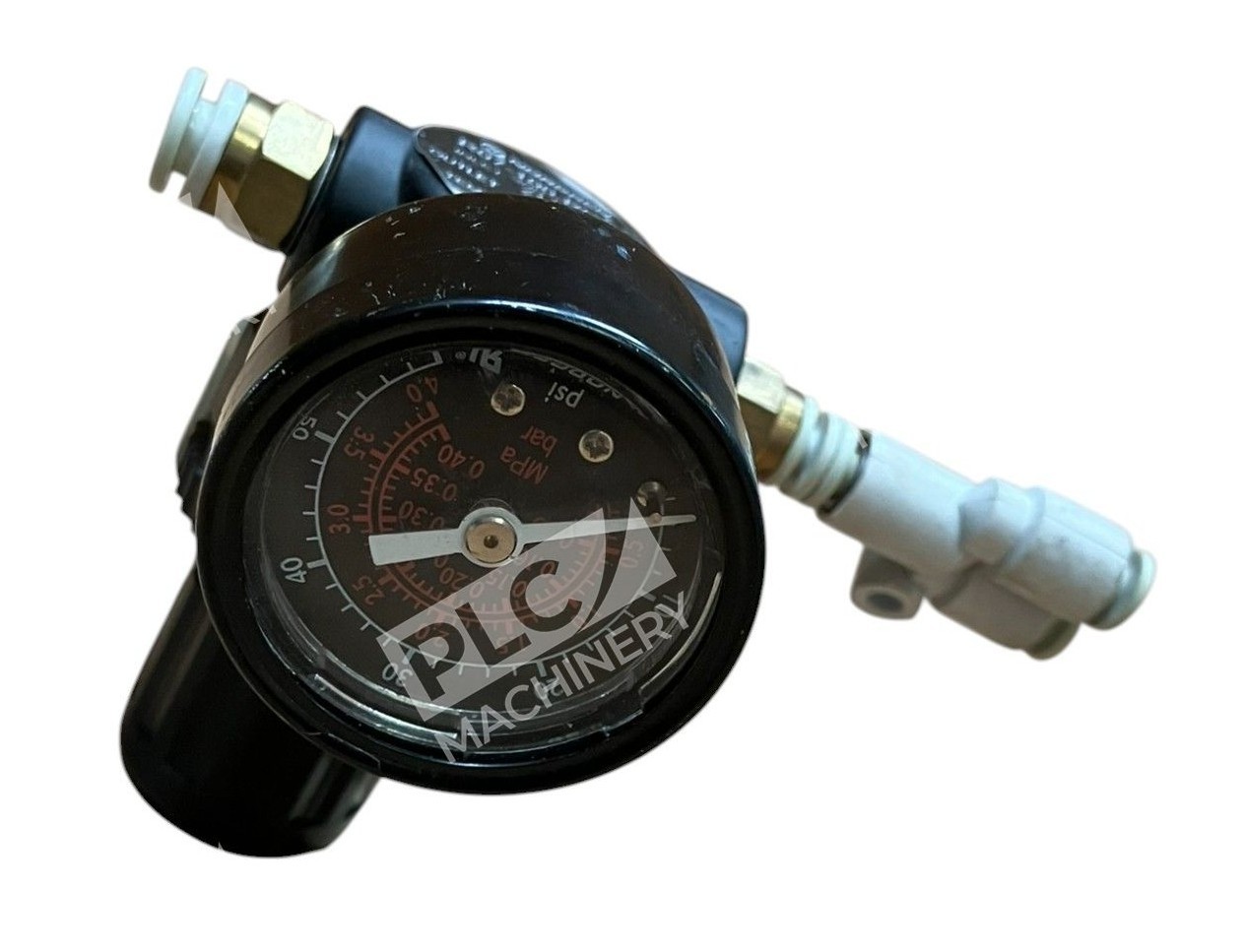

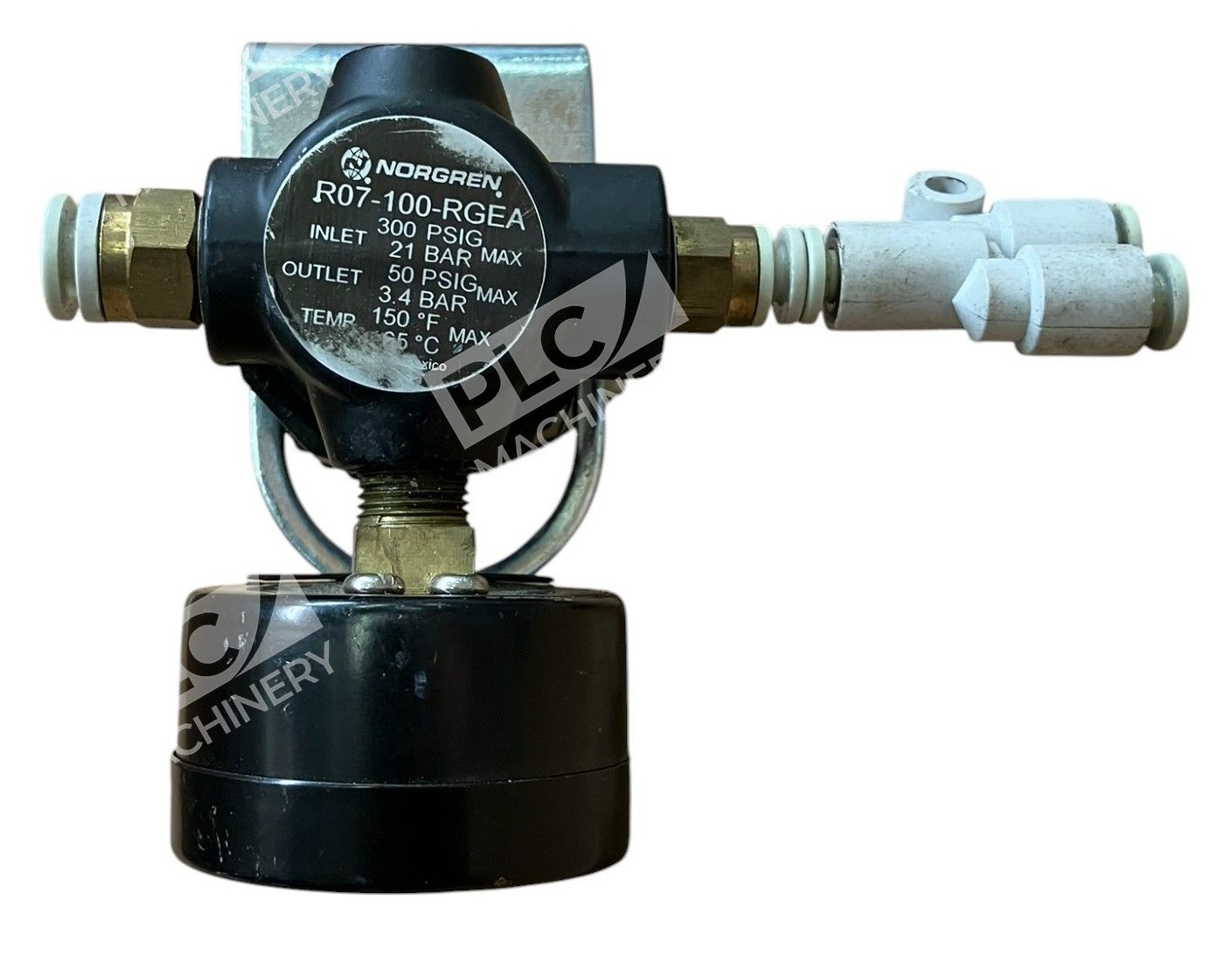

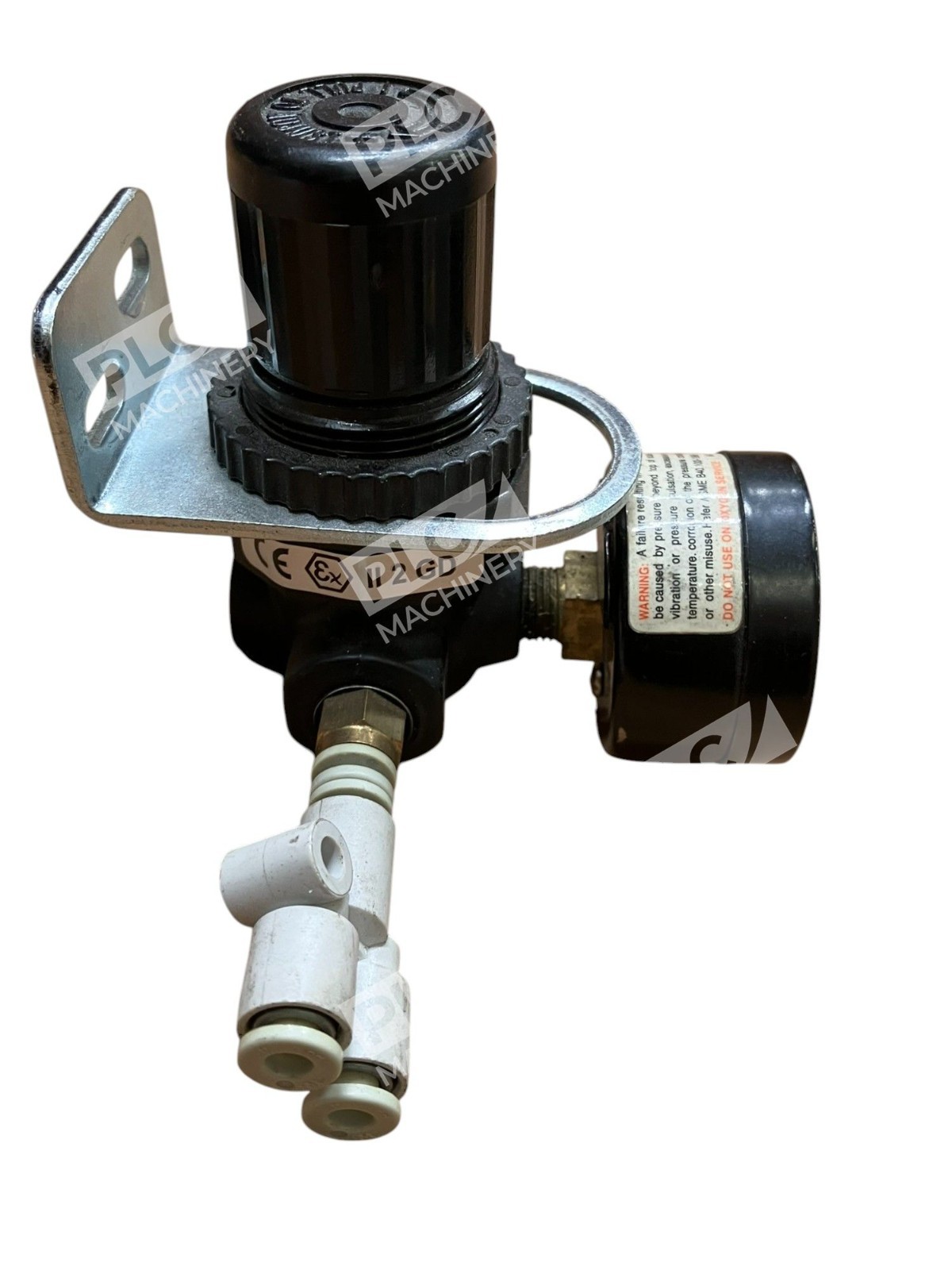

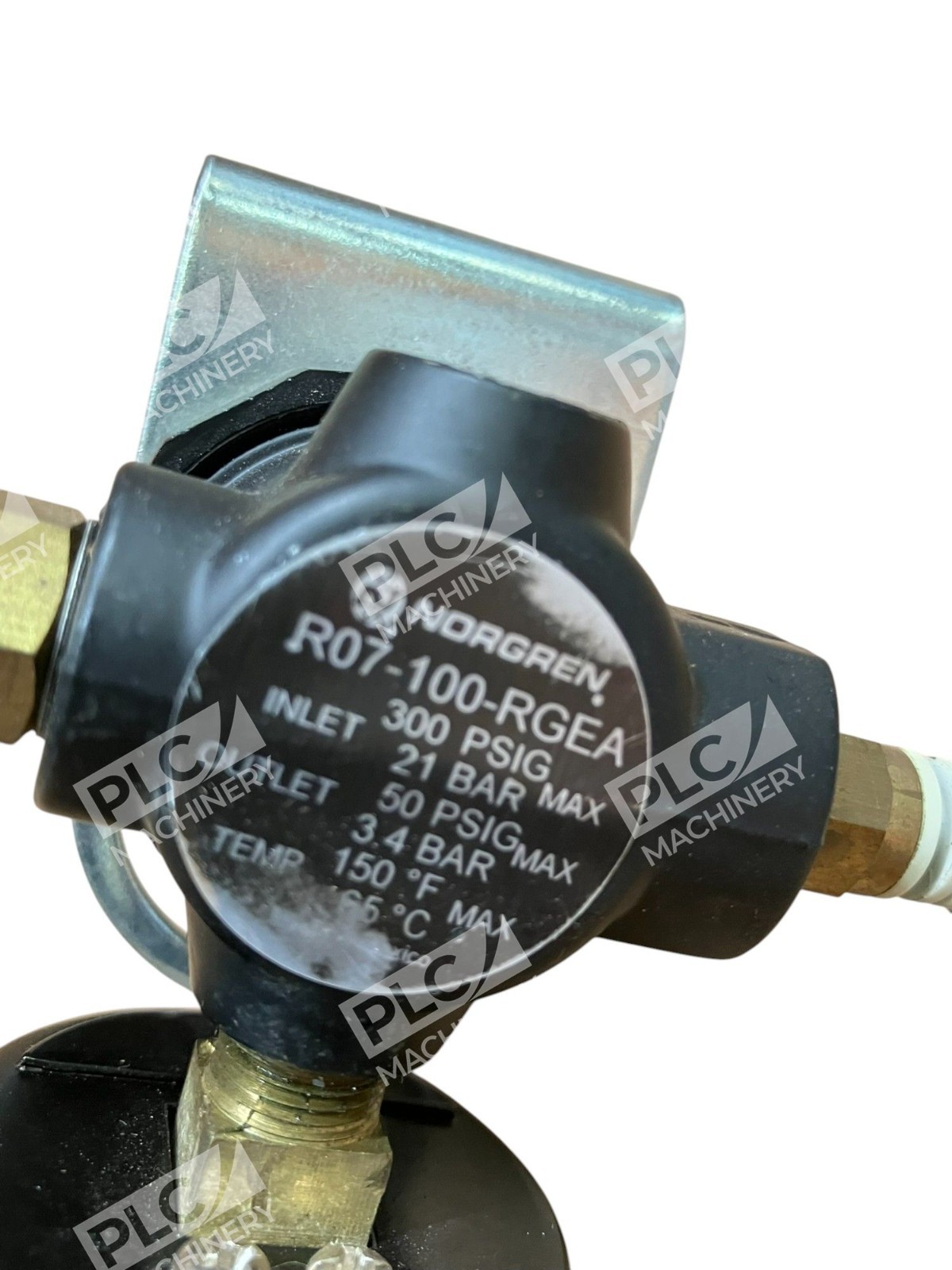

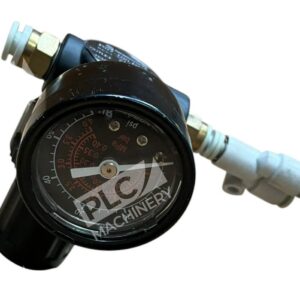

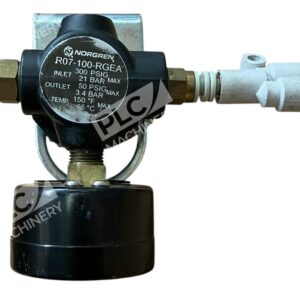

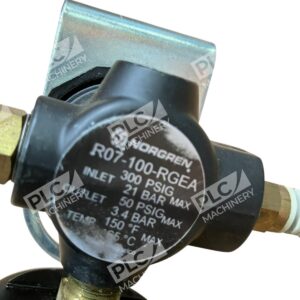

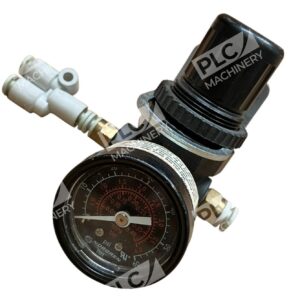

The Norgren R07-100-RGEA is a miniature general-purpose pressure regulator with integrated pressure gauge designed for accurate control and monitoring of compressed air in industrial automation and fluid systems. The R07 Series delivers reliable pressure regulation with a compact footprint, making it ideal for space-constrained installations where precision pressure management is critical.
Key Features
- Miniature design — compact footprint allows for space-efficient valve manifold and panel integration
- Relieving type — automatically vents excess pressure to maintain stable outlet pressure across varying flow conditions

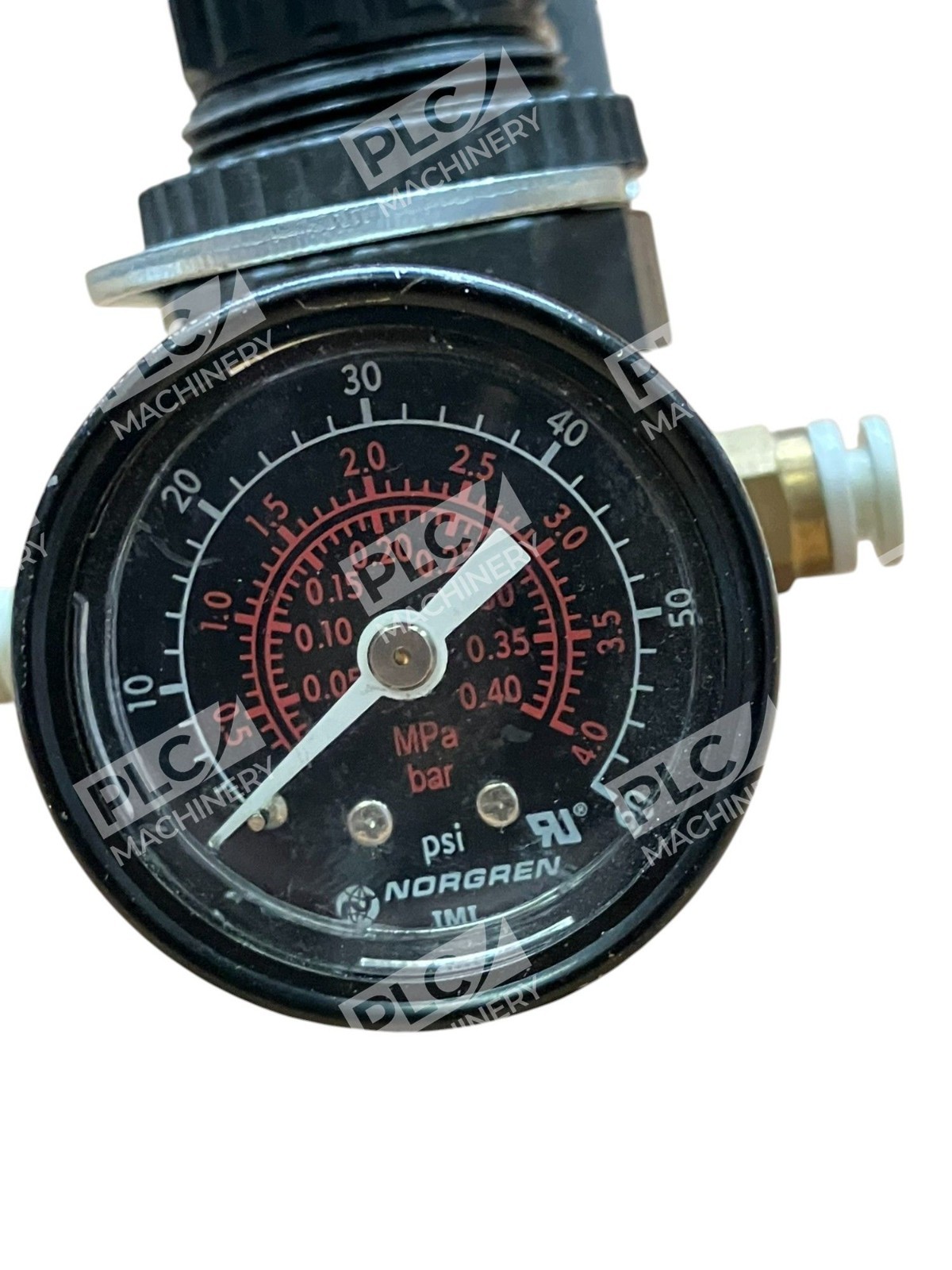

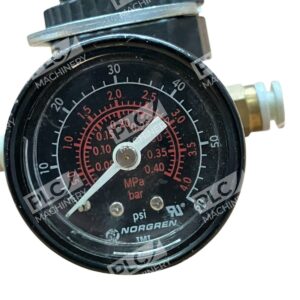

- Integrated pressure gauge — full-flow gauge ports for real-time pressure monitoring without external gauges
- Low-torque adjustment knob — non-rising design with snap-lock feature secures pressure setting and prevents accidental drift
- Tool-free maintenance — can be disassembled and serviced without removal from the air line
- Proven reliability — Norgren R07 series trusted in pneumatic and air preparation applications worldwide
Technical Specifications
Verify exact specifications with manufacturer documentation or your system integrator for application-critical requirements.
| Port Type | 1/8″ PTF (Parallel Threaded Female) |
| Regulator Type | Relieving (direct-acting) |
| Outlet Pressure Range | 5–50 PSI (0.3–3.5 bar) |
| Flow Rating | 14 scfm |
| Gauge Port | Full-flow integrated gauge ports |
| Design Type | Miniature (compact installation footprint) |
| Adjustment Feature | Low-torque, non-rising knob with snap-lock |
| Disassembly | Tool-free serviceability |
| Series | R07 Series |
| Manufacturer | Norgren (IMI Norgren Group) |
Typical Applications
- Pneumatic actuator control in automation systems
- Instrument air regulation and pilot pressure systems
- Process control air supply for solenoid valves and cylinders
- Laboratory and test equipment compressed air management
- OEM pneumatic sub-assemblies and manifold integration
- Maintenance and retrofit projects where space is limited
Compatibility & Replacements
Compatible With
- Standard ISO 4401 (CETOP) cavity manifolds with 1/8″ porting
- Norgren R07 Series accessories and service kits
- General-purpose pneumatic systems operating 0–100 PSI inlet pressure
- Compressed air preparation circuits (after filter, before actuators)
- Gauge accessories compatible with integrated gauge ports
Replaces / Drop-In Replacement For
The Norgren R07-100-RGEA directly replaces other R07-100 variants with identical porting and mounting. Verify compatibility with your system integrator before ordering to confirm pressure range and port configuration match your application requirements.
Works With
- Norgren pneumatic systems and fluid distribution networks
- ISO 4401 standard cavity manifolds
- Integrated gauge monitoring (no external gauge required)
- Norgren R07 Series service kits and maintenance accessories
- Standard 1/8″ PTF-threaded tubing and hose fittings
