Overview

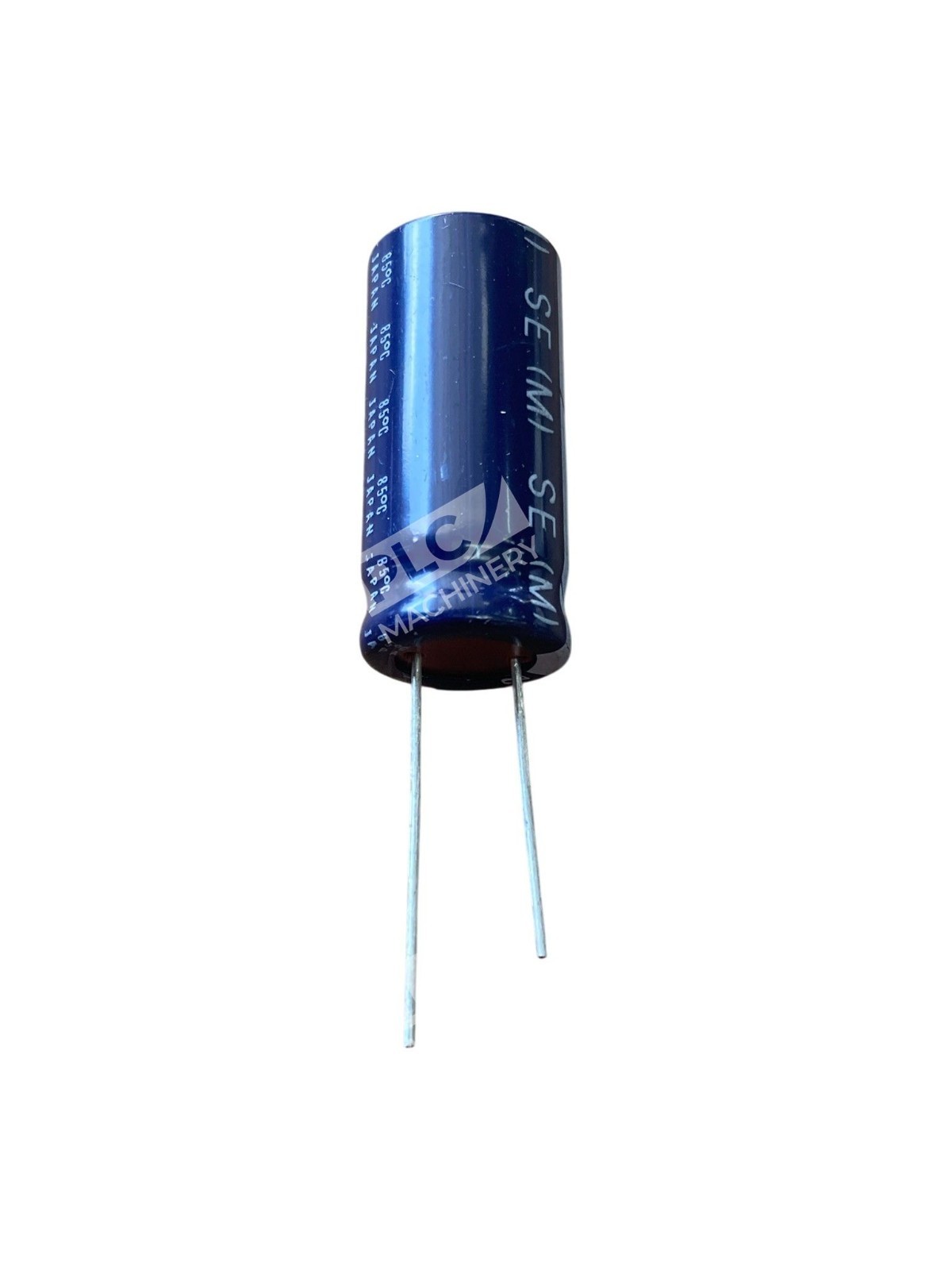

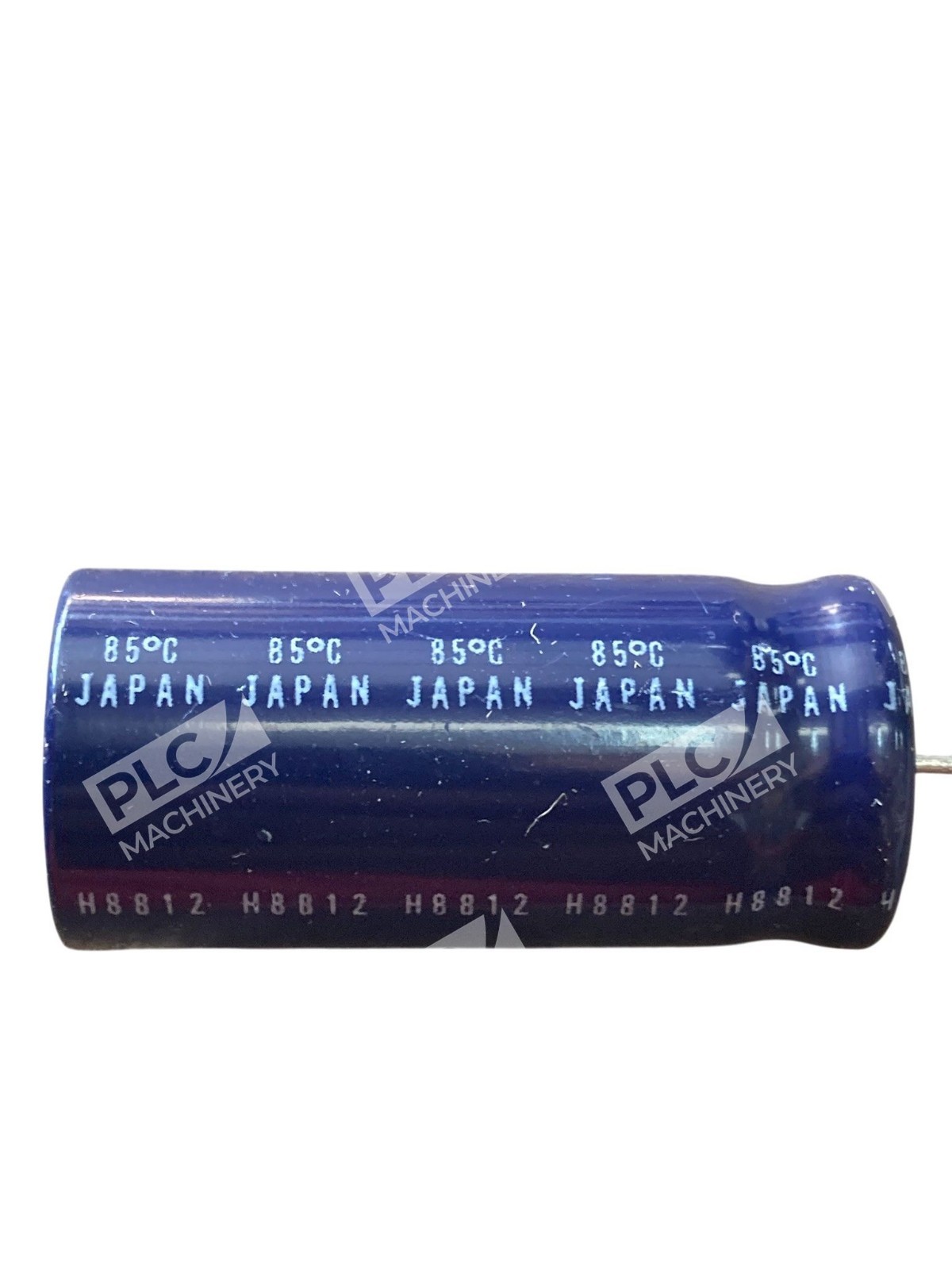

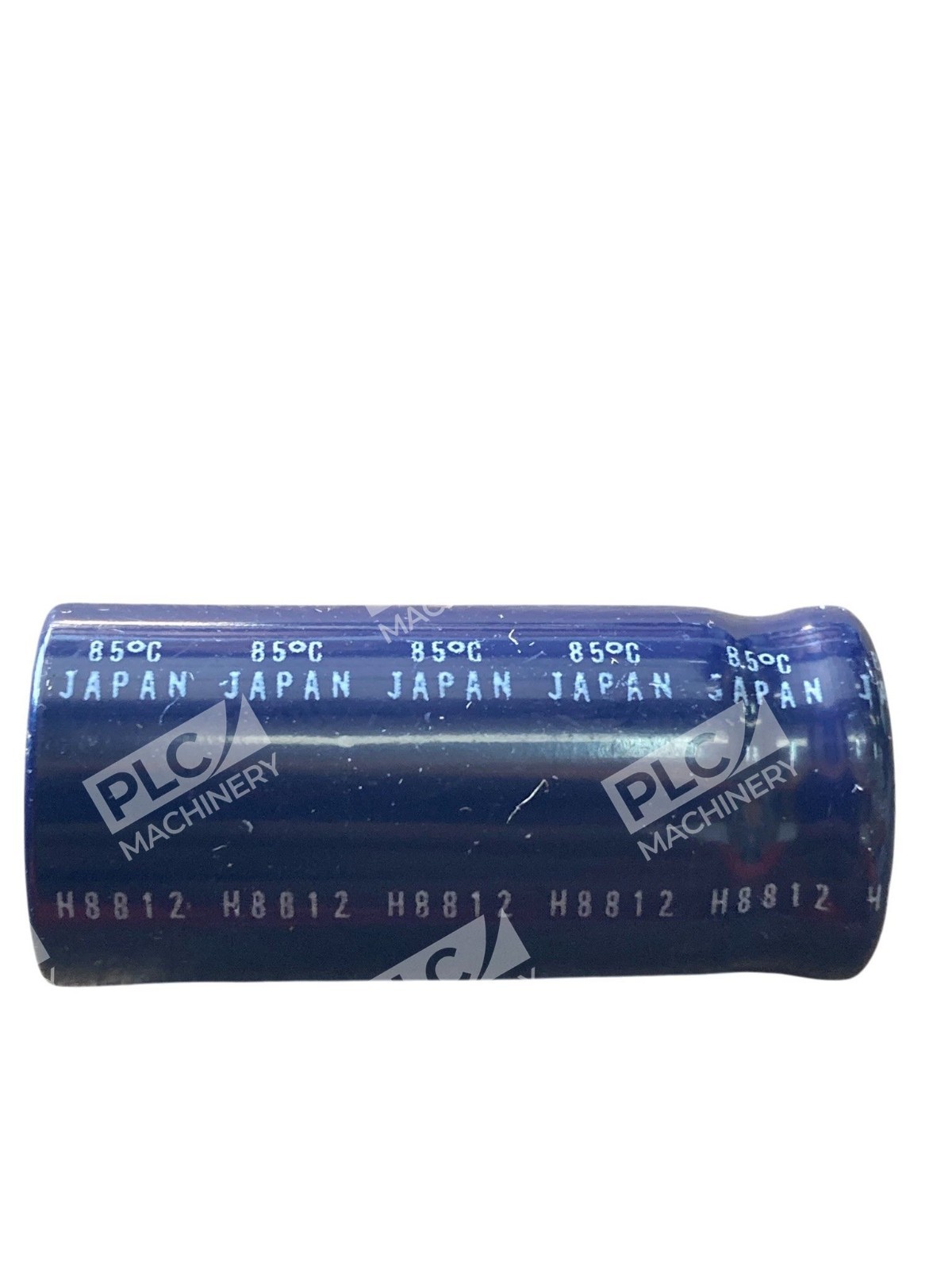

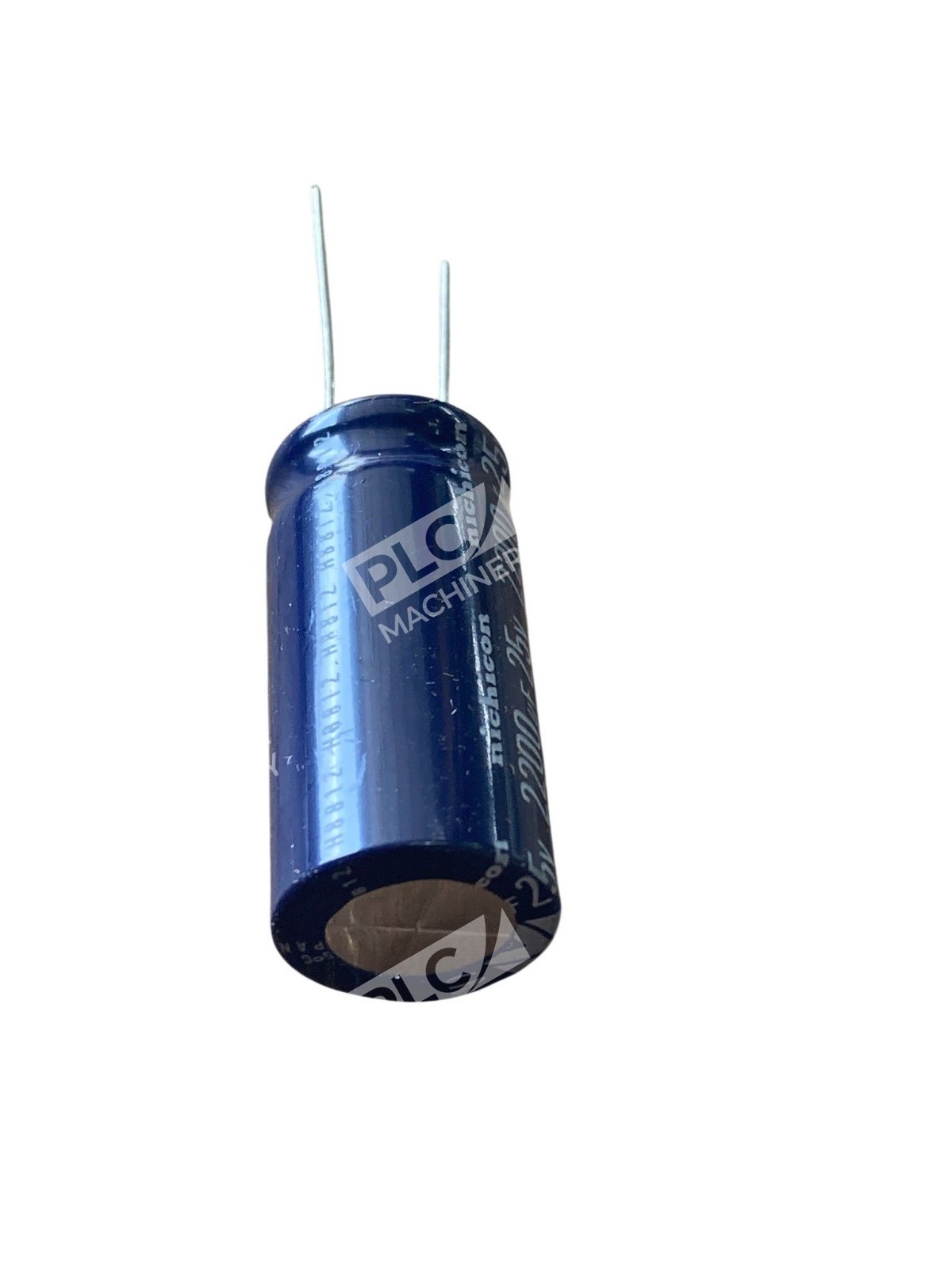

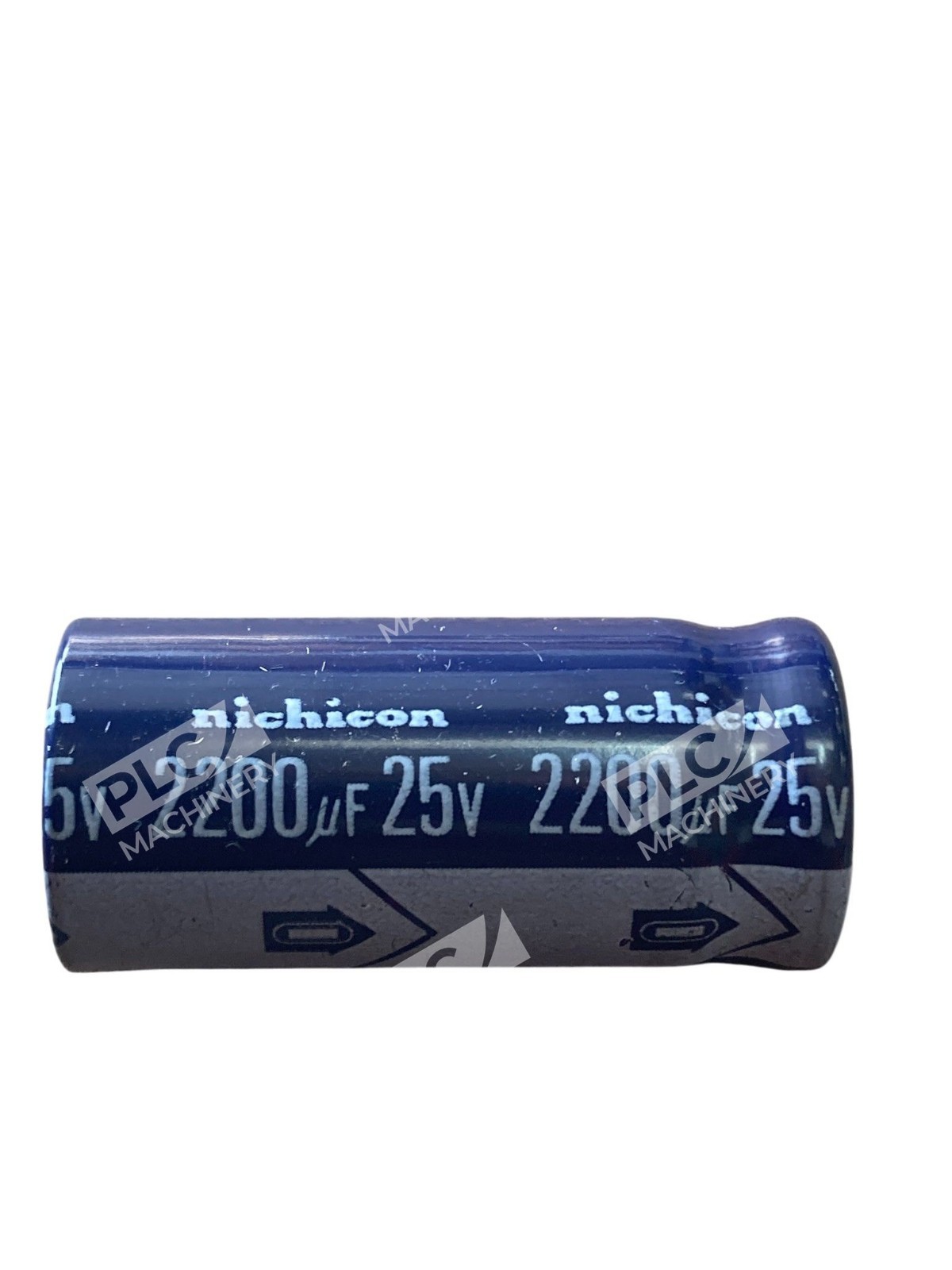

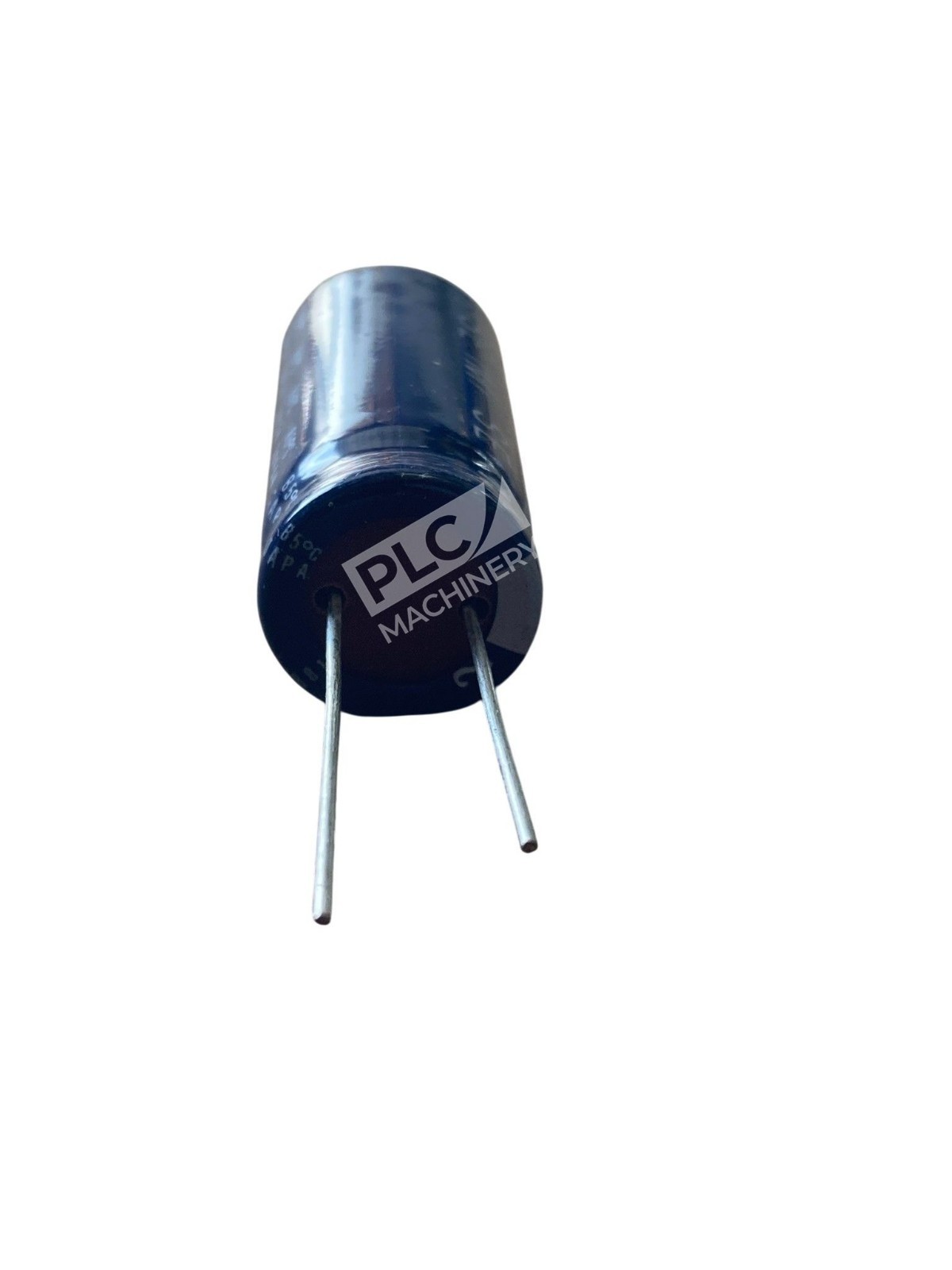

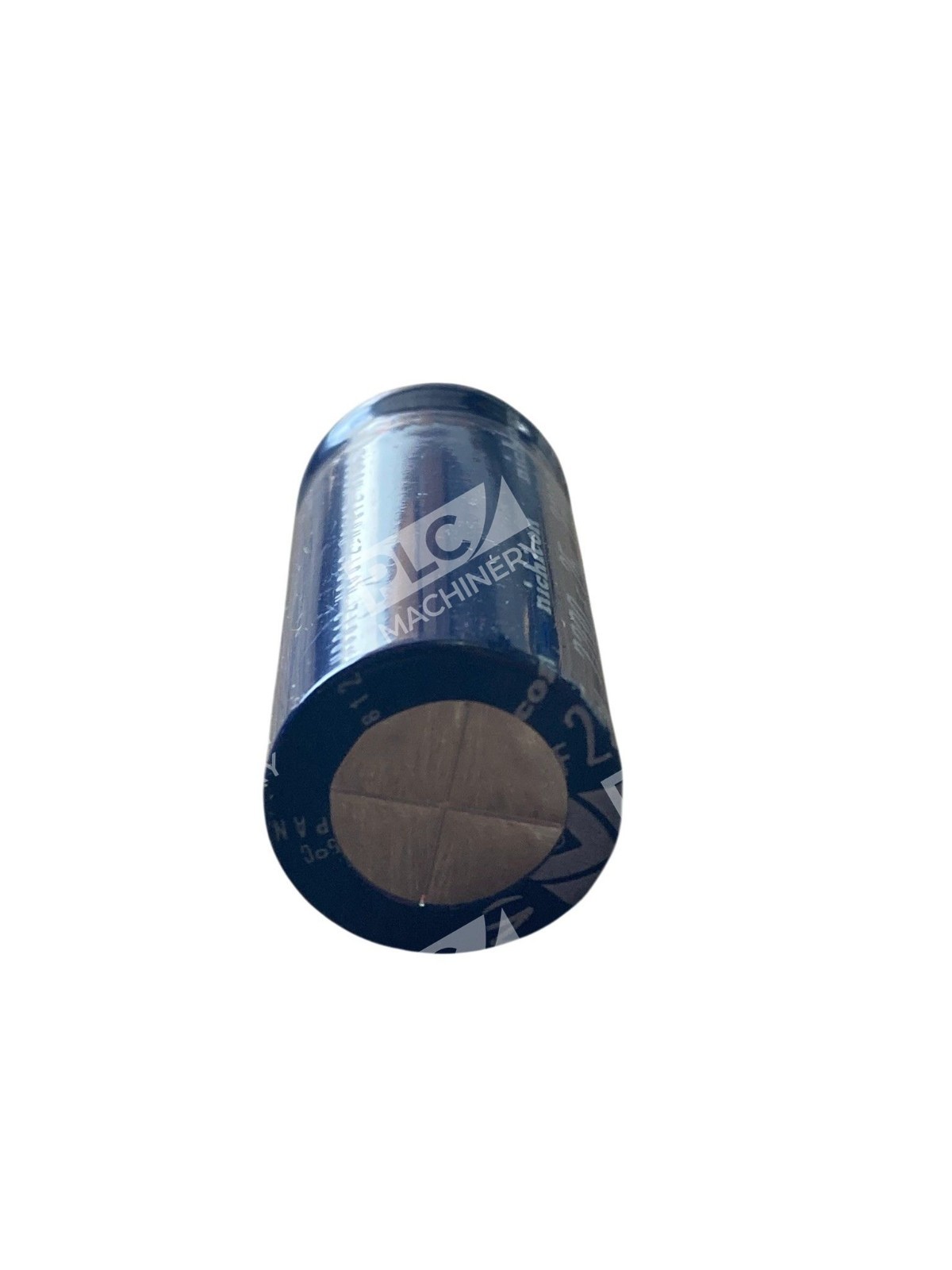

The Nichicon H8812 85C capacitor is a high-reliability aluminum electrolytic capacitor rated for 2200µF capacitance at 25V DC. This radial-lead component is engineered for industrial, commercial, and consumer electronic applications requiring stable capacitive performance across extended temperature ranges. With Nichicon’s proven manufacturing standards, this capacitor delivers consistent behavior in power supply circuits, filtering applications, and energy storage functions.
Key Features
- 2200µF capacitance with ±20% tolerance
- 25V DC voltage rating with proven dielectric strength
- Radial lead termination for easy PCB mounting
- 85°C maximum operating temperature rating
- Aluminum electrolytic construction for reliable ripple current handling
- RoHS-compliant materials and manufacturing
Technical Specifications
- Capacitance: 2200µF
- Voltage Rating: 25V DC
- Tolerance: ±20%
- Termination Style: Radial, Through-Hole
- Operating Temperature Range: -40°C to +85°C
- Diameter: 12.5mm
- Length: 25mm
- Technology: Aluminum Electrolytic
- Series: H8812
- Condition: New, No Box
Typical Applications
This capacitor is ideal for use in:
- Industrial power supplies and switching circuits
- Audio equipment amplifier and crossover circuits
- Consumer electronics and appliance control modules
- Telecommunications and broadcast equipment
- Energy storage and backup power systems
- Motor drive and servo control circuits
Compatibility & Replacements
Compatible With
- PCB mounting systems requiring 25V DC capacitive filtering
- Standard through-hole component placements with 2.5mm lead spacing
- Industrial control circuits and power distribution modules
- Audio and RF circuits requiring low-ESR performance
Replaces / Drop-In Replacement For
- Nichicon SEM 2200µF 25V 85°C series
- Equivalent 2200µF 25V capacitors with matching lead spacing and diameter
- Verify compatibility with your system integrator before ordering for critical applications.
Works With
- Standard PCB assembly equipment and wave soldering processes
- Industrial and consumer electronics manufacturing workflows
- Lead-free and RoHS-compliant assembly environments
- Temperature profiling systems supporting -40°C to +85°C operating ranges
