Overview

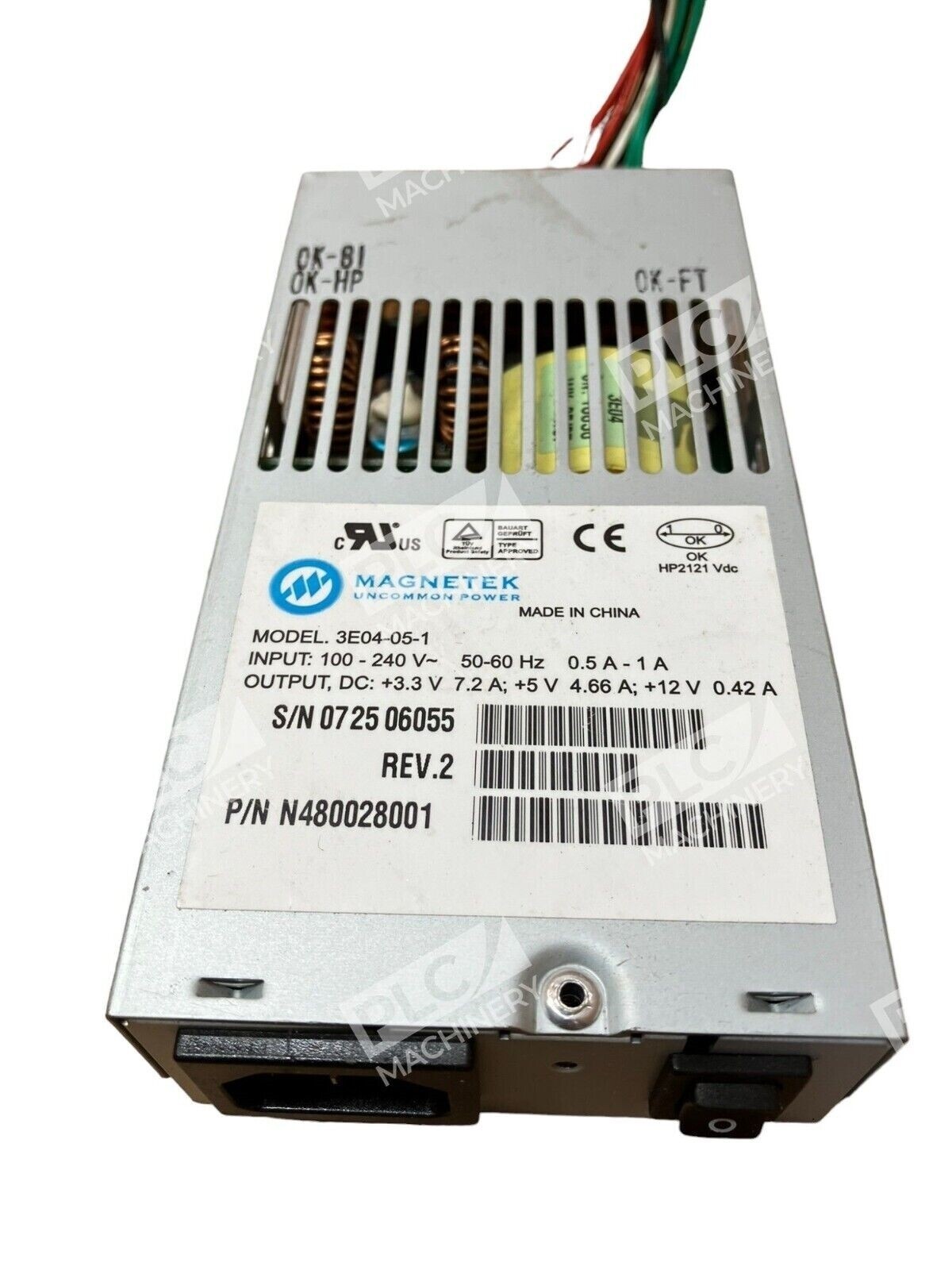

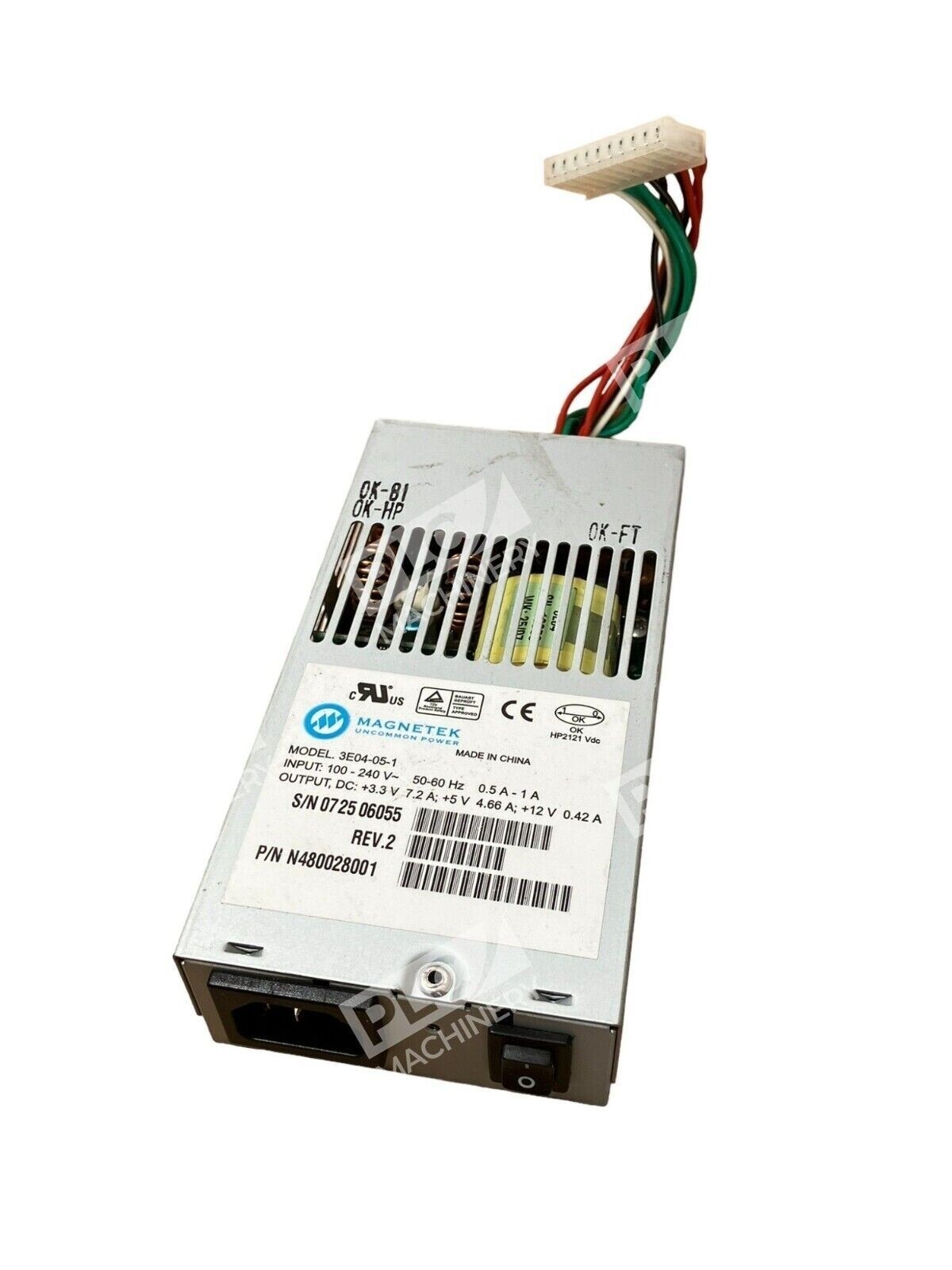

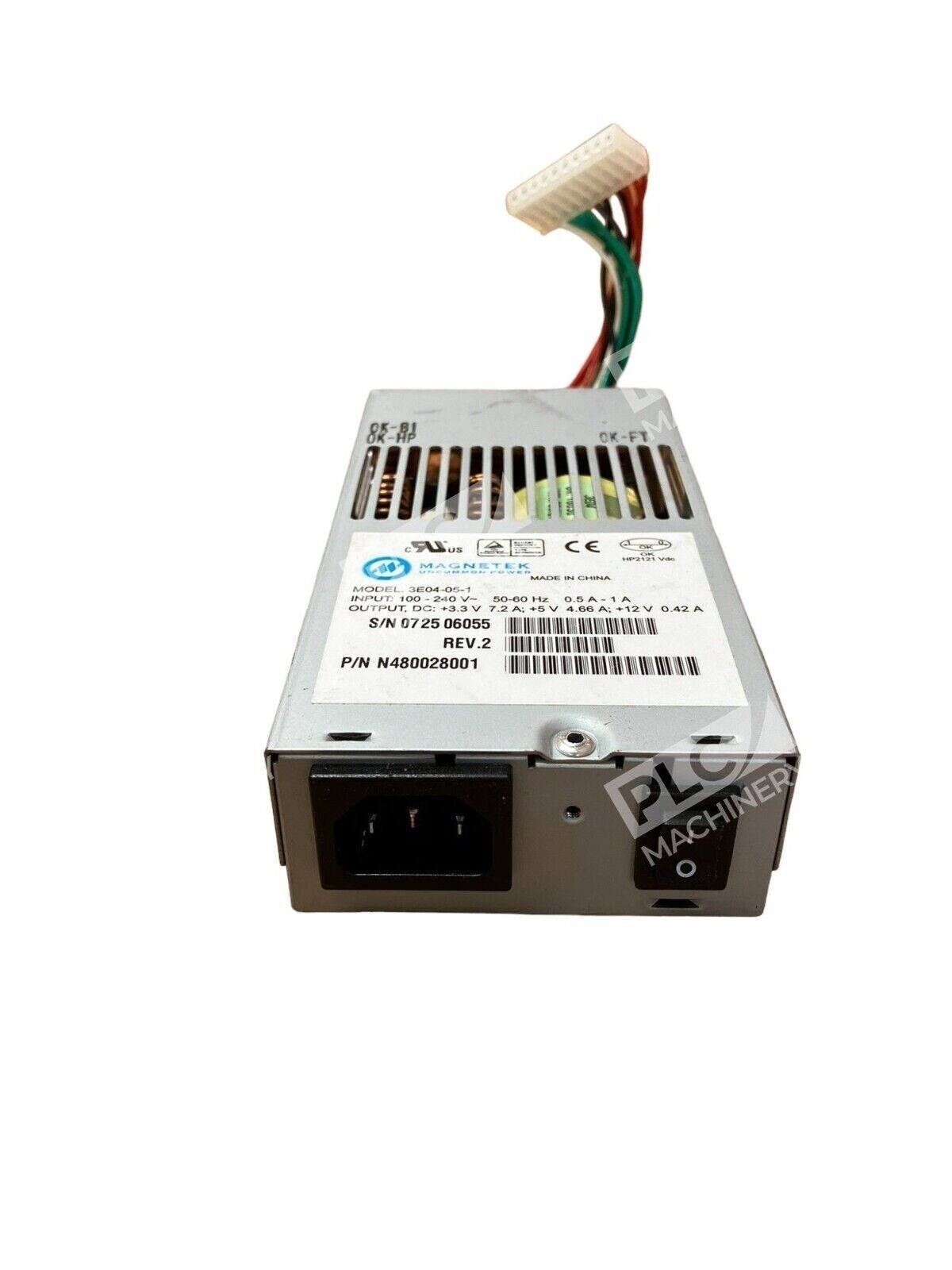

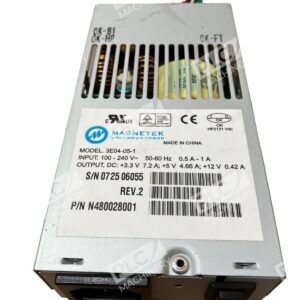

The Magnetek 3E04-05-1 power supply is a multi-output industrial PSU designed for server, network, and telecommunications equipment. This unit operates from 100–240 VAC input (50–60 Hz, 0.5A max) and delivers three regulated DC outputs through a 10-pin connector. The power supply is well-suited for legacy and production networking equipment requiring simultaneous multiple voltage rails.
Key Features
- Multi-voltage output: +3.3V at 7.2A, +5V at 4.66A, +12V at 0.42A
- Wide input voltage range: 100–240 VAC, 50–60 Hz

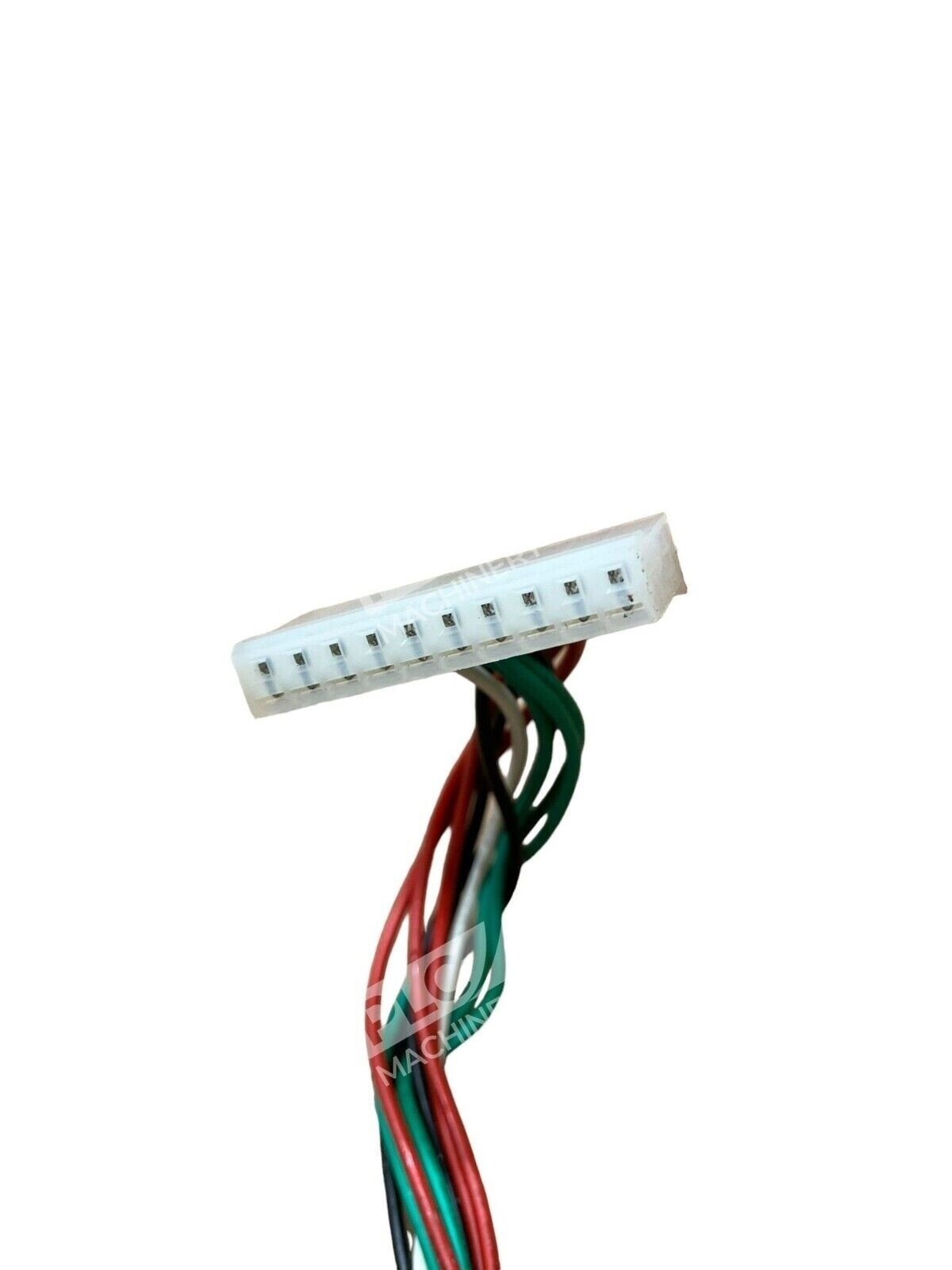

- Standard 10-pin connector interface
- Compact industrial form factor for rack and panel mount applications
- TTL-compatible power good signal output
- Front panel power fault LED indicator
Technical Specifications
- Input Voltage: 100–240 VAC, 50–60 Hz, 0.5A
- Output 1: +3.3 VDC @ 7.2 A
- Output 2: +5.0 VDC @ 4.66 A
- Output 3: +12.0 VDC @ 0.42 A
- Connector Type: 10-pin standard connector
- Regulation: <1% line and load regulation
- Status Signals: Power Good (TTL), Power Fault LED
Typical Applications
- Nokia IP265 base stations and network equipment
- Telecommunications and carrier-grade networking systems
- Legacy server backplane and power distribution
- Industrial control and automation systems requiring multi-voltage supplies
- Test and lab equipment with multiple voltage requirements
Compatibility & Replacements
Compatible With
- Nokia IP265 and related telecom equipment
- Systems requiring +3.3V, +5V, and +12V rails
- 10-pin power connector standard interfaces
Replaces / Drop-In Replacement For
- Magnetek N480014001 (alternative part number for same unit)
- Verify connector pinout and voltage requirements with your specific equipment before installation
Works With
- Standard industrial power management systems
- Equipment with 10-pin input connectors
- TTL power signal monitoring and control circuits
