Overview

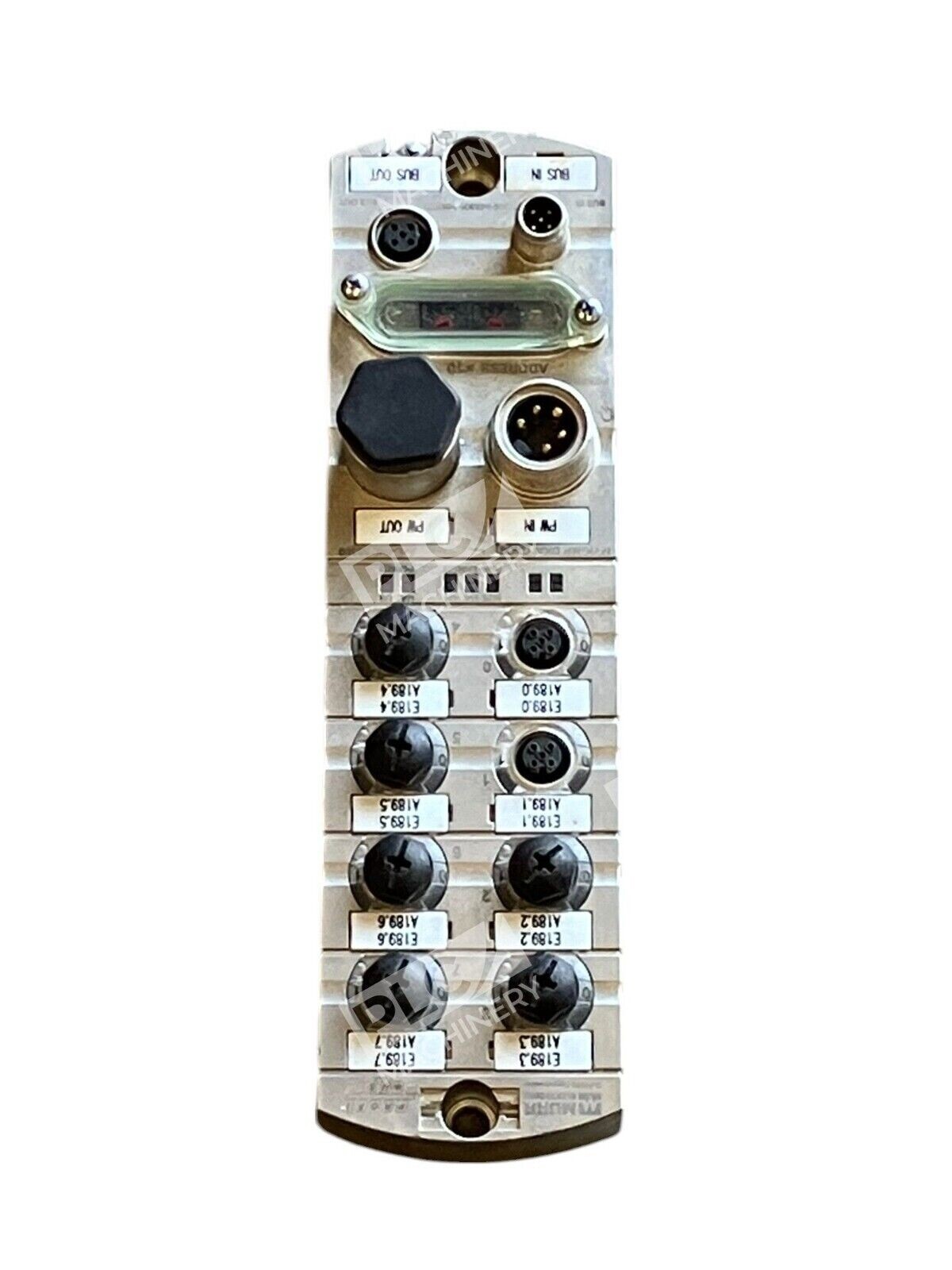

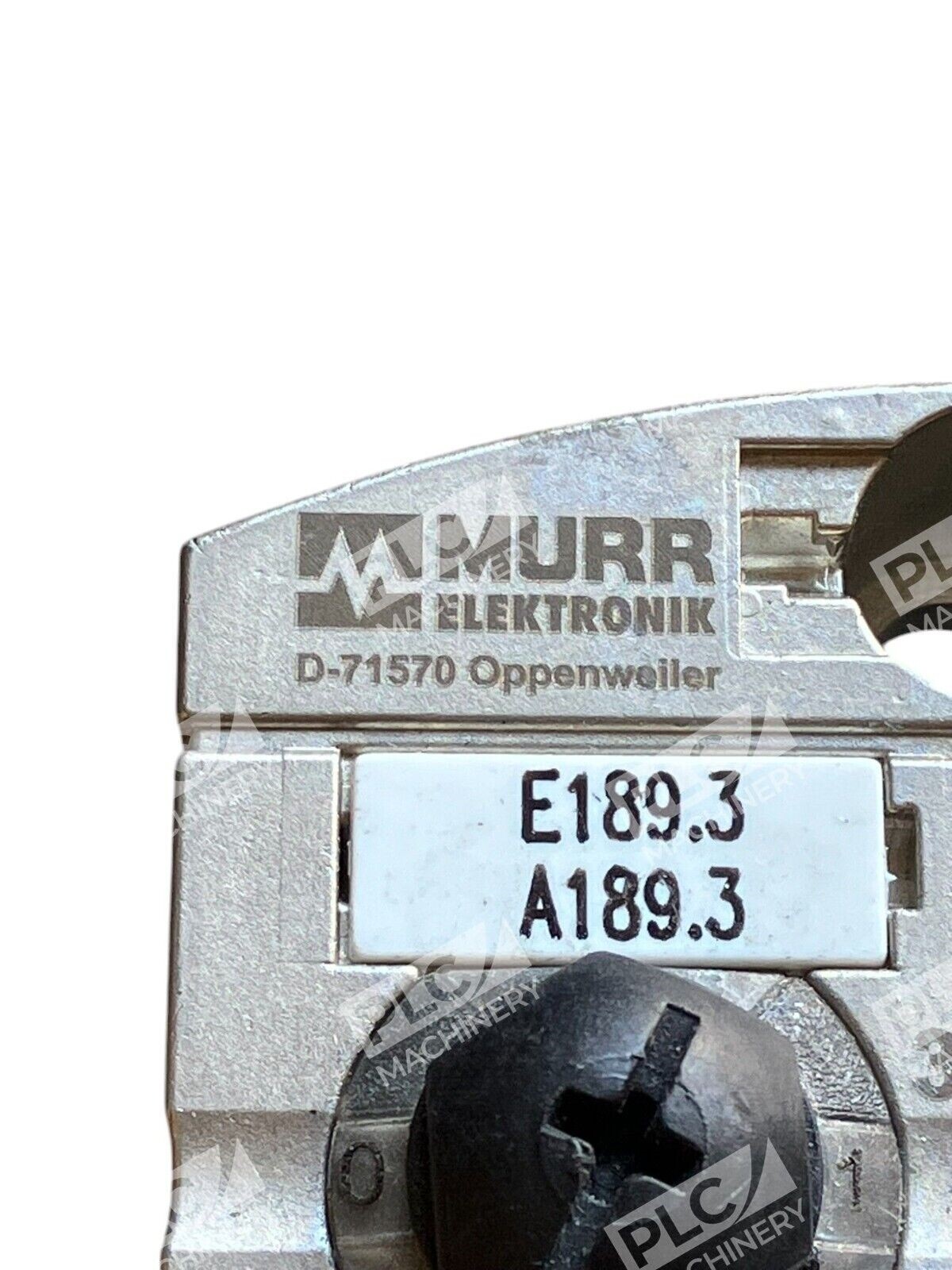

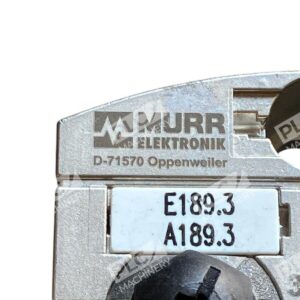

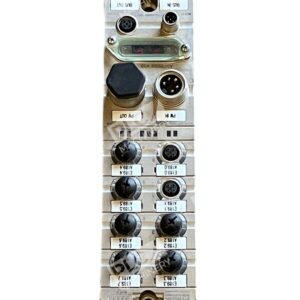

The Murr Elektronik 55309 is an MVK I/O Compact Module designed for robust PROFIBUS DP fieldbus integration. This metal-housed module delivers 16 configurable multifunction channels—8 digital inputs and 8 digital outputs—making it suitable for a wide range of distributed I/O applications in manufacturing, material handling, and process automation.
Key Features
- 16 Multifunction Channels: Configurable digital inputs (DI) and outputs (DO) via MVK-MP DIO8 configuration

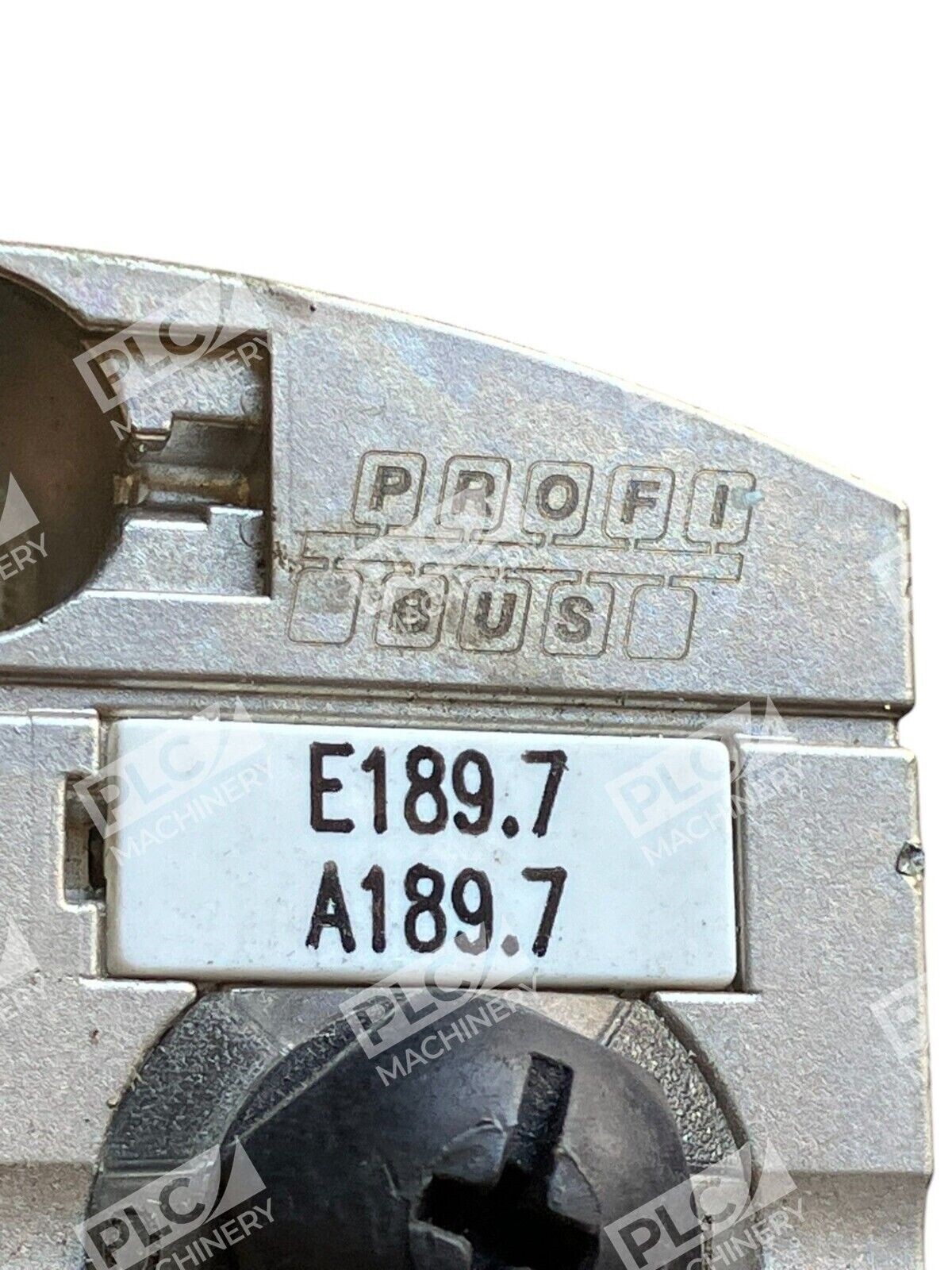

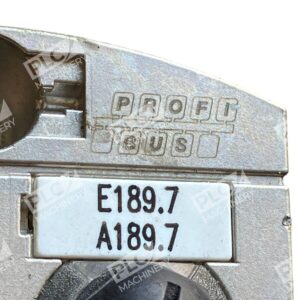

- PROFIBUS DP Fieldbus: 12 Mbit/s transfer rate, addressing via rotary switch (1–99)
- Industrial Connectors: M12, B-coded sensor supply (5-pole) and M12, A-coded I/O ports (5-pole)
- Metal Housing, Fully Potted: Robust metal housing extremely resistant to vibration, media, and weld splatter
- IP67 Protection: Sealed against dust and water ingress
- Comprehensive Diagnostics: Per-module and per-channel diagnostic via LED and bus monitoring for under-voltage, no voltage, short circuit, overload, and cable break
Technical Specifications
Operating voltage: 24 V DC (EN 61131-2)
Sensor supply: 24 V DC, max. 200 mA (M12 female), short-circuit and overload protected
Actuator supply: 24 V DC, max. 1.6 A (short-circuit and overload protected)
Operating modes: Sync and freeze mode supported
Dimensions (H × W × D): 42 × 63 × 225 mm
Operating temperature: −25 to +55 °C (storage: −25 to +70 °C)
Mounting method: 2-hole screw mounting
Lamp load capacity: 10 W
Safety circuits up to PL e per EN 13849-1
Typical Applications
- Distributed I/O nodes in PROFIBUS DP automation networks
- Sensor and actuator interface for discrete manufacturing processes
- Material handling, conveyors, and assembly line control
- Machine tool I/O switching and diagnostics
- Process automation requiring compact fieldbus-connected I/O modules
Compatibility & Replacements
Compatible With
- PROFIBUS DP master controllers and gateways (Siemens S7-300/400, Allen-Bradley CompactLogix with PROFIBUS modules, Omron, Mitsubishi, etc.)
- PROFIBUS DP networks and segment repeaters
- Standard PROFIBUS configuration software (STEP 7, PLC programming tools)
- M12 A-coded and B-coded fieldbus connector systems
Replaces / Drop-In Replacement For
The Murr Elektronik 55309 (MVK-MP DIO8 configuration) is a direct 16-channel multifunction compact module. Verify compatibility with your existing PROFIBUS DP architecture or consult your system integrator for module upgrade paths.
Works With
- PROFIBUS DP (slave devices on PROFIBUS networks)
- Murrelektronik shop online configuration tools
- Standard industrial automation controllers supporting PROFIBUS fieldbus I/O
- M12 connector-based sensor and actuator supply systems
