Overview

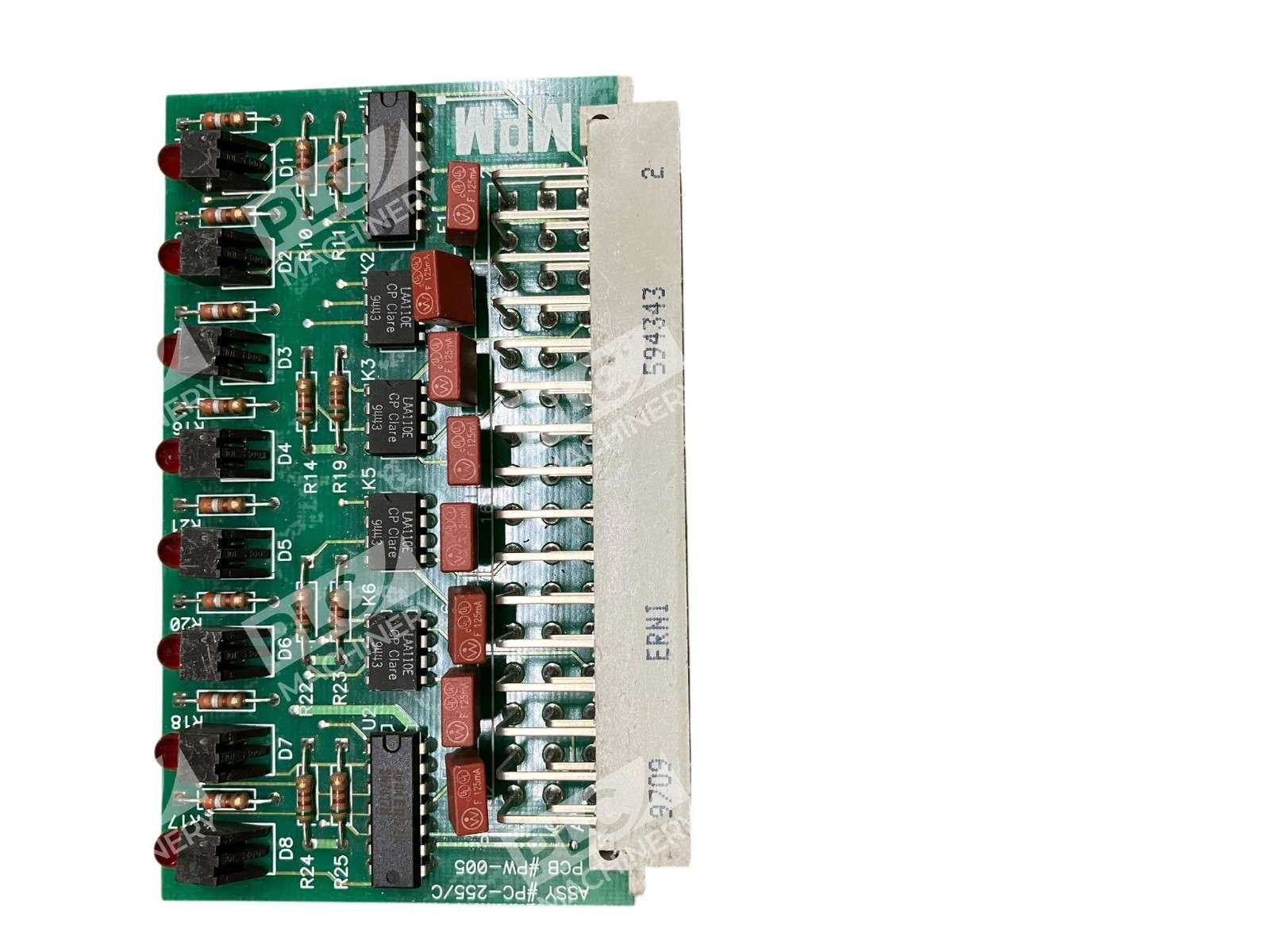

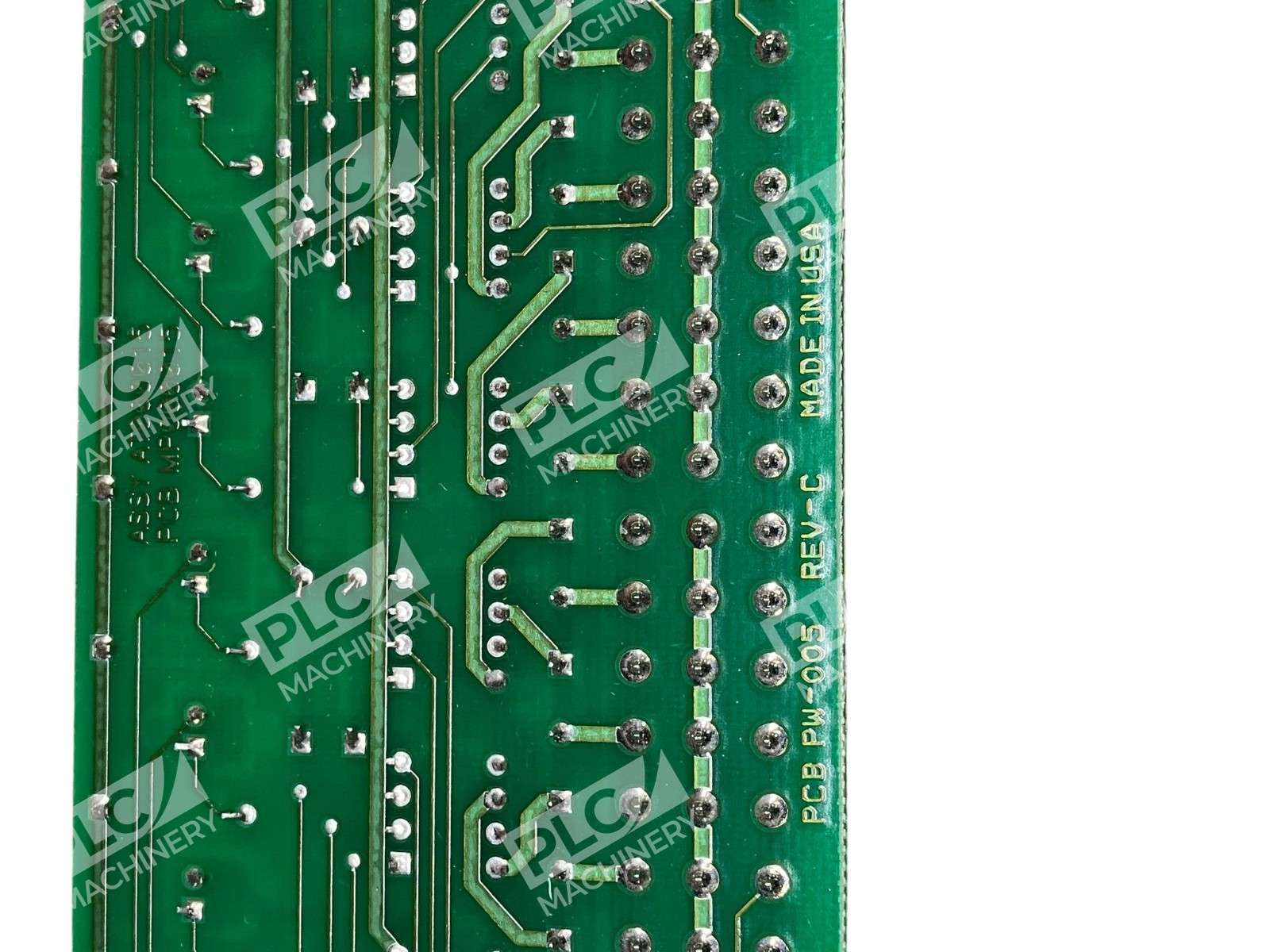

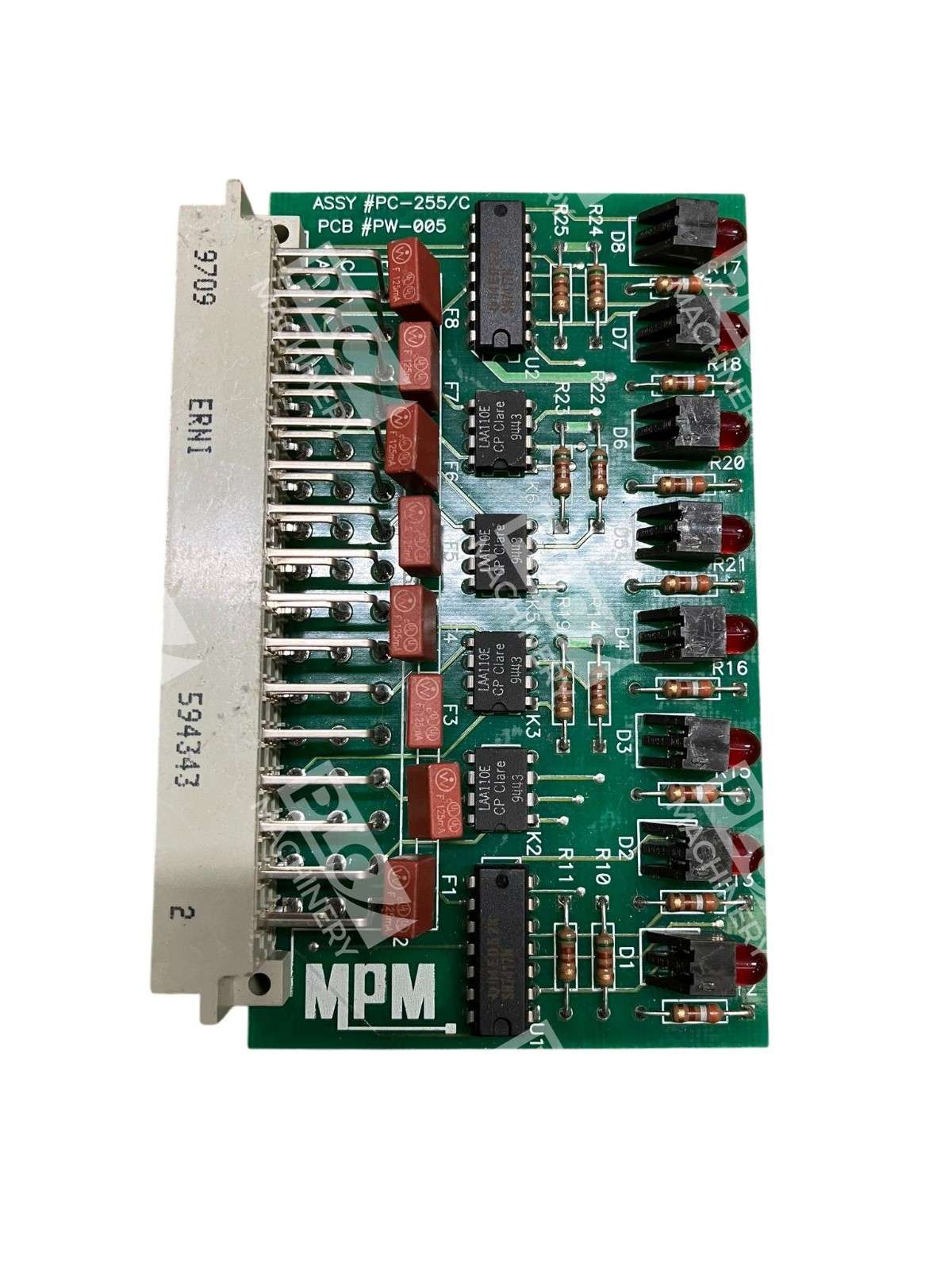

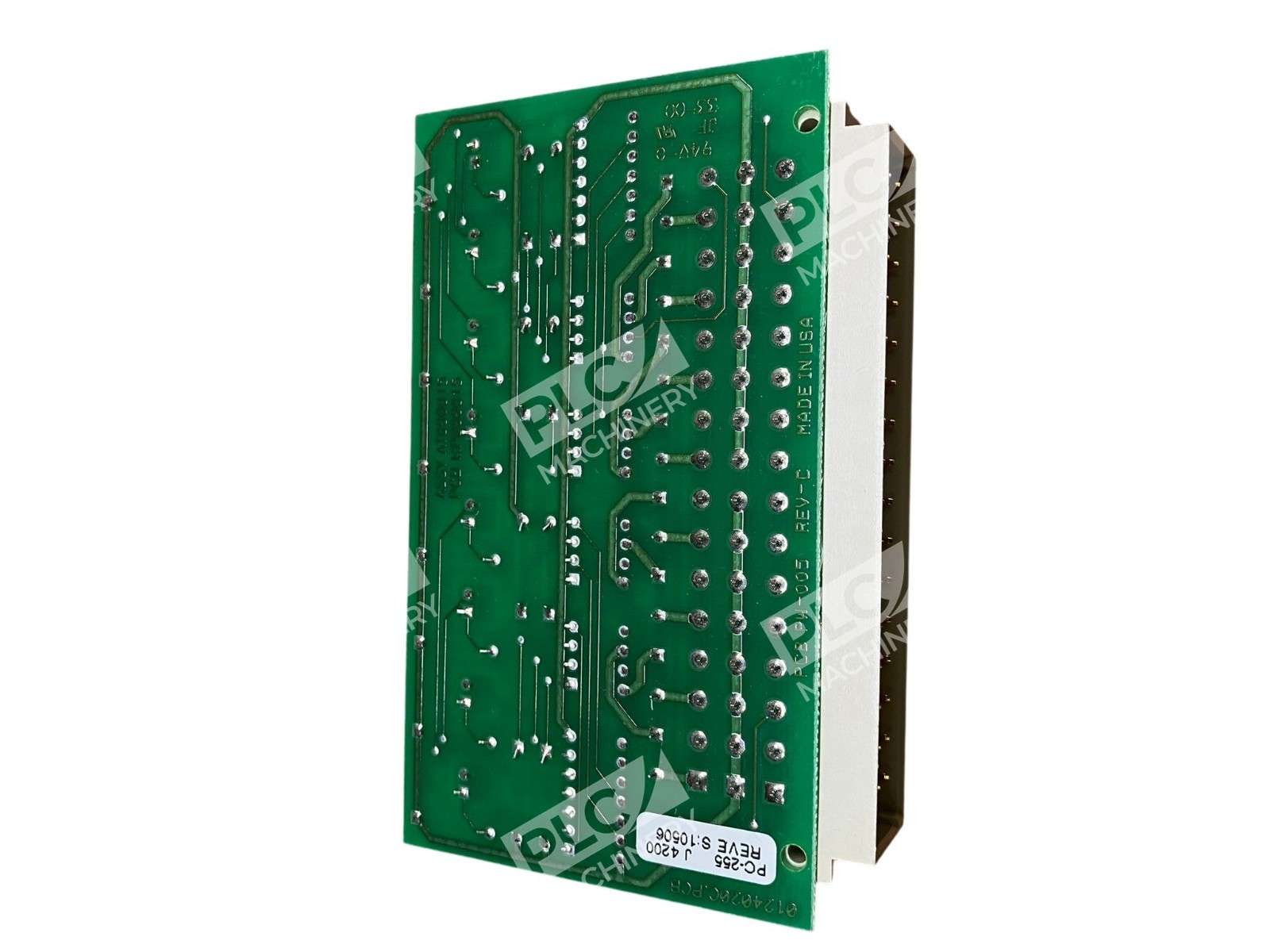

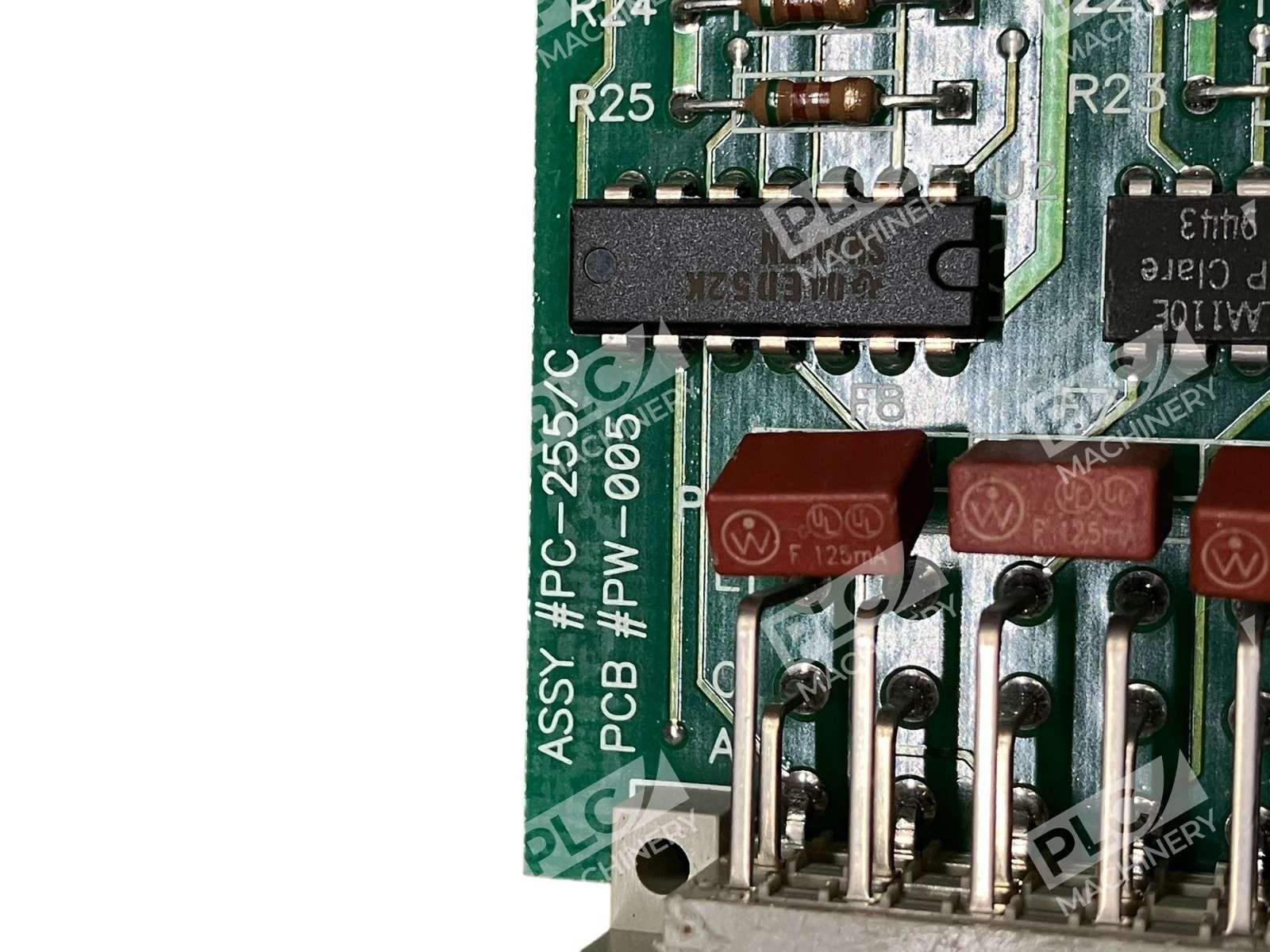

The MPM PC-255/C Digital I/O Connector Board is an industrial-grade PCB interface designed for seamless integration in PLCs, HMIs, and automation control systems. The MPM PC-255/C (PW-005, REV-C) provides multiple digital I/O connection points, enabling reliable communication between controllers and field devices such as solenoid valves, proximity sensors, limit switches, and low-energy motors. Built to industrial standards, this board delivers the signal isolation and connector reliability required in manufacturing and process automation environments.
Key Features
- Multiple digital I/O connector interfaces for flexible device integration
- REV-C design with proven industrial reliability
- Compact PCB form factor for space-constrained installations
- Compatible with standard industrial automation platforms and field wiring
- DIN connector compatibility for standardized field deployment
- Manufactured for durability in harsh industrial environments
Technical Specifications
The MPM PC-255/C is a modular connector board designed to support industrial I/O applications. Key technical attributes include:
- Product Type: Digital I/O Connector Board PCB
- Model: PC-255/C
- Variant: PW-005, REV-C
- Application: PLC and HMI automation systems
- Connector Interface: Industrial DIN-style connectors
- Digital I/O Channels: 7 units of digital I/O connection points
Typical Applications
The MPM PC-255/C is well-suited for:
- Distributed I/O terminal connections in manufacturing automation
- Solenoid valve control and pilot signal routing
- Sensor input signal conditioning and aggregation
- Industrial HMI systems requiring multiple field device interfaces
- Process control and equipment sequencing in harsh environments
- Machine tool automation and production line control systems
Compatibility & Replacements
Compatible With
- Industrial PLC platforms using standard I/O modules
- DIN-rail mounted automation control systems
- Solenoid valve manifolds and pneumatic control blocks
- Industrial automation field wiring harnesses
- Proximity and limit sensor arrays
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Specific replacement model information requires confirmation from the original system documentation.
Works With
- Industrial DIN connector standards (DIN 43650, ISO 4400/6952)
- Standard 24 VDC and control voltage systems
- Modular I/O architecture platforms
- Field-level automation networks
