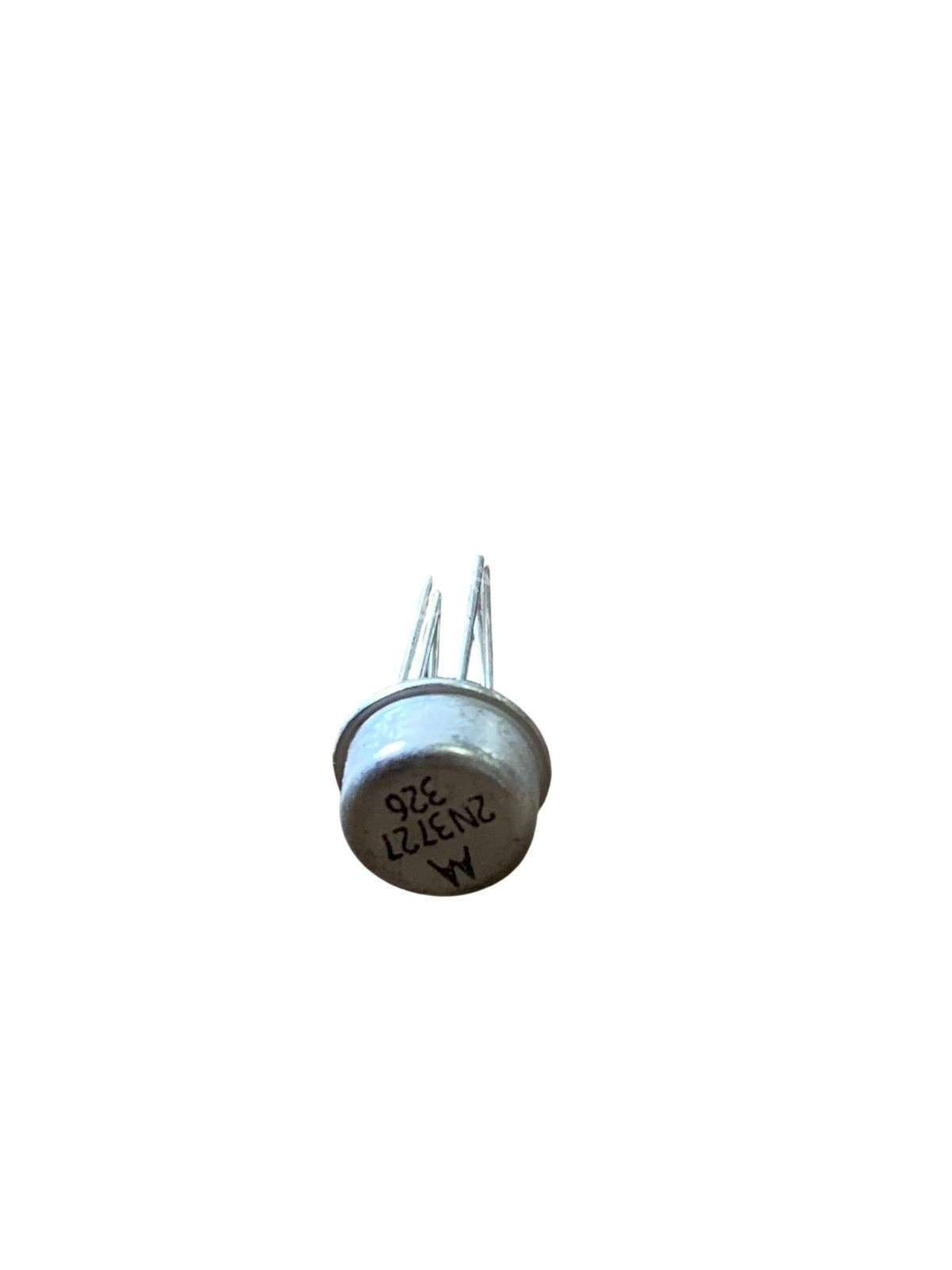

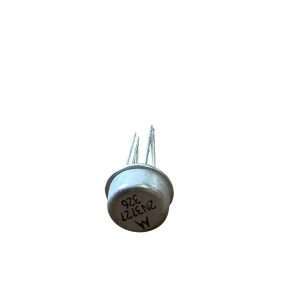

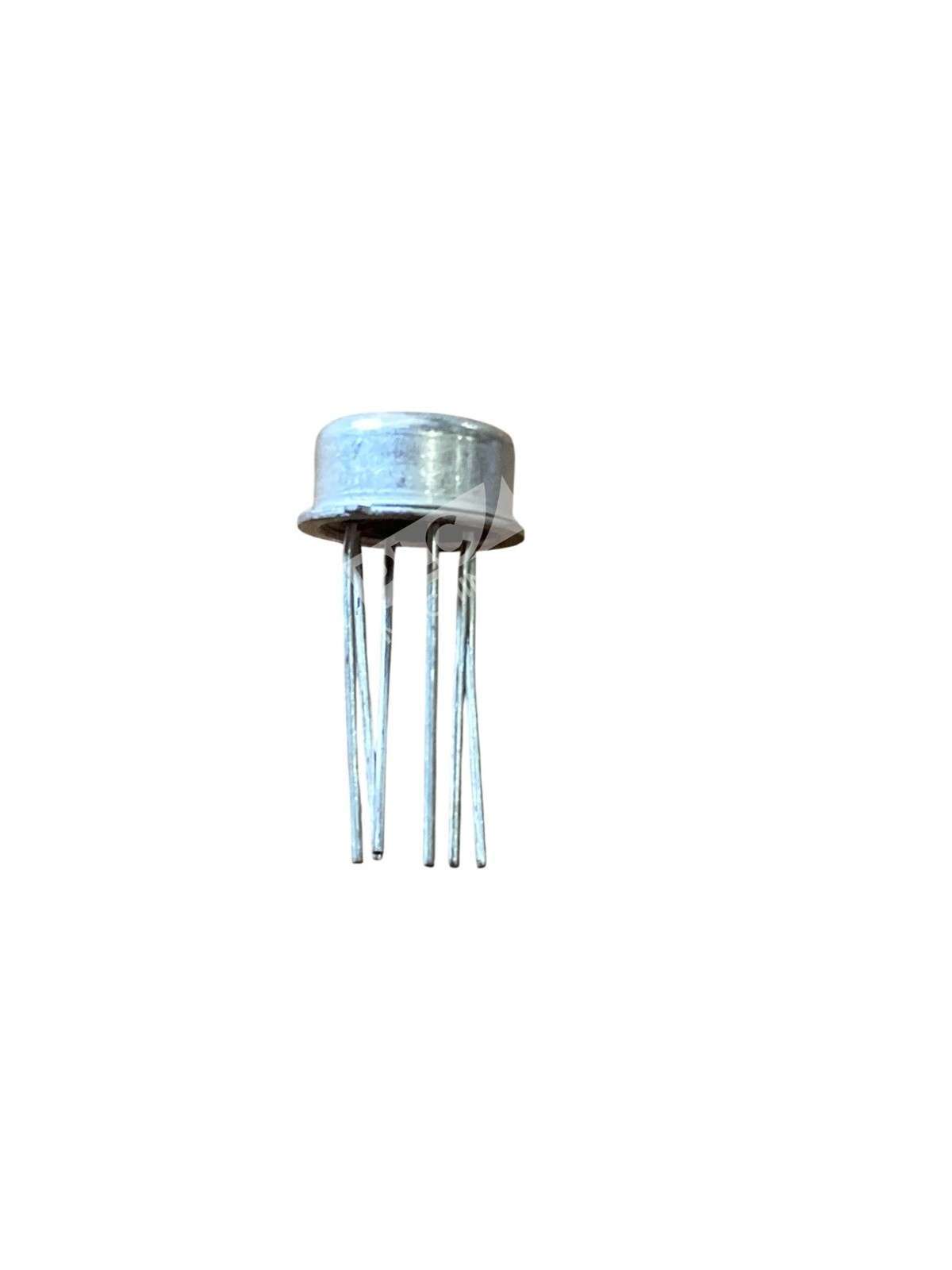

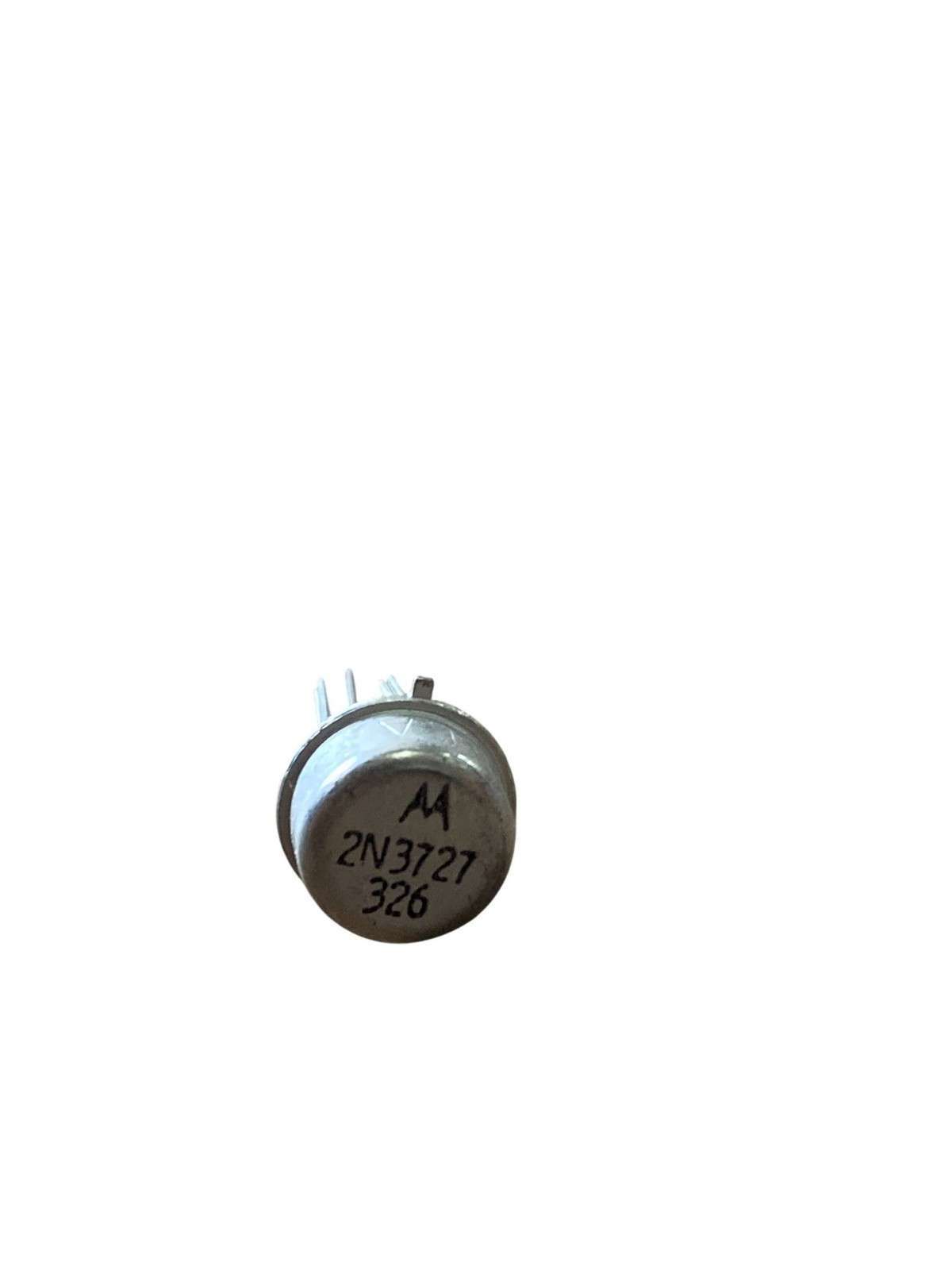

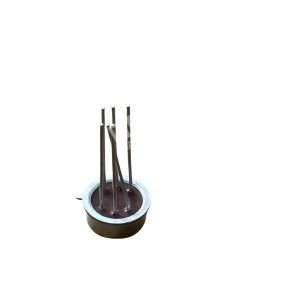

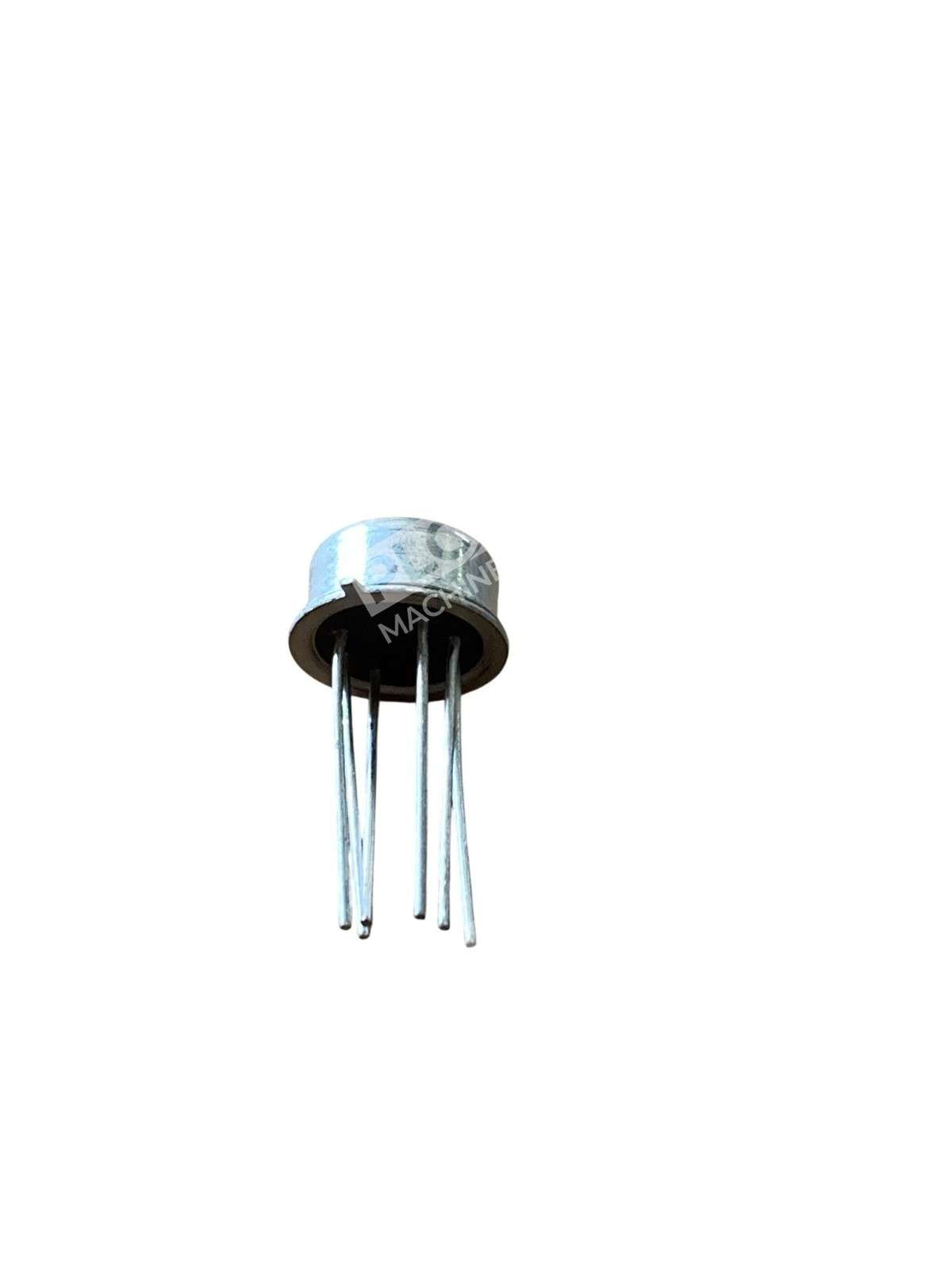

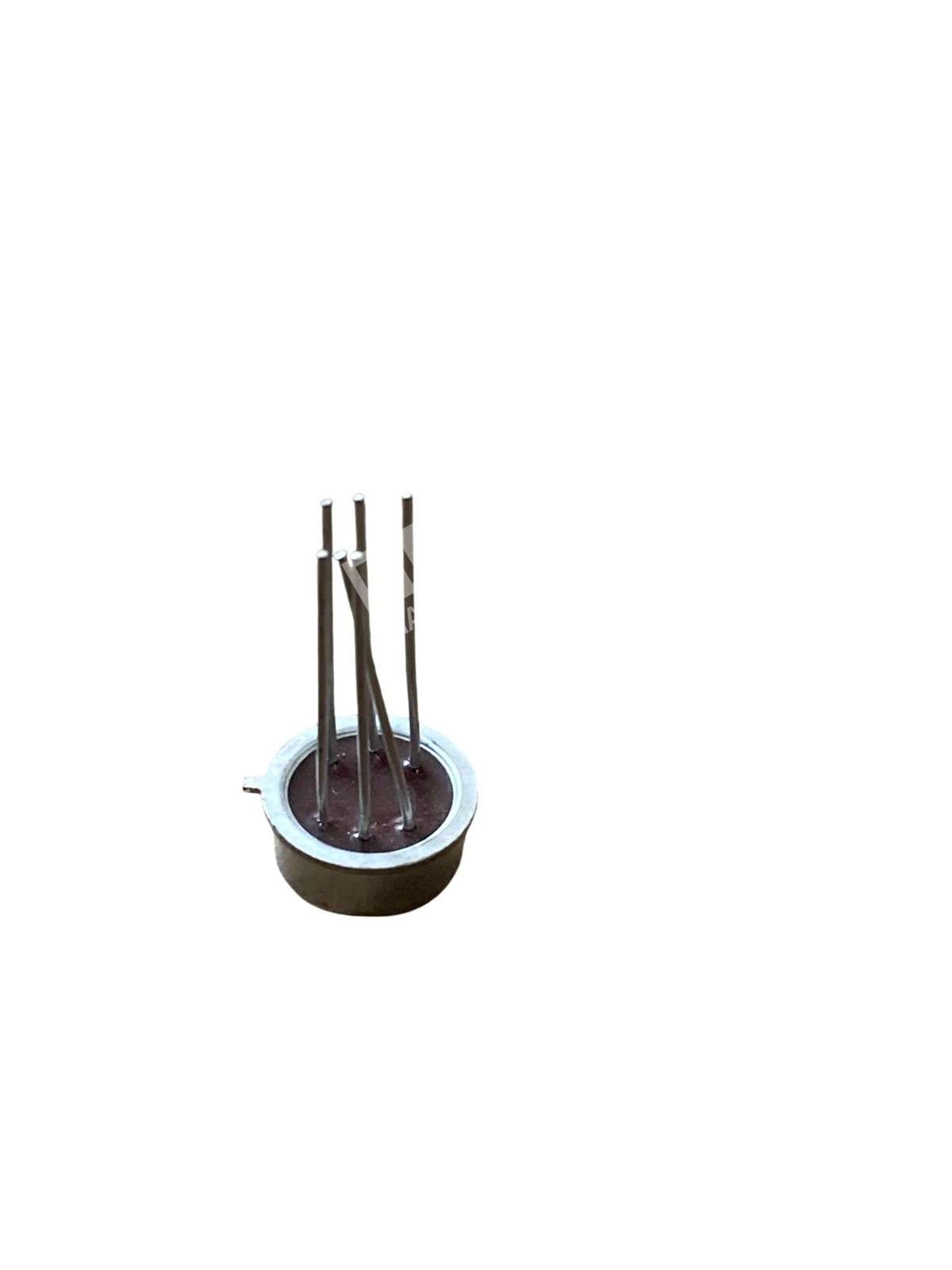

The Motorola 2N3727 is a dual PNP silicon transistor housed in a TO-78-6 metal can package, engineered for differential amplifier applications.
Key Features
- Dual PNP Configuration: Incorporates two PNP transistors, facilitating balanced differential amplification.
- High Voltage Tolerance: Supports a maximum collector-emitter voltage (VCE) of 45V, ensuring reliable operation in various circuits.
- Moderate Current Handling: Each transistor can handle a collector current (IC) up to 300mA, suitable for low to medium power applications.
- Efficient Power Dissipation: Designed with a total power dissipation capacity of 600mW, allowing for effective heat management.
- High Frequency Response: Exhibits a transition frequency (fT) of 200MHz, making it apt for high-speed signal processing.
Applications
The 2N3727 is ideal for use in differential amplifier circuits, where matched transistor pairs are essential for accurate signal amplification and processing. Its robust voltage and current ratings, combined with high-frequency performance, make it suitable for various analog and digital applications requiring precise amplification.
Package Details
Encased in a hermetically sealed TO-78-6 metal can, the 2N3727 ensures durability and protection against environmental factors, contributing to its reliability in critical applications.
Technical Specifications
- Collector-Emitter Voltage (VCE): 45V
- Collector Current (IC): 300mA
- Power Dissipation: 600mW
- Transition Frequency (fT): 200MHz
- Package Type: TO-78-6 Metal Can
For detailed electrical characteristics and application guidelines, refer to the manufacturer’s datasheet.
