Overview

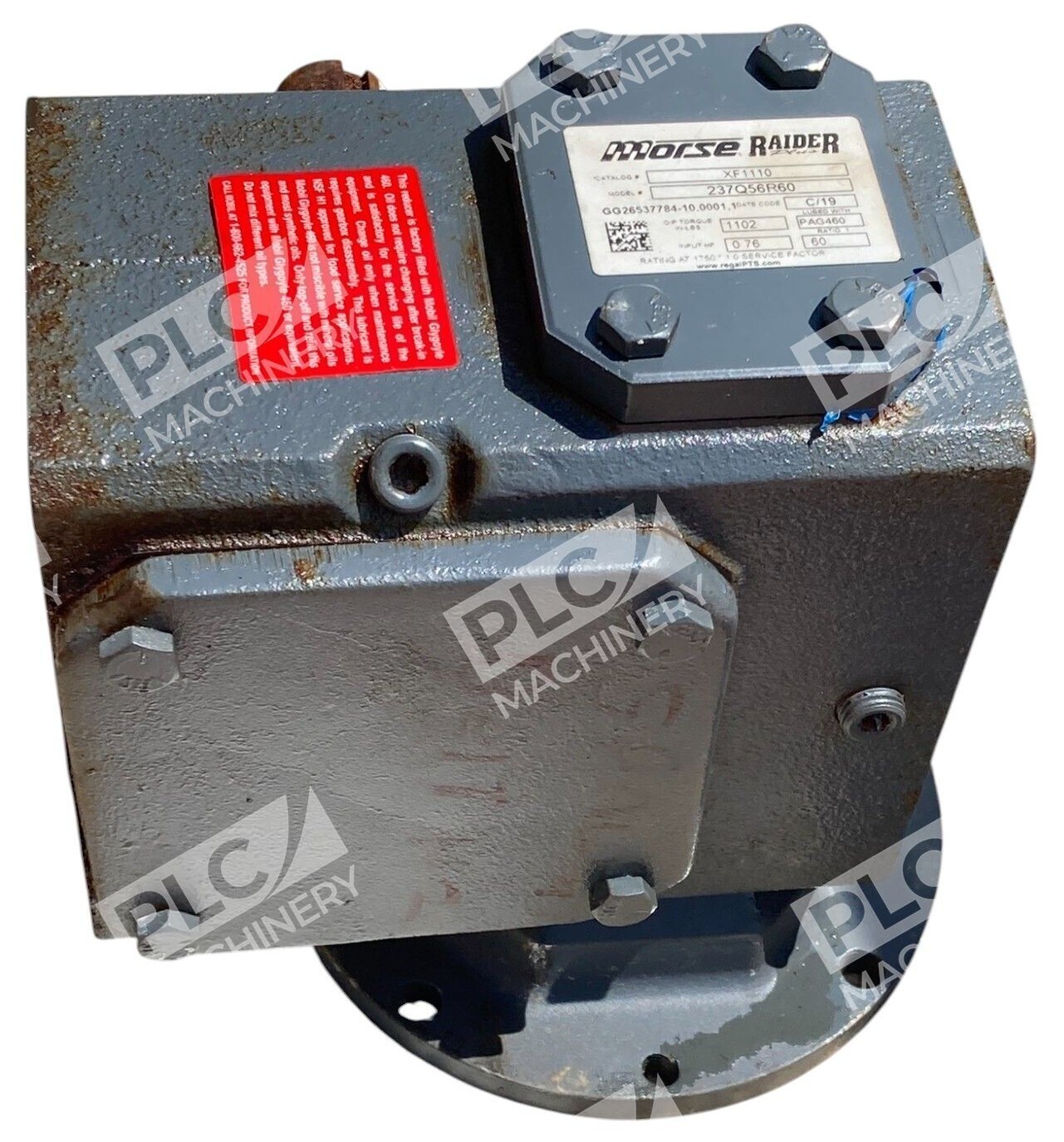

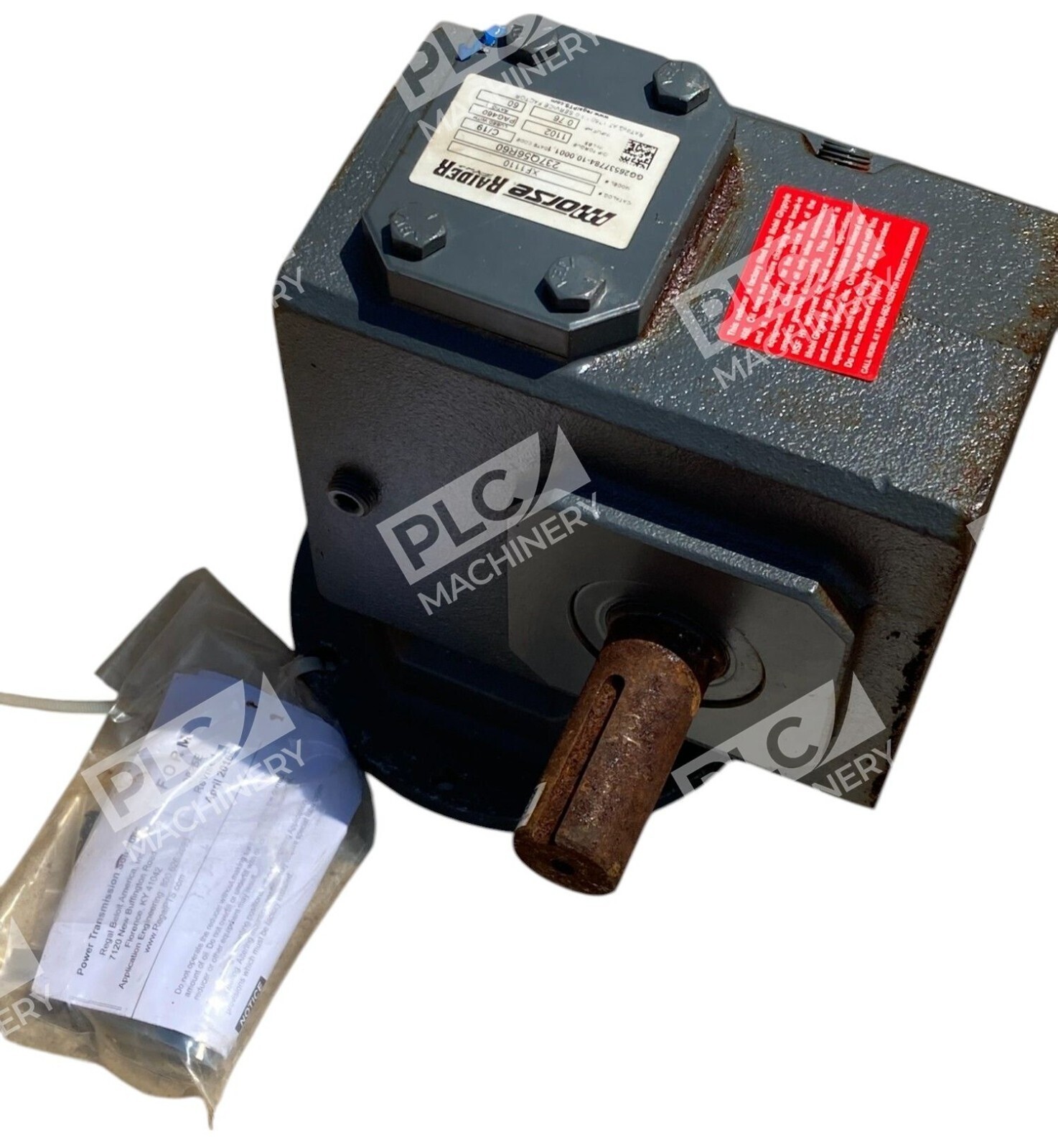

The Morse 237Q56R60 Raider Regal XF1110 is a single-reduction worm gear speed reducer engineered for demanding industrial automation and machinery applications. With a proven 60:1 gear ratio and robust cast iron construction, this reducer efficiently steps down motor speed while multiplying torque. The 1-1/8″ solid output shaft accommodates direct coupling to driven loads without intermediate adapters.
Key Features
- 60:1 Gear Ratio – precise speed reduction from standard 1750 rpm motors to approximately 29 rpm output
- Cast Iron Housing – rugged construction provides maximum strength, thermal stability, and long service life
- C-Face Quilled Input – compact mounting flange interface for direct motor coupling
- Single Solid Output Shaft – 1-1/8″ diameter shaft for direct load coupling; no hollow bore
- Ball Bearing Input, Tapered Roller Output – heavy-duty bearing support handles radial and thrust loads efficiently
- Double Lip Seals – precision sealing surfaces keep lubricant in and contaminants out
- Polyglycol Oil Lubrication – factory-filled for immediate operation
Technical Specifications
- Frame Size: 56C

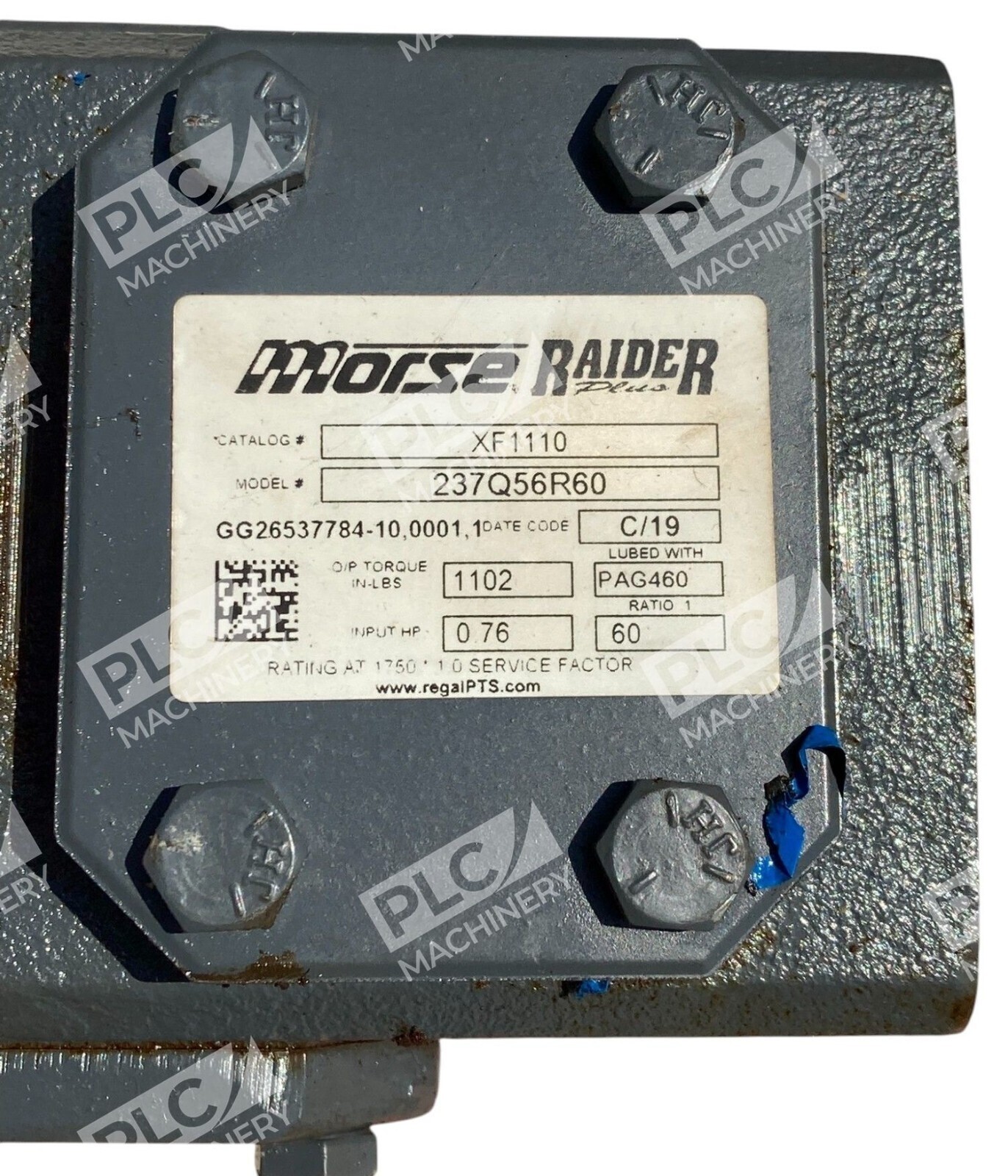

- Model Number: 237Q56R60 (XF1110)
- Gear Ratio: 60:1
- Gear Type: Single Reduction Worm
- Input Style: C-Face Quilled (5/8″ diameter)
- Output Shaft Diameter: 1-1/8″ solid
- Output Shaft Length: 2.66″ (approx.)
- Center Distance: 2.37″–2.38″
- Input Speed (Maximum): 1750 rpm
- Output Speed (Maximum): Approximately 29 rpm
- Input Torque: 34.93 in-lb
- Output Torque: 29.1 in-lb
- Horsepower Rating: 1 hp
- Efficiency: 80% (polyglycol lubrication)
- Housing Material: Cast Iron
- Mounting: Direct/Floor Mount or C-Face Motor Mount
- Lubrication: Polyglycol Oil (factory-filled)
- Dimensions: 8.4″ L × 7.84″ W × 6.94″ H (approx.)
- Weight: Approximately 40 lbs
- Condition: New – No Box
Typical Applications
- Conveyor Drive Systems – smooth, reliable torque delivery for production line speed control
- Mixer and Agitator Drives – high torque multiplication at low speed for batch processing equipment
- Hoisting and Lifting Equipment – compact footprint with significant load-holding capability
- Packaging and Labeling Machinery – precise speed reduction for synchronized operations
- Process Equipment Drives – chemical, food, pharmaceutical, and general industrial automation
- Material Handling Systems – turbines, pumps, and rotating machinery requiring low-speed torque
Compatibility & Replacements
Compatible With
- Standard 1750 rpm AC electric motors (1 hp nominal)
- C-Face flange mount motors (NEMA standard)
- Direct floor or machine-mounted installations
- Polyglycol oil lubricated worm gear reducer systems
- Standard industrial shaft couplings and adapters (1-1/8″ ID)
Replaces / Drop-In Replacement For
- Earlier Morse Raider 237Q56R60 units
- Comparable single-reduction 60:1 worm gear reducers with 1-1/8″ output (verify flange pattern and input style with system integrator)
- Industry-interchange 237Q56 frame size 60:1 reducers from competitors (dimensional compatibility confirmed, but always verify motor mount interface)
Works With
- NEMA C-Face motor mounting standards
- Standard 5/8″ motor shaft couplings
- Industrial polyglycol and mineral oil lubricants (see maintenance documentation)
- Morse Raider Plus accessory line (input adapters, output hubs, seal kits)
- Direct mechanical power transmission applications (not electronic control dependent)
