Overview

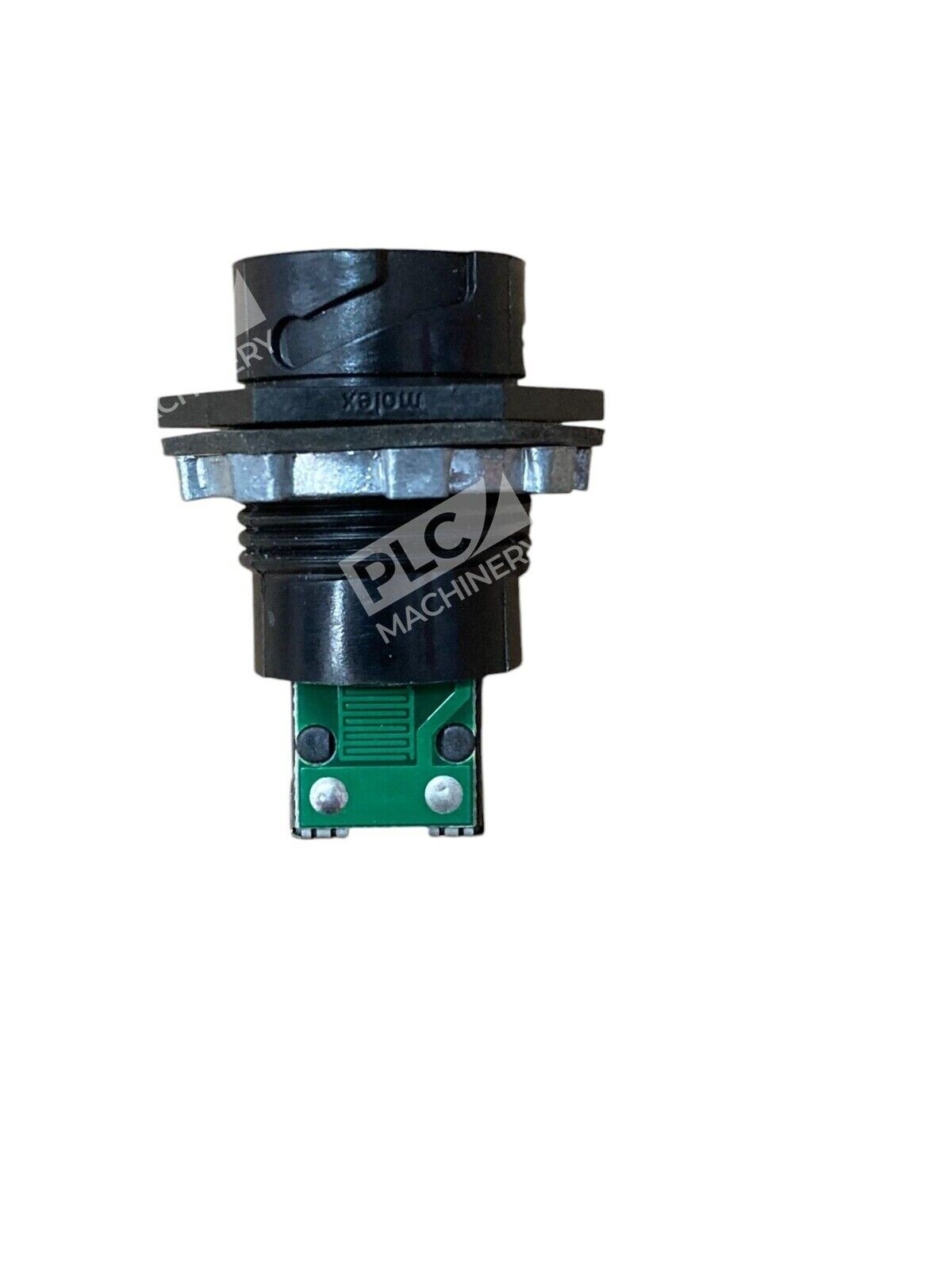

The Molex 84700-0001 is a panel-mount industrial Ethernet RJ-45 receptacle engineered for reliable connectivity in factory automation, machine control, and industrial data communication systems. This Industrial Ethernet RJ-45 Receptacle, Panel Mount provides a standardized interface for connecting Ethernet cables to control enclosures and equipment in harsh manufacturing environments.
Key Features
- 8 contact / 8 position inline male industrial receptacle design
- IP67 and NEMA 6P rated for safe use in industrial environments
- Bayonet style latching ensures audible and tactile confirmation of positive mating
- Meets ODVA/EtherNet IP specifications suitable for PC-based control, supervision, data storage, and protocol bridging
- Designed to accept standard datacoms shielded (FTP) or unshielded (UTP) cables with either solid or stranded conductor cores
- Allows fast plug-and-play connection with a variety of cable types, cable exit, coupling nut and length options for maximum flexibility
Technical Specifications
- Connector Type: RJ-45 (8P8C)
- Configuration: Receptacle, Panel Mount
- Cable Type: Straight
- Shielding: Unshielded
- Contact Position: 8 contacts, 8 positions
- Rating: IP67 / NEMA 6P
- Standard Compliance: ODVA/EtherNet IP
- Cable Acceptance: Category 5e, FTP/UTP, solid or stranded
- Material: Lead-free
- Series: Molex 84700
Typical Applications
Designed to extend office communication networks to the factory floor and address external harsh Ethernet and datacoms applications, providing a secure and trouble-free data communications link for arduous operating environments. Common uses include:
- Industrial automation control systems and PLCs
- Manufacturing floor Ethernet infrastructure
- Factory enclosure panel mount connections
- EtherNet/IP protocol networks
- PROFINET industrial networks
- Remote I/O and sensor connectivity
Compatibility & Replacements
Compatible With
- Standard RJ-45 Ethernet plugs and cables (Category 5e and higher)
- EtherNet/IP protocol networks
- PROFINET industrial communication systems
- PC-based control systems and HMIs
- Industrial Ethernet switches and gateways
- Allen-Bradley, Siemens, Omron, and other PLC manufacturers using standard Ethernet
Replaces / Drop-In Replacement For
The Molex 84700-0001 is directly compatible with applications previously using standard RJ-45 panel-mount receptacles in industrial environments. Verify compatibility with your system integrator before ordering.
Works With
- Shielded and unshielded Ethernet cables (CAT5e, CAT6)
- EtherNet/IP networks and devices
- PROFINET industrial automation networks
- Standard Ethernet protocols (TCP/IP, UDP)
- Industrial control software and SCADA systems
- Factory automation networks and industrial IoT applications
