Overview

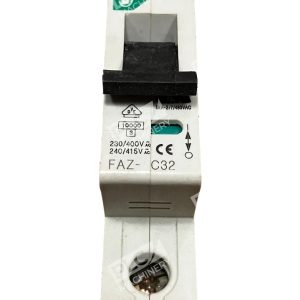

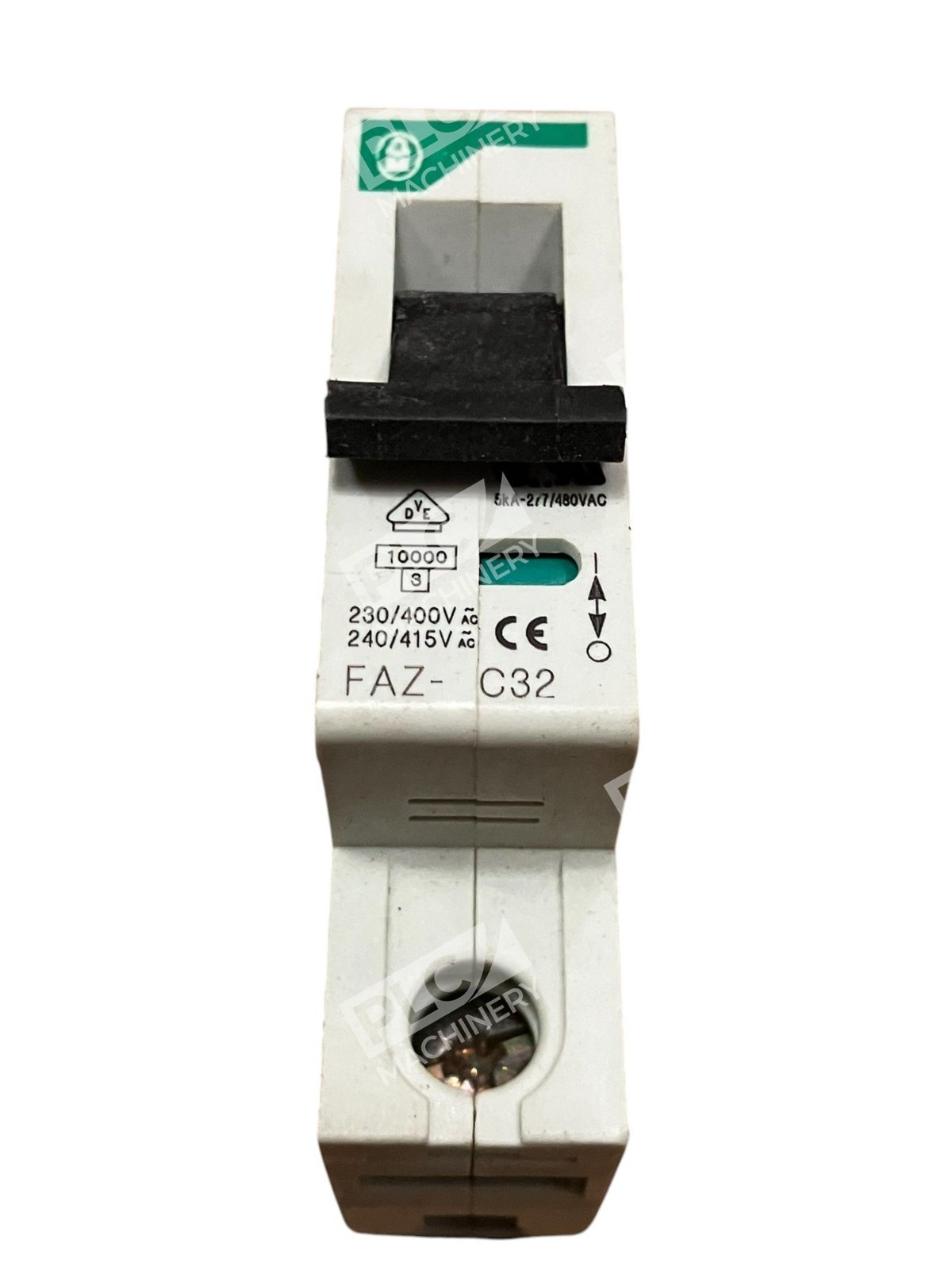

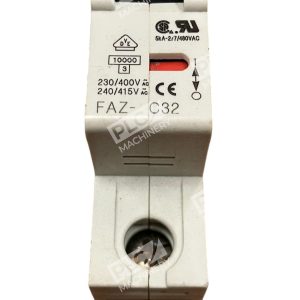

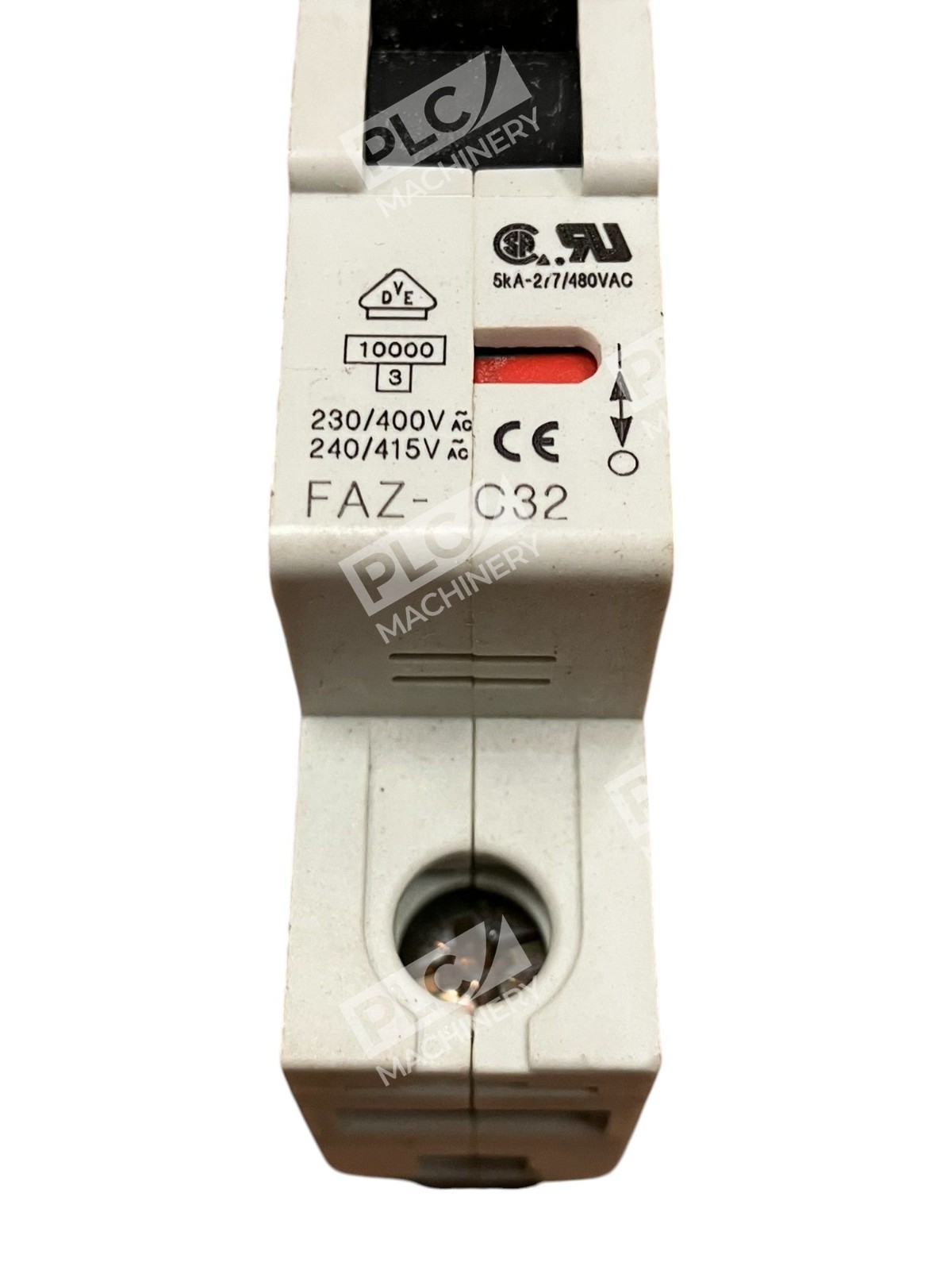

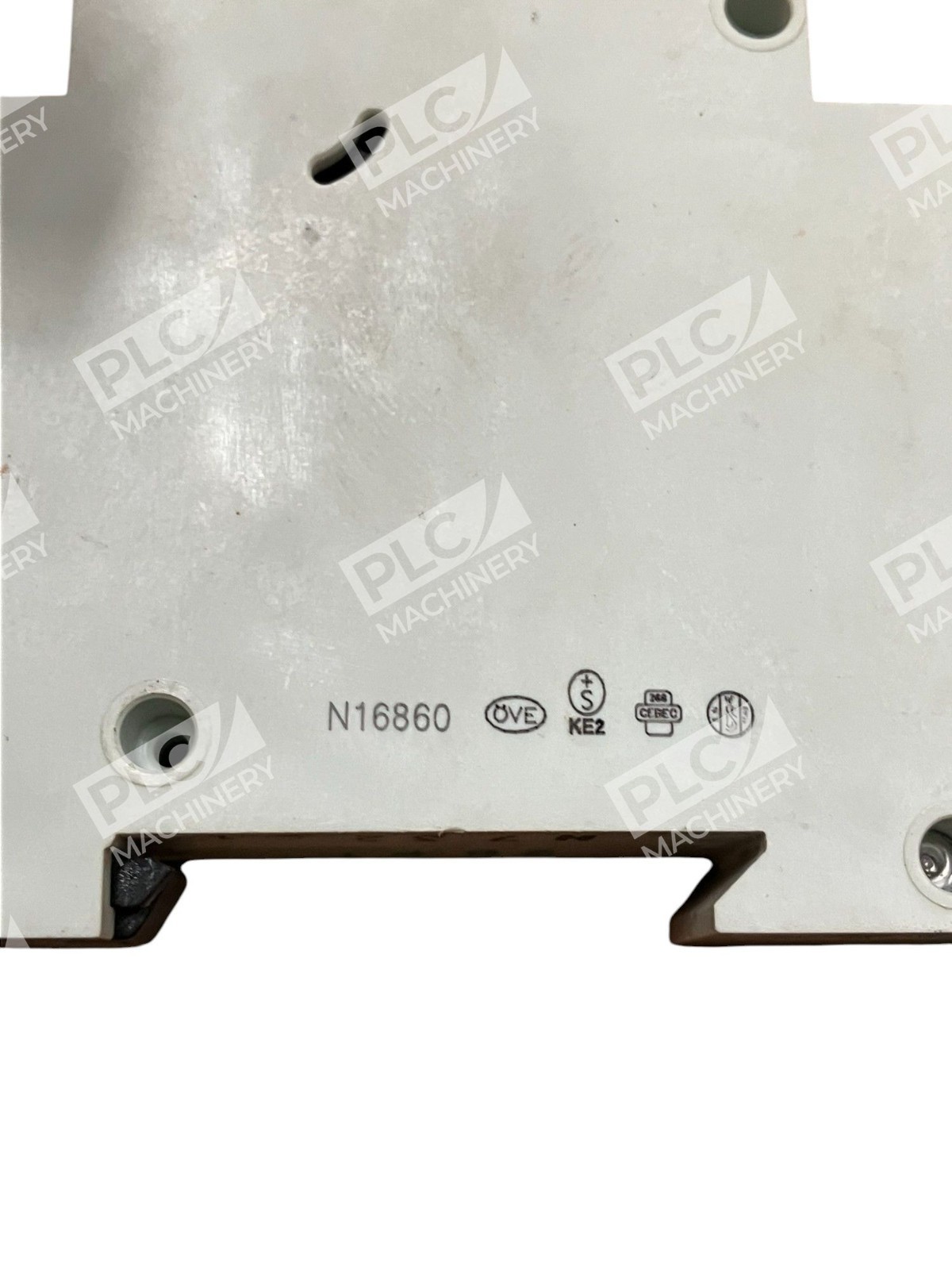

The Eaton Moeller FAZ-C32 is a compact, reliable miniature circuit breaker (MCB) rated at 32 amperes with Type C tripping characteristic. Part of the Eaton xEffect industrial switchgear family, the FAZ-C32 is designed for branch circuit protection in industrial and advanced commercial applications. This DIN rail-mounted breaker combines proven Moeller engineering with modern safety standards, making it ideal for machine control panels, automation systems, and electrical distribution boards.
Key Features
- 32 ampere rated current with Type C tripping curve for general-purpose and slightly inductive loads
- Compact DIN rail form factor—available in single-pole, two-pole, and three-pole+neutral configurations
- Multiple voltage ratings: rated 230/400V AC and 240/415V AC according to IEC/EN 60898-1
- UL and CSA certifications ensure compliance with North American and international standards
- Thermal-magnetic release mechanism for fast, reliable fault protection
- Designed for integration into xEffect switchgear enclosures and control panel applications
Technical Specifications
- Rated Current: 32 A
- Tripping Characteristic: Type C (instantaneous trip 5–10× In)
- Voltage Rating (IEC/EN 60898-1): 230/400 V AC, 240/415 V AC
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage (UI): 440 V
- Frequency Rating: 50/60 Hz
- Breaking Capacity (Icu): Typically 5–6 kA (verify exact model variant)
- Mounting: DIN rail (35 mm standard)
- Dimensions: 17.7–36 mm width, 75.5 mm height (varies by pole count)
- Weight: 0.128–0.456 kg (varies by pole count)
- Operating Temperature: –25 to +60 °C
- Certifications: IEC/EN 60898, UL 1077, CSA-C22.2 No. 235, EN45545-2
Typical Applications
- Branch circuit protection in industrial control panels and machine tools
- Motor circuit protection for fractional-horsepower and low-power motors
- General-purpose and slightly inductive load circuits in automation cabinets
- Switchgear assembly and electrical distribution in advanced commercial buildings
- OEM panel builders and system integrators requiring compact, certified MCBs
Compatibility & Replacements
Compatible With
- Eaton xEffect DIN rail switchgear enclosures and assemblies
- Standard 35 mm DIN rail systems per IEC 60715
- Industrial control systems and machine automation platforms
- Panels and cabinets using 230–415 V AC three-phase and single-phase supplies
- Systems requiring UL 1077 supplementary or UL 489 main circuit protection
Replaces / Drop-In Replacement For
- Other Moeller FAZ-C32 variants in different pole configurations (FAZ-C32/1, FAZ-C32/2, FAZ-C32/3N)
- Legacy or equivalent 32A Type C miniature circuit breakers with identical IEC/EN ratings
- Verify part number and pole configuration with your system integrator before ordering
Works With
- IEC 60898-1 and IEC 60947-2 compliant electrical control systems
- Panel design software supporting DIN-mounted protective devices (e.g., electrical CAD systems)
- Industrial automation platforms using standard AC circuit protection (no special firmware or software required)
- Both Eaton and third-party switchgear enclosures supporting standard DIN rail mounting
