Overview

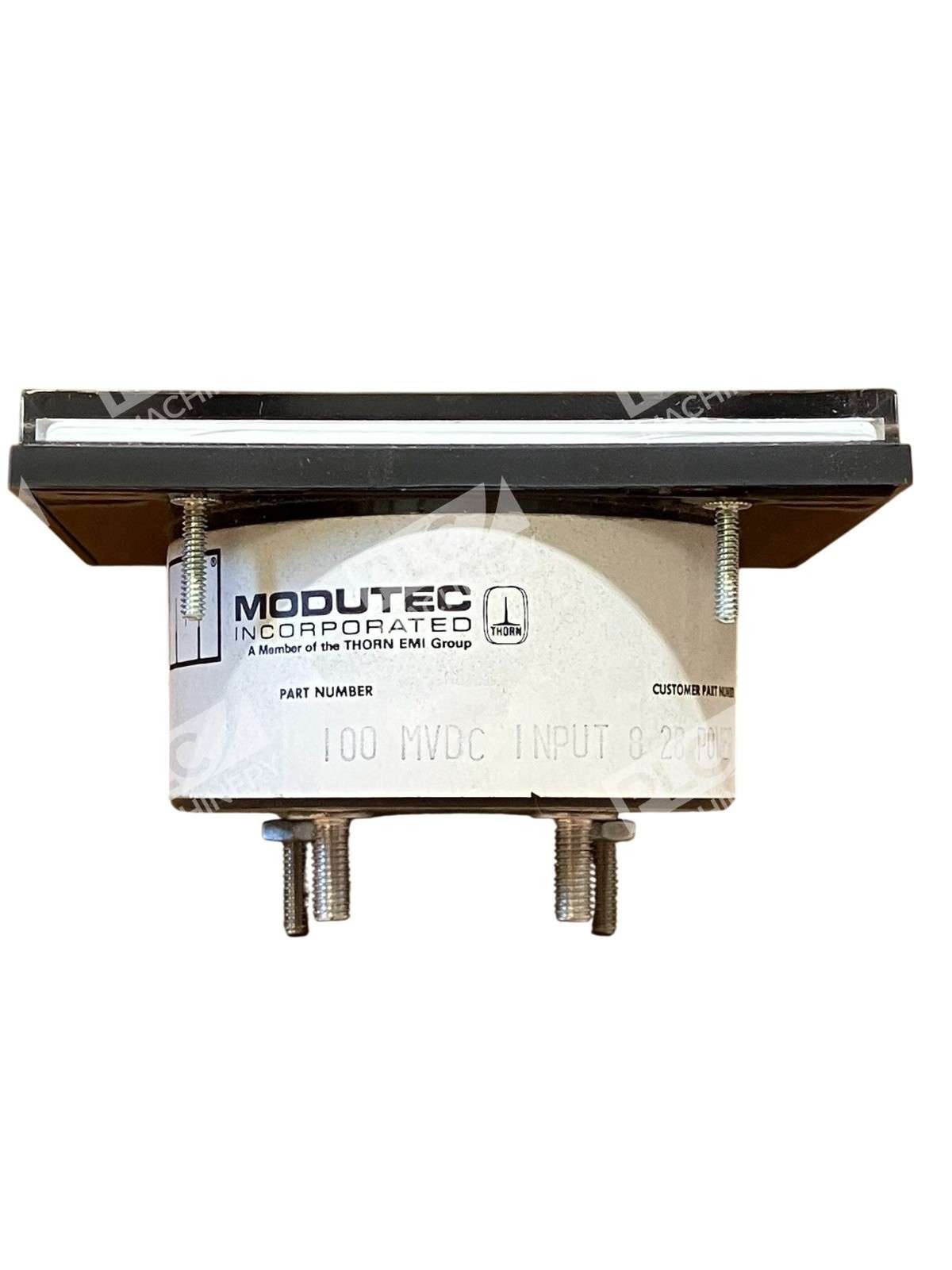

The Modutec 00-916069 is an analog panel meter designed specifically for DC amperes measurement with a 100 millivolt DC (MVDC) input sensitivity. Manufactured by Modutec (a division of Jewell Instruments), this meter delivers accurate and repeatable current indication suitable for industrial control panels, test equipment, and process monitoring applications. The meter’s analog display provides immediate visual feedback without requiring external power for the display function.
Key Features
- DC amperes measurement with 100 MVDC input range
- Analog needle display for intuitive current indication
- Reliable meter movement for long service life in industrial environments
- Suitable for integration into existing control panels and instruments
- Direct current sensing without external conversion circuitry
Technical Specifications
The Modutec 00-916069 is configured as a DC current meter with a 100 millivolt DC input specification. Key measurement characteristics include straightforward analog needle indication and compatibility with standard panel mounting configurations used across the Modutec product line. Operating principles follow conventional moving-coil meter design for DC applications.
Typical Applications
- Industrial machinery and motor control monitoring
- Power supply and battery charger current indication
- Test and measurement equipment integration
- Process control systems requiring current feedback
- Maintenance and troubleshooting diagnostic displays
Compatibility & Replacements
Compatible With
- Standard analog meter mounting configurations
- DC power systems requiring current indication
- Control panels using 100 MVDC signal sources
- Modutec S-Series and W-Series panel meter frameworks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or original equipment documentation before ordering. Modutec part numbers may have specific mounting and electrical variants.
Works With
- Shunt-type current sensing circuits
- Low-voltage DC signal conditioning
- Standard panel-mount meter bezels
- Industrial control and instrumentation systems
