Overview

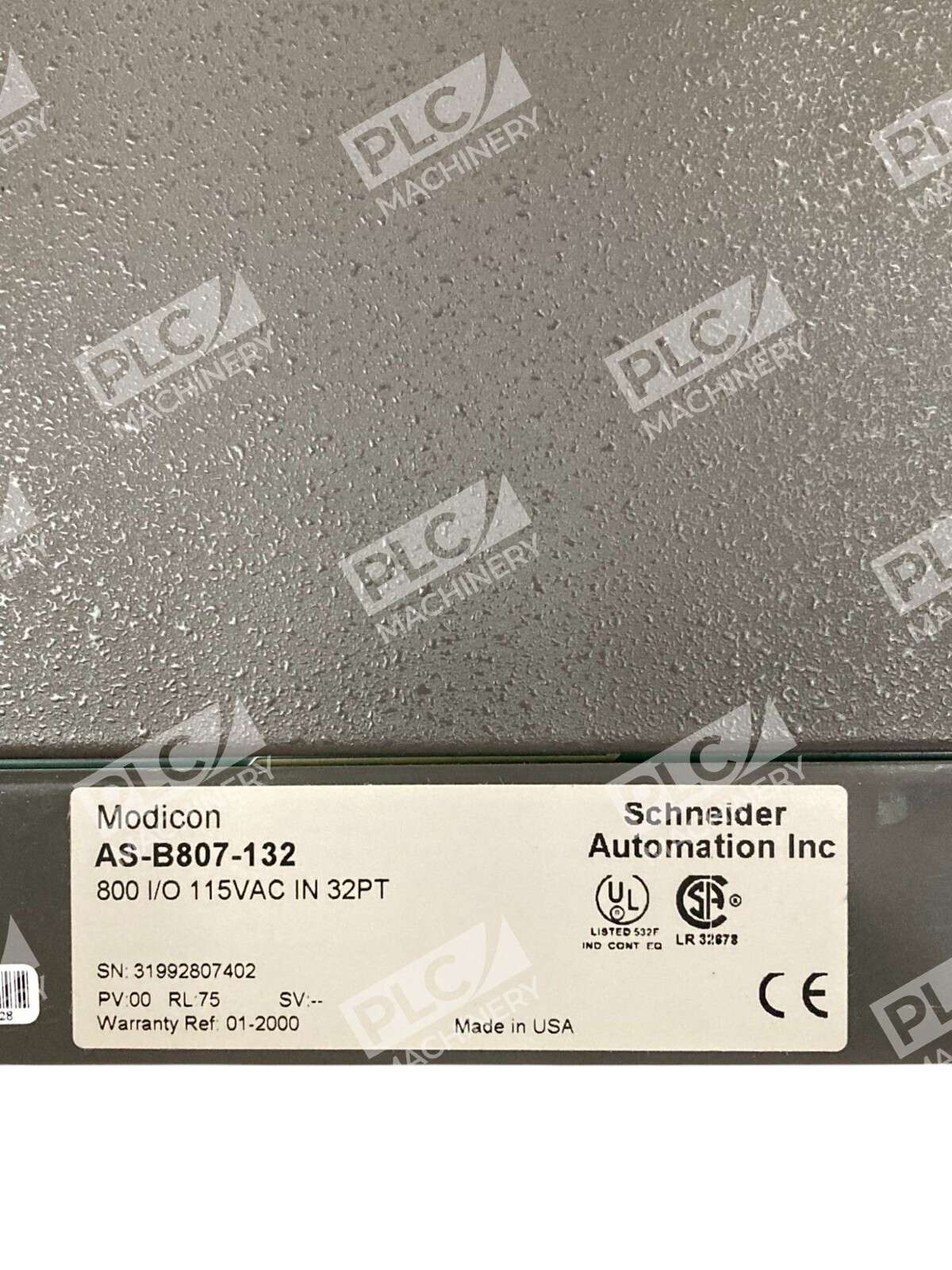

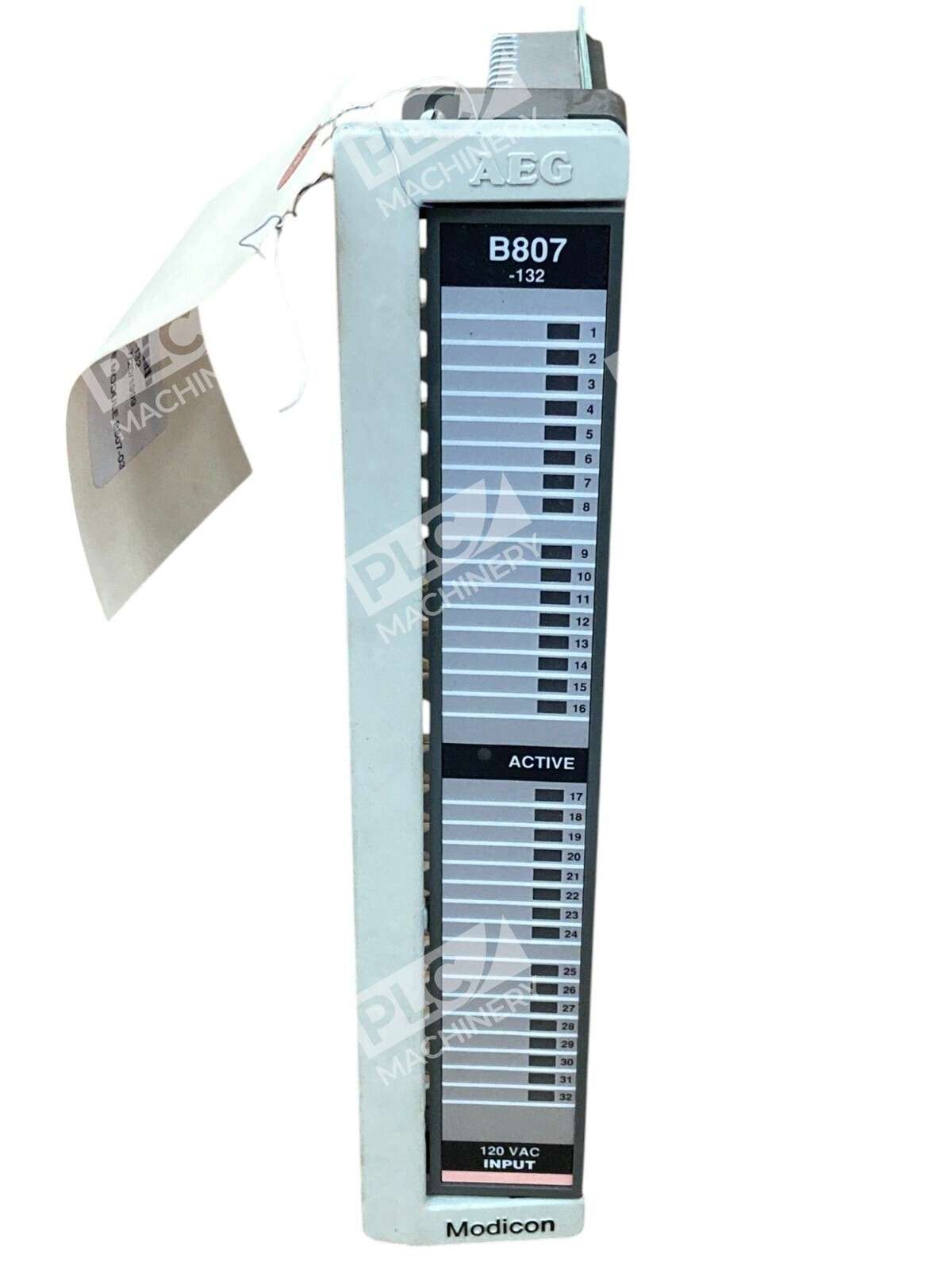

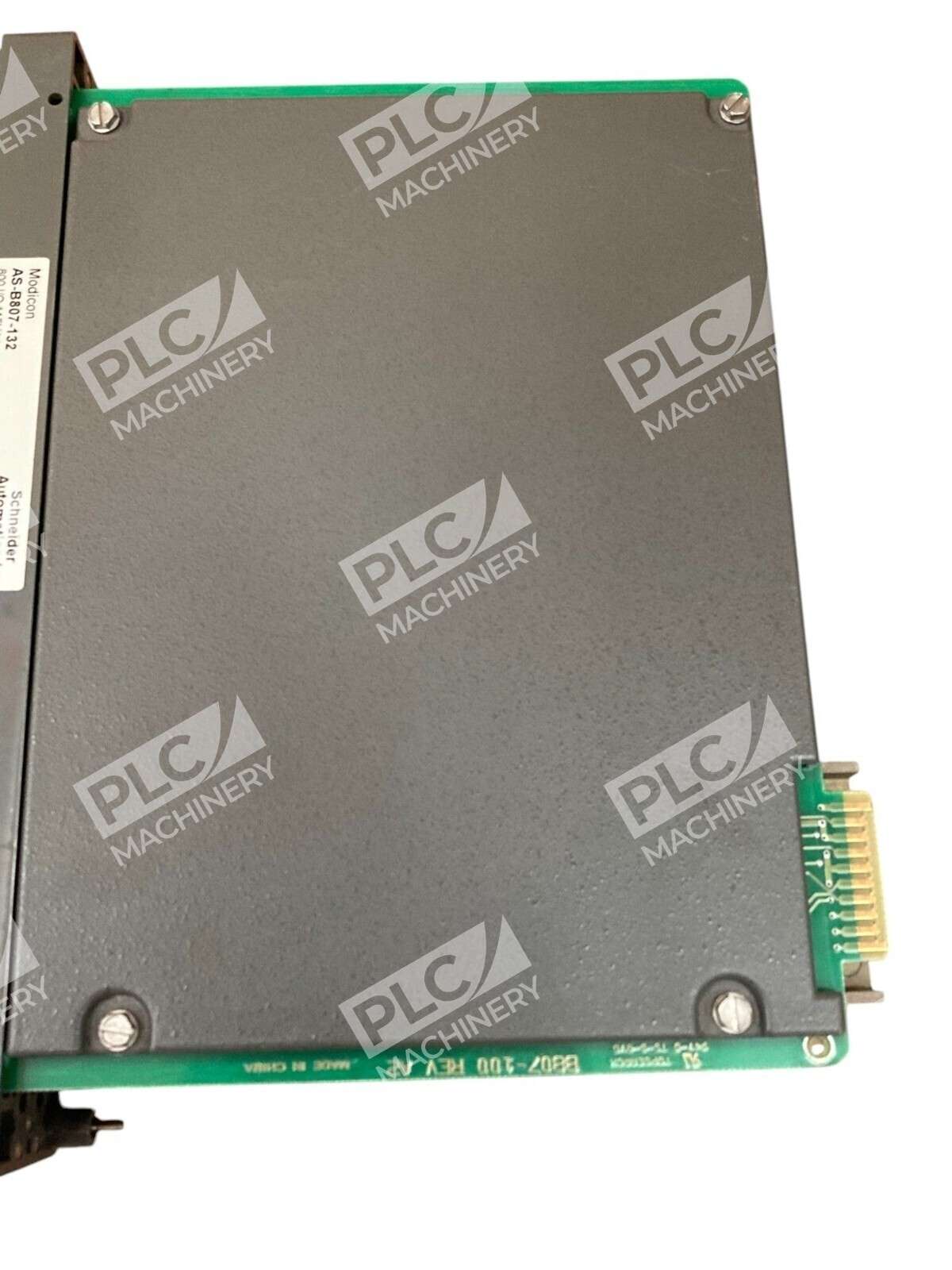

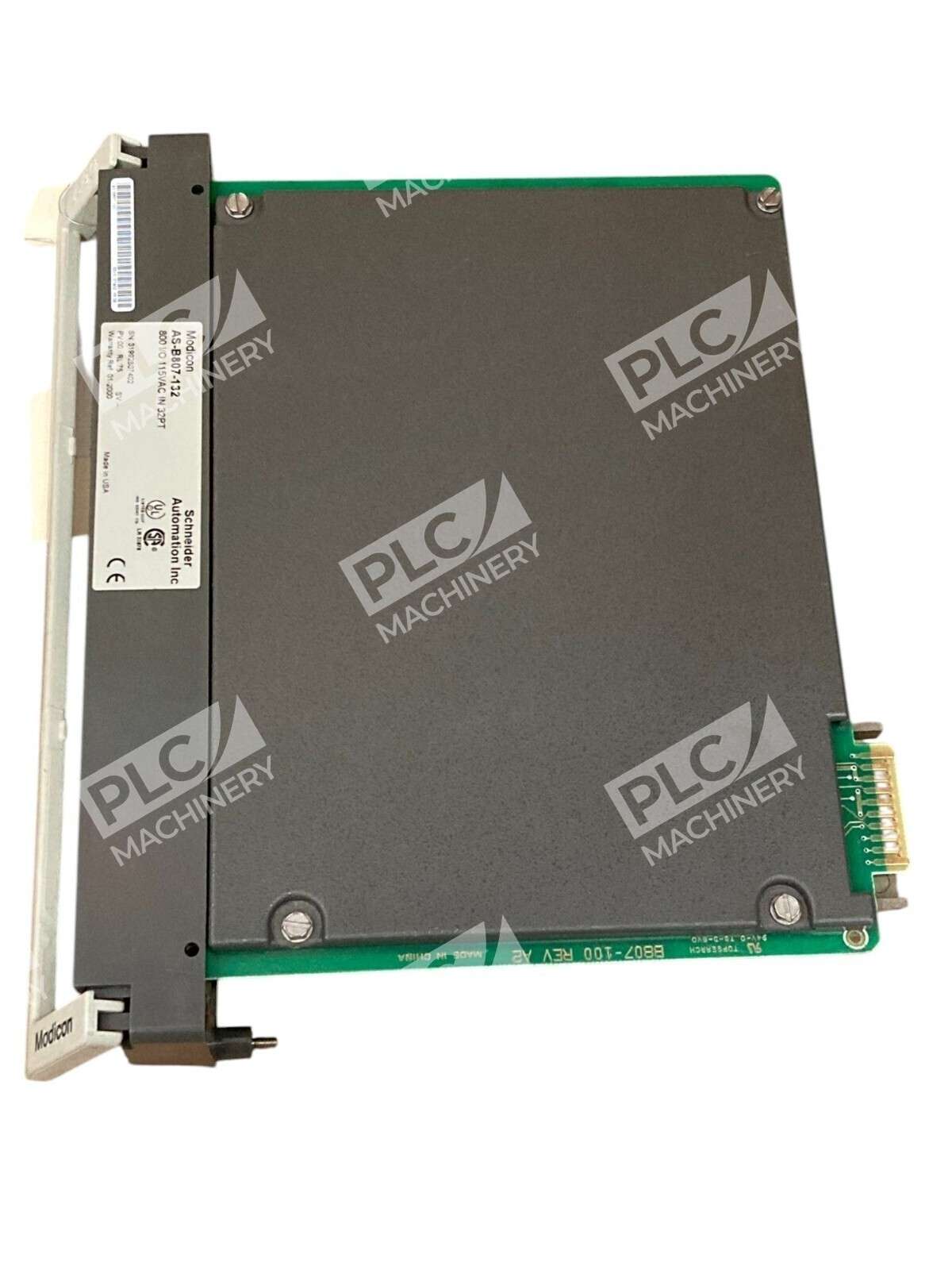

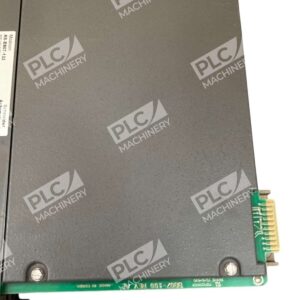

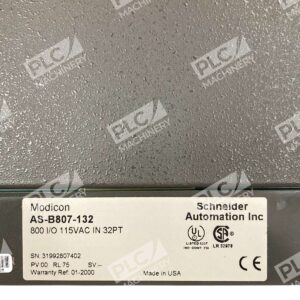

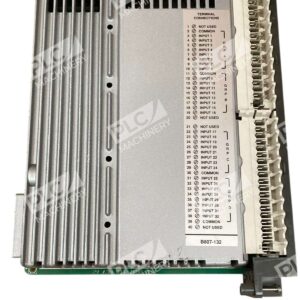

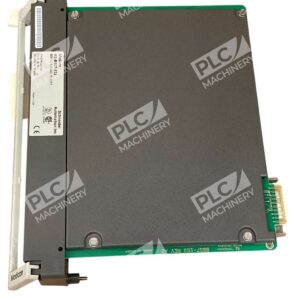

The Modicon AS-B807-132 is a specialized 32-point discrete input module engineered for Schneider Electric Modicon series PLCs and compatible industrial automation controllers. This module senses and converts 115VAC switched input signals into logic voltage levels used by programmable logic controllers. The AS-B807-132 is organized into four input groups of eight points each, providing flexible signal handling for pushbuttons, limit switches, proximity switches, and other 115VAC field devices.
Key Features
- 32-point input configuration (4 groups × 8 inputs)
- 115VAC operating voltage with wide acceptance range (80–130VAC continuous)
- Accepts field signals from pushbuttons, limit switches, and proximity switches
- Compact discrete I/O design for modular PLC rack systems
- Compatible with Modicon Automation 800 series controllers
Technical Specifications
- Input Type: Discrete (115VAC)
- Point Count: 32 inputs

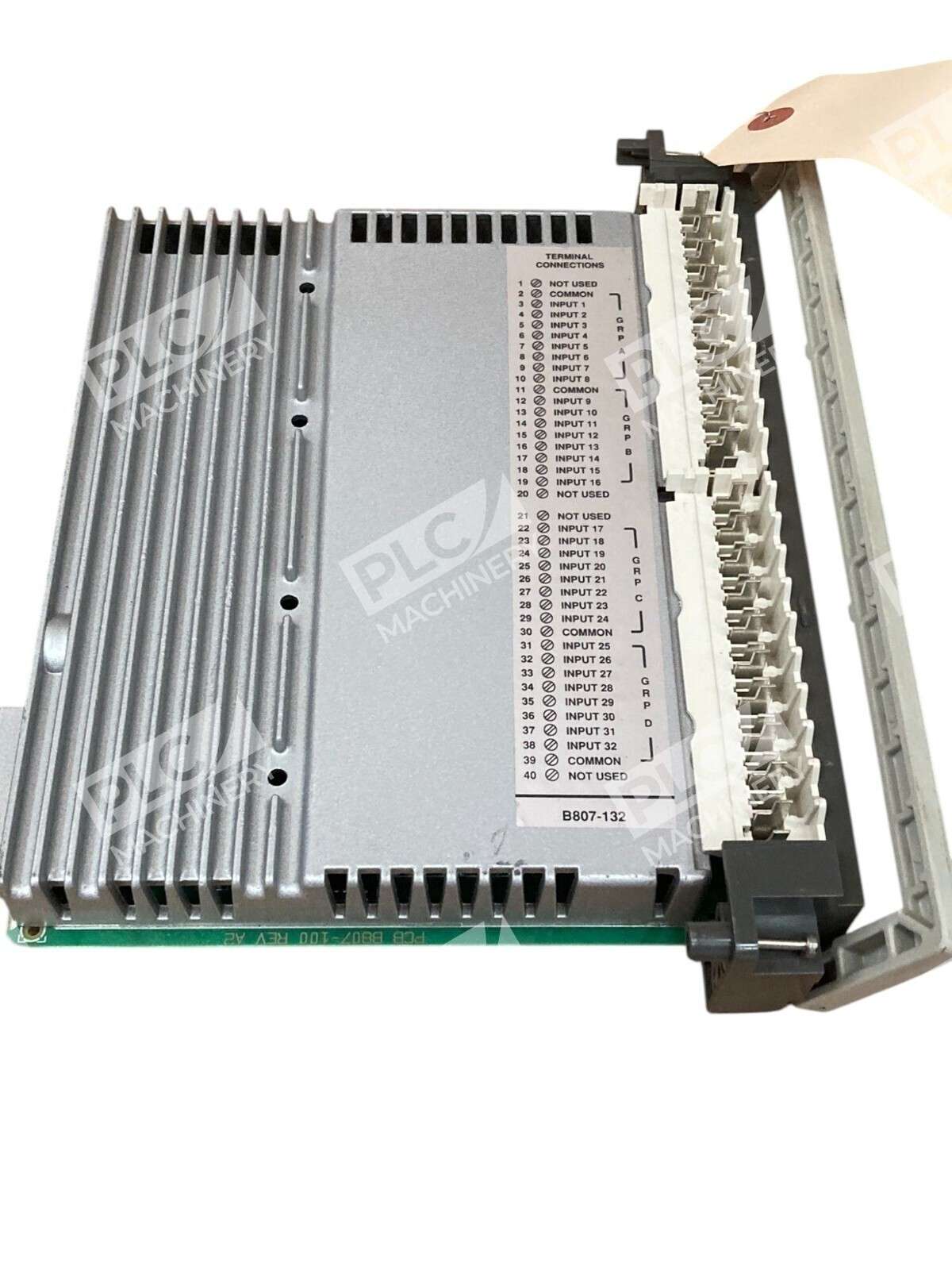

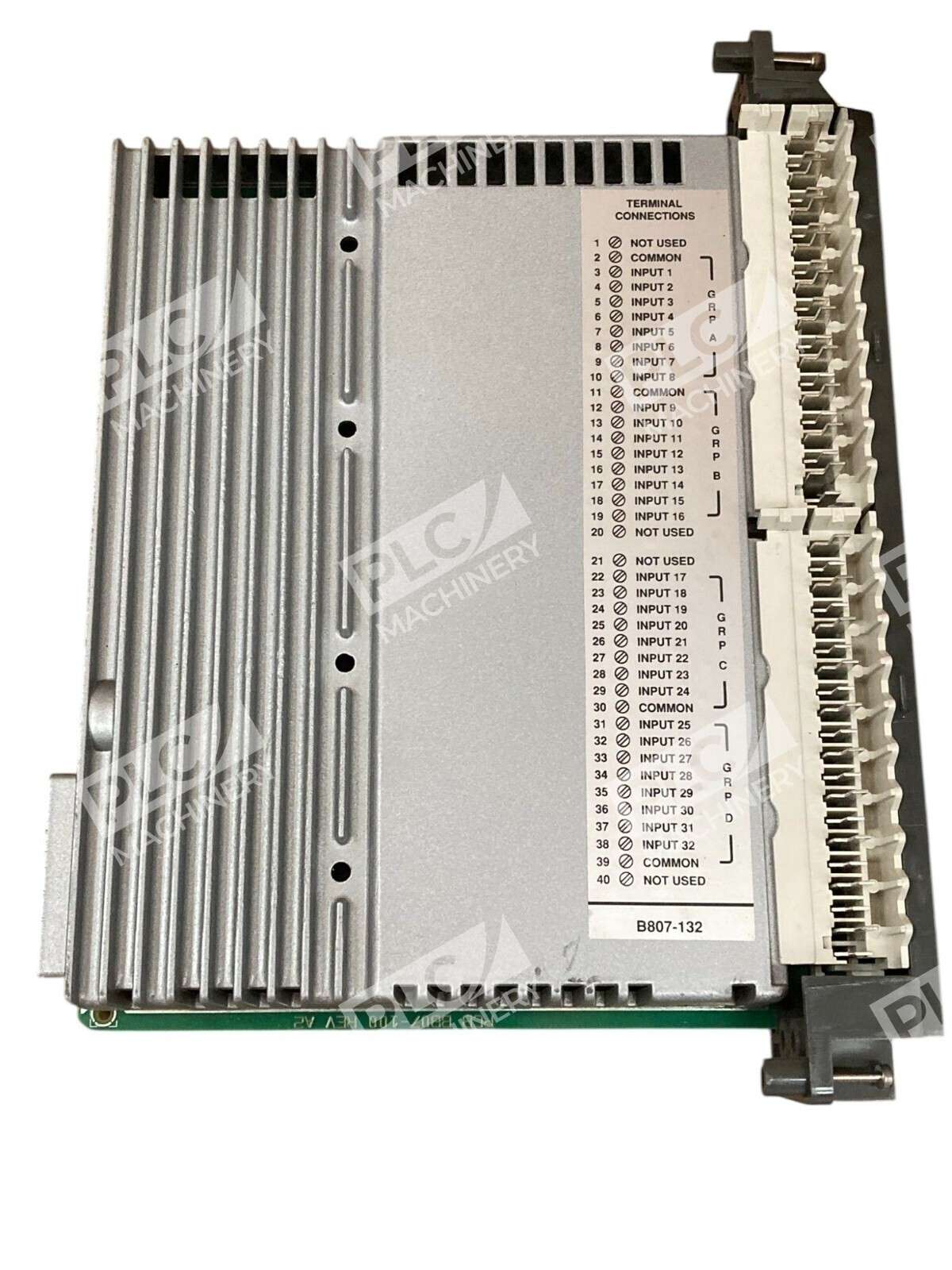

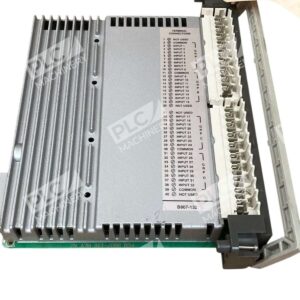

- Input Groups: 4 groups of 8 inputs
- Operating Voltage: 80–130VAC continuous, 47–63 Hz
- Maximum Input Voltage: 150VAC for 10 seconds; 200VAC for 1 cycle
- ON Condition: 80–130VAC (source impedance <1 kΩ)
- OFF Condition: 0–35VAC (source impedance = 0 Ω) or 0–130VAC (source impedance >90 kΩ)
- ON Current: 3.7 mA minimum @ 80VAC, 50Hz; 6.4 mA minimum @ 115VAC, 60Hz
- Maximum Leakage Current: 1.8 mA @ 60Hz
- Weight: 2.30 lbs
- Module Type: Input Module
- Manufacturer: Schneider Electric (Modicon)
- Status: Discontinued by manufacturer
Typical Applications
The AS-B807-132 is widely used in:
- Manufacturing and assembly line automation
- Material handling equipment control
- Process monitoring and sensor signal aggregation
- Machine tool control systems
- Building automation and HVAC monitoring
- Discrete sensor input conditioning for legacy Modicon 800 series PLCs
Compatibility & Replacements
Compatible With
- Modicon Automation 800 series PLC controllers
- Modicon M340 legacy systems
- Modicon TSX Micro series (with appropriate adapters)
- 115VAC field devices (pushbuttons, switches, proximity sensors)
- 47–63 Hz power sources (50 Hz European / 60 Hz North American)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Direct replacement models depend on your specific Modicon rack configuration. This module is interchangeable with other AS-B807-132 units from Schneider Electric Modicon manufacturing batches. No alternative equivalent models are documented without rack-specific verification.
Works With
- Modicon PLC programming software (Concept, Unity Pro legacy support)
- Discrete 115VAC automation networks
- MODBUS protocol communications (via host controller)
- Industrial control systems using 32-point input racks
