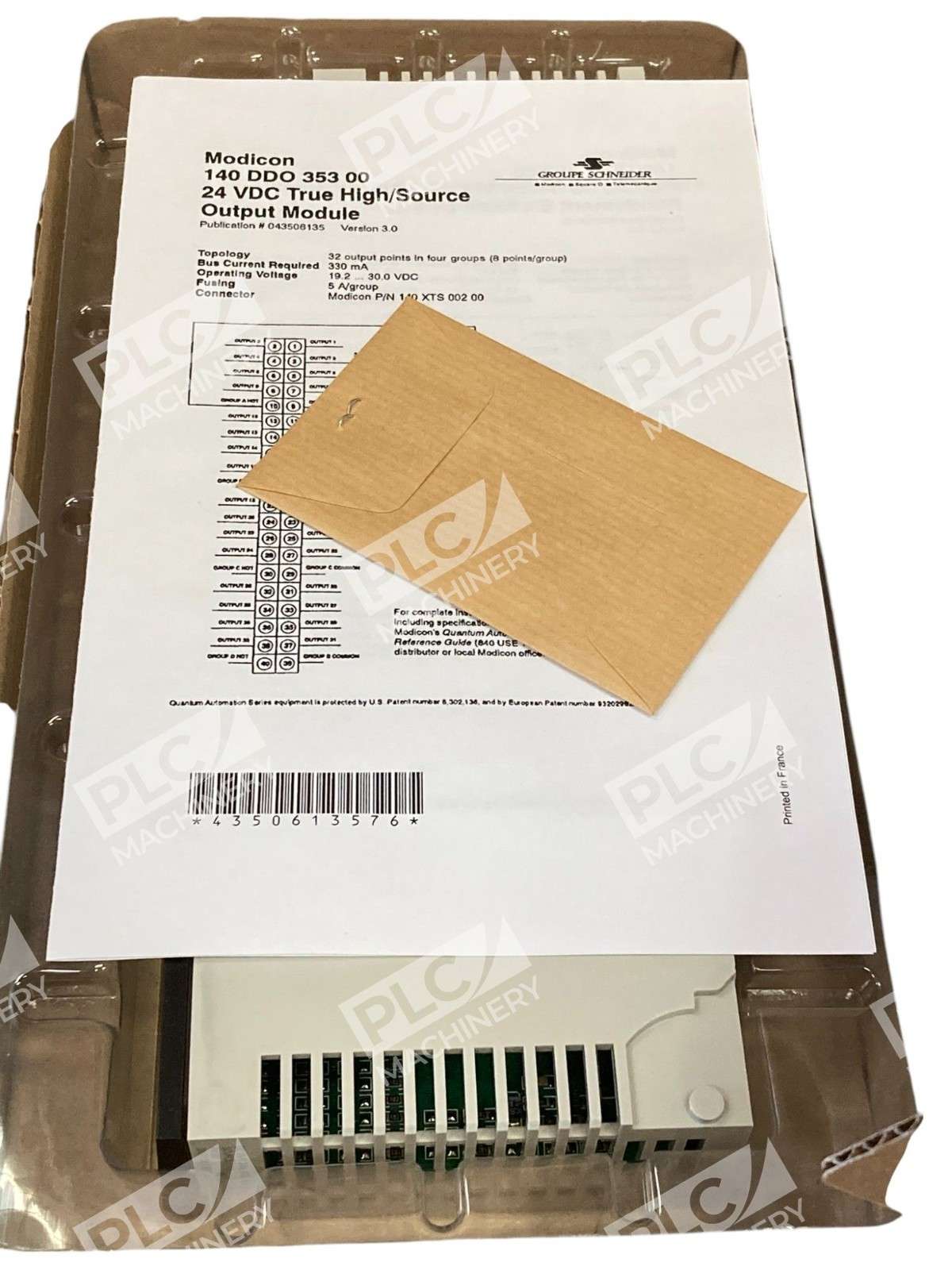

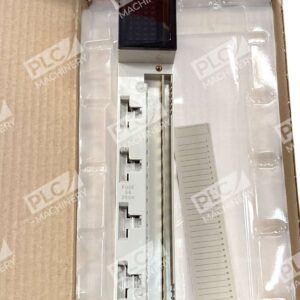

<h2>Overview</h2>

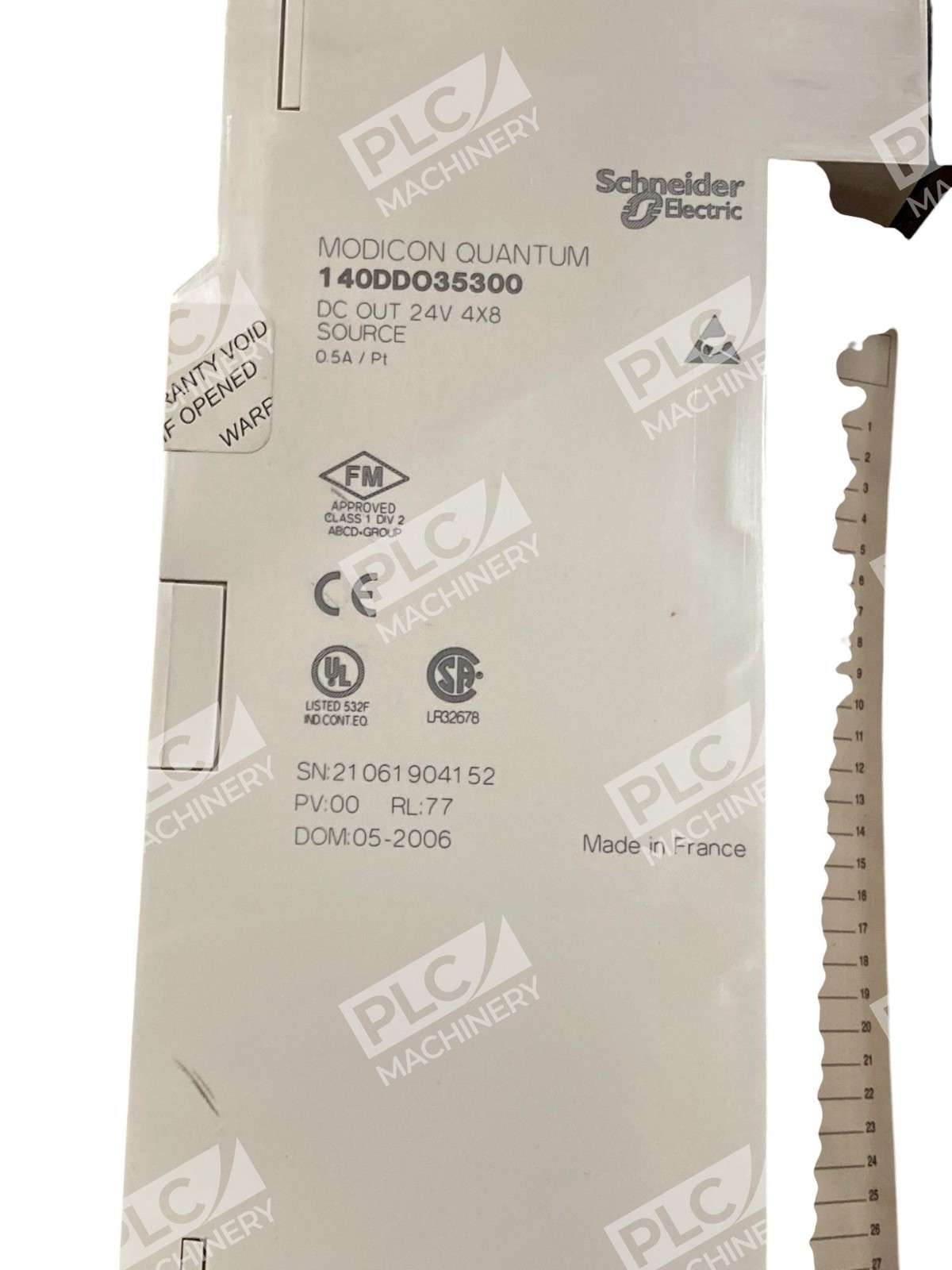

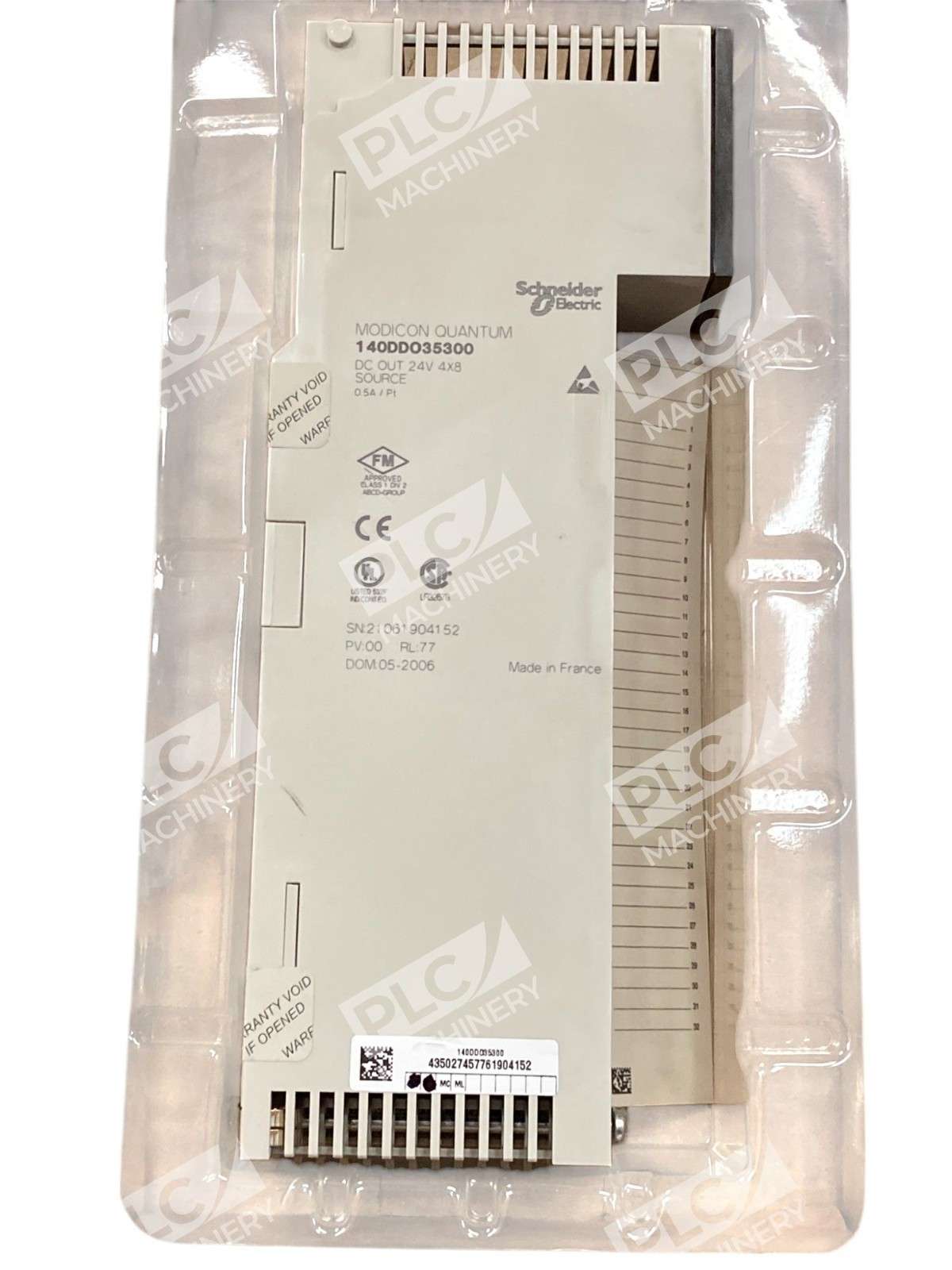

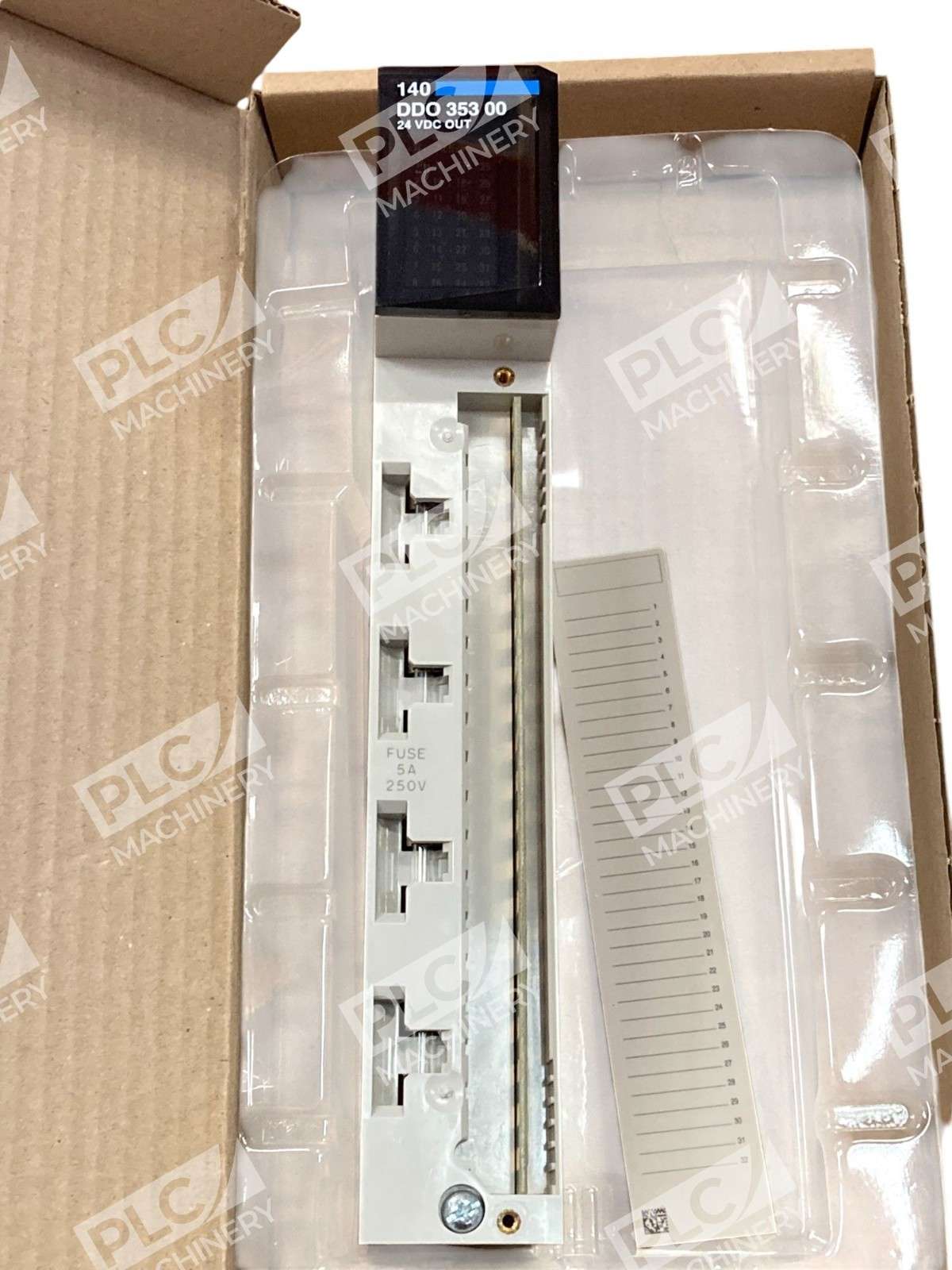

<p>The <strong>Schneider 140DDO35300</strong> is a 32-point solid-state discrete DC output module designed for Modicon Quantum programmable logic controllers. This module provides high-density digital output capabilities with 24 V DC nominal voltage and positive-logic (sourcing) outputs configured in 4 groups of 8 channels. Built for reliability in demanding industrial automation environments, the 140DDO35300 delivers precise output switching for control of solenoids, motor contactors, indicator lights, and other discrete load devices.</p>
<h2>Key Features</h2>
<ul>
<li><strong>32 Discrete DC Outputs</strong> — organized in 4 groups of 8 channels for flexible load distribution</li>
<li><strong>24V DC Nominal Voltage</strong> — wide input range 19.2–30 V DC accommodates typical industrial supply variations</li>
<li><strong>Fast Switching Speed</strong> — outputs switch in ≤1 ms, enabling responsive control loops</li>
<li><strong>Protected Circuits</strong> — internal fuses (5 A per group, 3 A per point) and loss-of-field indication protect connected loads</li>
<li><strong>Status LEDs</strong> — 32 green output status LEDs plus red fault and green bus indicators for easy troubleshooting</li>
<li><strong>Surge Capacity</strong> — supports 5 A surge for 0.5 ms per channel, useful for inrush-heavy loads</li>
</ul>

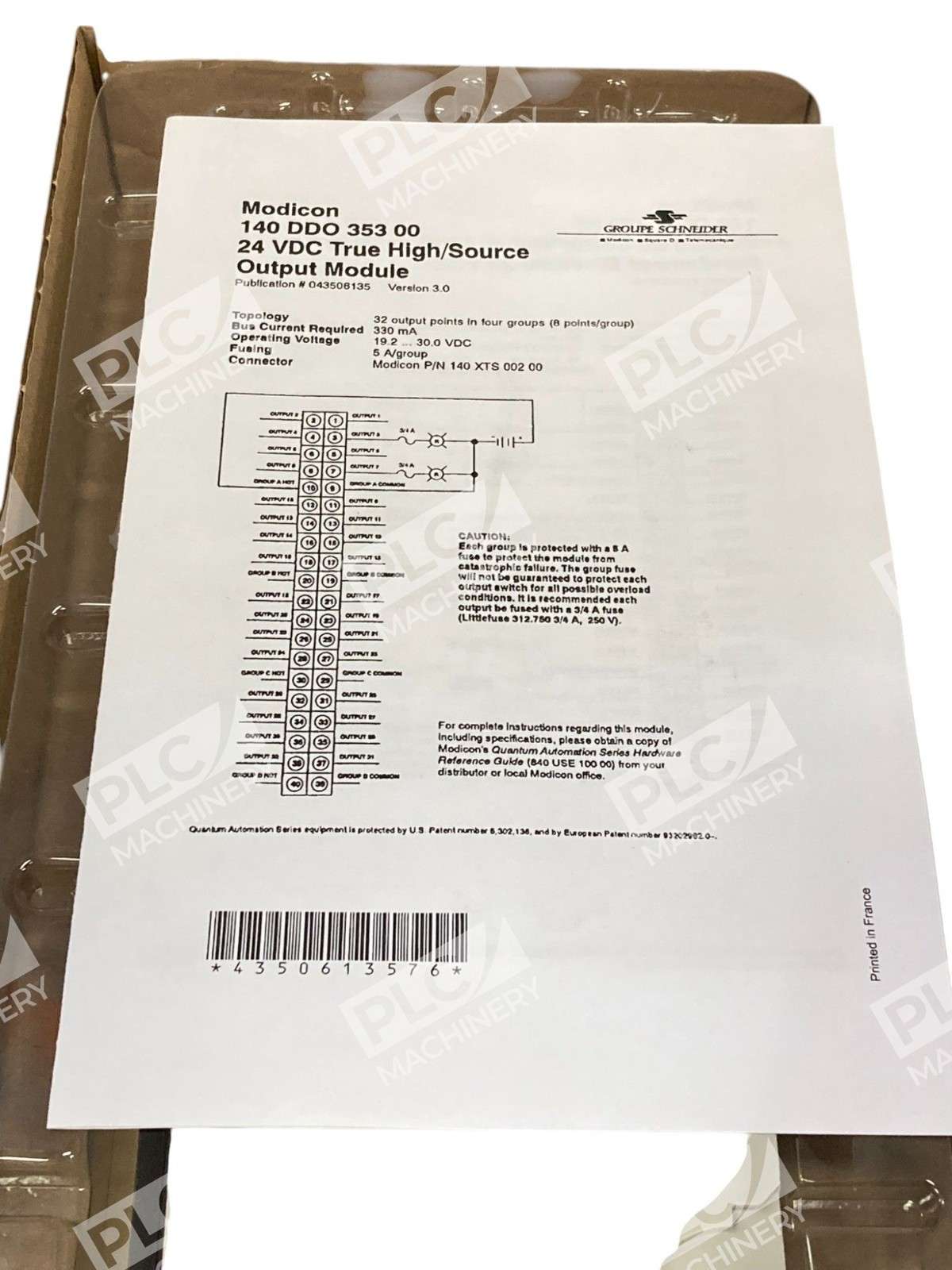

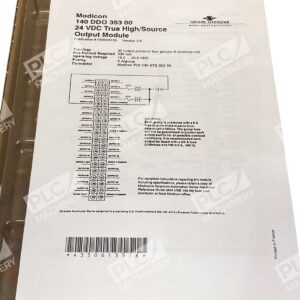

<h2>Technical Specifications</h2>
<ul>
<li><strong>Output Type:</strong> DC Discrete (Positive Logic / Sourcing)</li>
<li><strong>Output Points:</strong> 32</li>
<li><strong>Channel Configuration:</strong> 4 groups of 8</li>
<li><strong>Output Voltage:</strong> 24 V DC nominal</li>
<li><strong>Voltage Range:</strong> 19.2–30 V DC</li>
<li><strong>Maximum Load Current:</strong> 16 A total, 4 A per group, 0.5 A per channel</li>
<li><strong>Surge Current:</strong> 5 A (0.5 ms pulse)</li>
<li><strong>Switching Time:</strong> ≤1 ms on/off</li>
<li><strong>Maximum Voltage Drop:</strong> <0.4 V at 0.5 A</li>
<li><strong>Bus Consumption:</strong> 330 mA</li>
<li><strong>Bus Isolation:</strong> 1780 Vrms; inter-group isolation 500 Vrms</li>
<li><strong>Protection:</strong> Internal fuses (5 A/group, 3 A/point), blown-fuse indication, loss-of-field detection</li>
<li><strong>Status Indicators:</strong> 32 green LEDs (output status), 1 red LED (fault), 1 green LED (bus active)</li>
</ul>
<h2>Typical Applications</h2>
<p>The Schneider 140DDO35300 is widely used in:</p>
<ul>
<li>Solenoid valve and proportional valve control</li>
<li>Motor contactor and lighting control</li>
<li>Pump and fan relay logic control</li>
<li>Indicator lamp and alarm signaling</li>
<li>Automation lines requiring dense discrete output density</li>
<li>Packaging, material handling, and manufacturing process control</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Modicon Quantum CPU (all series)</li>
<li>Quantum backplane and CableFast cabling system</li>
<li>Unity Pro and Concept programming software</li>
<li>Quantum I/O network interfaces</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Schneider 140DDO35301 (functionally equivalent variant)</li>
<li>Serves as alternative to 140DDO35310 (True Low sink configuration when source logic required)</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Modicon Quantum architecture and controllers</li>
<li>Industrial 24 V DC power supplies (with supply range 19.2–30 V)</li>
<li>Discrete 24 V loads: solenoids, relays, indicator lamps, contactor coils</li>
</ul>
