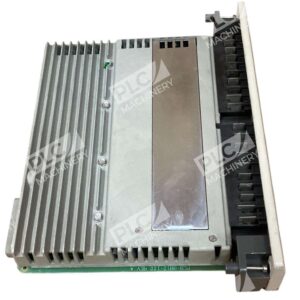

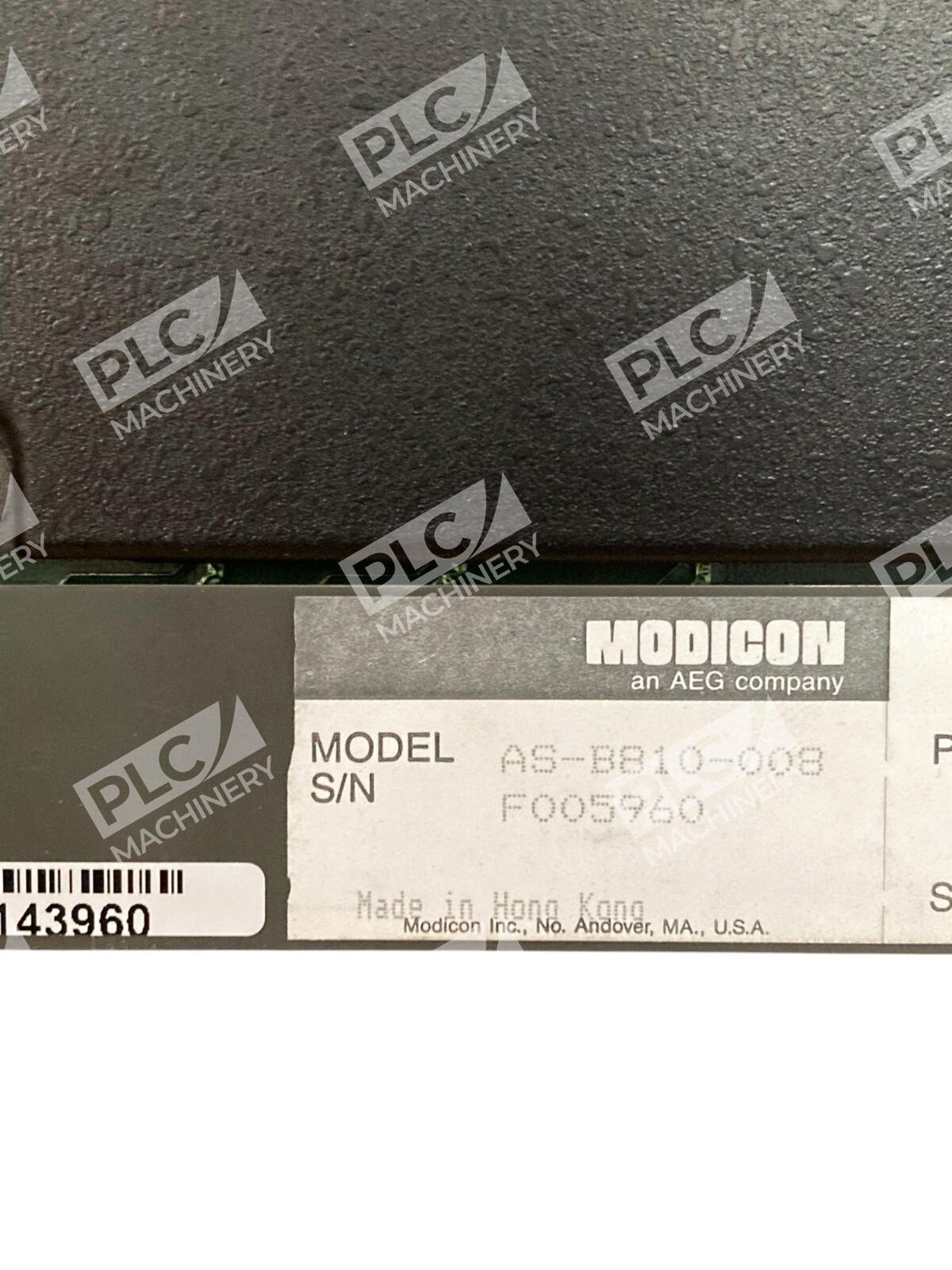

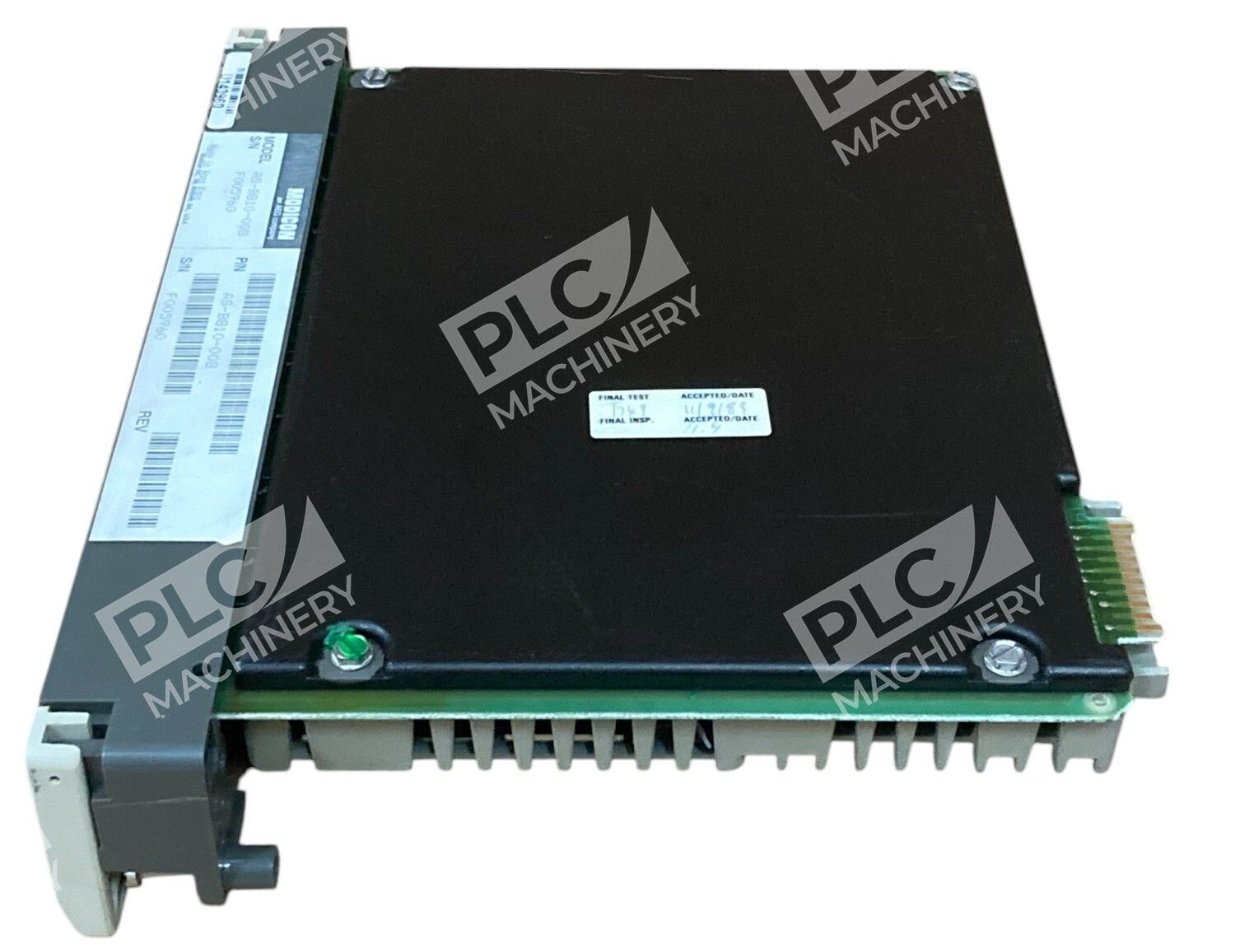

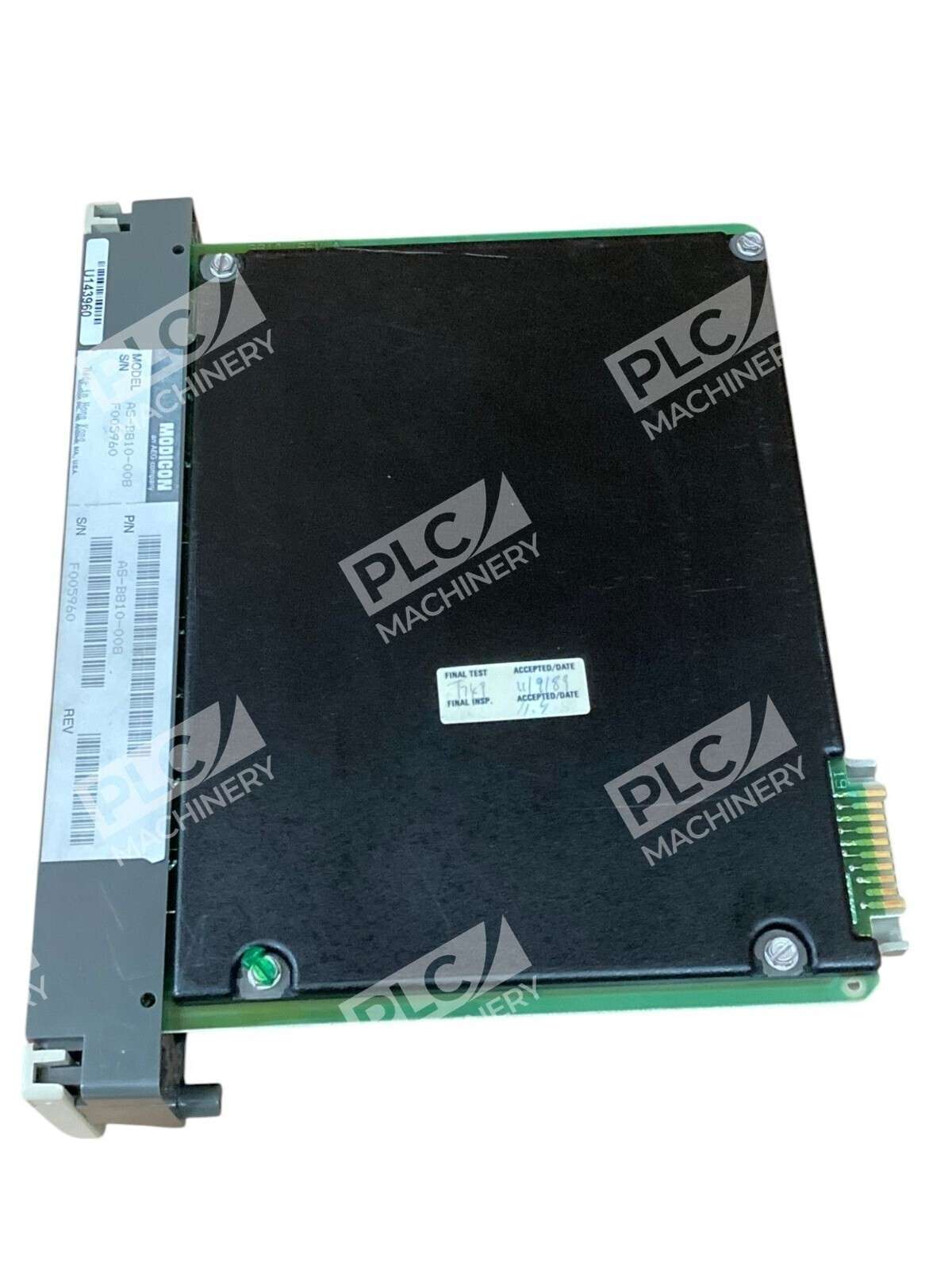

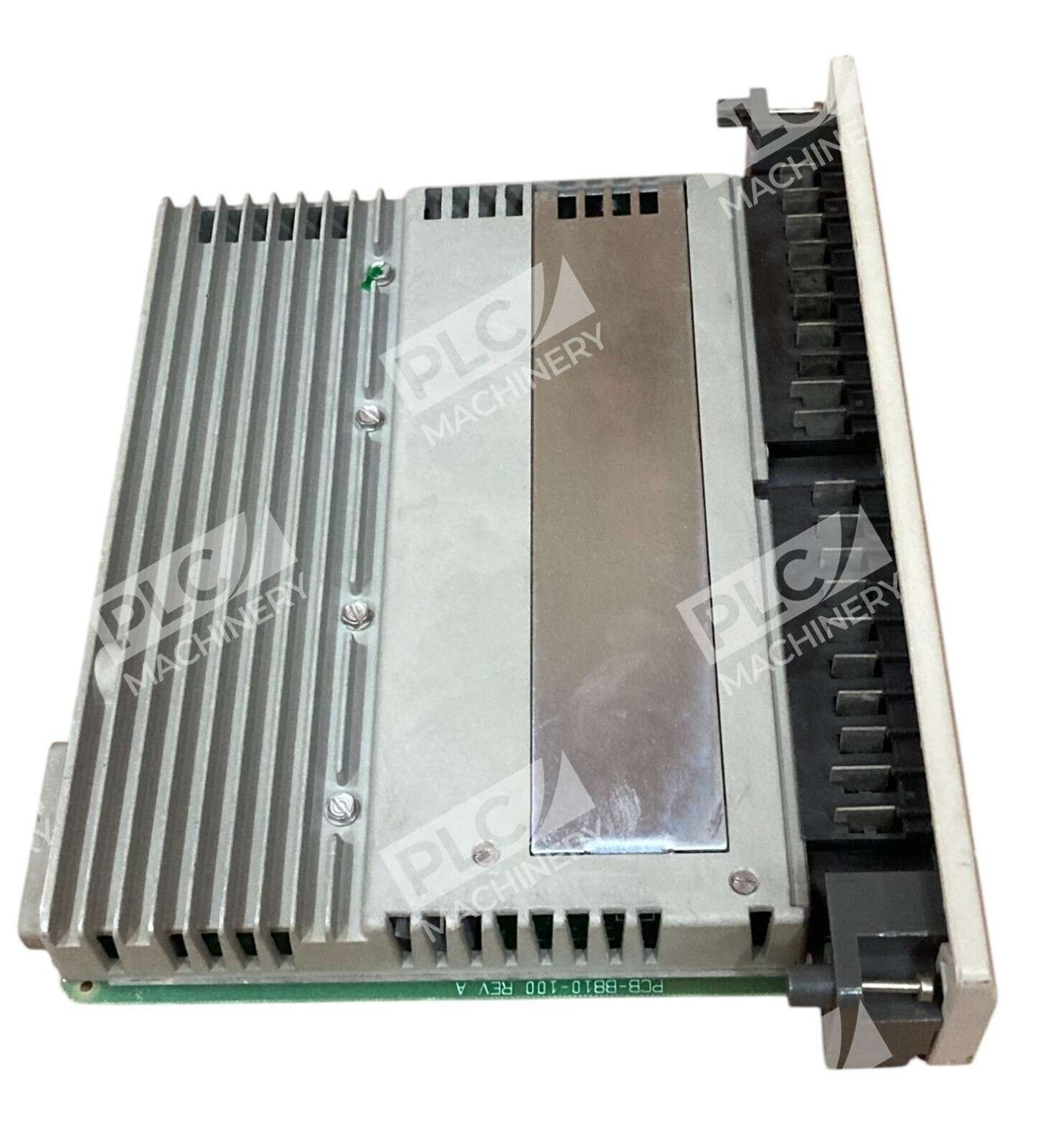

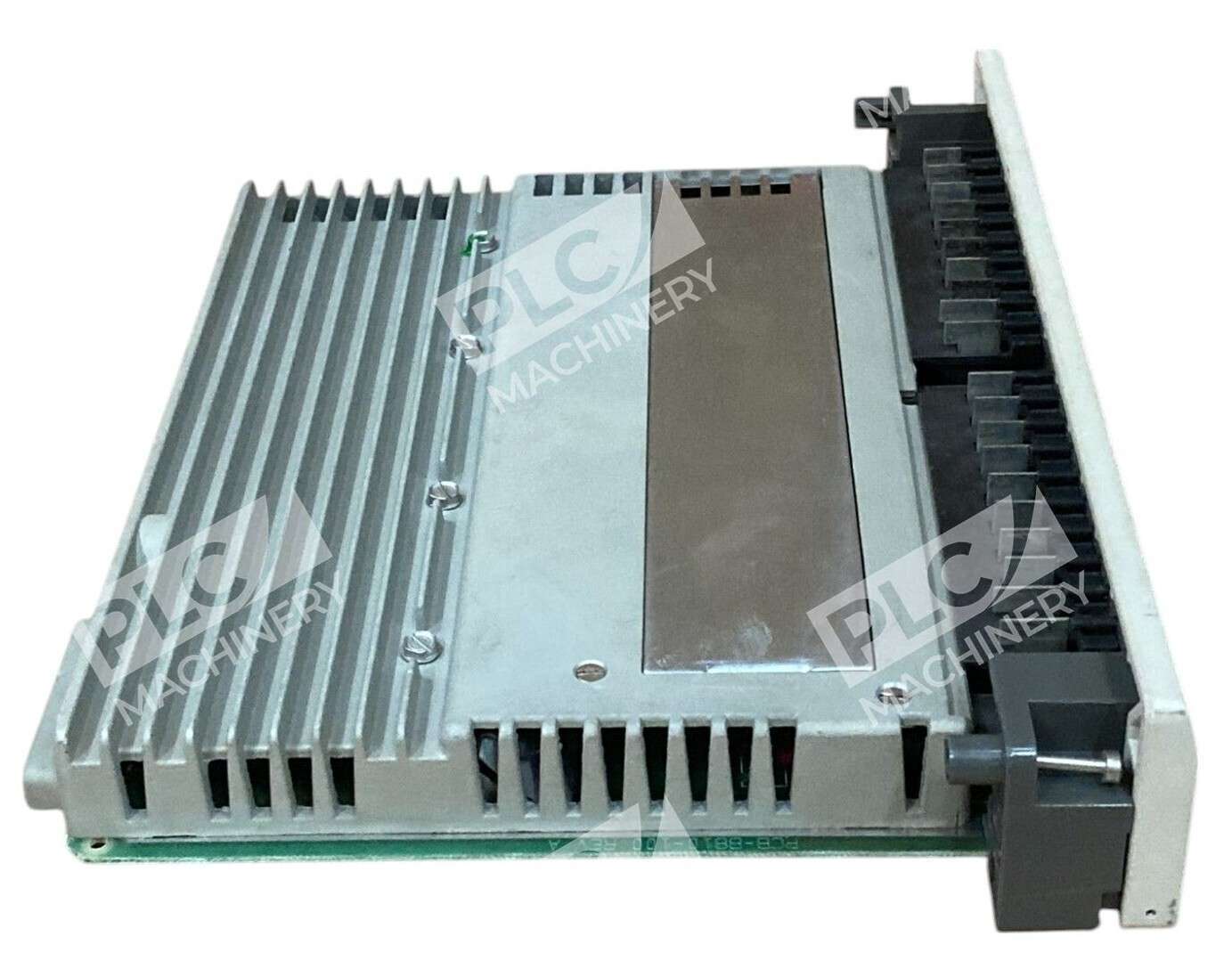

Modicon AEG 115VAC B810 Isolated Output Module AS-B810-008

The Modicon AEG 115VAC B810 Isolated Output Module AS-B810-008 is a robust component designed for industrial automation systems, offering reliable control over various devices requiring 115V AC discrete signals.

Key Features

• Isolated Output Design: Each of the eight output points is individually isolated, enhancing safety and reducing electrical interference.
• High Current Capacity: Each output can handle up to 2 A continuously, with a surge capacity of 50 A for one cycle, accommodating demanding industrial applications.
• Zero-Cross Switching: Incorporates zero-cross threshold switching, turning outputs ON at the first line voltage zero-crossing and OFF at the first load current zero-crossing, minimizing electrical noise and wear.

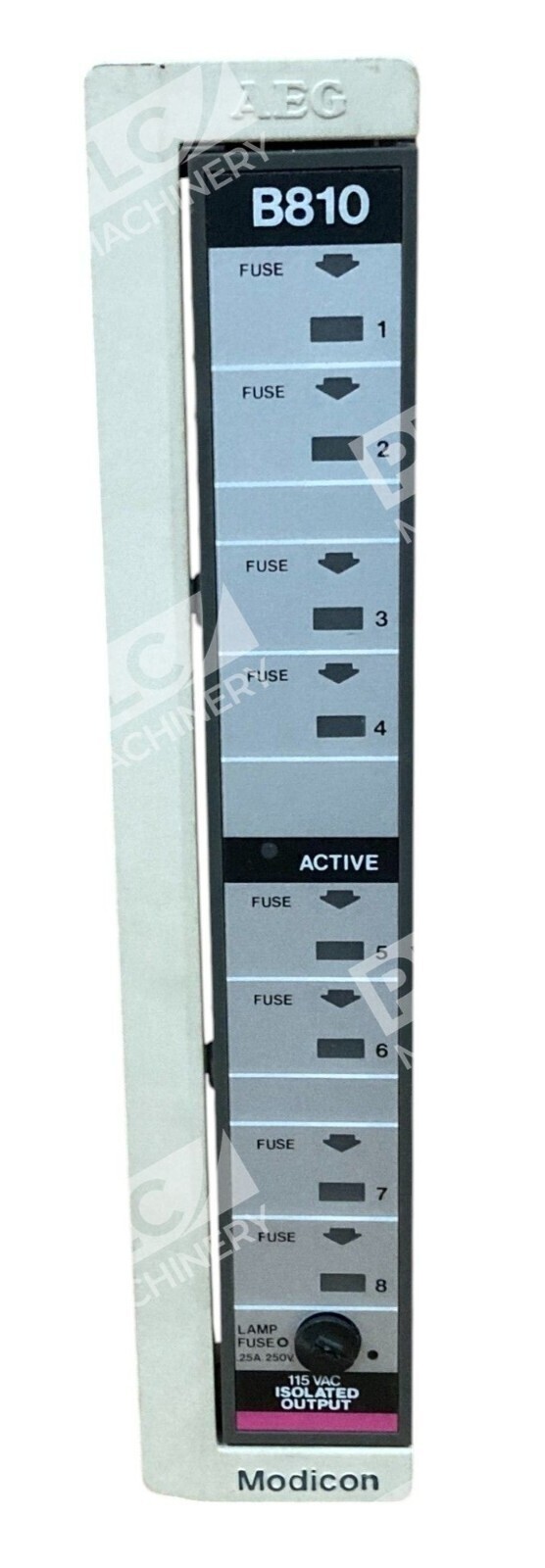

• Output Status Indicators: Equipped with neon indicators for each output circuit, providing clear visual status of connected loads.
• Blown Fuse Indicators: Features indicators that light up when a corresponding fuse has blown, facilitating quick maintenance.

Specifications

• Operating Voltage: 80 to 130 VAC continuous at 47 to 63 Hz.
• Number of Outputs: 8 points, each in its own group.
• ON Current: Maximum of 2 A per point, with a module maximum of 12 A.
• Minimum Load Current: 50 mA.
• Maximum OFF Leakage Current: 3 mA at 115 VAC.
• ON Voltage Drop: 1.3V at 2.0A max.
• Surge Voltage: 150 VAC for 10 seconds; 200 VAC for 1 cycle.
• Response Time: 8.3 ms for both OFF to ON and ON to OFF transitions at 60 Hz.
• Power Requirements: +5 V at 50 mA; +4.3 V at 240 mA.
• Fusing: One per group, Type 3 AG, 3 A (normal blow).

The AS-B810-008 module is engineered to withstand the high surge currents typical of industrial loads, making it suitable for controlling relays, pilot lamps, motor starters, solenoids, and other devices. Its design ensures reliable performance in demanding industrial environments.
