Overview

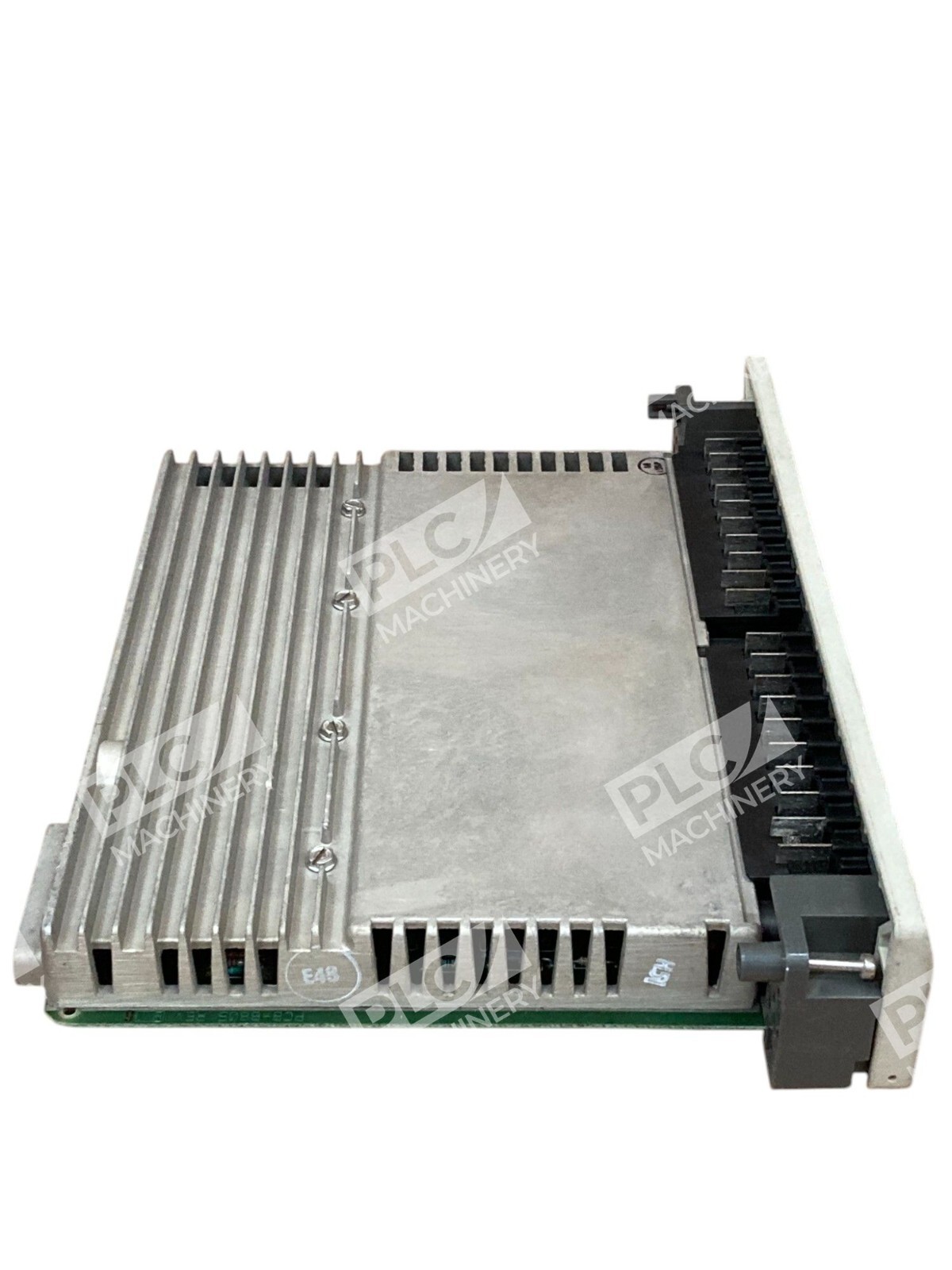

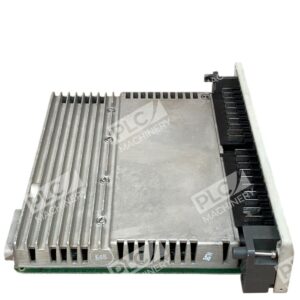

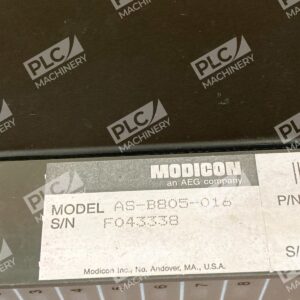

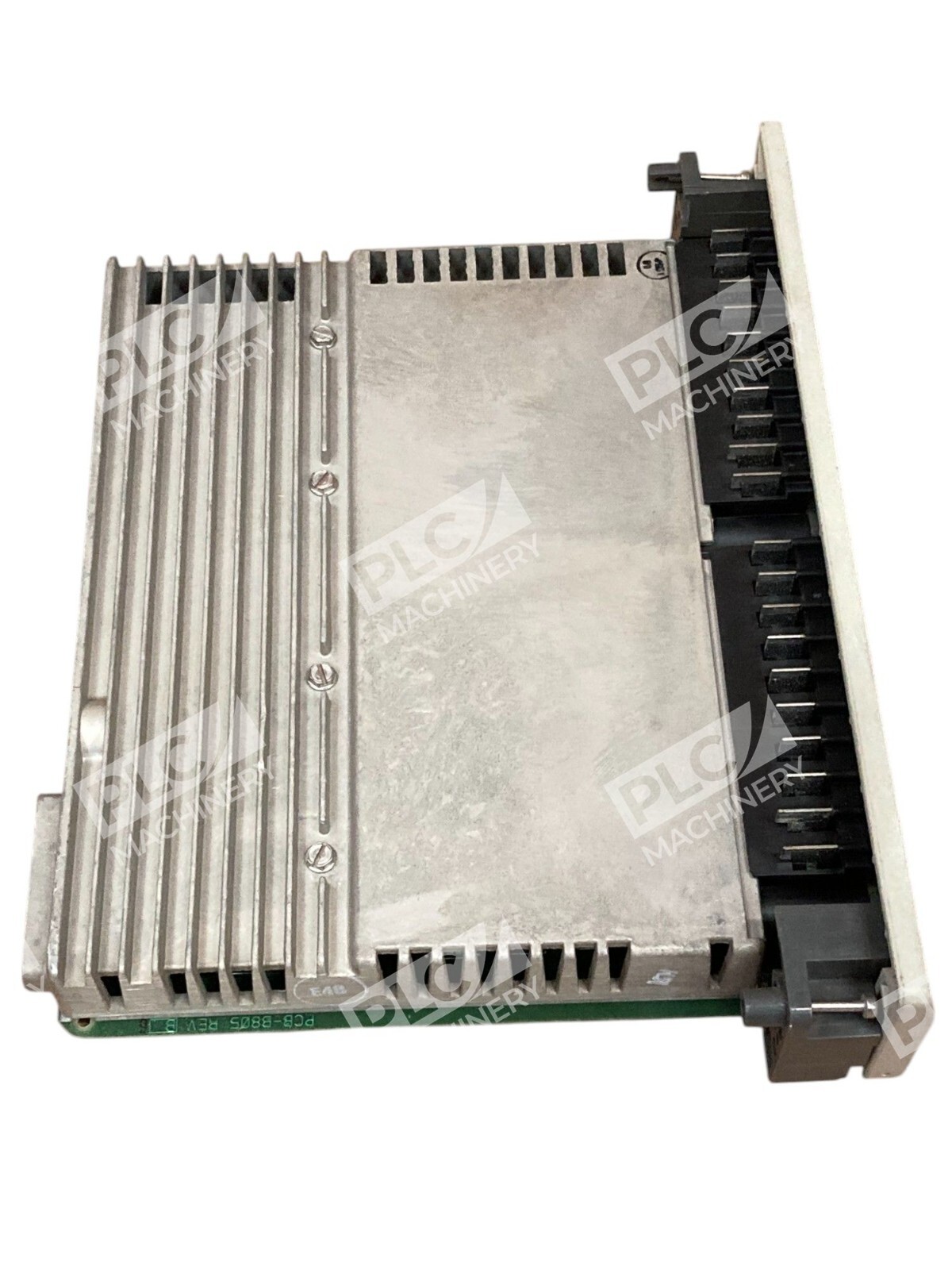

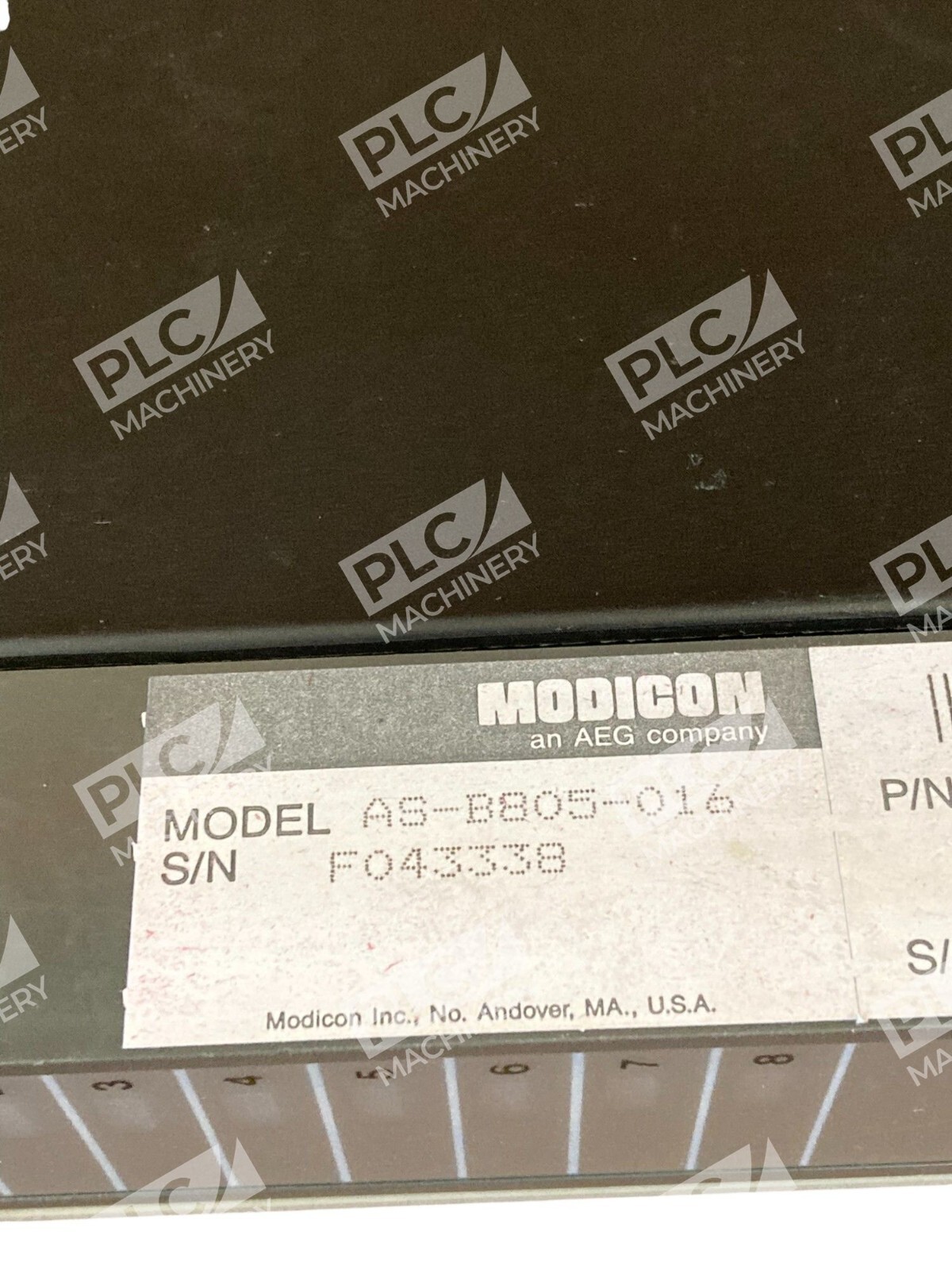

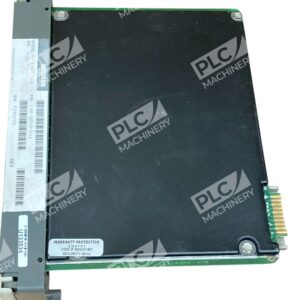

The Modicon AS-B805-016 is a 115VAC digital input module part of the Modicon 800 Series discrete I/O family. The B805-016 115 Vac (16 point) Input Module senses and converts switched input signals into logic voltage levels used by the PLC. The module allows for up to 16 inputs in 2 groups of 8. This module is widely used in legacy and mid-life PLC installations for manufacturing, process control, and machinery automation.
Key Features
- 16 Digital Input Points: Inputs can be received from push buttons, limit and proximity switches, as well as other 115 Vac sources.
- Input Grouping: Organized as two independent groups of 8 inputs for flexible signal distribution
- Standard Screw Terminals: Standard Screw Terminal Strip facilitates straightforward user connections, simplifying the wiring process.
- Modular Design: Rigid Wiring System allows for module insertion or removal without disturbing existing wiring, minimizing downtime during maintenance.
- Compact Form Factor: Occupies a single slot within the I/O rack, optimizing space utilization.
- Easy Installation: Compatible with standard Modicon 800 Series I/O racks with no special configuration required
Technical Specifications
- Input Voltage: 115VAC
- Input Points: 16 (2 groups of 8)
- Input Type: Discrete digital (AC source compatible)
- Module Format: Single-slot I/O rack mount
- Terminal Connection: Screw terminal strip
- Weight: Approximately 2.2 lbs (1.01 kg)
- Operating Environment: Industrial, indoor
- Series: Modicon 800 Series
- Manufacturer: Modicon (Gould/Schneider Electric legacy product)
Typical Applications
- Manufacturing automation and production lines
- Process control systems (batch, continuous, hybrid processes)
- Limit switch and pushbutton input monitoring
- Proximity sensor signal acquisition
- Machinery safety circuit inputs
- Facility automation and HVAC control
- Legacy system maintenance and retrofit upgrades
Compatibility & Replacements
Compatible With
- Modicon 800 Series PLC processors and controllers
- Modicon 800 Series I/O racks and backplanes
- Gould/AEG legacy automation systems
- Industrial control cabinets with standard DIN-rail or rack mounting
Replaces / Drop-In Replacement For
- AS-B805-016 (direct equivalent, original Modicon part number)
- AEG B805-016 (OEM equivalent designation)
- Verify compatibility with your system integrator before ordering for other model cross-references
Works With
- Modicon programming software (older versions compatible with 800 Series)
- Industrial control platforms using discrete AC input logic
- Standard PLC ladder logic programming for discrete I/O
- Legacy automation systems designed for 115VAC field input signals
