Overview

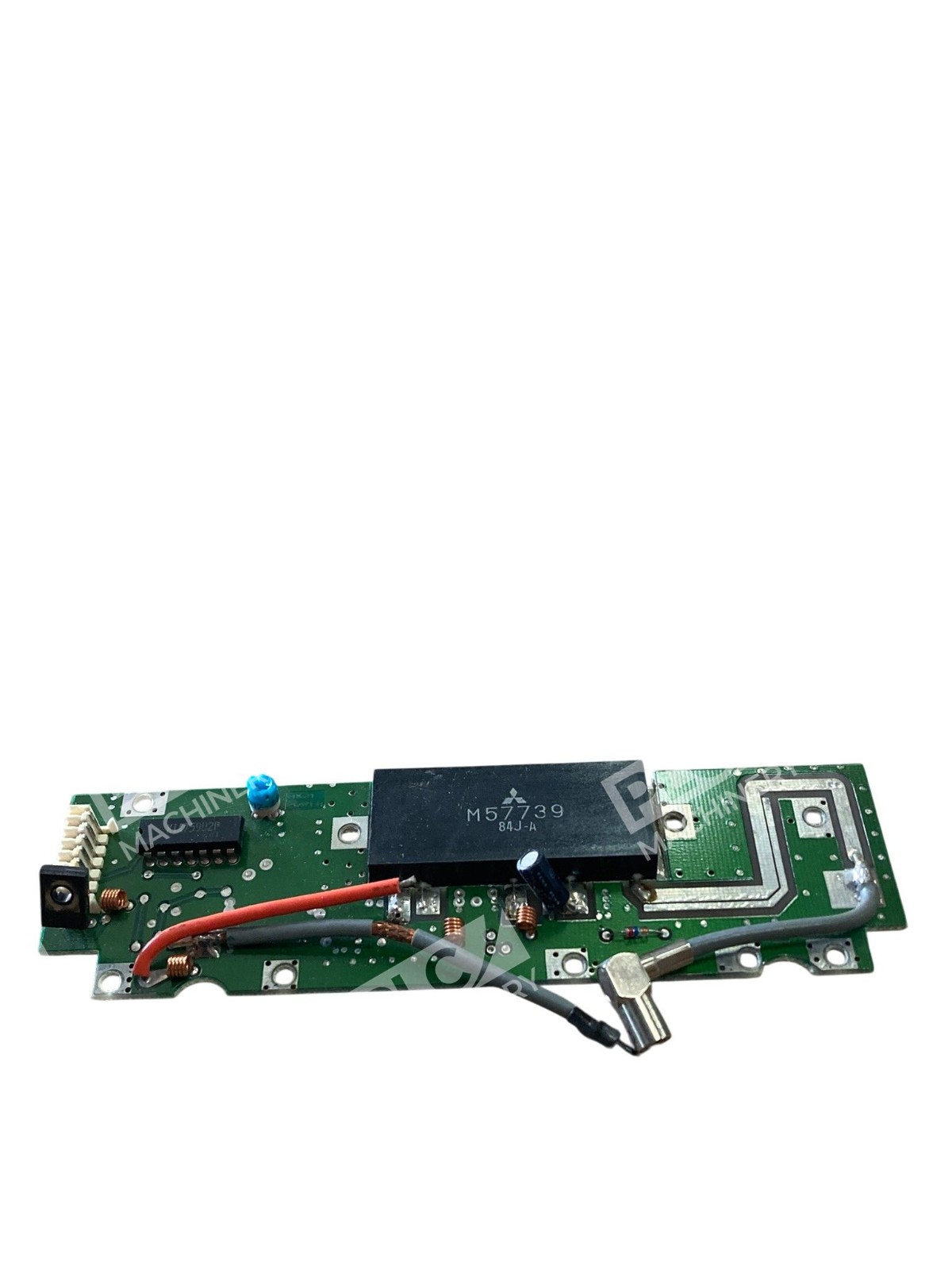

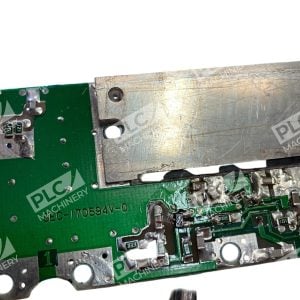

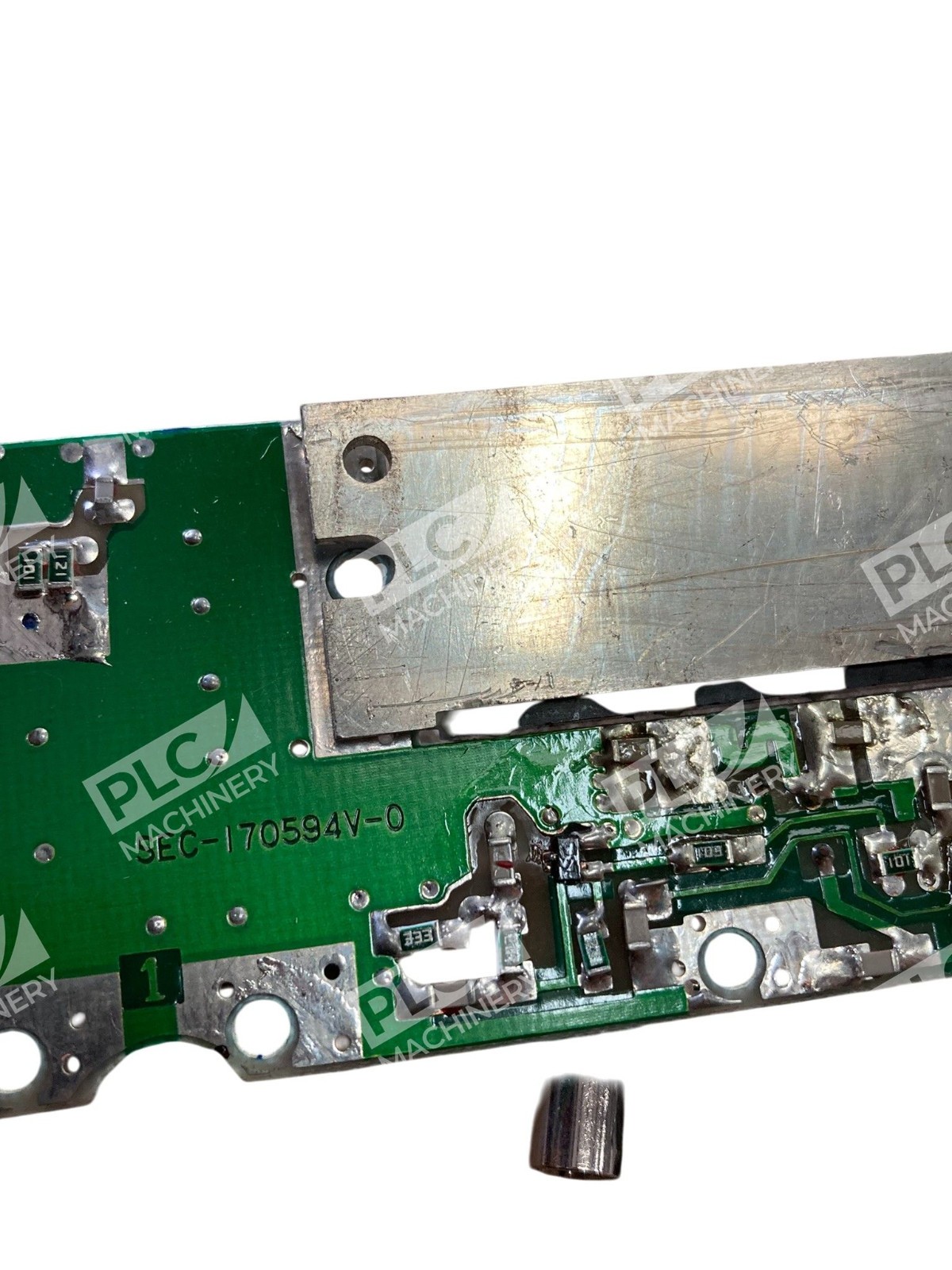

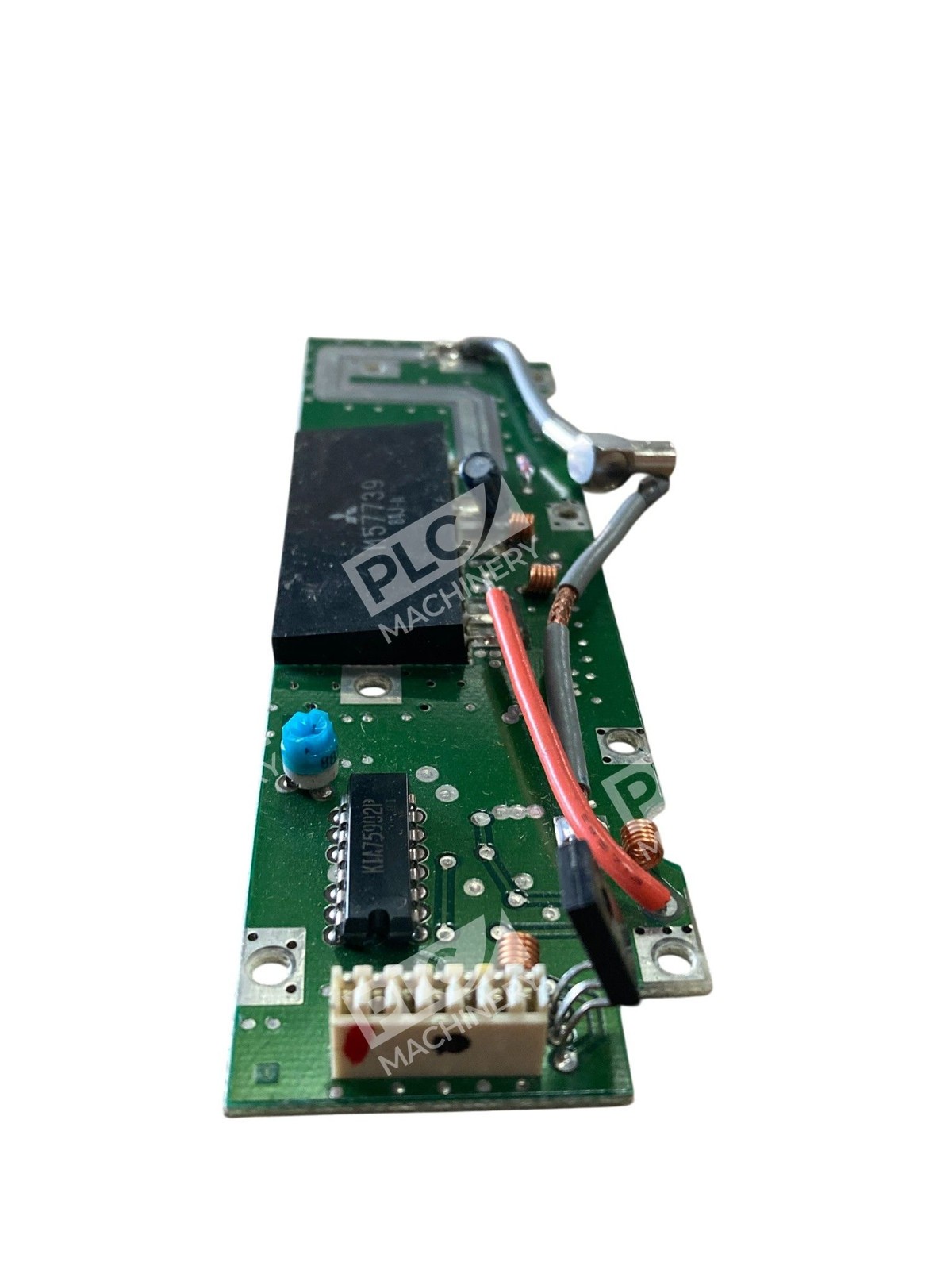

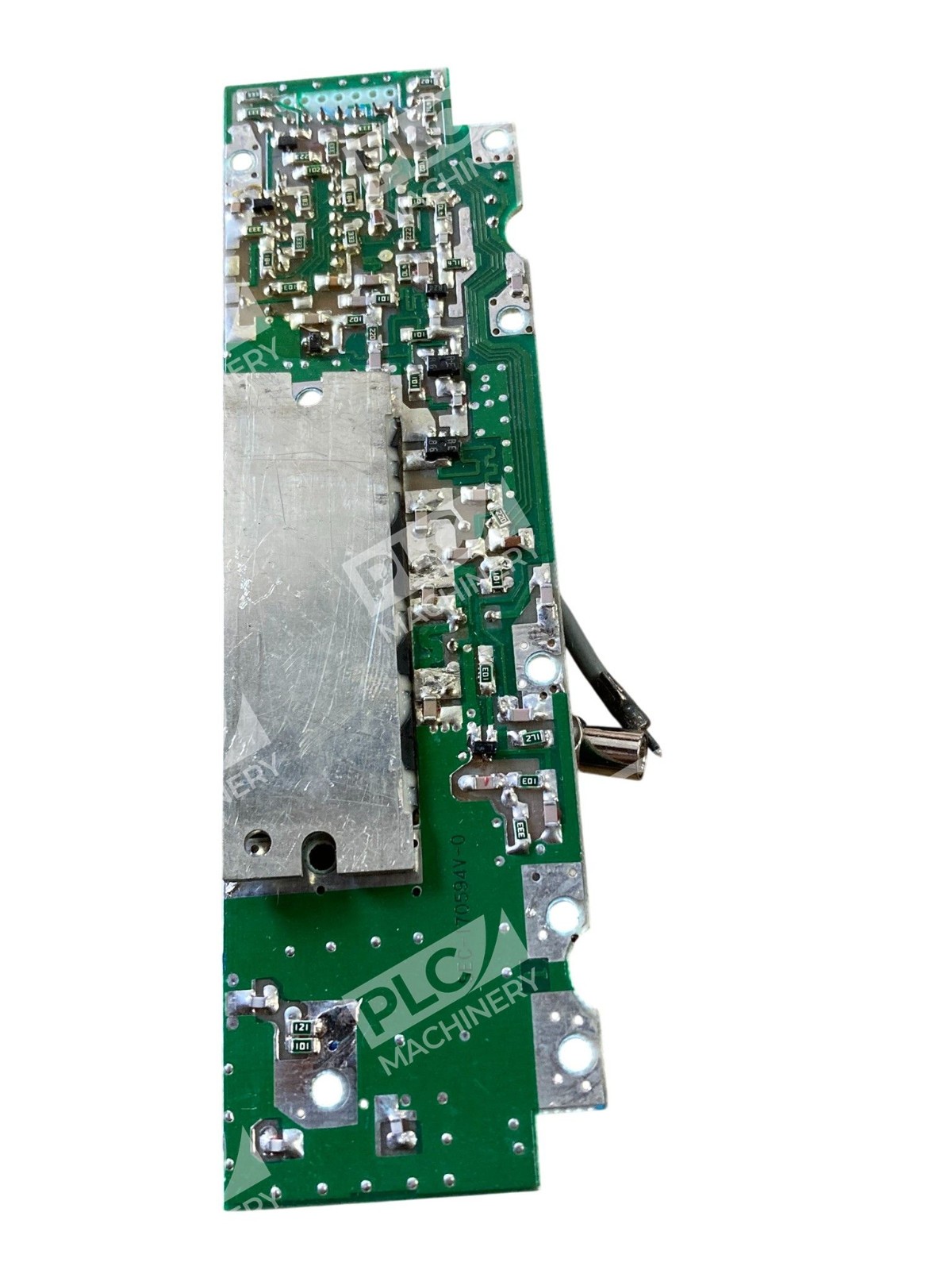

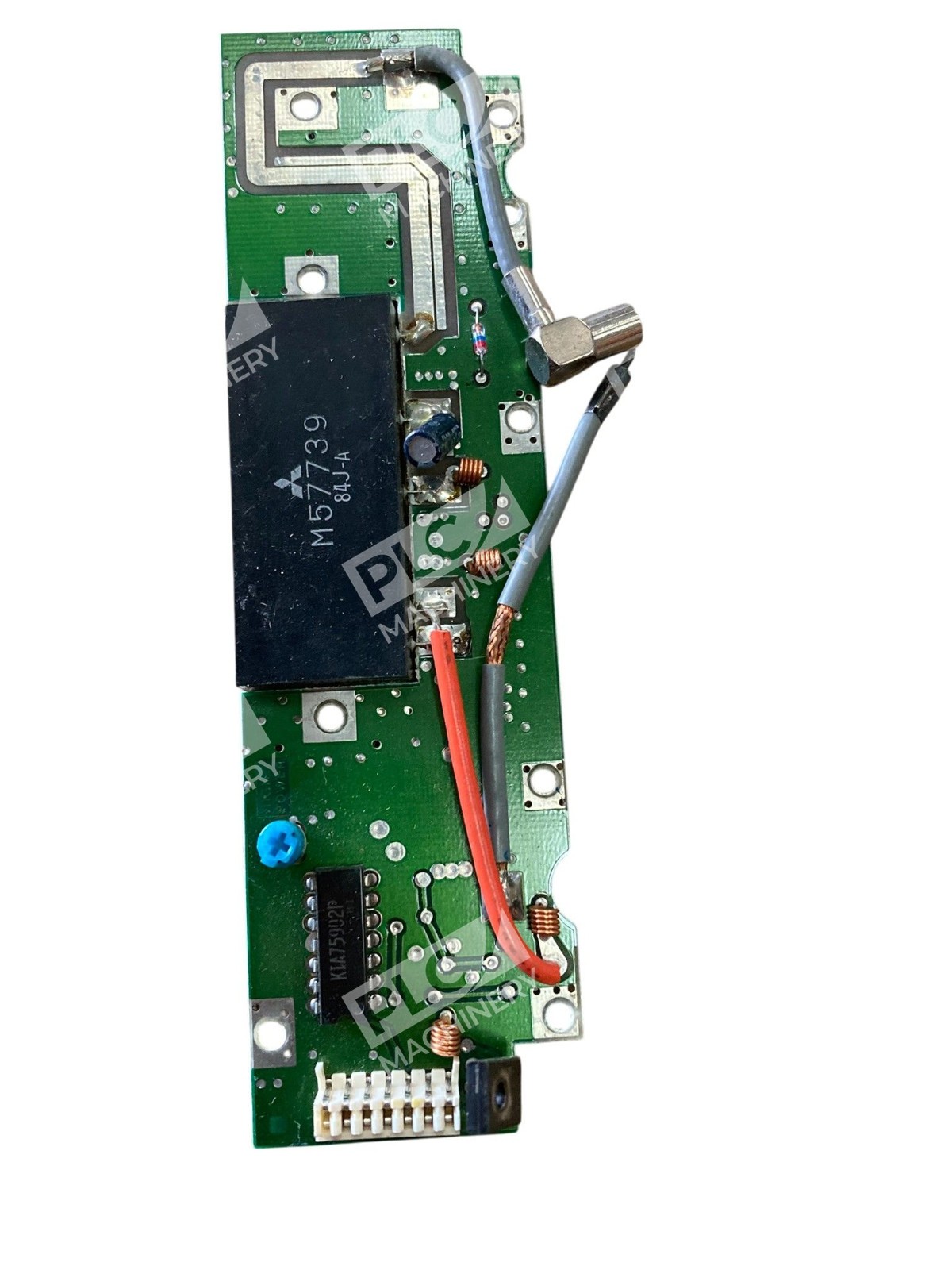

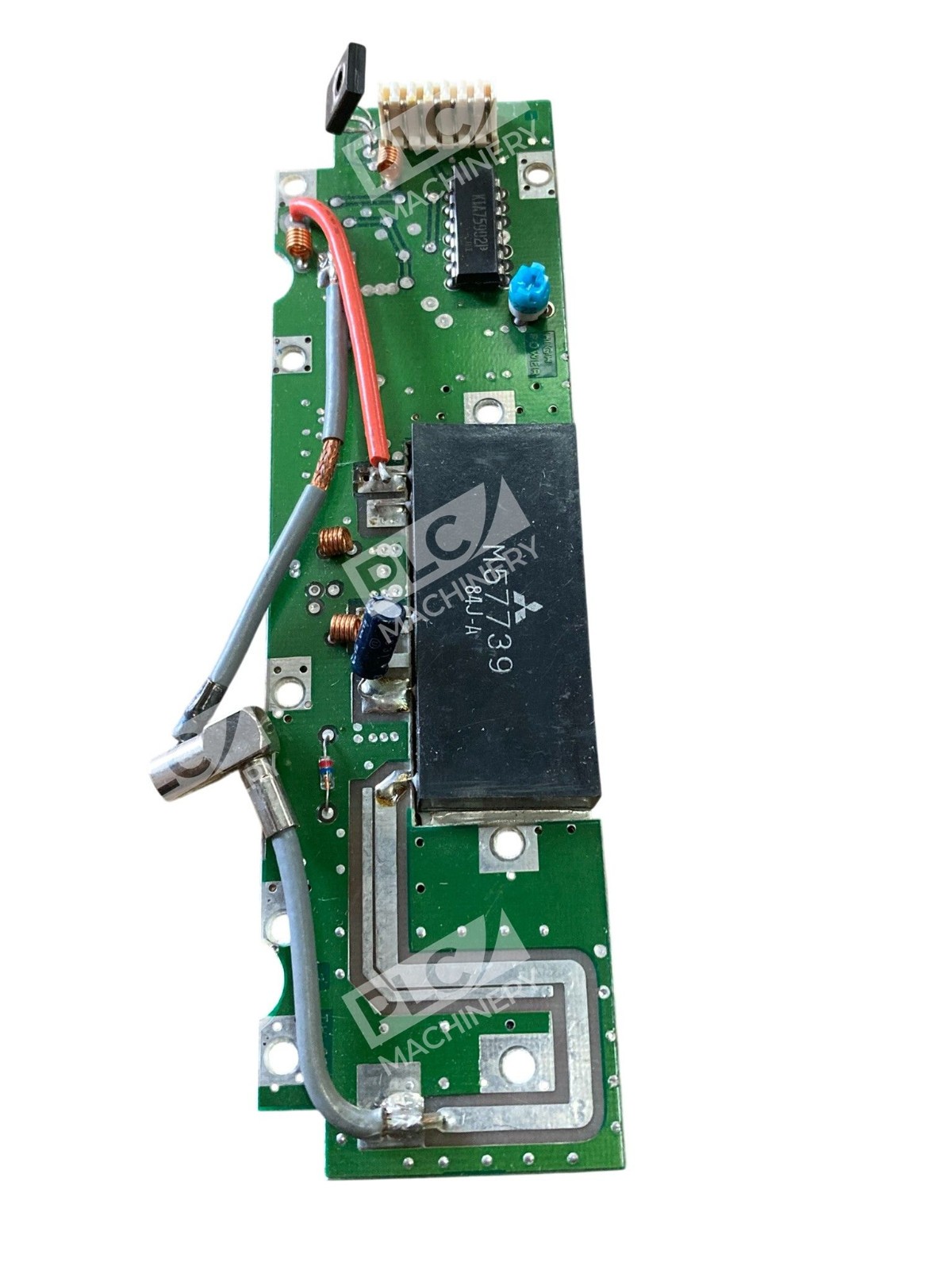

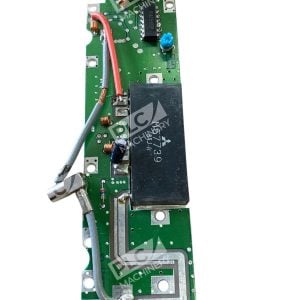

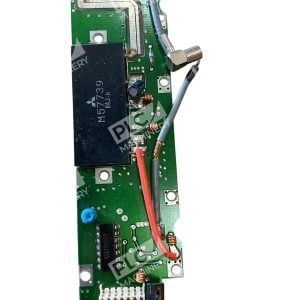

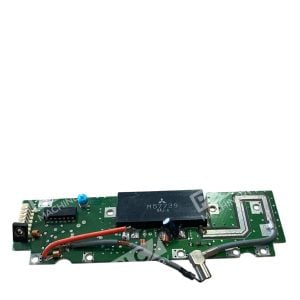

The Mitsubishi M57739 RF power amplifier PCB is a printed circuit board assembly engineered for mobile radio transmission equipment. Mitsubishi designs this amplifier module to support professional wireless communication networks where RF power amplification is critical for signal strength and transmission range. As a core component in mobile radio transmitter systems, this PCB handles the power amplification stage of the radio transmission path.
Key Features
- High-efficiency RF power amplification for mobile radio transmitters
- Designed for professional radio communication applications
- Mitsubishi engineering and manufacturing quality
- Circuit board with integrated RF amplification functionality
- Suitable for retrofit and replacement installations
Technical Specifications
Complete technical specifications including frequency range, power output, impedance matching, bias control, and operating parameters should be verified with Mitsubishi documentation or your system integrator before installation. The PCB integrates RF amplification circuitry for mobile radio transmitter applications.
Typical Applications
- Professional mobile radio communication systems
- Two-way radio transmitter equipment
- Radio transmission amplification stages
- Mobile wireless communication networks
- Emergency and dispatch communication systems
Compatibility & Replacements
Compatible With
- Mobile radio transmitter platforms using Mitsubishi RF modules
- Professional wireless communication systems
- Radio communication networks supporting UHF and VHF bands
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm this unit is a suitable direct replacement for your specific mobile radio transmitter model.
Works With
- Mitsubishi RF power amplifier modules and device ecosystems
- Mobile radio transmitter control systems
- Professional communication radio platforms
