Overview

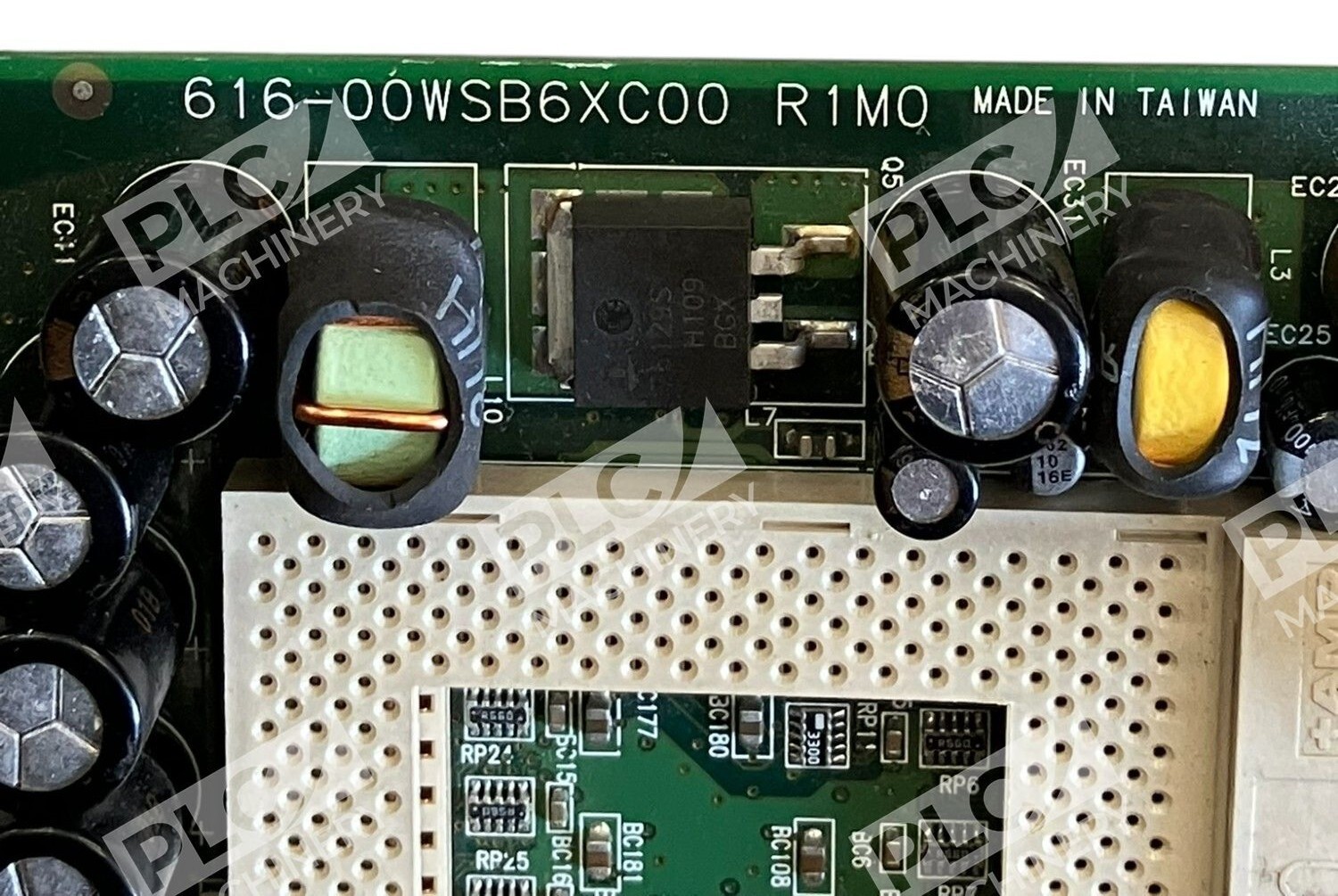

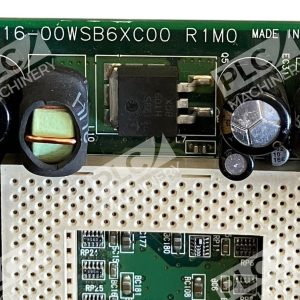

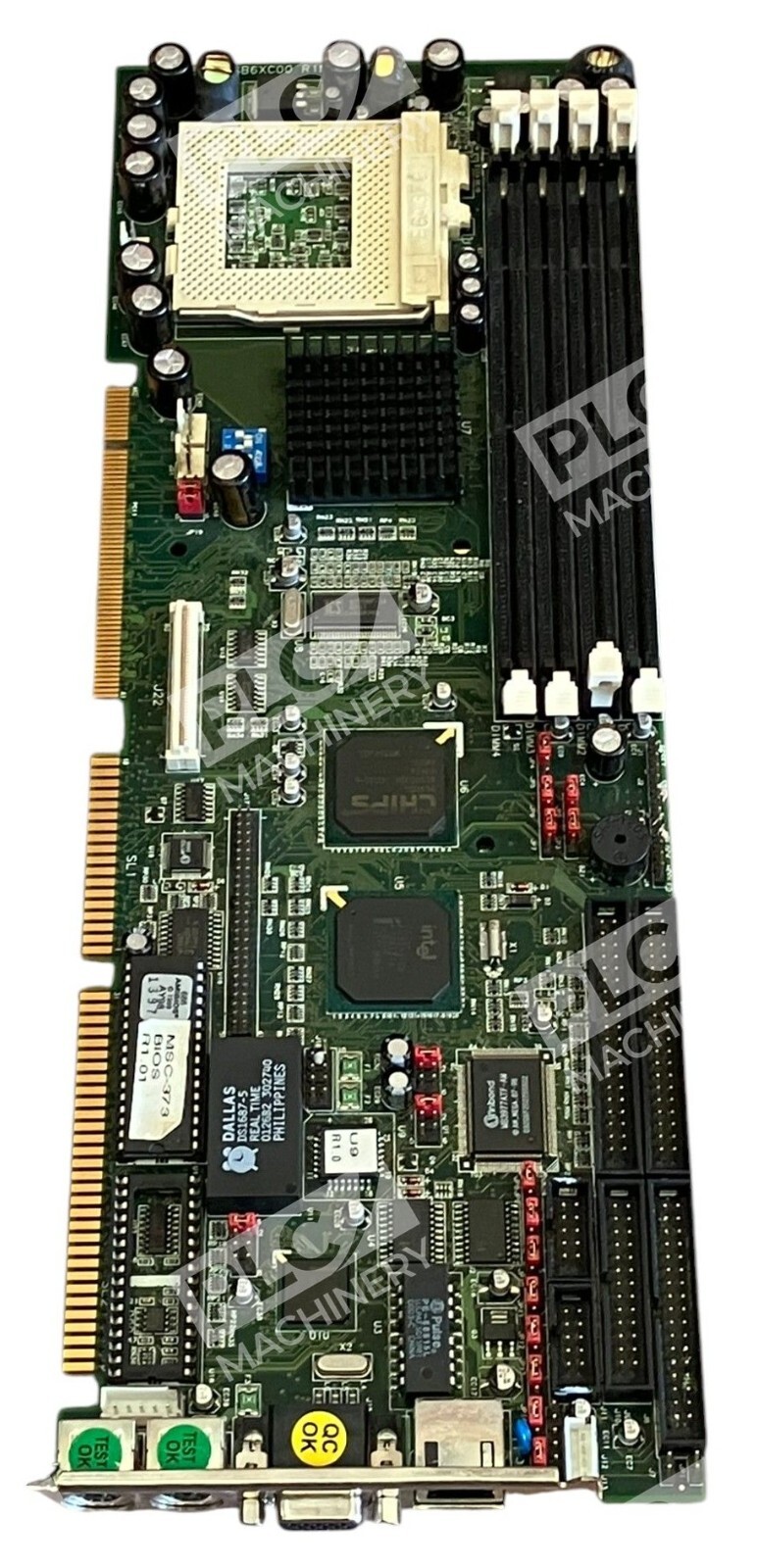

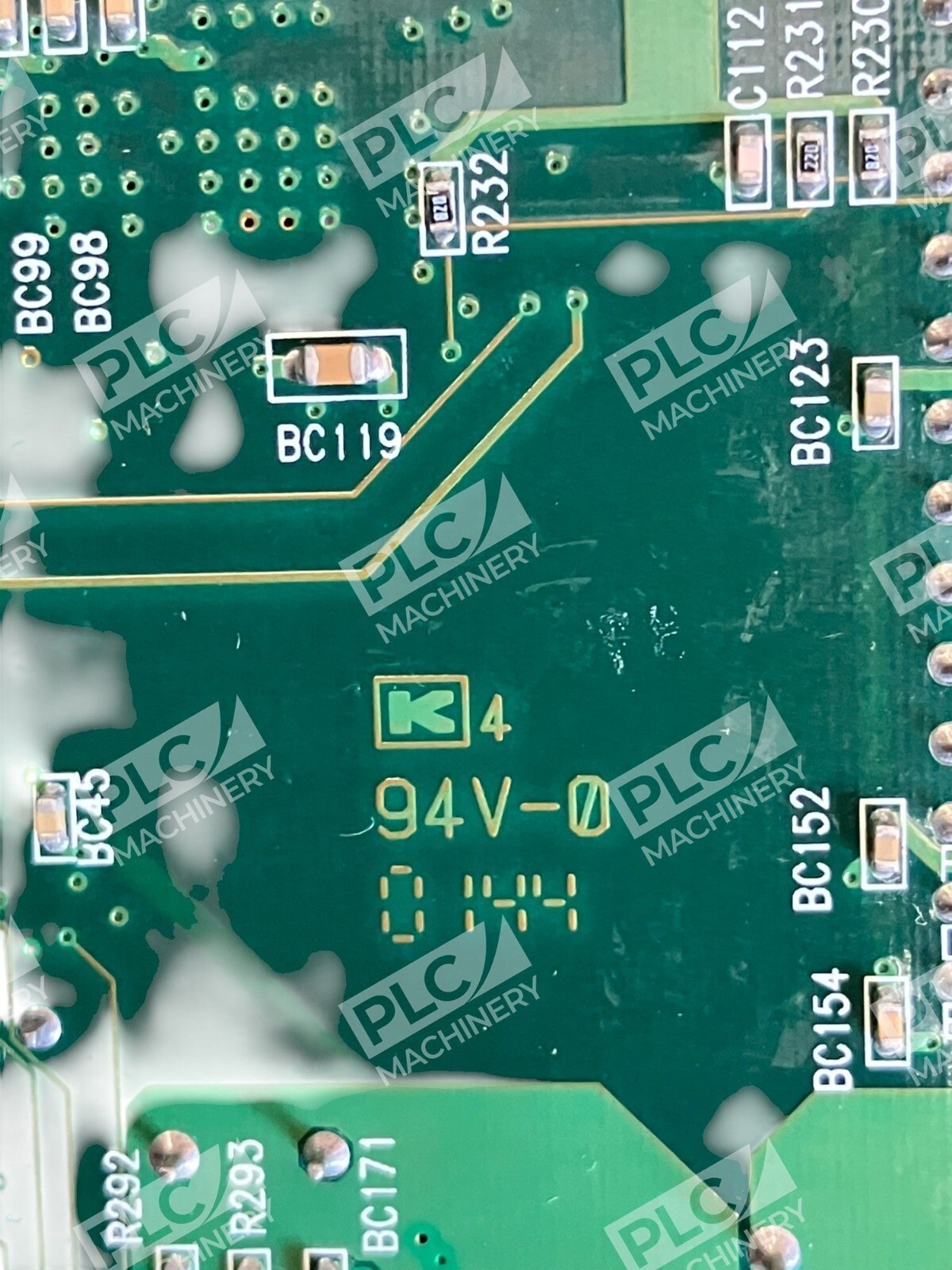

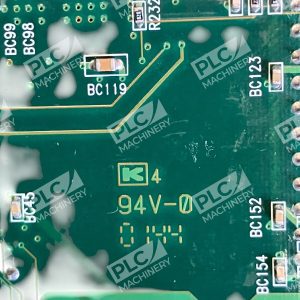

The MiTAC 616-00WSB6XC00 R1M0 is an advanced Socket 370 PICMG full-sized single board computer designed for industrial embedded computing applications. This legacy-class CPU board integrates essential I/O, video, and networking capabilities in a compact form factor, making it suitable for robotics, machinery control, test equipment, and legacy system replacements where Pentium II/III performance is sufficient.
Key Features
- Socket 370 (FC-PGA) — Supports Intel Pentium III Coppermine and Celeron processors up to 1 GHz
- Integrated Graphics — Asiliant (C&T) 69000 on-board VGA with 2MB SDRAM, no AGP card required
- 10/100 Ethernet — Intel 82559-based PCI LAN for network connectivity
- Dual Serial Ports — RS-232/422/485 support for industrial device communication
- PC’98 BIOS — AMI BIOS with hardware monitoring (temperature, voltage, fan control)
- IDE & Floppy Support — Two IDE channels (up to four devices), FDD interface for legacy storage
Technical Specifications
- Processor Socket: Intel Socket 370 (FC-PGA)
- Supported CPUs: Pentium III, Pentium II, Celeron (66/100/133 MHz bus clock)
- Max CPU Speed: 1.0 GHz
- System Memory: Up to 1 GB SDRAM (3.3V, 168-pin DIMM sockets)
- Cache: Integrated in CPU
- VGA Chipset: Asiliant (C&T) 69000, 2MB SDRAM
- Display Output: CRT or LCD panel (50-pin, 2×25 connector reserved)
- LAN Chipset: Intel 82559
- Ethernet: 10/100 Base-T (RJ-45 connector on-board)
- IDE Interface: Two channels, supports 4x HDDs with PIO mode 4 and Ultra DMA 33/66/100
- FDD Interface: One FDD controller, supports up to 2 drives
- Serial Ports: 2x high-speed RS-232, optional RS-422/485
- BIOS: AMI BIOS with PC’98 support, flash ROM
- System Monitoring: CPU temperature, voltage, cooling fan speed monitoring
- Dimensions (L × W): 338 mm × 124 mm (13.3″ × 4.9″)
- Form Factor: Full-sized PICMG 1.0 CPU Card
Typical Applications

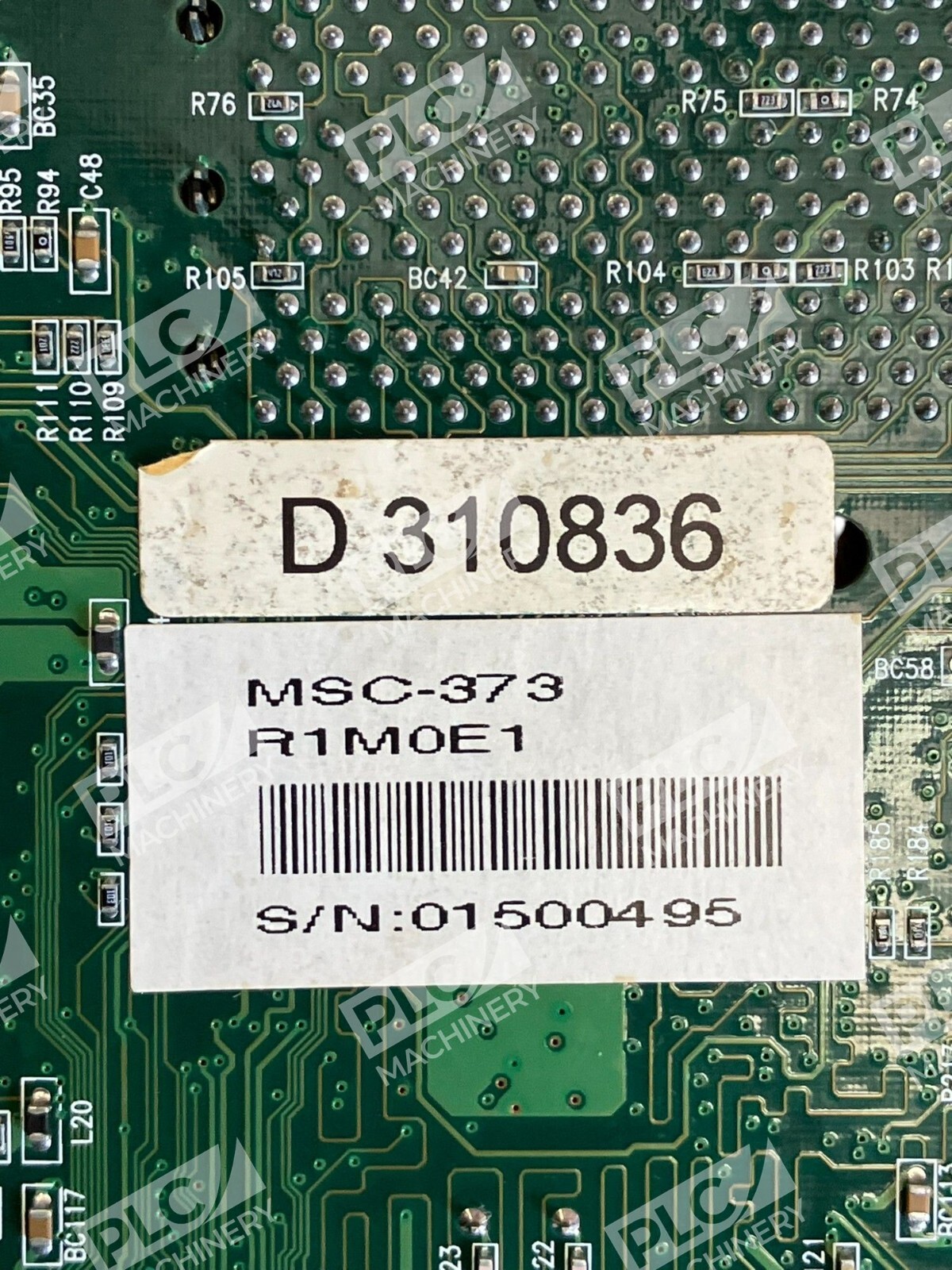

The MiTAC MSC-373 R1M0E1 is commonly deployed in:
- Legacy factory automation systems and CNC machine controllers
- Industrial test and measurement equipment
- Robotics and motion control platforms
- Embedded kiosk and vending machine controllers
- Data acquisition and monitoring systems
- Replacement boards for discontinued OEM platforms (medical, telecom, military)
Compatibility & Replacements
Compatible With
- PICMG 1.0 passive backplanes and enclosures
- Standard PC/104 and ISA-compatible peripherals
- Intel Socket 370 Pentium III, Pentium II, and Celeron processors
- 168-pin DIMM SDRAM memory (PC100, PC133)
- Parallel port printers and scanners (via optional adapter)
- Serial devices (modems, industrial sensors, barcode readers)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The MiTAC MSC-373 series is a direct replacement for legacy Socket 370 PICMG-based industrial systems requiring VGA and Ethernet I/O.
Works With
- DOS, Windows 95/98/NT/2000/XP operating systems
- Standard PC-compatible software (BIOS-level compatibility)
- Serial communication protocols (ModBus, ASCII, binary protocols)
- Ethernet-based industrial control software
- Legacy industrial automation platforms
