Overview

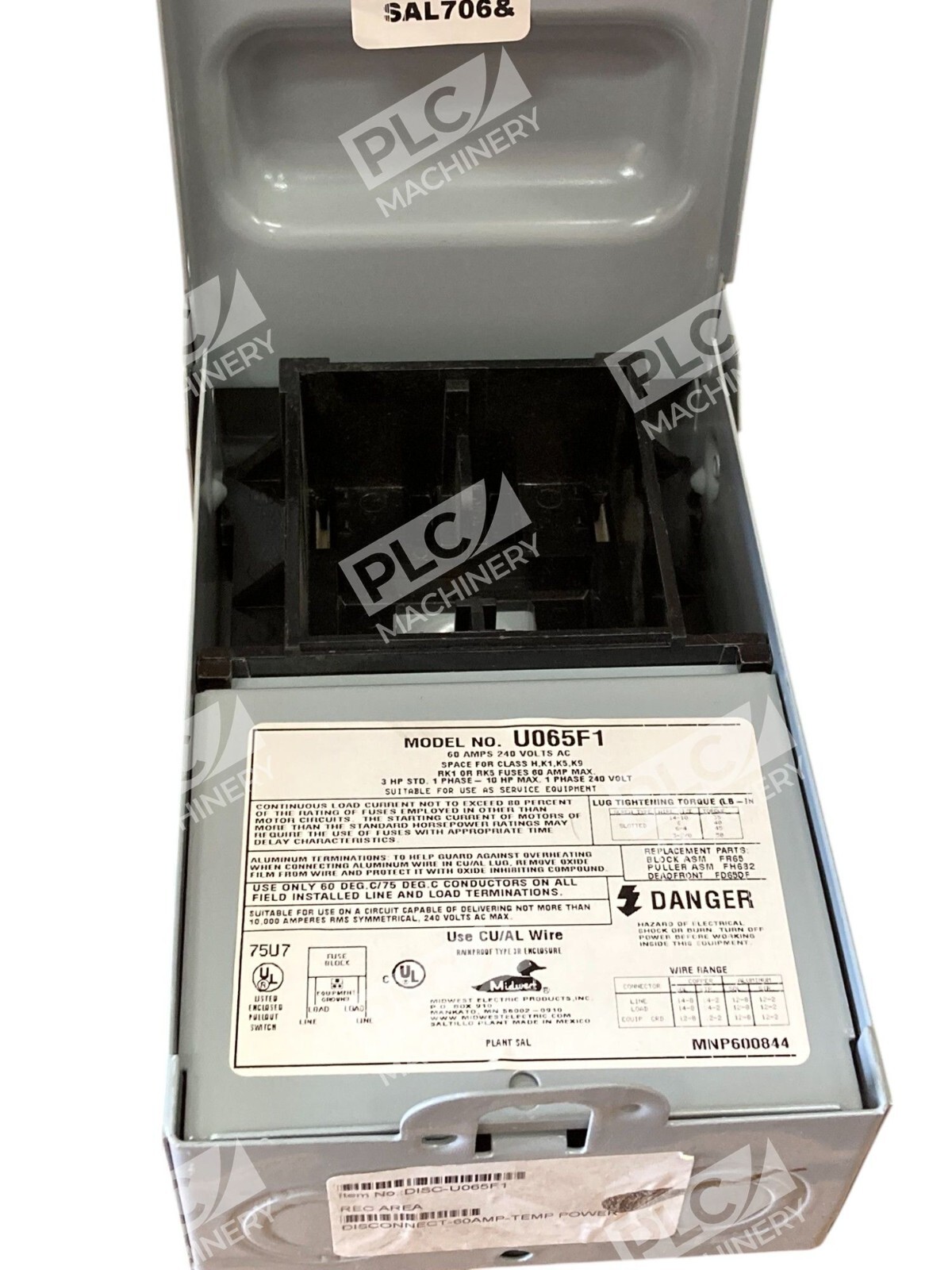

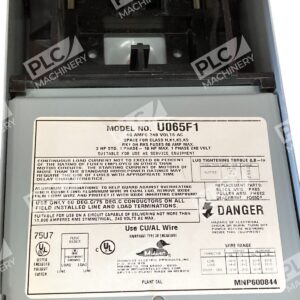

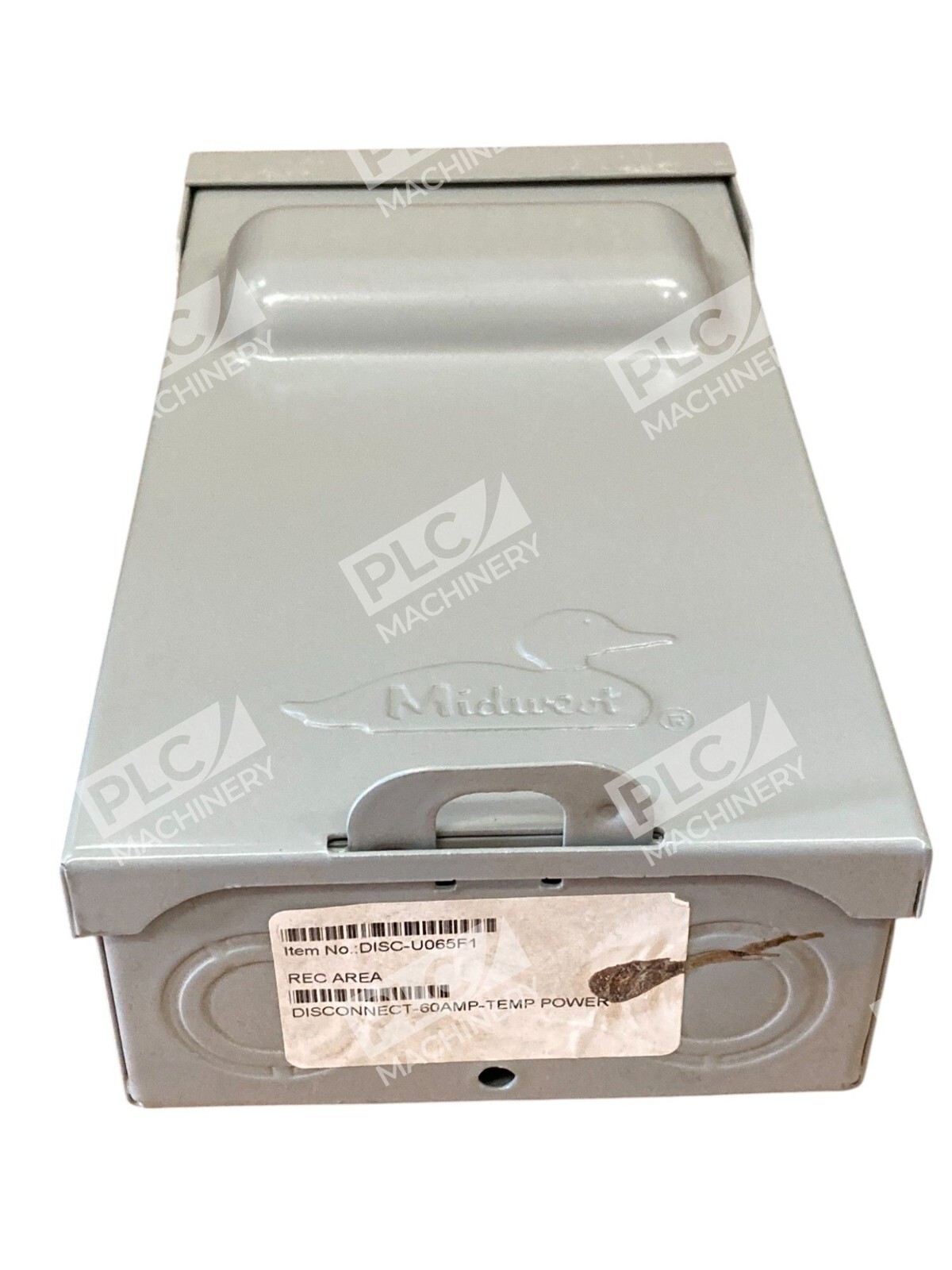

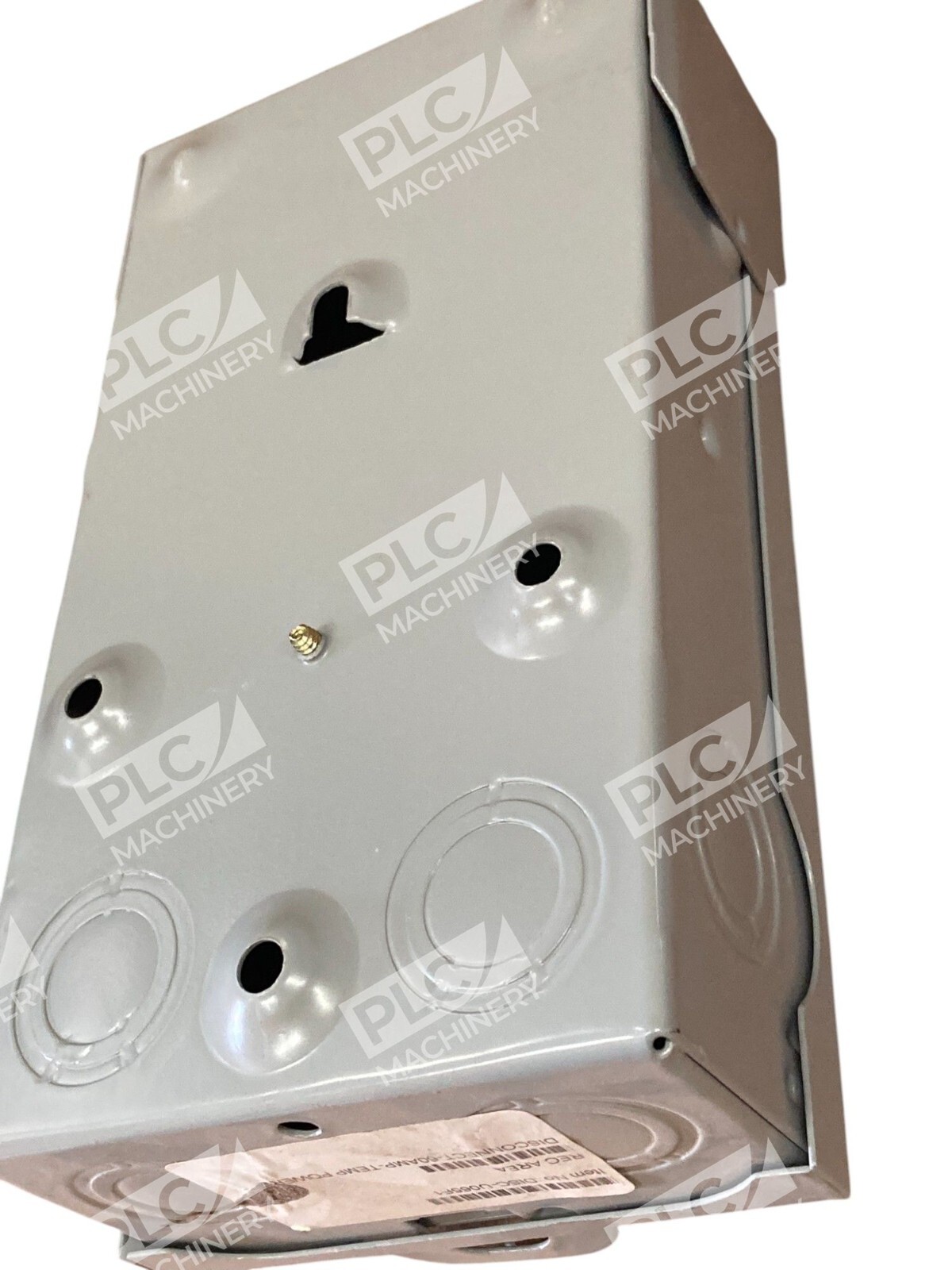

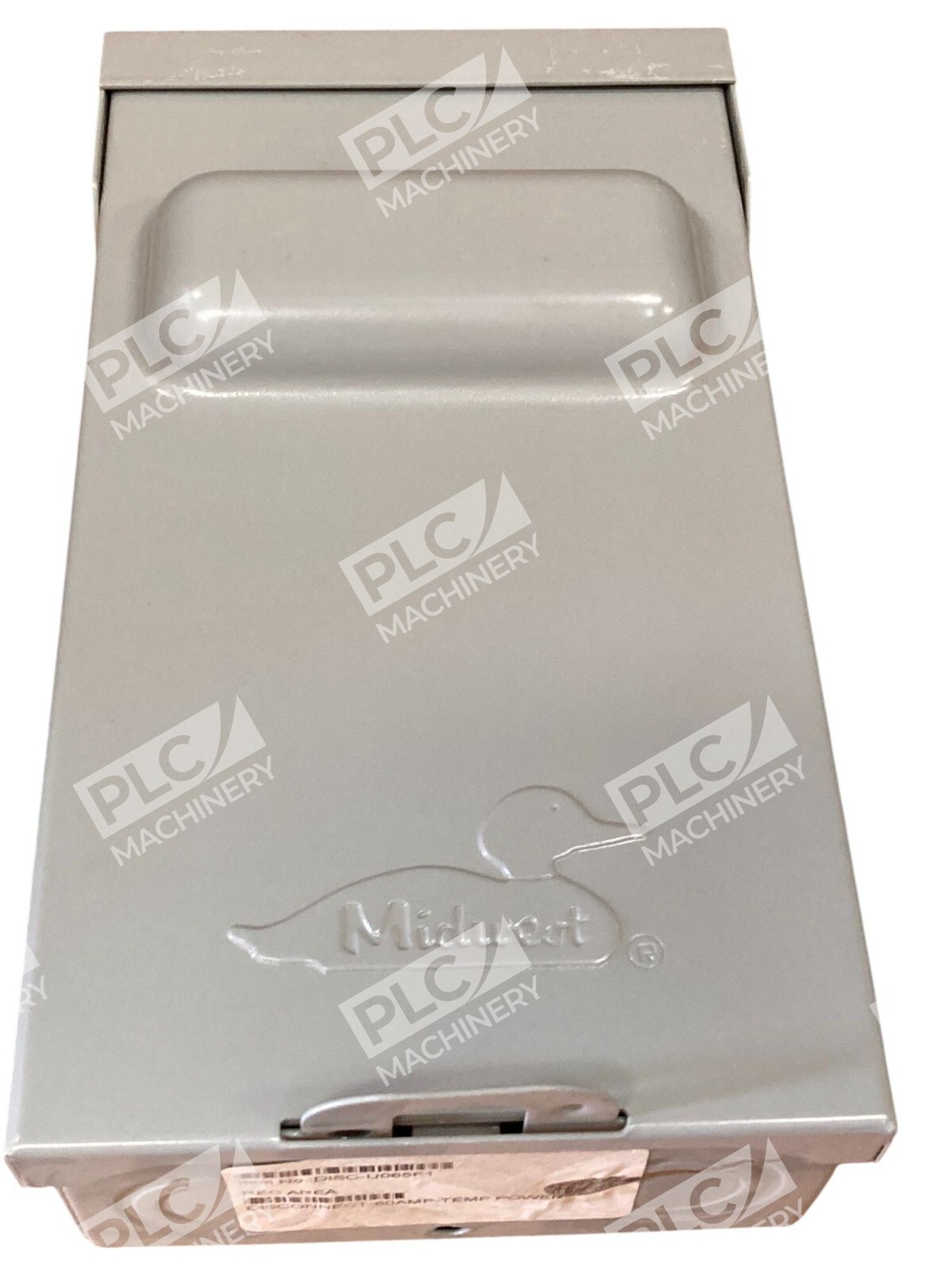

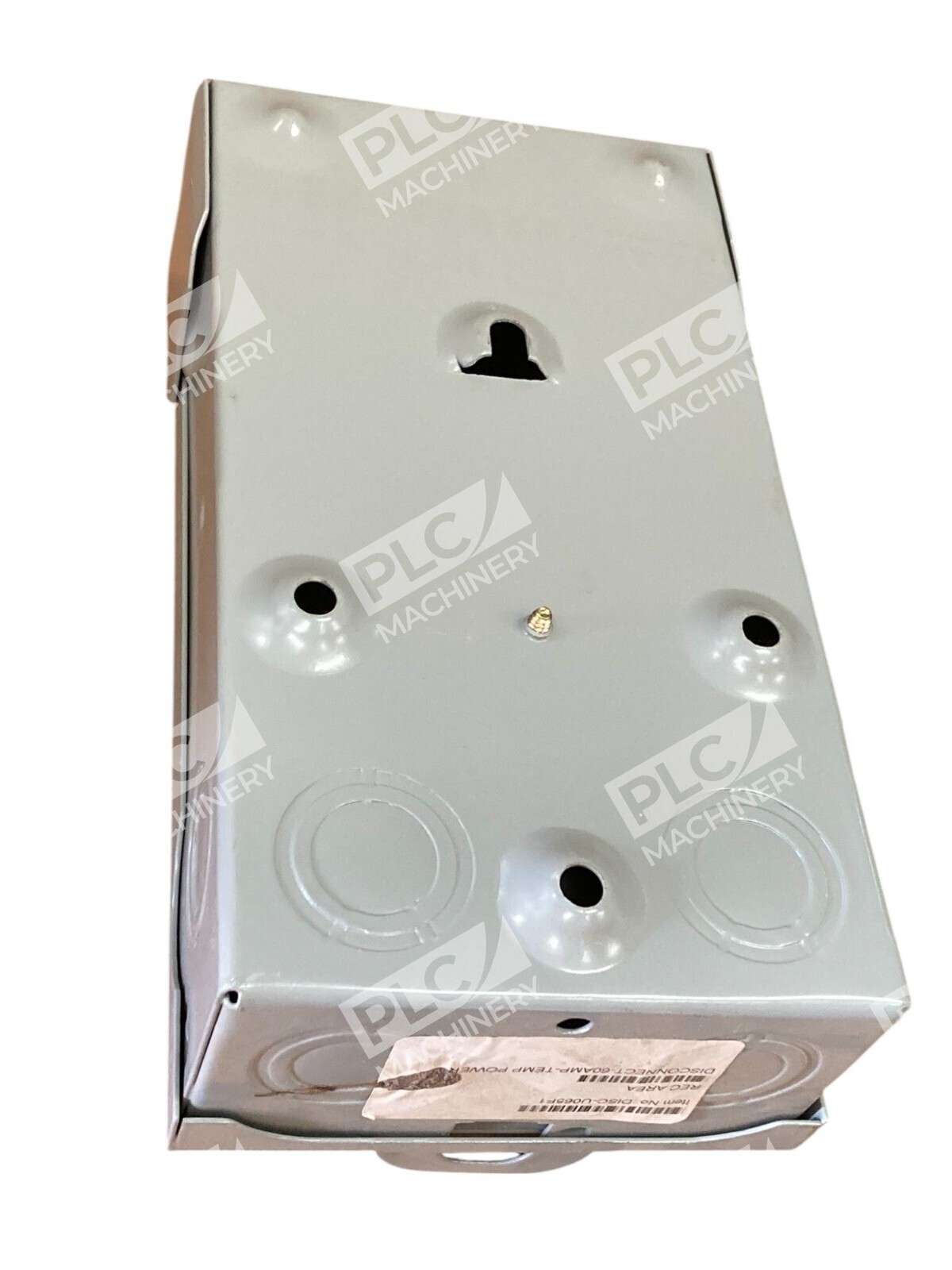

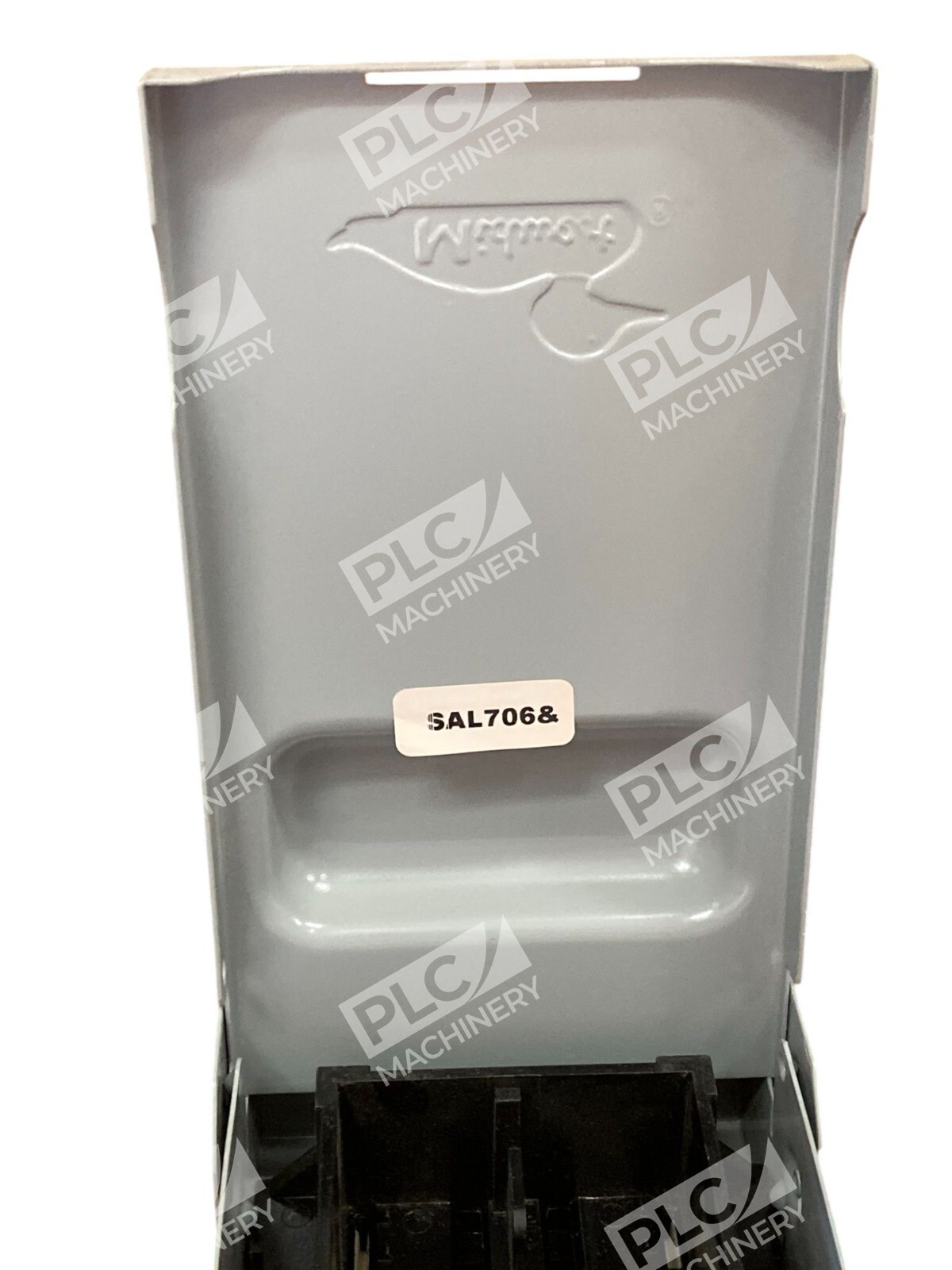

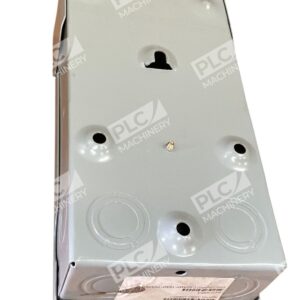

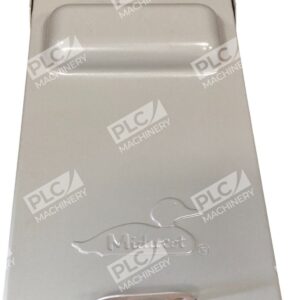

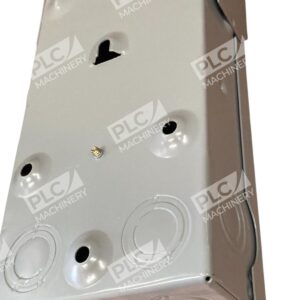

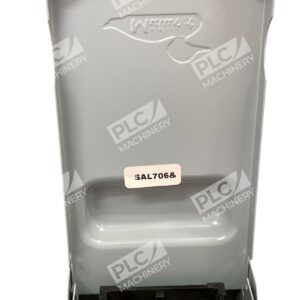

The Midwest U065F1 is a single-phase fusible pull-out disconnect switch rated for 60A at 240VAC with a maximum load capacity of 10hp. This switch features steel construction for added durability, housed in a NEMA 3R metallic enclosure. The pull-out design allows for safe, manual disconnection and maintenance of equipment while keeping the switch accessible from the front of the cabinet.
Key Features
- Pull-Out Design: Pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance
- Fusible Protection: Accepts Class H fuses for circuit protection and is suitable for single-pole, two-wire applications
- Galvanized Steel Enclosure: Built with galvanized steel and a polyester powder-coated finish, this switch resists corrosion
- Service Entrance Rated: Listed for use as service entrance
- UL/cUL Listed: Switch is UL/cUL listed for safety and compliance

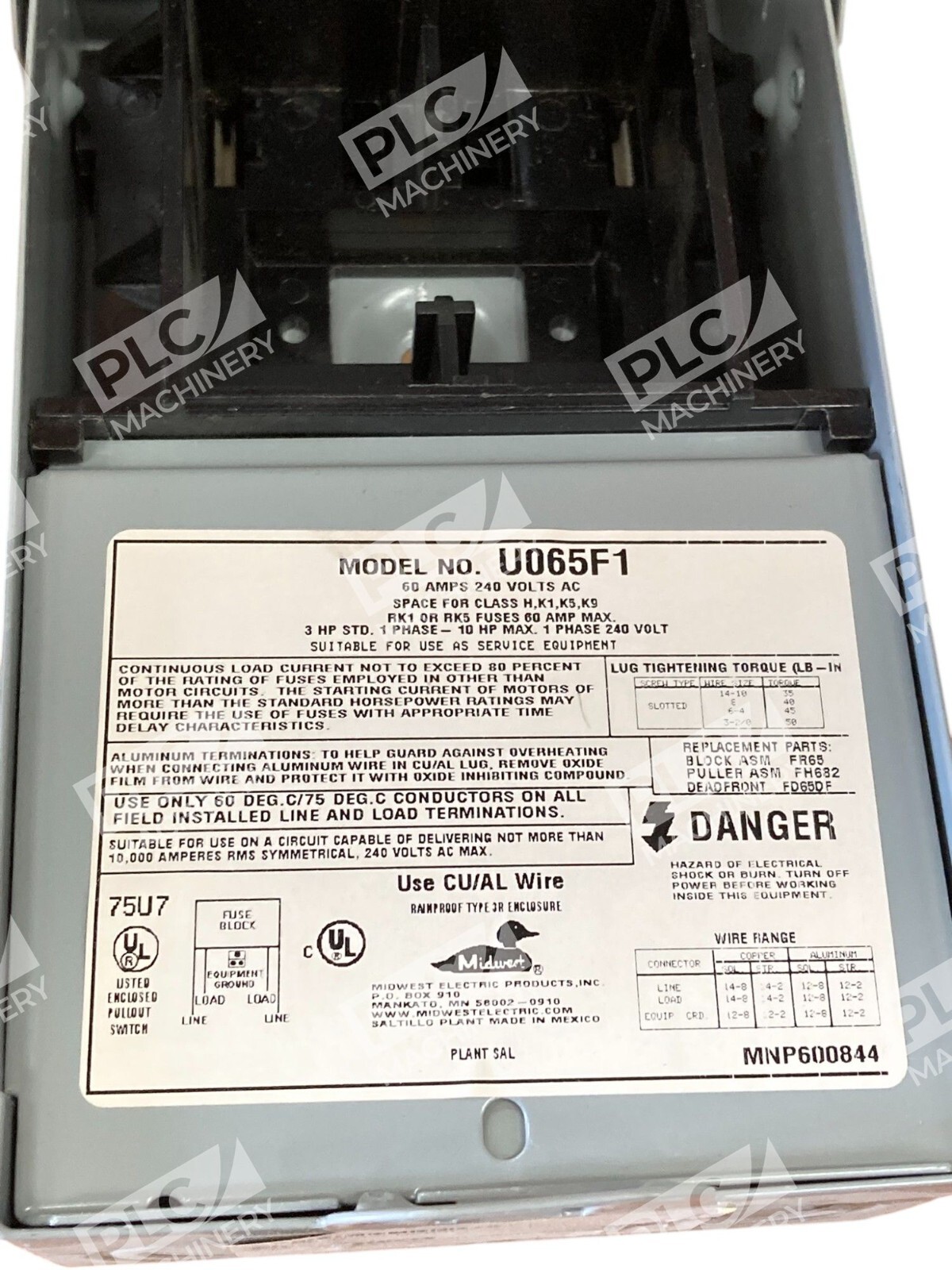

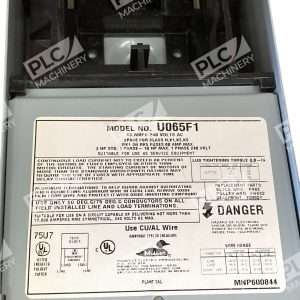

Technical Specifications
- Voltage: 240 Volts AC
- Current Rating: 60 Amps
- Phase: Single-Phase (1P)
- Horsepower Rating: 10 hp maximum load capacity
- Enclosure Rating: NEMA 3R (rain-tight, corrosion-resistant)
- Fuse Class: Class H
- Contact Form: DPST (Double-Pole Single-Throw)
- Housing Material: Galvanized Steel
- Dimensions: 5-Inch x 2-3/4-Inch x 9-Inch
- Mounting: Surface mount with pull-out handle
- Certifications: UL Listed, cUL Listed
Typical Applications
The Midwest U065F1 is commonly used in residential and light commercial air conditioning and HVAC disconnects. The switch can be used as service entrance in residential applications. It provides a safe manual disconnection point for outdoor air-conditioning units, compressors, and other equipment rated up to 10hp at 240V single-phase.
Compatibility & Replacements
Compatible With
- 240V AC single-phase circuits and equipment
- Class H fuses (standard fuse type for this switch)
- Residential and light commercial HVAC systems
- Air conditioning units rated 10hp or less
- Direct service entrance applications
Replaces / Drop-In Replacement For
- Midwest U065F1 — primary part number; verify OEM documentation for alternate equivalent models in your jurisdiction
- Confirm compatibility with your electrical installer or system integrator before ordering a replacement unit
Works With
- Class H fuses (primary fuse type)
- Standard residential and commercial electrical circuits at 240V AC
- Pull-out cartridge fuse holders
- NEMA-compliant disconnect enclosure systems
